New handmade mica-globe for 1934 Aladdin model A.

Discussion in 'Fettling Forum' started by Titoo, Feb 14, 2021.

  1. Titoo

    Titoo France Subscriber

    Offline
    Joined:
    Jul 23, 2016
    Messages:
    454
    Location:
    FRANCE: 25 Franche Comté
    Hi all,

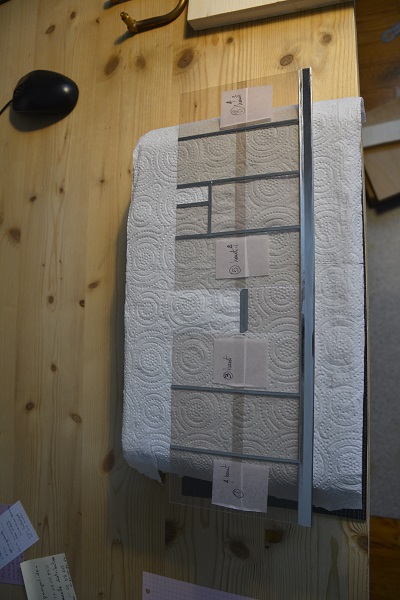

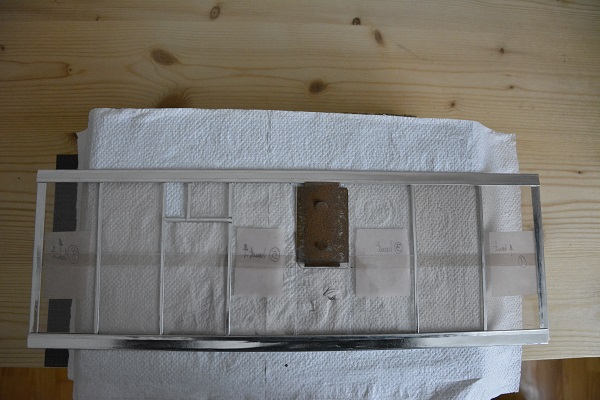

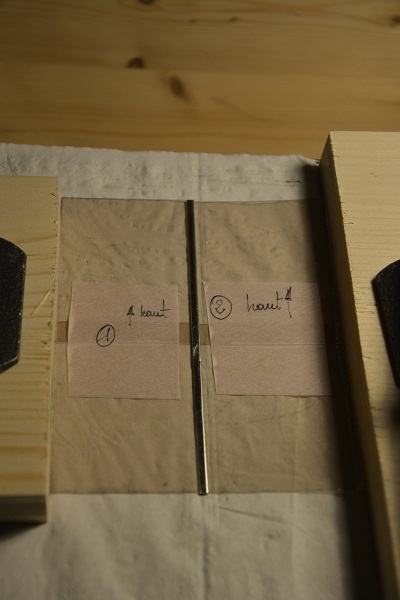

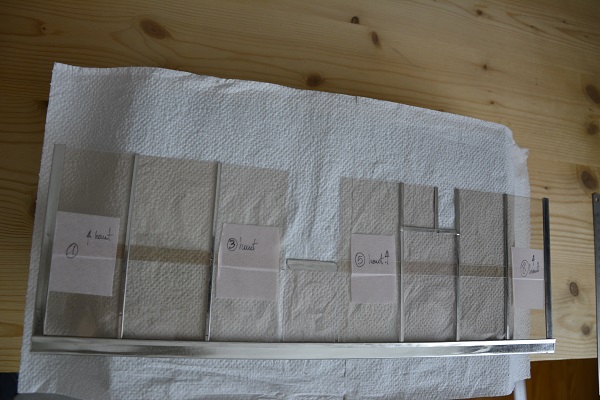

    A "new" handmade mica-globe for my 1934 Aladdin model A.

    Regards,

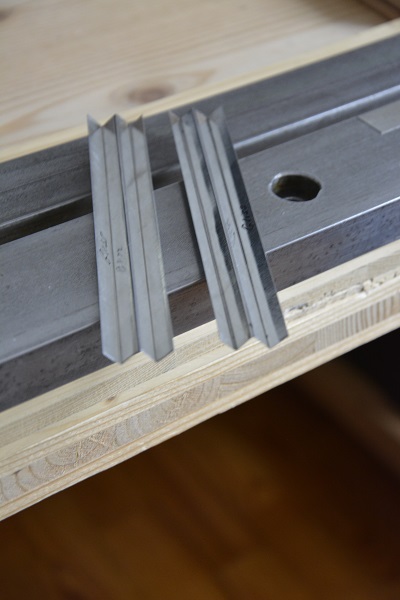

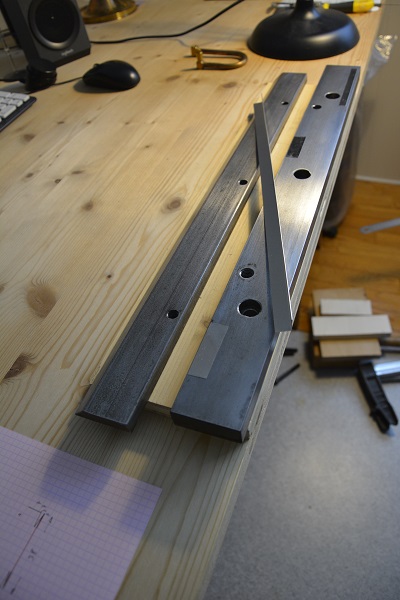

    Titoo. _DSCd299.jpg _DSCd298.jpg _DSCd297.jpg _DSCd296.jpg _DSCd295.jpg _DSCd294.jpg _DSCd293.jpg _DSCd291.jpg _DSCd290.jpg _DSCd289.jpg _DSCd288.jpg _DSCd287.jpg _DSCd286.jpg _DSCd285.jpg _DSCd284.jpg _DSCd283.jpg _DSCd282.jpg _DSCd281.jpg _DSCd280.jpg _DSCd279.jpg _DSCd278.jpg _DSCd276.jpg _DSCd275.jpg _DSCd274.jpg _DSCd273.jpg _DSCd272.jpg _DSCd271.jpg _DSCd270.jpg _DSCd269.jpg _DSCd267.jpg _DSCd266.jpg _DSCd265.jpg _DSCd264.jpg _DSCd263.jpg _DSCd262.jpg _DSCd261.jpg _DSCd260.jpg _DSCd259.jpg _DSCd258.jpg _DSCd256.jpg


  2. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    792
    Location:
    Brighton UK
    Very smart - you must be very pleased with it !

  3. R100

    R100 United Kingdom Subscriber

    Offline
    Joined:
    Jul 26, 2019
    Messages:
    340
    Location:
    High in the Linconshire mountains
    That is a real neat job. Well done indeed. How did you find working with mica? What material is the frame made of?

  4. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    11,183
    Location:
    Shetland Islands UK..
    Well fettled!:thumbup:

  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,025
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Titoo

    That is an excellent post!:thumbup::thumbup::thumbup:

    Can you let us know what the thickness of the metal is that you used on the frame?

    Tony

  6. Walkop Australia

    Offline
    Joined:
    Aug 28, 2020
    Messages:
    201
    Location:
    Bathurst, Australia
    Magnificent result, looks like new from the factory.

  7. Hanzo

    Hanzo Subscriber

    Offline
    Joined:
    Feb 2, 2016
    Messages:
    346
    Take a bow, that is top class .

  8. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    897
    Location:
    Whyalla. South Australia. Australia
    @Titoo , great tutorial, you have a good skill set, looks like a bought one.
    If you don’t mind can you share with the group more info on the mica and where to source it from and the metal tin plate?
    For those who don’t know mica is a bit hard to come by in some places, I searched in Australia, nothing, found some of decent quality and size in Germany

  9. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,981
    Location:
    Toowoomba Australia
    Excellent post on the manufacture of a mica chimney/globe. Well done.
    Cheers
    Pete

  10. James K

    James K United Kingdom Subscriber

    Offline
    Joined:
    Nov 10, 2017
    Messages:
    376
    Splendid work, and a lovely lamp now looking beautiful.

  11. george United States

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    2,894
    Location:
    USA
    What a splendid job!!:D/:thumbup::thumbup:

  12. Michel

    Michel Subscriber

    Offline
    Joined:
    Jan 26, 2011
    Messages:
    1,158
    Location:
    56 France
    :thumbup::thumbup: Comme d'habitude :clap:

  13. Titoo

    Titoo France Subscriber

    Offline
    Joined:
    Jul 23, 2016
    Messages:
    454
    Location:
    FRANCE: 25 Franche Comté
    Hi all,

    Many thanks for your interest.

    I will try to answer all questions.

    But i must express my strong feelings for this Aladdin Model A kerosene lantern.
    I bought it is a kind madness in the technical drawning lantern.
    I looked at Neil's Aladdin Model A in CPL gallery for a long time, then i hunted this Aladdin Model A kerosen lantern for several years......
    The day i found it was in the middle of the night around AM 3.00 and two weeks later it was on my desk....
    What a strange feeling to see her near me now.

    Answer to questions:
    I bought in the United States of America an old stock of mica for several globes.
    The color of this old stock is smoky gray brown with an incredible aged discoloration look it completes the soul of the lantern as on the first day.
    It should be noted that the old mica sheets is expensive around 90€ for one globe.

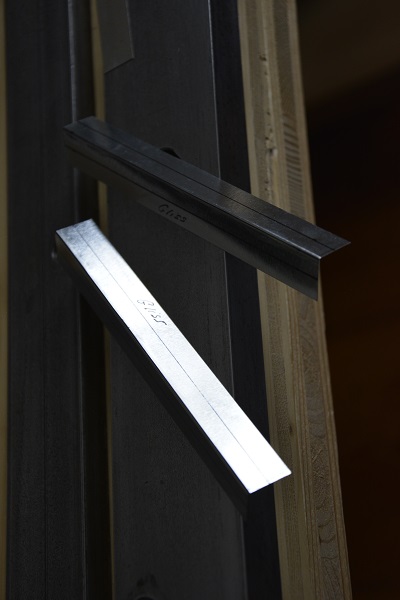

    The frame is made of mid steel tinned with 99,9 % pure tin for a thikness of 0,20 mm or 0,008" the sheets of 300 X 500 mm per set of 10 sheets.
    The supplier is here:Feuille de métal 500mm x 300mm x 0.2mm | RS Components

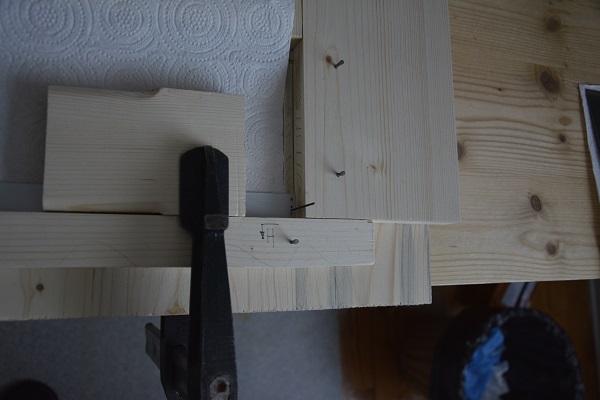

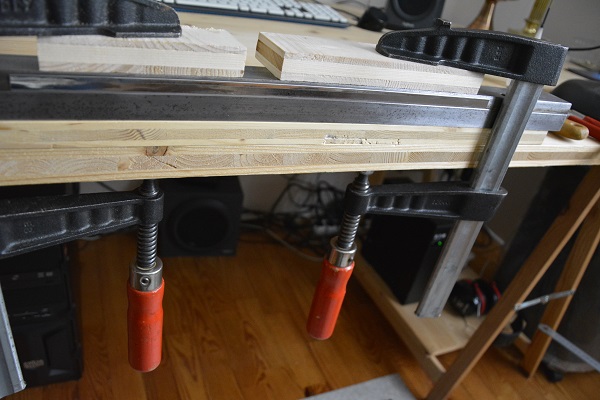

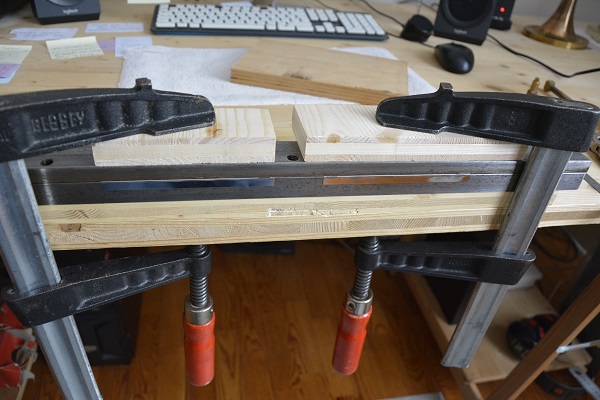

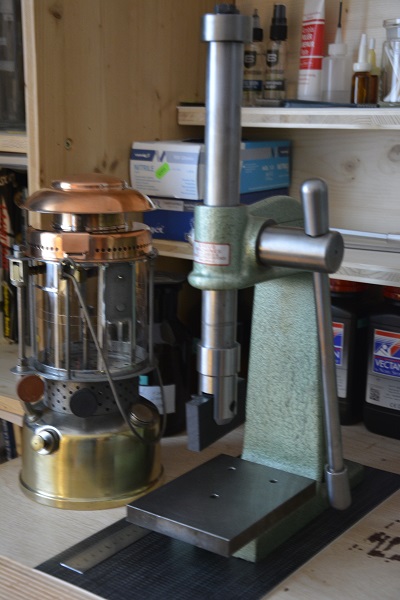

    Prepare the plan of the globe to rebuilt with great patience and delicacy, using the appropriate homemade tools.

    Regards,
    Titoo.

    _DSCd301.jpg _DSCd302.jpg _DSCd300.jpg

  14. rollschmidts

    rollschmidts Subscriber

    Offline
    Joined:
    Jan 8, 2011
    Messages:
    158
    Very good ! Thank you for sharing.

  15. george United States

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    2,894
    Location:
    USA
    Great lantern, too! Very hard to find!

  16. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,025
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Thank you, @Titoo.

    Cheers

    Tony

  17. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    897
    Location:
    Whyalla. South Australia. Australia
    @Titoo thank you for sharing

  18. Tom Pedersen

    Tom Pedersen Denmark Subscriber

    Offline
    Joined:
    Nov 13, 2019
    Messages:
    127
    Location:
    Denmark
    FANTASTIC;;;;;;

    TOM

  19. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    1,779
    Location:
    Scottish Highlands
    Superb work, very very impressed!

  20. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,278
    Location:
    Somersby, New South Wales, Australia
    Very impressive , Titoo. :thumbup:

  21. george United States

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    2,894
    Location:
    USA
    I wish I could do that good! Wonderful job!:D/:thumbup::thumbup:

  22. MrSys

    MrSys China Subscriber

    Offline
    Joined:
    Dec 1, 2020
    Messages:
    19
    Location:
    China,Yixing
    Great job.
    I learned the way.
    Thanks for your share.

  23. Scott D

    Scott D United Kingdom Subscriber

    Offline
    Joined:
    Aug 10, 2020
    Messages:
    200
    Location:
    Yorkshire, UK
    That is fantastic, well done! For the verticals steel supports between the panes did you just crimp them tight? On the chimney I bought from Fred there appears to be a spot crimp used. I’ve found some dimple pliers that I think will work but I’ve not started yet.
