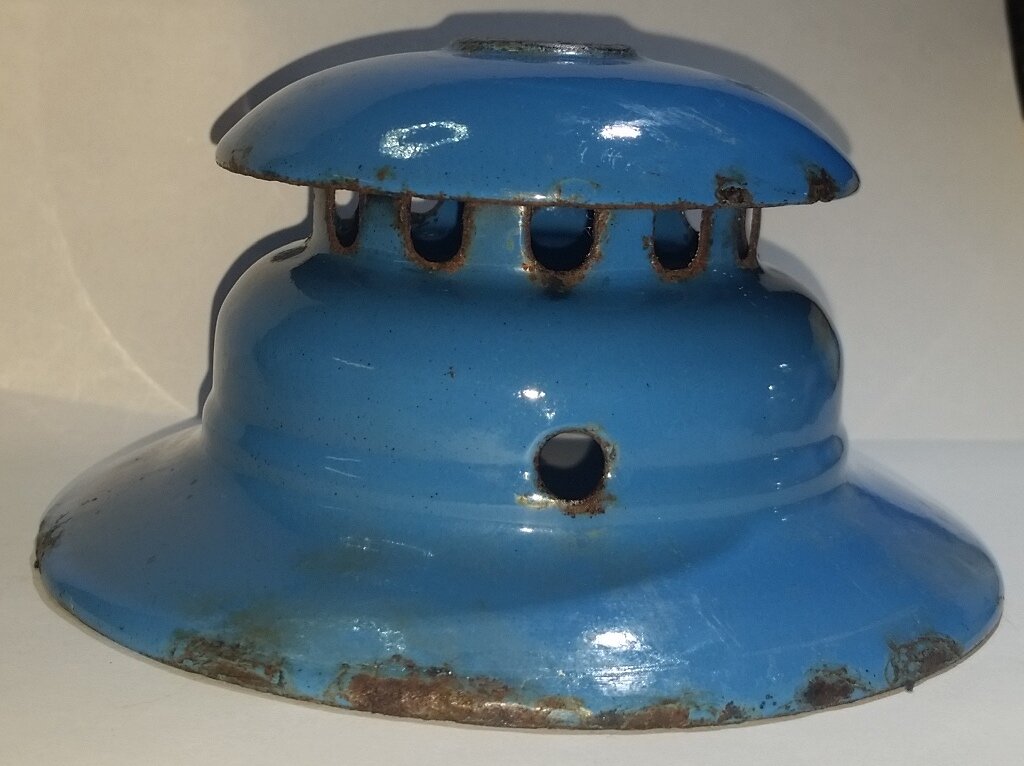

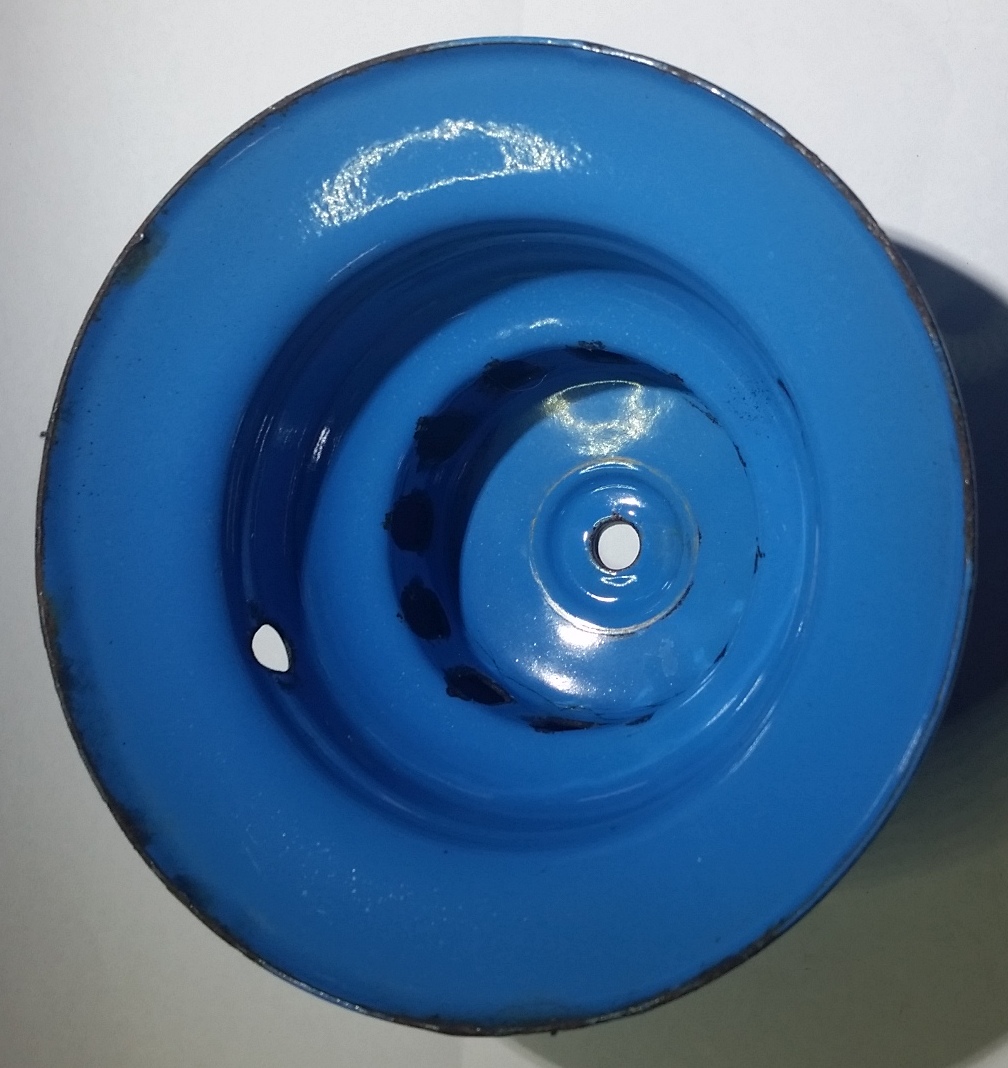

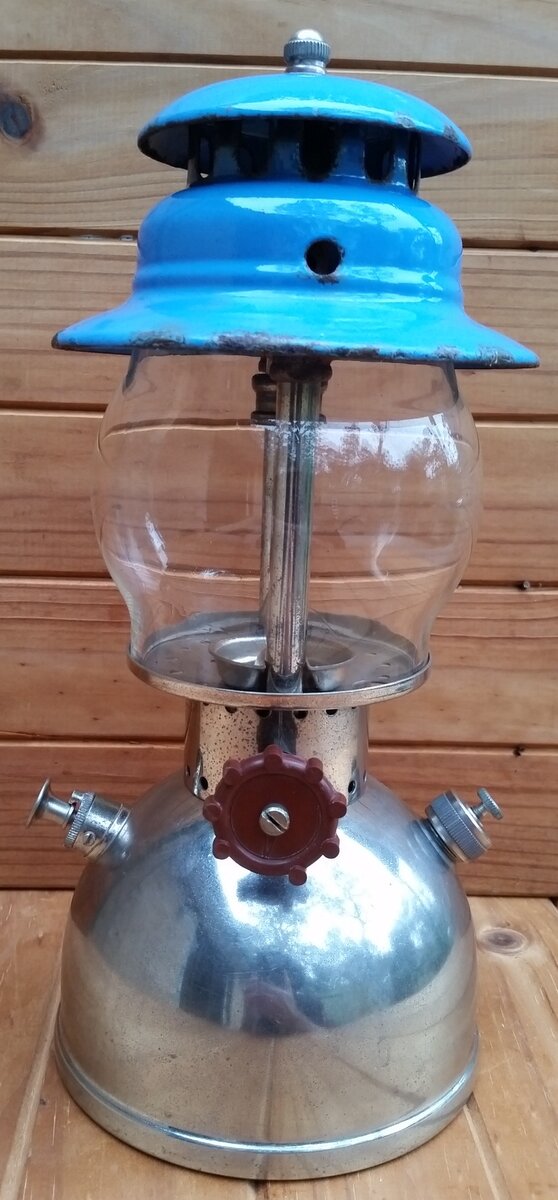

    Here is my recently fettled Norman Lantern manufactured by Austramax.

    Based on the advertising shown here https://classicpressurelamps.com/th...from-june-1947-to-dec-1950.19068/#post-157984 I believe the lantern was sold between 1947 and 1950.
    I believe the construction is the consistent to the early Austramax 3/300

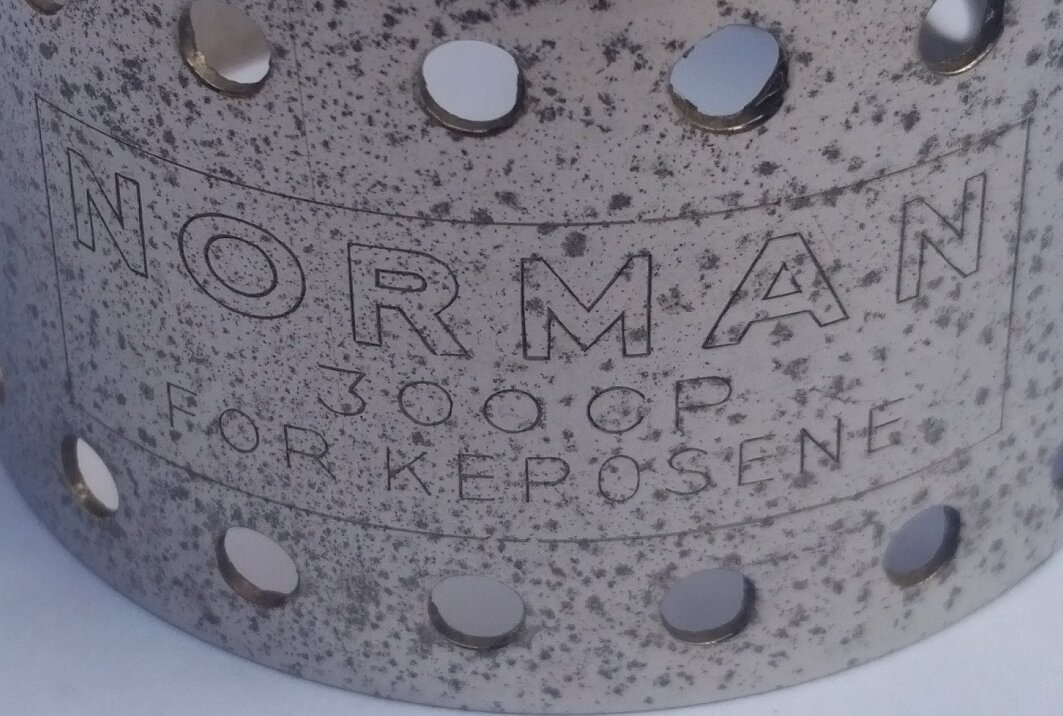

    The collar is stamped
    NORMAN
    300 CP
    FOR KEROSENE

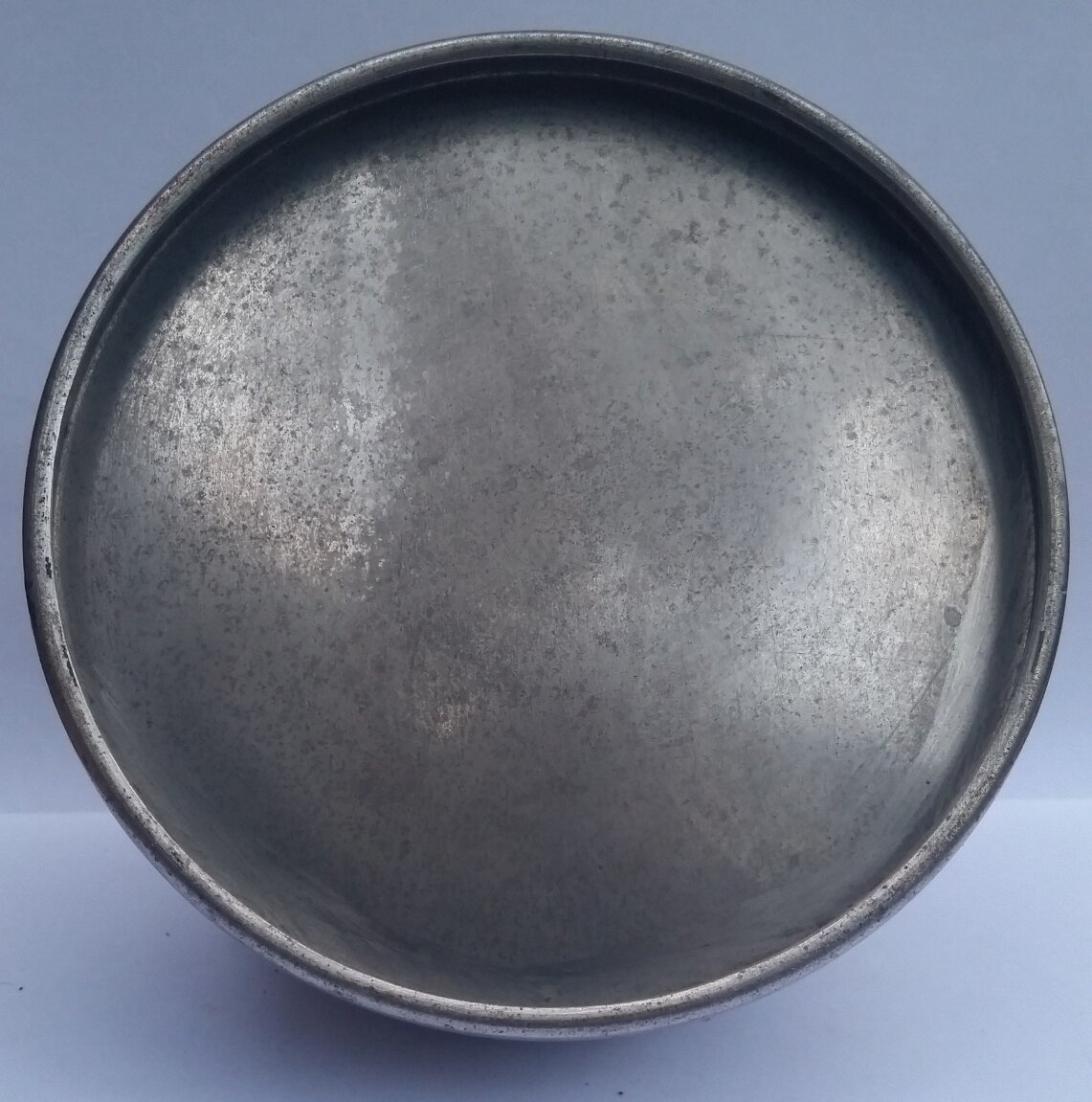

    No stampings on the tank.

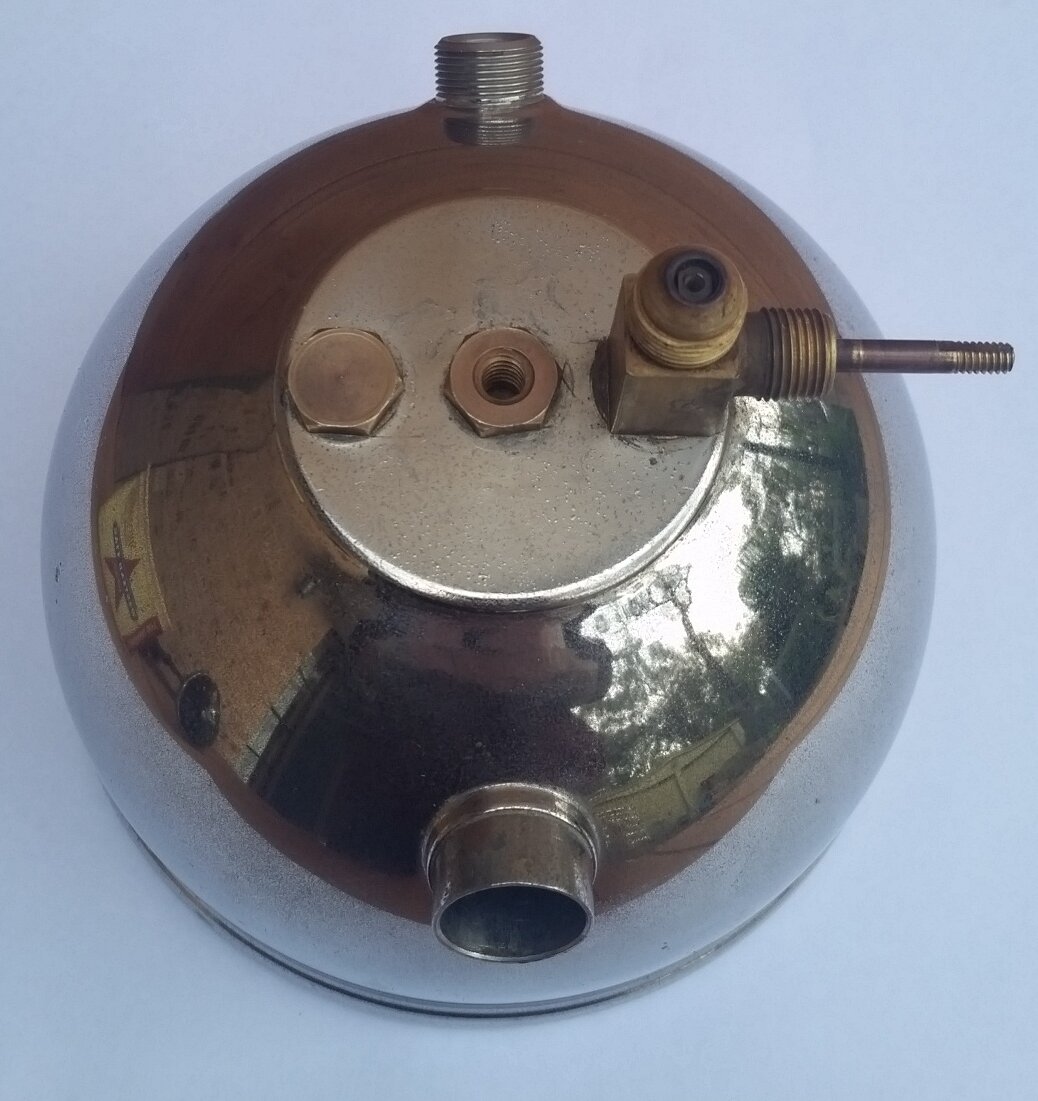

    The tank has two threaded holes for fitting the fuel system, one is blocked.

    It is not stamped PATPEND

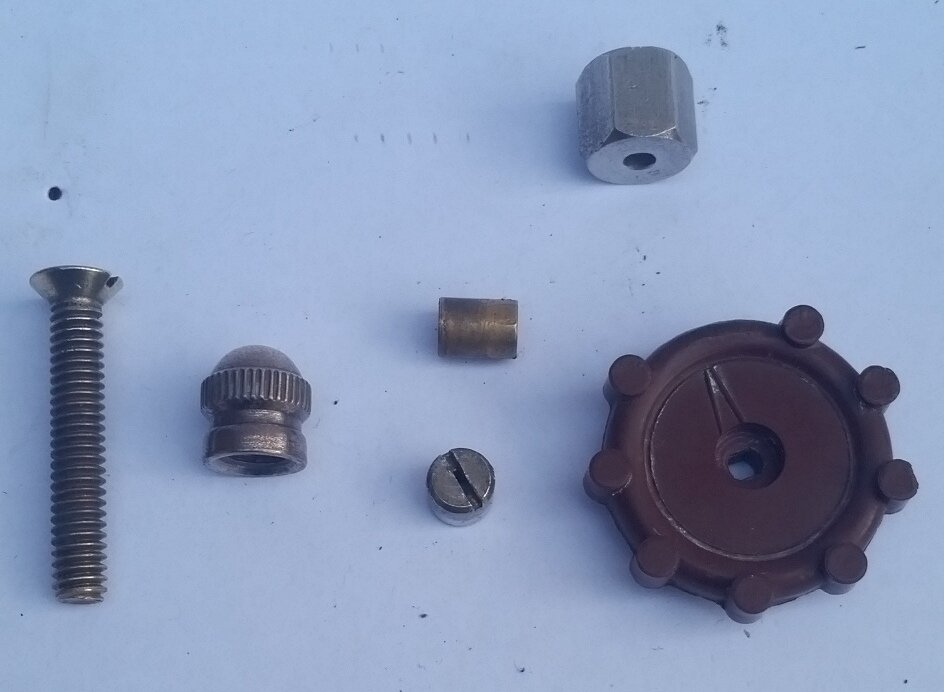

    The cage is secured with a countersunk screw.

    Looking at the other two examples in the Reference Gallery I believe it was manufactured after Austramax Norman/Patent Pending stamped PATPEND and before Pre 53 Austramax " Norman " with NORMAN stamped on the tank.

    There was no bail with the lantern.

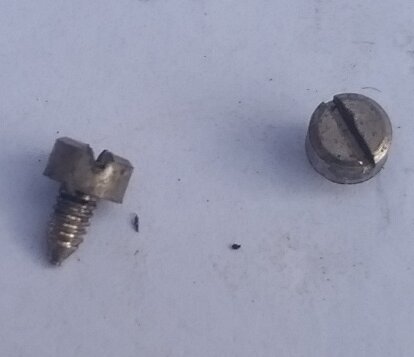

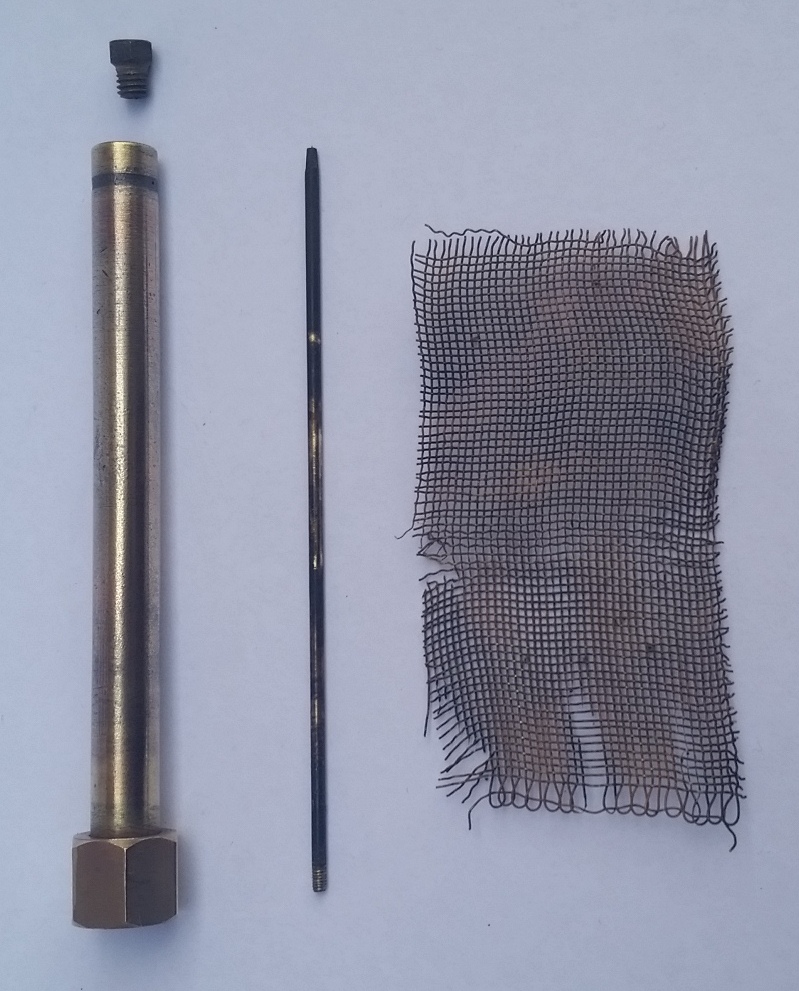

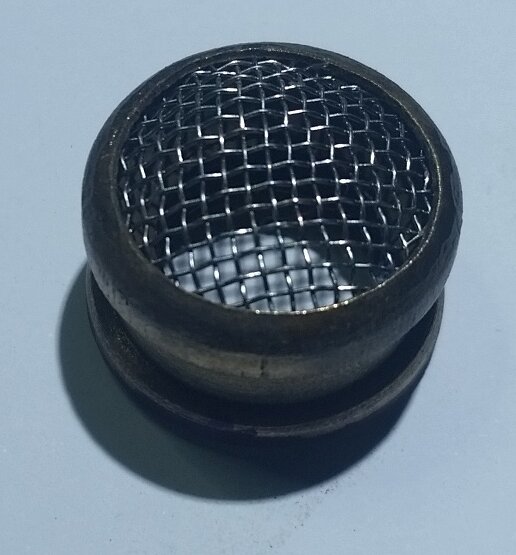

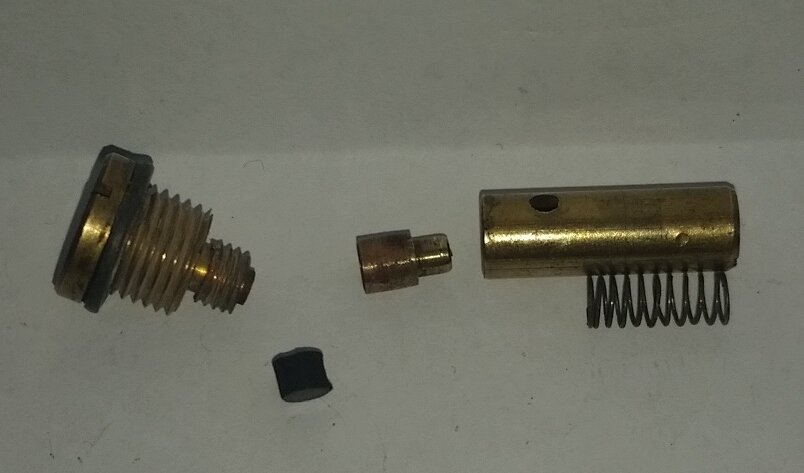

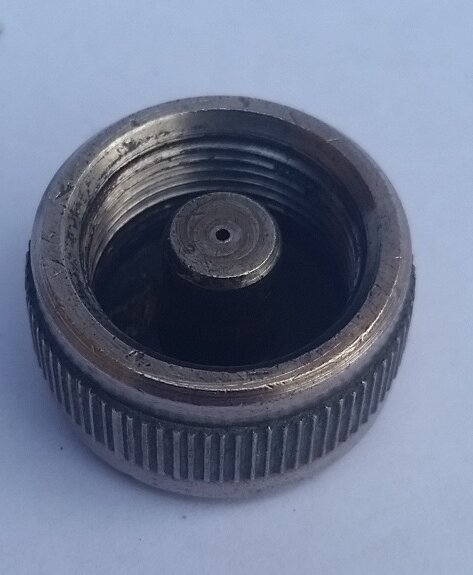

    Fitted new seals and stainless steel mesh in nozzle. Broken cleaning wire still needs replacing.


    1.jpg 2.jpg 3.jpg

    4.jpg 5.jpg 6.jpg 7.jpg 8.jpg

    9.jpg 10.jpg

    11.jpg 12.jpg 13.jpg 14.jpg


    16.jpg 17.jpg

    18.jpg 19.jpg

    20.jpg 21.jpg

    22.jpg 23.jpg 24.jpg

    25.jpg 26.jpg

    27.jpg 28.jpg 29.jpg

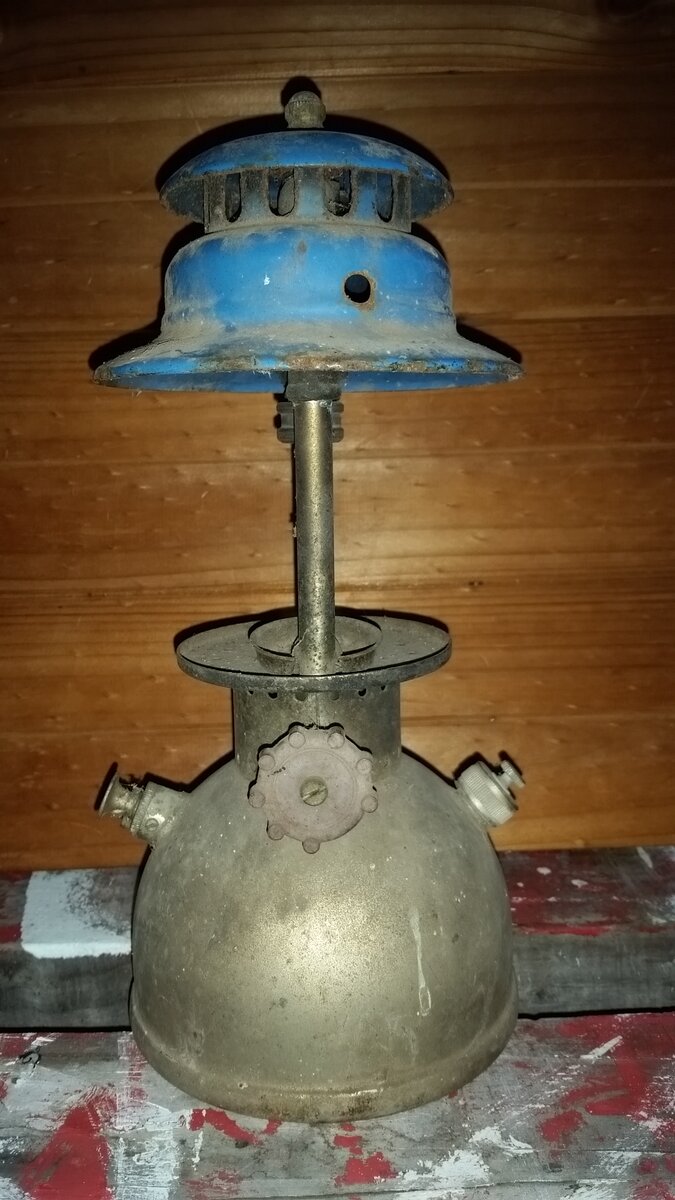

    As found


  2. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,940
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Nice one, Martin.

    I like the blue hooded Austramaxes.

    Have you lit it yet?

    Tony

  3. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,687
    Location:
    Somersby, New South Wales, Australia
    @Tony Press

    Thanks Tony, I picked it up locally off "Marketplace". It was in a box of 3 mixed lanterns.
    The blue hood was what sparked my interest. Didn't realise it was a Norman until I got it home and started to clean it up.

    Haven't lit it yet, needs a new nipple and cleaning needle (on order)

  4. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    1,137
    Location:
    Whyalla. South Australia. Australia

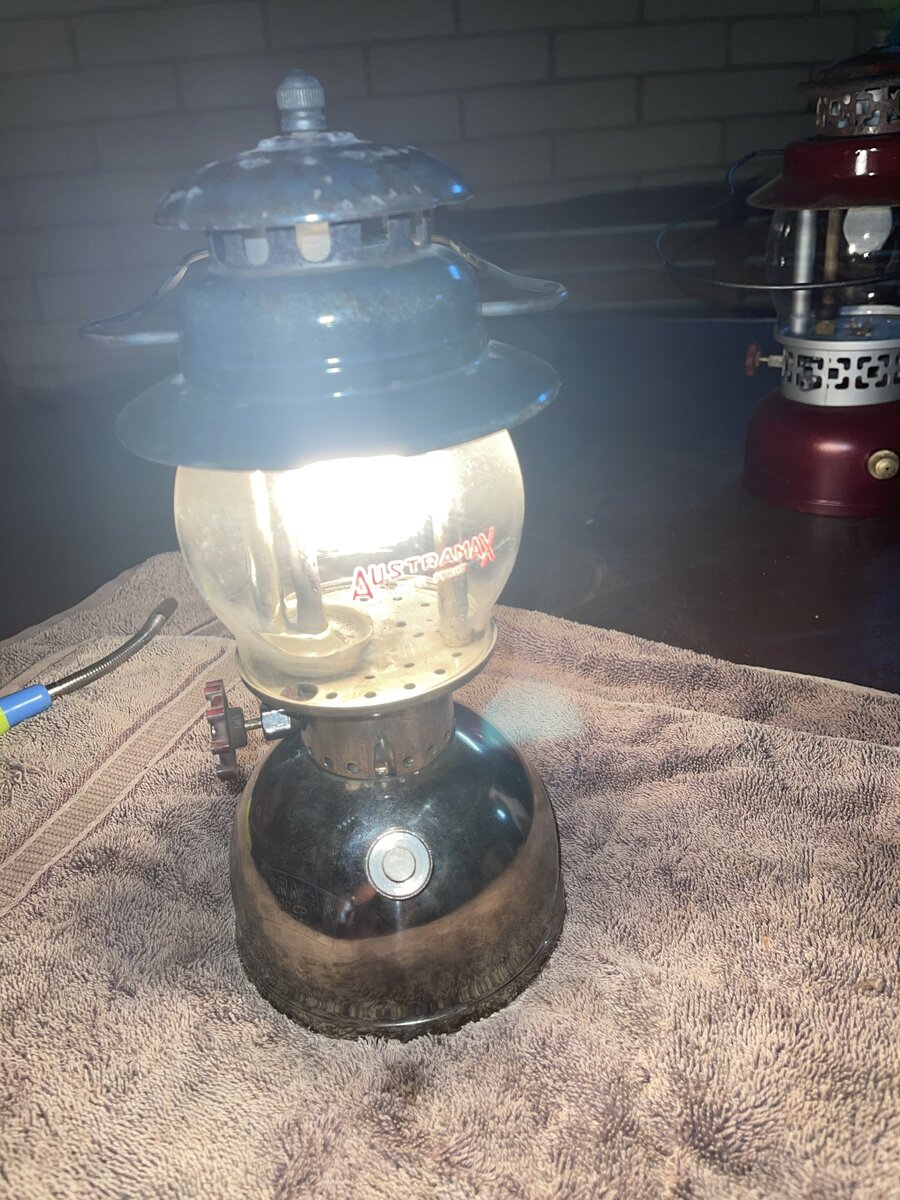

    The Norman by Austramax. Very Cool lanterns, here’s mine, bludge globe with red lettering, I named this one Ronny after a great long time friend, I only light it up for the anniversary of his passing

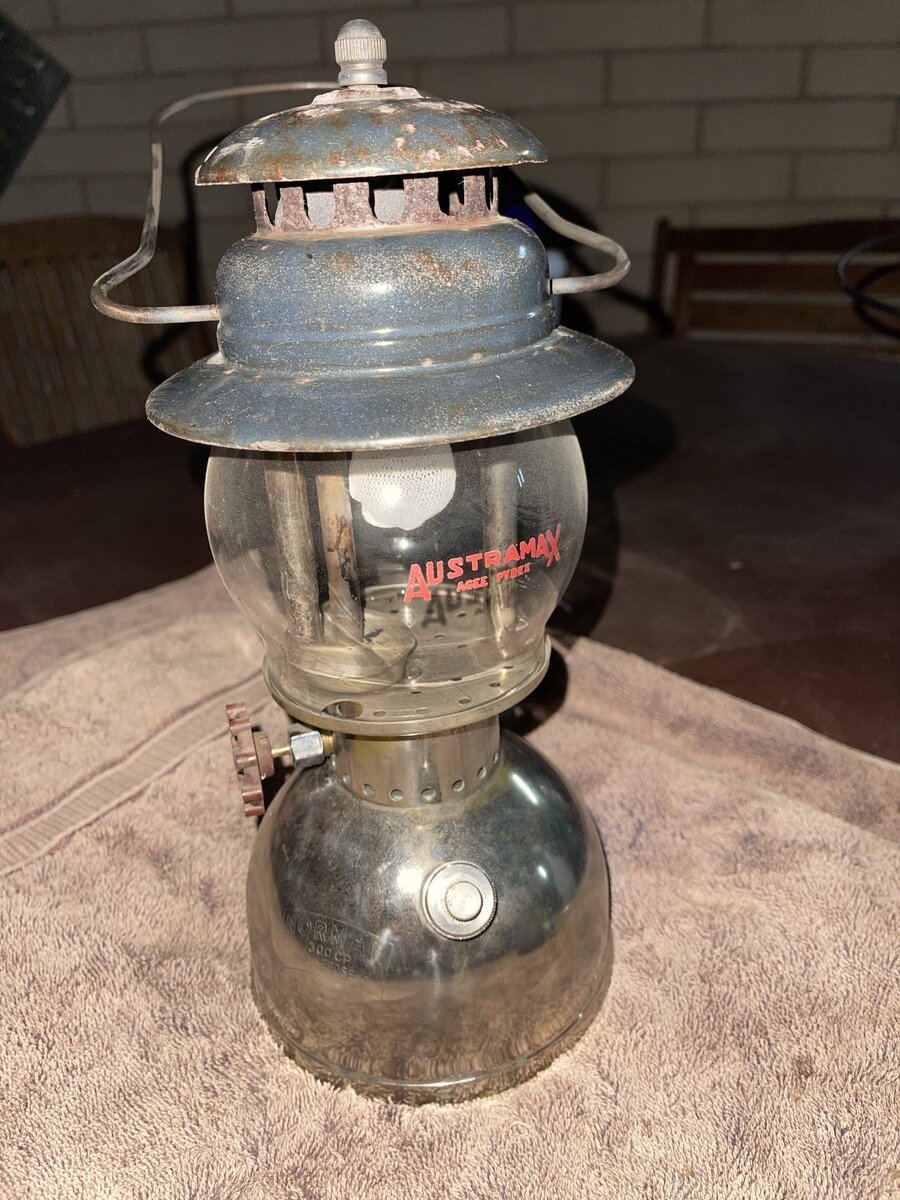

    Original as found condition E8E0558A-C04C-4DDF-9967-09AC4F79B63F.jpeg 4AF2020E-9D2C-49A3-8B4D-79E86850DFDB.jpeg

  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,940
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Darryl Durdin

    It would be good to get some detail photos of your Norman in the Reference Gallery as there aren’t many there. In particular the stamping, pressure release, etc. That will help getting their production periods sorted.

    Cheers

    Tony

  6. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,862
    Damn that's a good looking lantern!

  7. Walkop Australia

    Offline
    Joined:
    Aug 28, 2020
    Messages:
    450
    Location:
    Bathurst, Australia
    Interesting sequence of lantern history.

  8. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    12,378
    Location:
    Shetland Islands UK..
    Good finds.:thumbup::thumbup:

  9. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    3,418
    Location:
    Toowoomba Australia
    The NORMAN, to me, is a new and pleasantly surprising variant of an already good Australian lantern.
    Now, it’s another lantern that I need to find.
    Thank you for sharing
    Cheers
    Pete

  10. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,687
    Location:
    Somersby, New South Wales, Australia
    I think I got this wrong.
    The construction is consistent to the last version of the 2/300 with the collar stamped above the pump. Austramax 2/300 (V.4?)

  11. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,940
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Thanks for that clarification, Martin.

    I see that the Norman that Darryl posted in this thread has a different "Norman" stamp on the tank. That's why I asked for it to be put in the Reference Gallery.

    Cheers

    Tony

  12. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,889
    Location:
    Copenhagen, Denmark
    I'm not sure you did. The fact that there is no "PAT PEND" stamp on the top of the tank would indicate that it matches with the first of the 3/300 variations. The stamp on the collar only though is a bit of a conundrum. As this is produced for someone else, maybe it doesn't quite follow the same pattern as the 'real' Austramax lamps.

  13. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,687
    Location:
    Somersby, New South Wales, Australia
    @Nils Stephenson

    Thanks Nils, I shouldn't second guess myself when looking at a phone screen. :-k

  14. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    2,134
    Location:
    ..here
    Very striking lantern.. I like that blue hood a lot.. great job :thumbup:
