one way to trim down a glass globe

Discussion in 'Fettling Forum' started by F. bruce kuda, Mar 11, 2023.

  1. F. bruce kuda United States

    Offline
    Joined:
    Jun 2, 2021
    Messages:
    147
    Location:
    burlington wisconsin USA

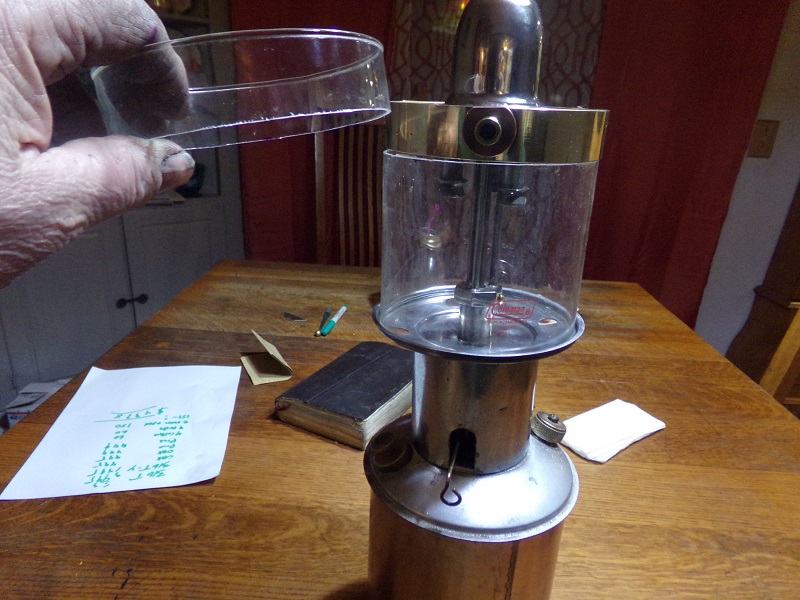

    an almost foolproof way to cut a glass globe with out breaking it! trim a globe.jpg

  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    15,039
    Location:
    Shetland Islands UK..
    Great improvisation!:thumbup::clap::clap::thumbup:

  3. pete sav

    pete sav Founder Member

    Offline
    Joined:
    Sep 7, 2010
    Messages:
    1,027
    Nice to know your method looks like it works well
    Cheers pete

  4. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    3,717
    Location:
    Somersby, New South Wales, Australia
    Thanks Bruce. :thumbup:

  5. Warwick Beaumont South Africa

    Offline
    Joined:
    Sep 30, 2021
    Messages:
    96
    Location:
    South Africa
    Thanks Bruce

    Great Tip

    I shall be sure to add to my homemade gig
    The gig then to go in the water bath

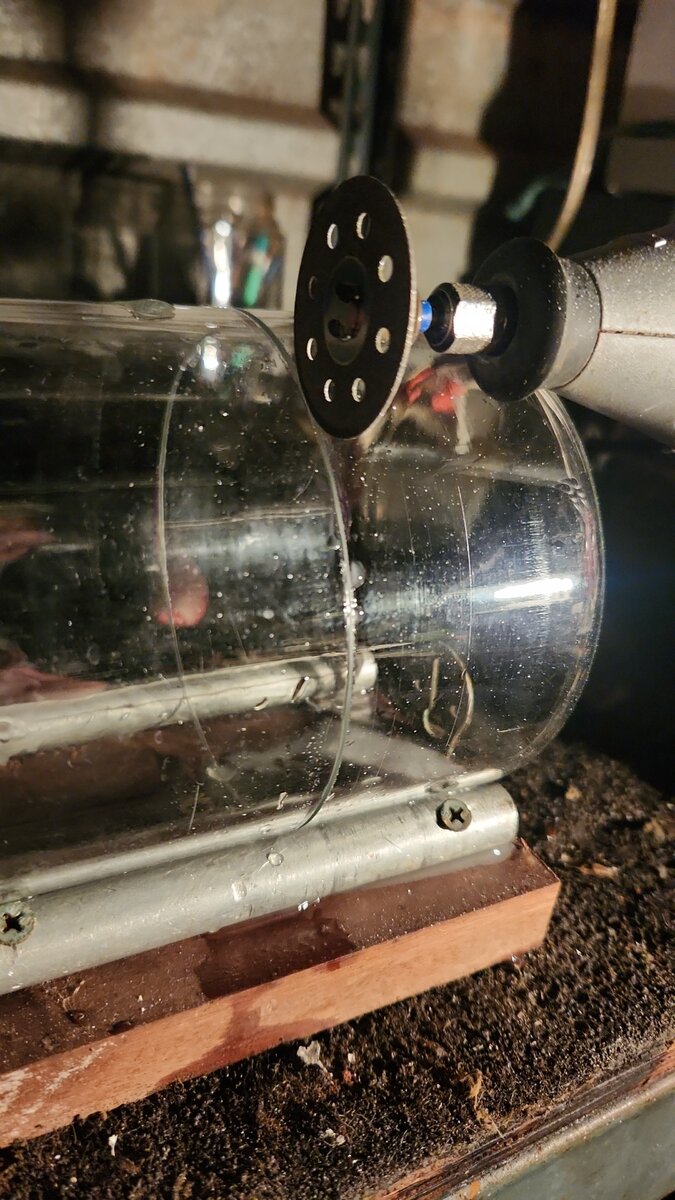

    Pretty rough

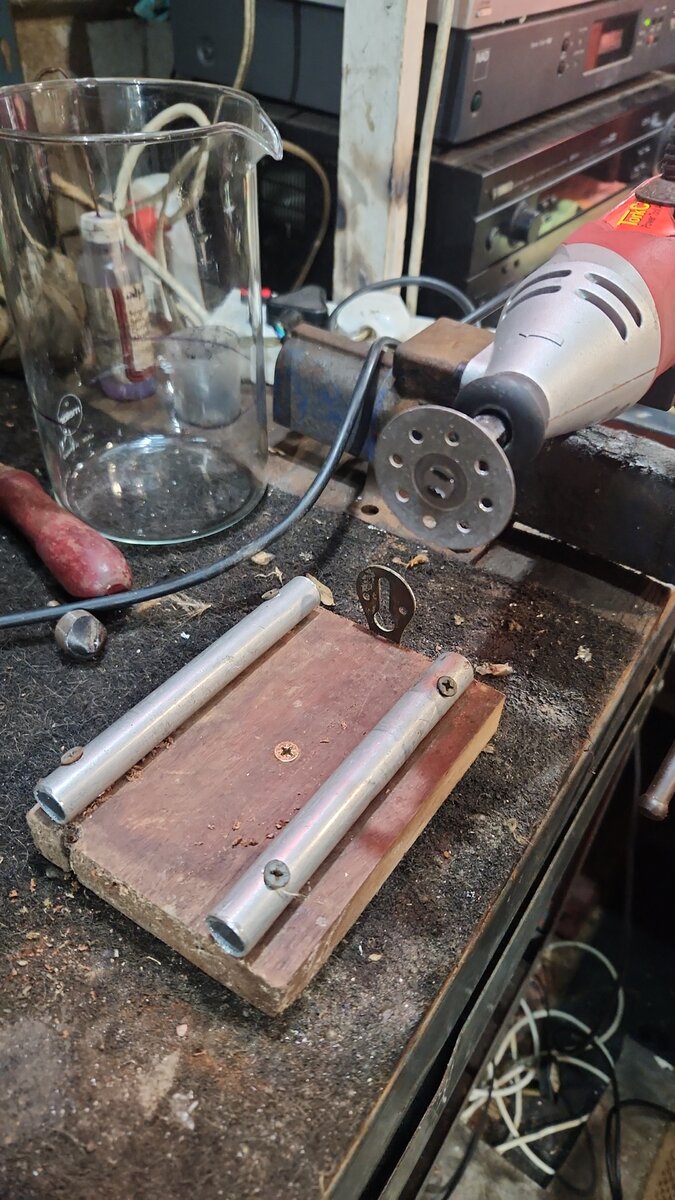

    Basic Plank plus 2 guide bars - and a key hole as a stopper

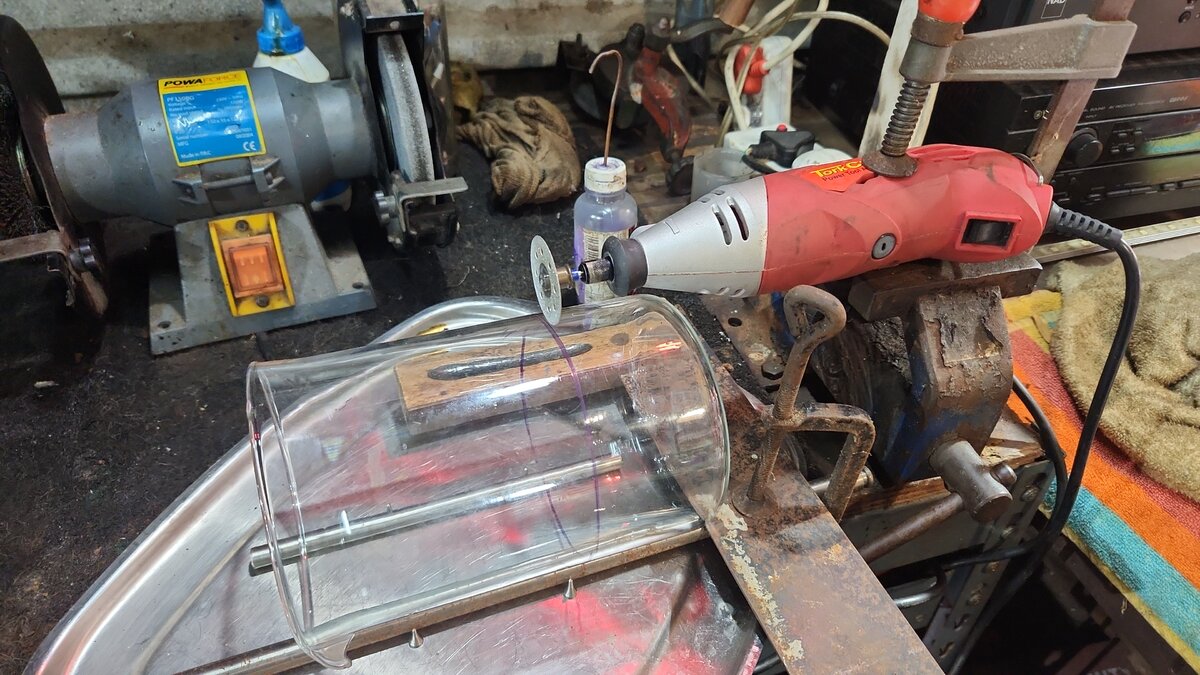

    Diamond cutting disc - fairly "loose' fitting in the vice

    This so left hand rotates the glass and right hand squeezing the water from a drip bottle as well as applying a little down pressure on the cut grove



    Angle of cutting wheel was good for splatter

    Will be sure to try next time with the whole lot in the bath

  6. F. bruce kuda United States

    Offline
    Joined:
    Jun 2, 2021
    Messages:
    147
    Location:
    burlington wisconsin USA
    @Warwick Beaumont ~~ thats a better set up than I had-- I like control of the cutting wheel-- I just hand held mine !

  7. Warwick Beaumont South Africa

    Offline
    Joined:
    Sep 30, 2021
    Messages:
    96
    Location:
    South Africa

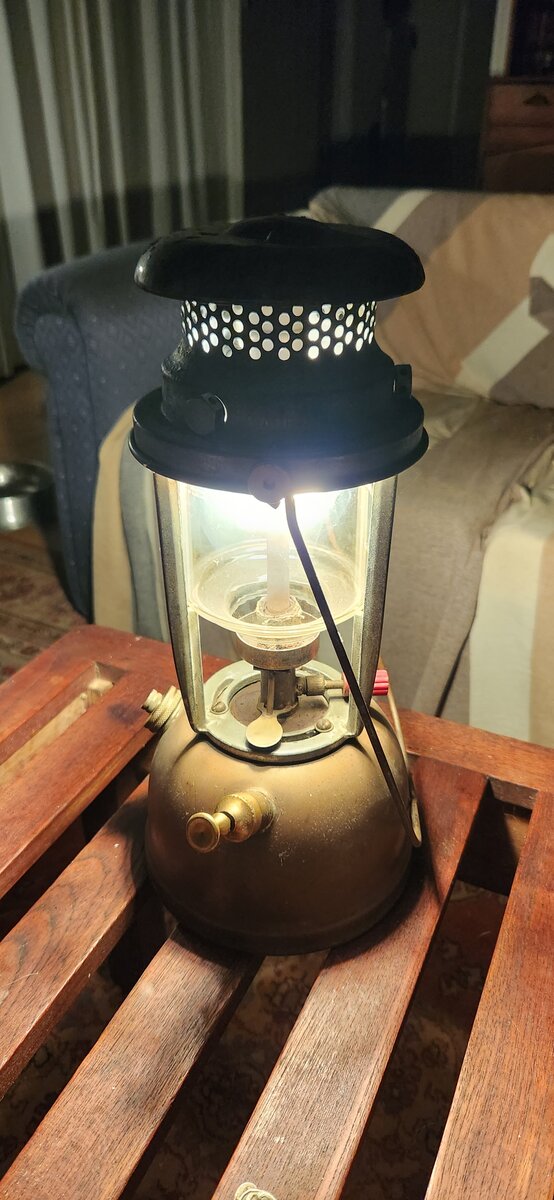

    Together we shall overcome :D/ 16787664564496390273660890138706.jpg

    Got loadsheding here in South Africa

    So great excuse to light up for a brew :lol:

  8. Warwick Beaumont South Africa

    Offline
    Joined:
    Sep 30, 2021
    Messages:
    96
    Location:
    South Africa

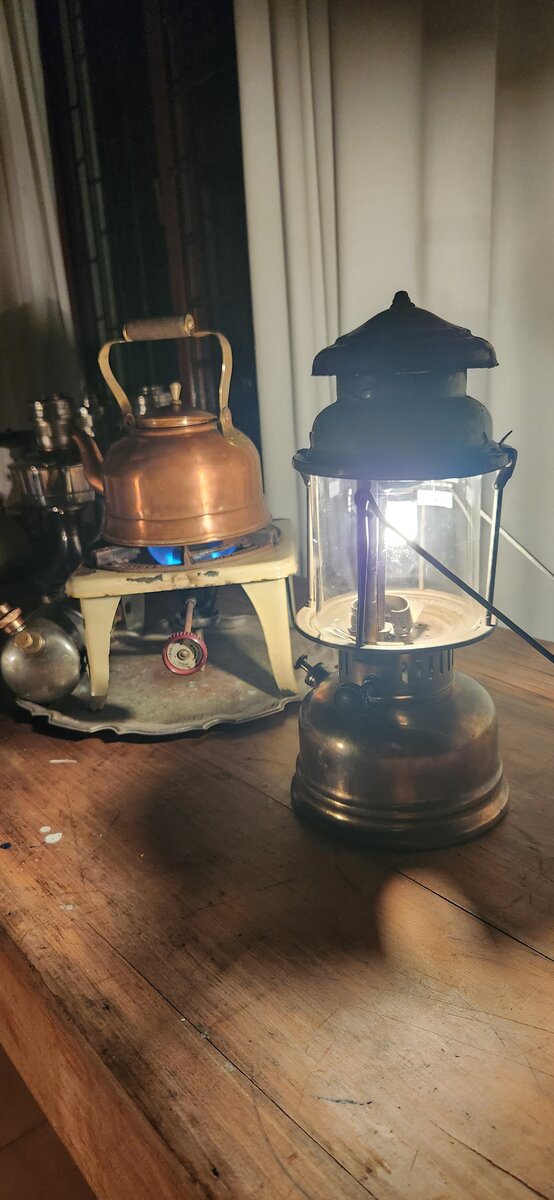

    Here the glass I cut on a Radius 119

    Time for another cuppa

    So fired up the the Radius R10

  9. Warwick Beaumont South Africa

    Offline
    Joined:
    Sep 30, 2021
    Messages:
    96
    Location:
    South Africa
    Sorry forgot to mention

    A French press was the glass donor
    Handy as the pouring spout makes a great access for adding spirits and lighting the fuel

    Glass is scarce down south so me make plans

  10. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    3,230
    Location:
    .. next to the Chester & Birkenhead Rlwy
    @F. bruce kuda @Warwick Beaumont
    Thanks for sharing your glass cut tips, it’s always good to see how others do things.. in the home engineering and the much quoted necessity being the mother of invention :thumbup:

    I do remember @phaedrus42 sharing similar tips and also @ColinG used French press glass (we call them cafetières) I think he mentioned about the spout helping with fuel/lighting access

    @Warwick Beaumont did you fit a primus spirit cup in your 119 above, at all? The top nut also seems more primus-y?
    I know you need the lamps in a practical sense but it’s great to see them doing what they were made for
    thanks to all

    regards
    pb

  11. Warwick Beaumont South Africa

    Offline
    Joined:
    Sep 30, 2021
    Messages:
    96
    Location:
    South Africa
    Appollogies Podbros

    Action pick is well a Primus 1020

    Also made up a glass for him

  12. Warwick Beaumont South Africa

    Offline
    Joined:
    Sep 30, 2021
    Messages:
    96
    Location:
    South Africa
    Greetings All

    Today I was fixing a Beatrice stove

    Now we all know that mica screen is the first bit that gets poked out

    I managed to save one screen

    Looking about the shed to find something that would show some light

    Aha

    French press from the glass job

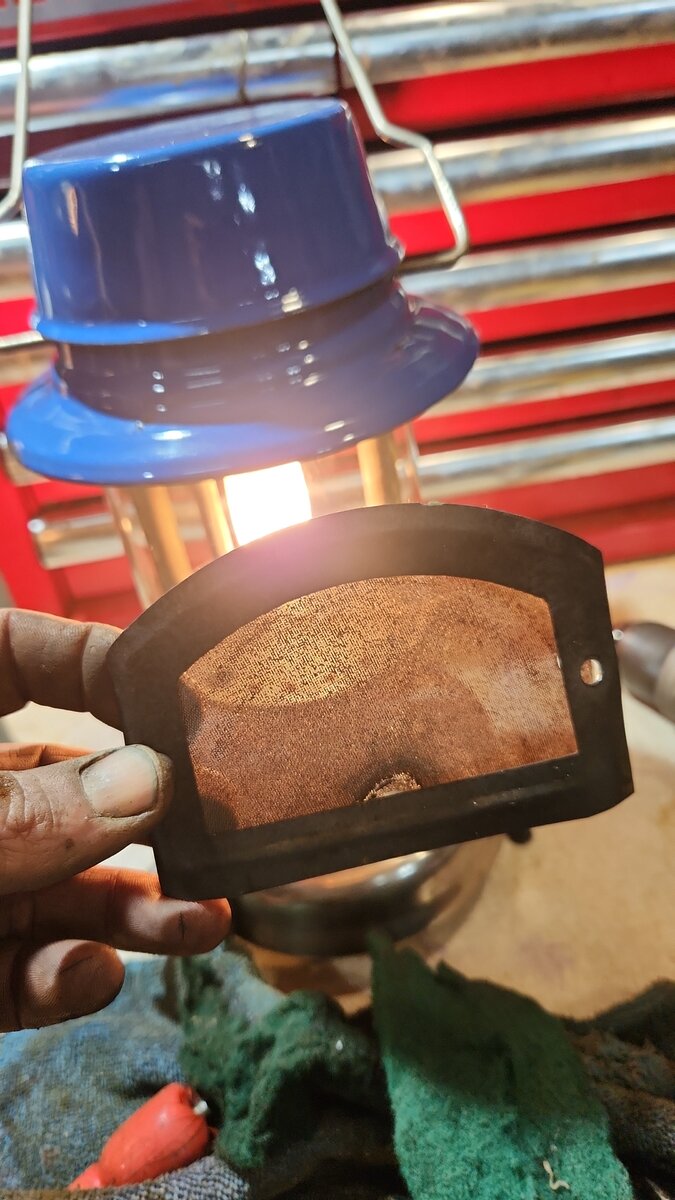

    The sieve makes a pretty decent screen for the stove

    :lol:


    It still needs a clean to get the fine grains out

    So 2 lamp glasses and 4 screens

    The centre has a pressed button that the plunger rod secures to
    Pretty easy to open

    Then just cut the metal sieve with a scissors

    Trim to fit the metal screen
    Drill 2 Locating holes and Bobs yr Auntie
