Onion globe fitting TL10

Discussion in 'Pressure Lamp Discussion Forum' started by Lampost1, Sep 24, 2017.

  1. Lampost1

    Offline
    Joined:
    Dec 8, 2016
    Messages:
    33
    Location:
    Isle of Lewis, Scotland
    Hi
    I've found an onion globe on eBay that I'm hoping to buy. Will it fit a Tilley TL10 table lamp? Its a reproduction 182 glass whatever that means. I'm sure you can all find it. I see eBay links are not allowed.

    It's size is top outer diameter 88mm. Bottom outer diameter 48mm.

    I'm trying to restore this for my dad in time for Christmas. It's been lying in a barn since I was child.

    Thanks for your help :)

  2. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,676
    Location:
    North-East England
    The correct globe for a Tilley table lamp is Part No. 182 so the reproduction item you've found on ebay ought to fit. The globe I've just pulled down from the shelf has a lower maximum outside diameter 47mm wide although that's not a critical measurement - but it may give some idea that the other dimensions are also going to be reasonably accurate. My globe has a maximum outer diameter of 85mm but that's not really a critical measurement either - it's the size of the 'neck' just below, that matters. Having said that, the neck of the globe is held in place with spring-loaded pins so there's a degree of flexibility here also. I'm pretty sure the reproduction will fit.

    By the way, it's only listings for conventional timed ebay auctions that aren't allowed. BIN (Buy-iI-Now) listings are OK here.

    I think it's a great idea to restore the old Tilley for your Dad's Christmas present. :thumbup: :clap: If you need any more help or advice, I'm sure folks here will be all too willing to assist... :D

  3. Lampost1

    Offline
    Joined:
    Dec 8, 2016
    Messages:
    33
    Location:
    Isle of Lewis, Scotland
    Thanks very much! This forum is an excellent resource. I'm on a ship for the next 2 weeks so I'm just trying to get everything together for when I get home. I'll post some pictures once it's finished and (hopefully) working.

  4. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,265
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Lampost1

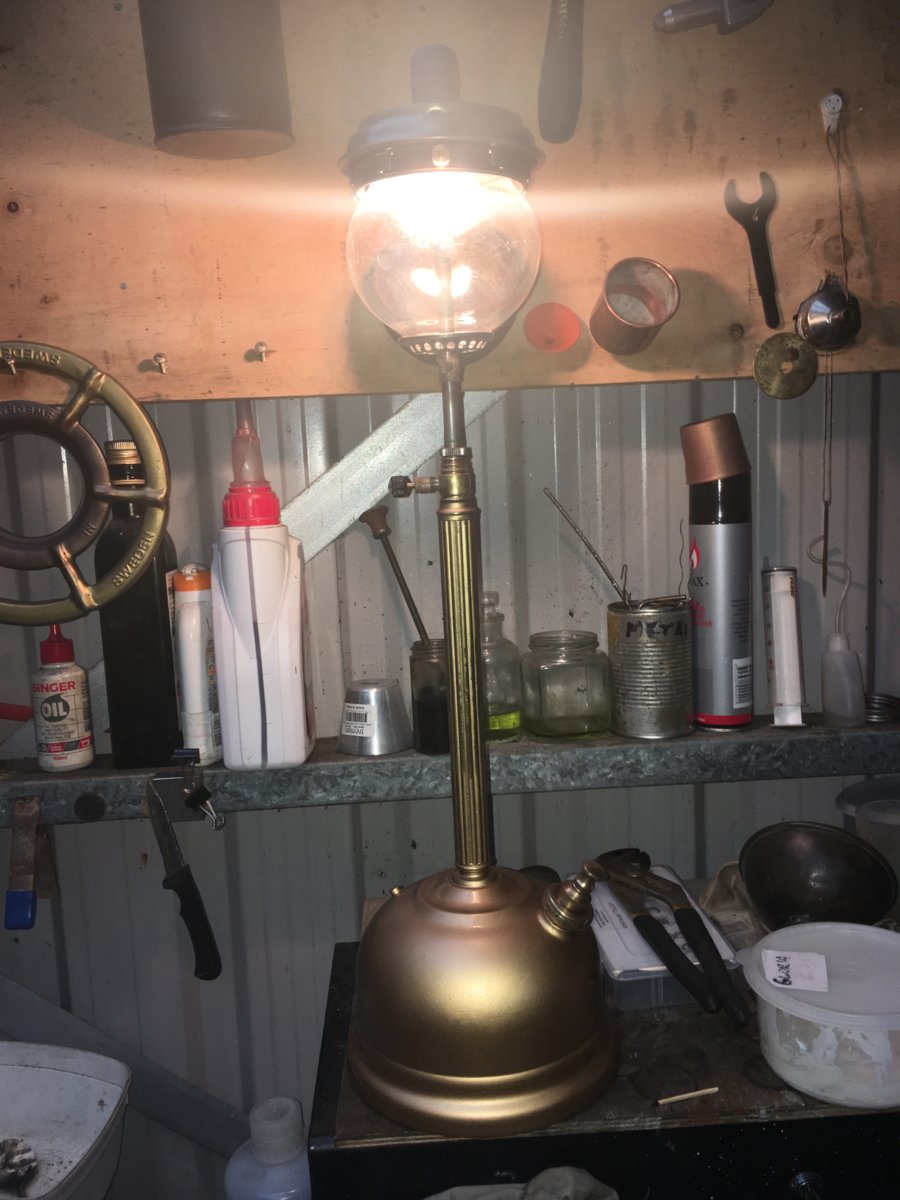

    I just put a reproduction of a Tilley 182 onion globe on a TL10. :content:

    It worked fine.


    Best regards

    Tony

  5. Lampost1

    Offline
    Joined:
    Dec 8, 2016
    Messages:
    33
    Location:
    Isle of Lewis, Scotland
    Hi Tony.
    That looks amazing. What is the ring part with the holes under the glass on the vaporiser? I don't have that. Is it essential?

  6. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,265
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Lampost1

    That is an insect screen. There is one at the top of the gallery as well. In Australia they are essential because suicide moths will ruin a mantle in a matter of minutes!

    On lanterns that I run often I replace the lower insect screen with a priming cup that is fitted so that the moths can't get in the bottom.

    Cheers

    Tony

  7. JonD

    JonD Subscriber

    Offline
    Joined:
    Apr 15, 2014
    Messages:
    730
    Location:
    Hertfordshire, England
    what is the Maths of Moths and Meths - I really must apologise but it seems insect screen hole diameter must be dictated by it if it doubles up with a spirit cup.
    Coat is on >>>>I'm out of here!

  8. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,265
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @JonD

    The maths for moths is quite straightforward, regardless of the meths (am I sounding like a Kiwi?).

    Working from first principals its major factor will be the relationship between heat and space (hole size), modified by distance.

    Therefore: the maximum hole size is that which permits a moth (or beetle) to enter the globe, but die from the heat before hitting the mantle.

    So, if t is heat; ø is hole diameter; and d is distance from hole to mantle, there will be some equation that will express that relationship.

    Maybe Mr Shouksmith could have a go.

    Of course moths and beetles have different flammability.

    I'll take photos this summer to show the death toll in my outside lanterns!

    I'll get a photo of how I set up a spirit cup on a Tilley (but putting the Tilley wick in the same place works).

    Cheers

    Tony

  9. StephanE

    StephanE Subscriber

    Offline
    Joined:
    Jul 17, 2011
    Messages:
    647
    Myths... :lol:

  10. JonD

    JonD Subscriber

    Offline
    Joined:
    Apr 15, 2014
    Messages:
    730
    Location:
    Hertfordshire, England
  11. toad of the cape

    toad of the cape Subscriber

    Offline
    Joined:
    Feb 21, 2017
    Messages:
    87
    Hello tony, I'm across the ditch,off topic hope you don't mind but the spring for the IP on the table lamps, can they still be got.

    Alex aka toad

  12. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,265
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
  13. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,676
    Location:
    North-East England
    I think IP was Tilley's own abbreviation for 'Insect Protection'...

  14. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,265
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @toad of the cape

    If it’s the insect screen spring you want, then there are at least 3 different screen/spring arrangements that I’ve seen (I’ll photograph some later today). Each has a different spring; no spring is “for sale”. All springs could be made by hand with the correct material.

    Do you have a photo of your insect screen?

    Tony

  15. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,676
    Location:
    North-East England
    :-k Yes, ignoring for the moment the varying flammability of the flying insects involved and allowing for the reduction in area of the aperture at the lower end of the globe caused by the diameter of the vapouriser, I believe this just about covers it i.e. the velocity of SHIT (super-heated insect trajectory) is given by:-

    superstring theory.jpg

    Makes sense to me, anyway... :thumbup:

    Last edited: Nov 15, 2017
  16. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    1,917
  17. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,265
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
  18. longilily

    longilily United Kingdom Subscriber

    Offline
    Joined:
    Jan 25, 2011
    Messages:
    1,450
    Location:
    Dungeness
    So thats what 'Shit' looks like expressed as a formula :lol:

  19. StephanE

    StephanE Subscriber

    Offline
    Joined:
    Jul 17, 2011
    Messages:
    647
    The answer is 42...

  20. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    1,917
    You rang?

  21. toad of the cape

    toad of the cape Subscriber

    Offline
    Joined:
    Feb 21, 2017
    Messages:
    87
    Yes, thanks Tony will have a go at making spring, photo option no go at present, but it's the one piece brass type, like the later ones for 246 b,but smaller diameter. A tight U shaped spring though, very similar I suspect.

    regards Alex

  22. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,265
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @toad of the cape

    Yes. Unless you find a donor you’ll have to make the spring.

    Or you can cheat by putting some brass tubing over the vapouriser to hold the screen in place.

    Cheers

    Tony

  23. Digout

    Digout Australia Subscriber

    Offline
    Joined:
    Feb 20, 2013
    Messages:
    468
    Location:
    Melbourne, Australia
    But David, what does theta equal? :?

  24. jpthegp

    Offline
    Joined:
    Mar 3, 2015
    Messages:
    10
    Location:
    Colwall, Malvern Hills, Herefordshire
    As StephanE said - and Douglas Adams - theta must equal 42
