    Hi all!

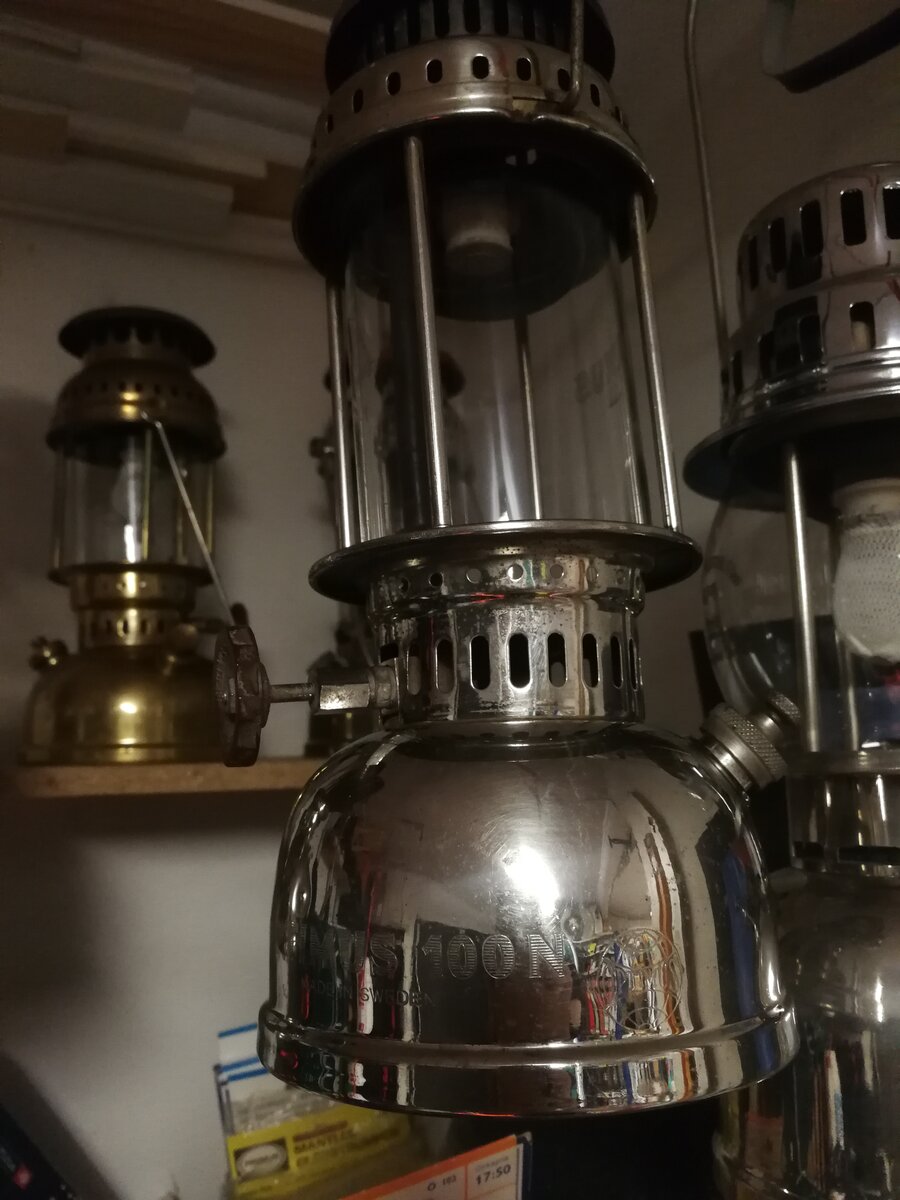

    My recent fettling projects is this variation of the Optimus 100N.

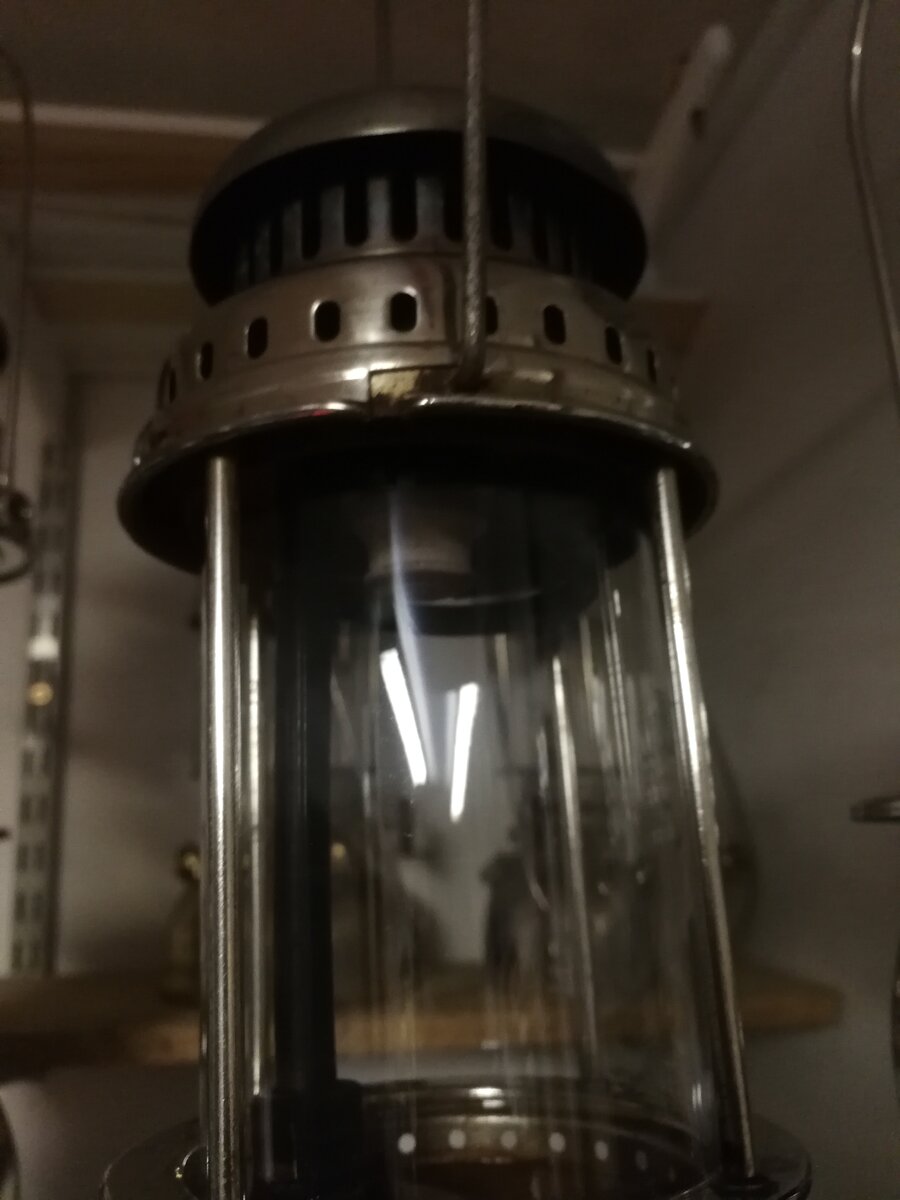

    It lacks the original glass so it has a Radius one (originating from our esteemed fellow member @Bo Ryman).

    I am wondering if this one has the correct filler cap or if it is one from a stove?

    What period is it from? - The 1950's I guess.

    Regards Matti

    IMG_20210711_003838.jpg IMG_20210711_003845.jpg IMG_20210711_003905.jpg IMG_20210711_003915.jpg IMG_20210711_003920.jpg

    Last edited: Jul 10, 2021
  2. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,859
    Location:
    Copenhagen, Denmark
    Nice project Matti. Good luck with the fettling.

    The filler cap is from a Primus. The correct type is the same as was fitted to the 930. The glass is the same size as most of the 150cp lanterns, so it is possible to get replacements with no logos at a fair price.

    The 100N was made from the late 1940s to the mid 1950s.

    I have one the same that is missing the complete top, so if you ever find the parts I would be interested to hear from you.

  3. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    282
    Location:
    Sweden
    OK, then I'll just find a 930 filler cap.

    Thanks Nils! Moderator may move this to fettling section.

    Regards Matti

  4. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    12,151
    Location:
    Shetland Islands UK..
    A neat lantern.:thumbup:

  5. Carlsson

    Carlsson Sweden Admin/Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    3,701
    I think it's fine where it is! The reference section is where we want the lanterns with many images to be.

  6. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    282
    Location:
    Sweden
    @JEFF JOHNSON Yes It's a really small one.

    Someone that can direct me to a parts list/spreadsheet if the 100N?
    I want to check what parts I already have that fits it.

  7. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    282
    Location:
    Sweden

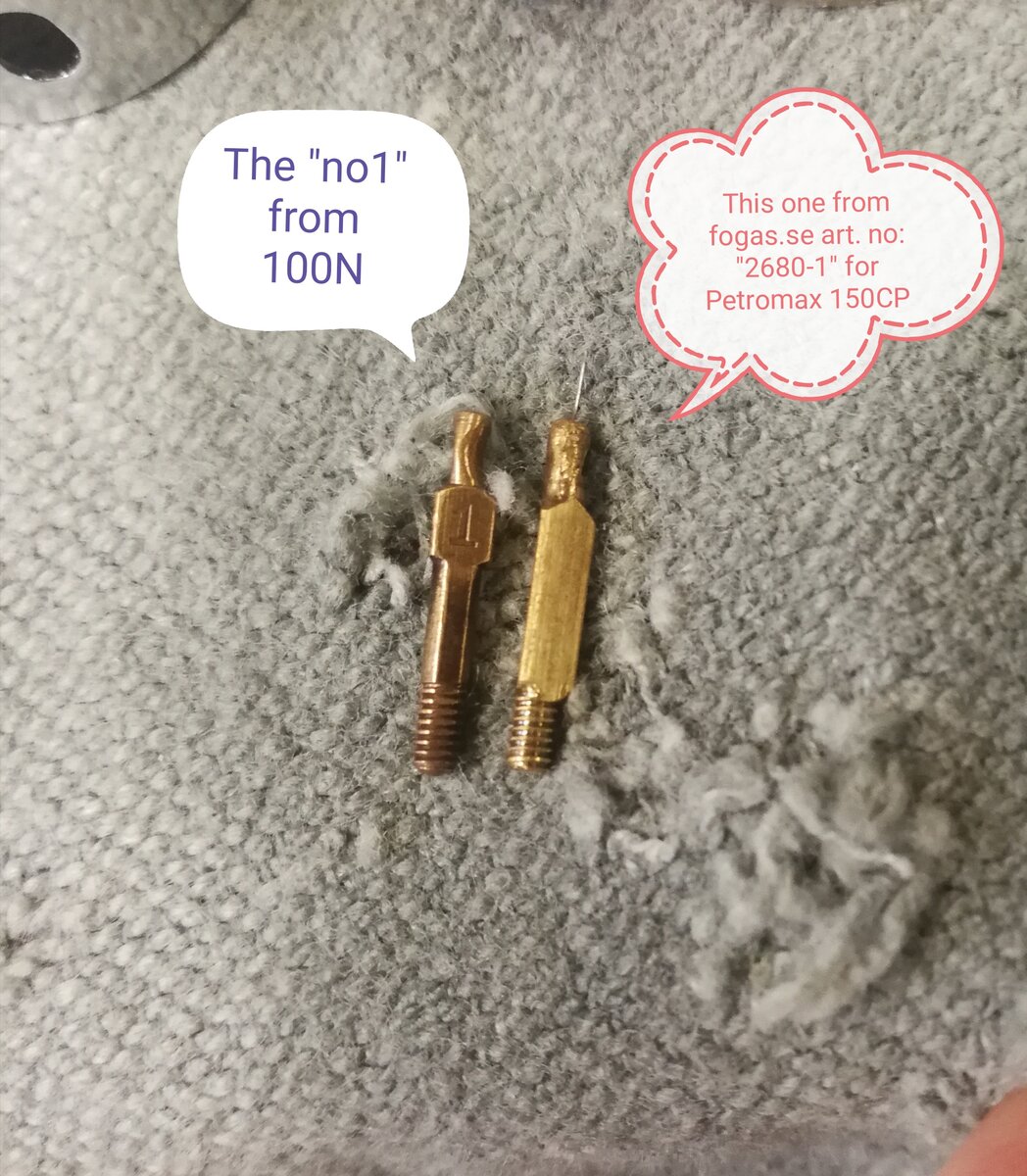

    I am wondering. Does the cleaning needle on the right fit the 100N?
    Its from fogas.se art nr 2680-1.



    Regards Matti


    Last edited by a moderator: Jul 24, 2021
  8. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,859
    Location:
    Copenhagen, Denmark
    It will screw into the cleaning rod, but I believe the needle is too large a diameter. I havn't checked myself.

  9. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    282
    Location:
    Sweden
    @Nils Stephenson at fogas.se the correct one has art no 101-87, however they are out of stock.....
