Optimus 1300

Discussion in '1300' started by Krisse, Apr 4, 2020.

  1. Krisse

    Krisse Subscriber

    Offline
    Joined:
    Dec 20, 2019
    Messages:
    41
    Location:
    Sweden

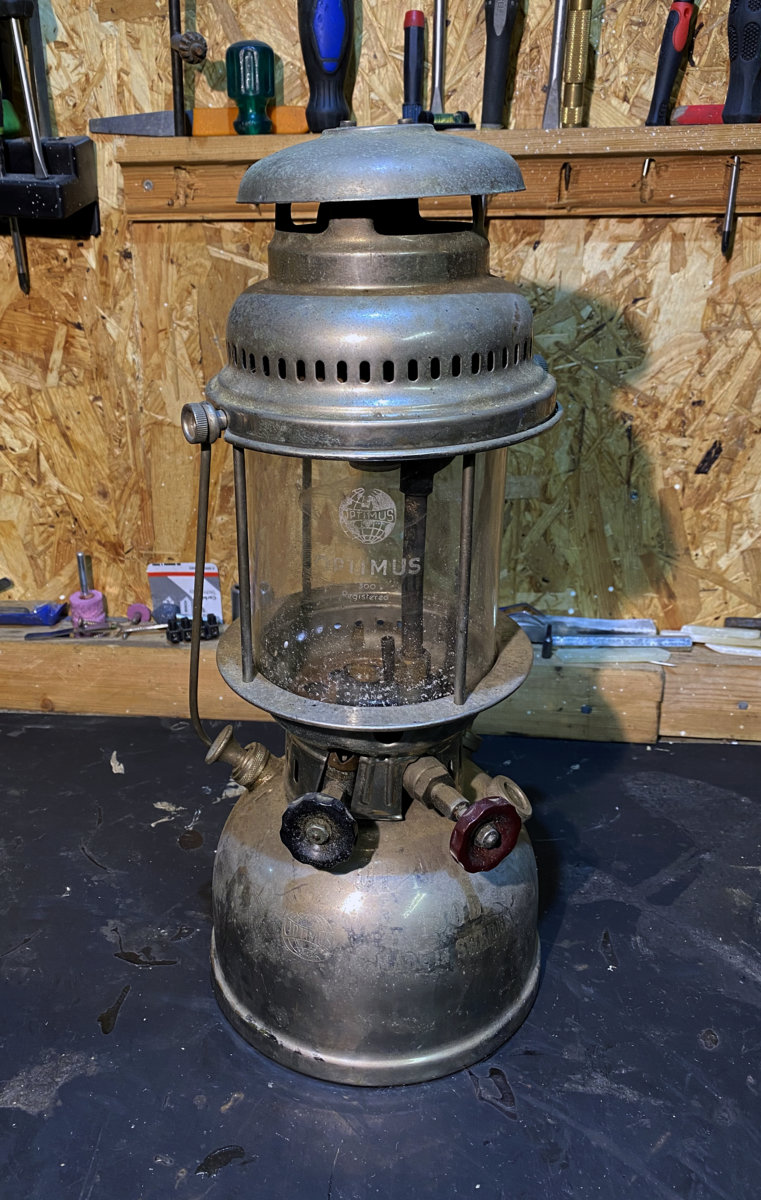

    Bought an early Optimus 1300 for ok money. It was really dirty on the outside but was surprised how nice it was on the inside. There was no coating at all.


    IMG_E1050.JPG IMG_E1052.JPG

    The lamp was broken down into parts with proper cleaning and replacement of bad parts.


    The tank ready for cleaning. a few nuts and some kerosene in the tank. I got out the small coating that was in the tank.


    Fun with real valves!


    Here the hat is clean and polished, but between the hat and the top there were gaskets that with great likelihood is asbestos!

    IMG_1069.JPG IMG_E1068.JPG IMG_1090.JPG

    Got to make new gaskets! Found old lead cable, worked great to make lead gaskets off!

    IMG_0669.JPG IMG_E1107.JPG

    The lamp is ready for pressure test. Found a leak in the level glass but must look for suitable gasket material


    The lamp is finally ready! there was a nice lamp under all the crap!


    IMG_E1115.JPG IMG_1119.JPG IMG_1122.JPG

    Up on the shelf with the other lights!


    Last edited by a moderator: Apr 5, 2020
  2. Alex Smith

    Alex Smith United Kingdom Subscriber

    Offline
    Joined:
    Jun 18, 2019
    Messages:
    539
    Location:
    Midlands, UK
    That is a lovely lantern you have there. I can see how much work you have put in to her, you must be really pleased with the result.

  3. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    5,843
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Krisse

    That’s a very fine lantern you’ve found under the dirt, and a great fettle, too.

    I’m not familiar with that model. Can you tell us what the dimensions of the glass are, please?

    Cheers

    Tony

  4. Krisse

    Krisse Subscriber

    Offline
    Joined:
    Dec 20, 2019
    Messages:
    41
    Location:
    Sweden
    Thanks! the dimensions (110x115mm) are the same as for example Optimus 1550 or Petromax 829.

  5. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    5,843
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Thank you.

    Tony

  6. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,327
    Location:
    Malaysia
    It looking next to brand-new now.:thumbup:

  7. Krisse

    Krisse Subscriber

    Offline
    Joined:
    Dec 20, 2019
    Messages:
    41
    Location:
    Sweden
    Thanks! many probably think it's over fettling.
    But is therapy to go out in the workshop and then it gets easily overworked =)

  8. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,453
    Location:
    Copenhagen, Denmark
    Very nice result.

    As you have the punch set, it should be easy to make new gaskets for the level glass. Use 1mm viton rubber. Getting the glass out can sometimes be difficult as the old rubber has 'glued' itself to the brass.

    Last edited by a moderator: Apr 7, 2020
  9. Krisse

    Krisse Subscriber

    Offline
    Joined:
    Dec 20, 2019
    Messages:
    41
    Location:
    Sweden
    Now the lamp has got new gaskets. Test it tomorrow. also has a 1550 and 1200 on the workbench which I fix for a friend


    Last edited by a moderator: Apr 7, 2020
