Optimus 200

Discussion in 'Fettling Forum' started by Darryl Durdin, Nov 23, 2020.

  1. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    854
    Location:
    Whyalla. South Australia. Australia

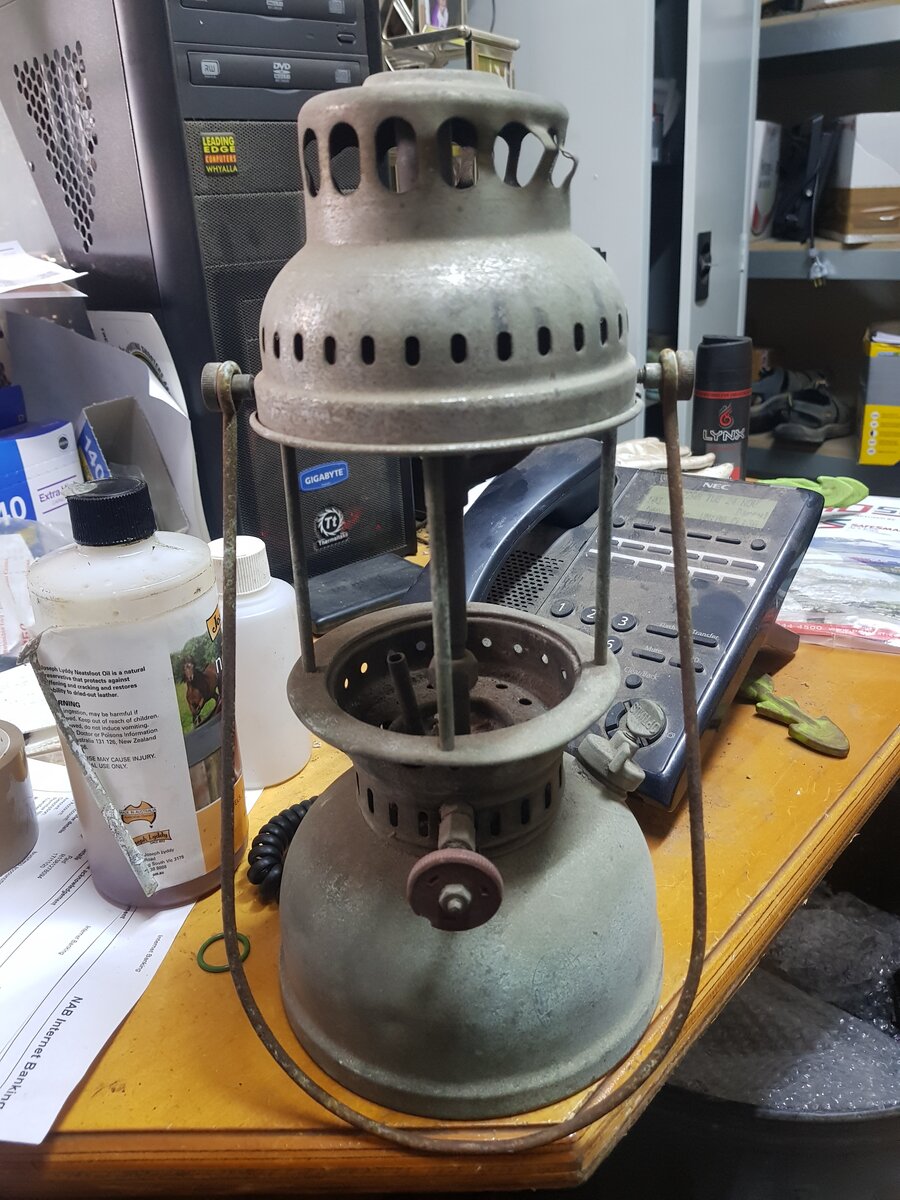

    Hi fellas, i have an optimus 200?
    It has no jet and the needle is broken
    Any suggestions or leads as to aquiring new ones if possible
    Thank you.
    Ill post some pics later. Ill probable have some more questions

  2. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    1,965
    Fogas.se is the go-to place for Swedish lamp parts, as well as auctions on tradera.com.
    Petromax 821, and Hipolito 250 jets and needles will also work.
    Be careful with the ceramic burner cap; replacements are getting hard to find.

  3. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    854
    Location:
    Whyalla. South Australia. Australia
  4. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    854
    Location:
    Whyalla. South Australia. Australia

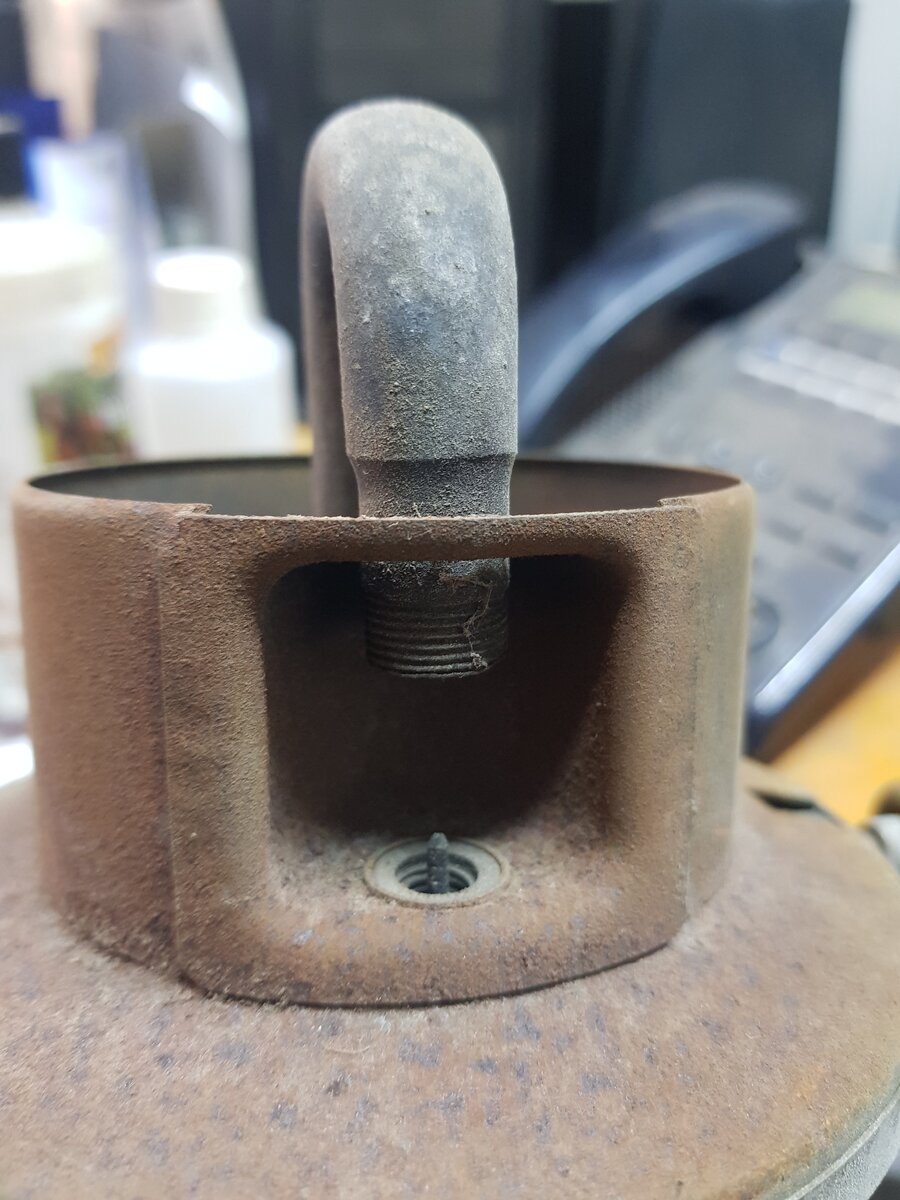

    Hi fellas, am i missig anything from the j pipe.
    I see threaded end, ? 20201124_072331.jpg

  5. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    854
    Location:
    Whyalla. South Australia. Australia
    I seem to be missing the top cap, I've been looking in the reference gallery, dose any one know if i can still get one?

  6. peterthevet

    peterthevet Subscriber

    Offline
    Joined:
    Nov 18, 2014
    Messages:
    76
    Location:
    Australia
    I can send you a jet and needle if you would like them.

    Cheers Peter

  7. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,686
    Location:
    Copenhagen, Denmark
    No, that is just the way the early ones were. There was obviously a meaning with the thread, but I have never found out what it is.

    I can see that there are a few later replacement parts on the lamp. The inner top frame and the outer top are from a later version as the original would have had a bracket on the inner top that screws together with the outer top. The J tube seems to be the original though. Replacing the top is not unusual as it was probably damaged by use or an accident and replaced with what they could get. Later parts will fit and work.

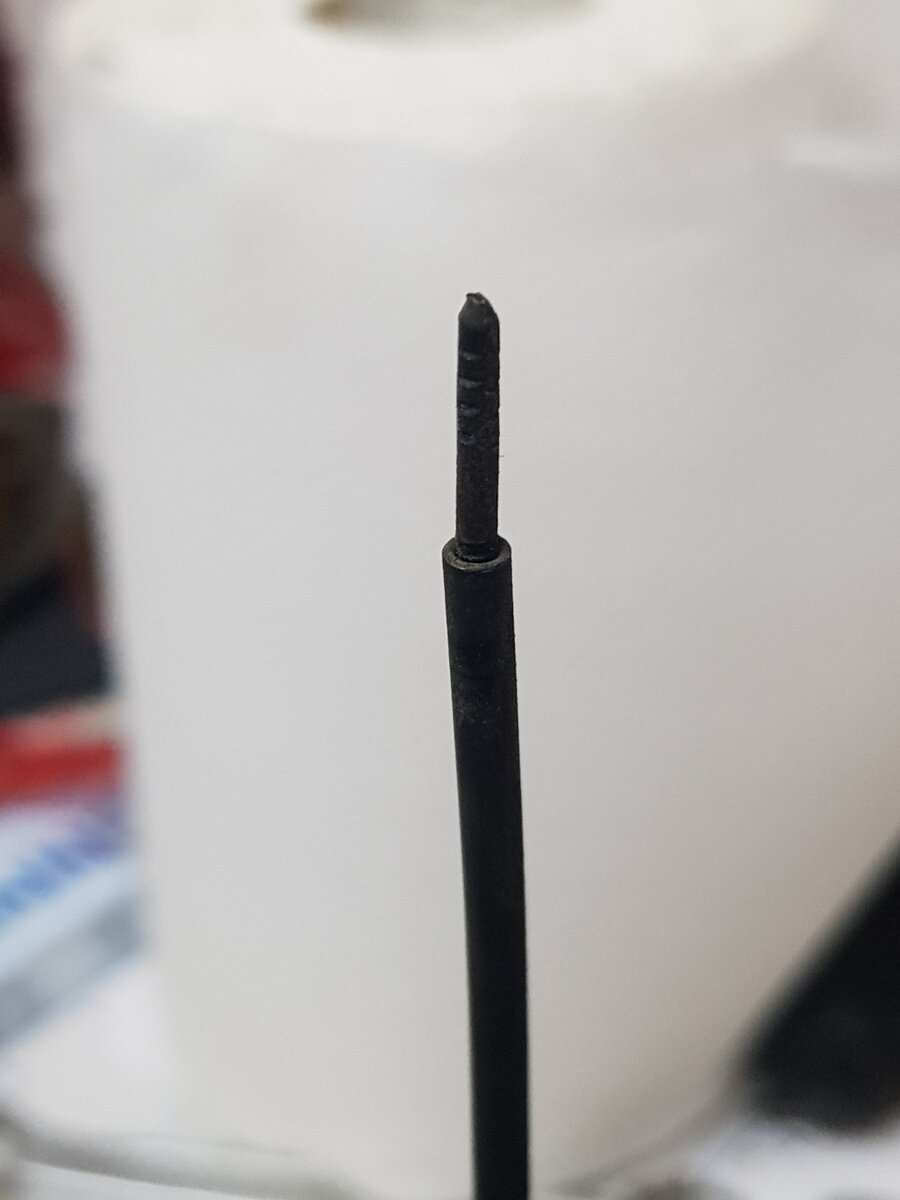

    What looks strange to me is the remains of the cleaning needle. It looks suspiciously like a Radius or Aladdin needle. I wonder how they got room for that.

  8. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,887
    Location:
    Malaysia
    I've never seen a J-tube being threaded on this end. What would have been the original purpose? I could only guess,.. for fitting on a locknut or something?

  9. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    854
    Location:
    Whyalla. South Australia. Australia
  10. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    854
    Location:
    Whyalla. South Australia. Australia

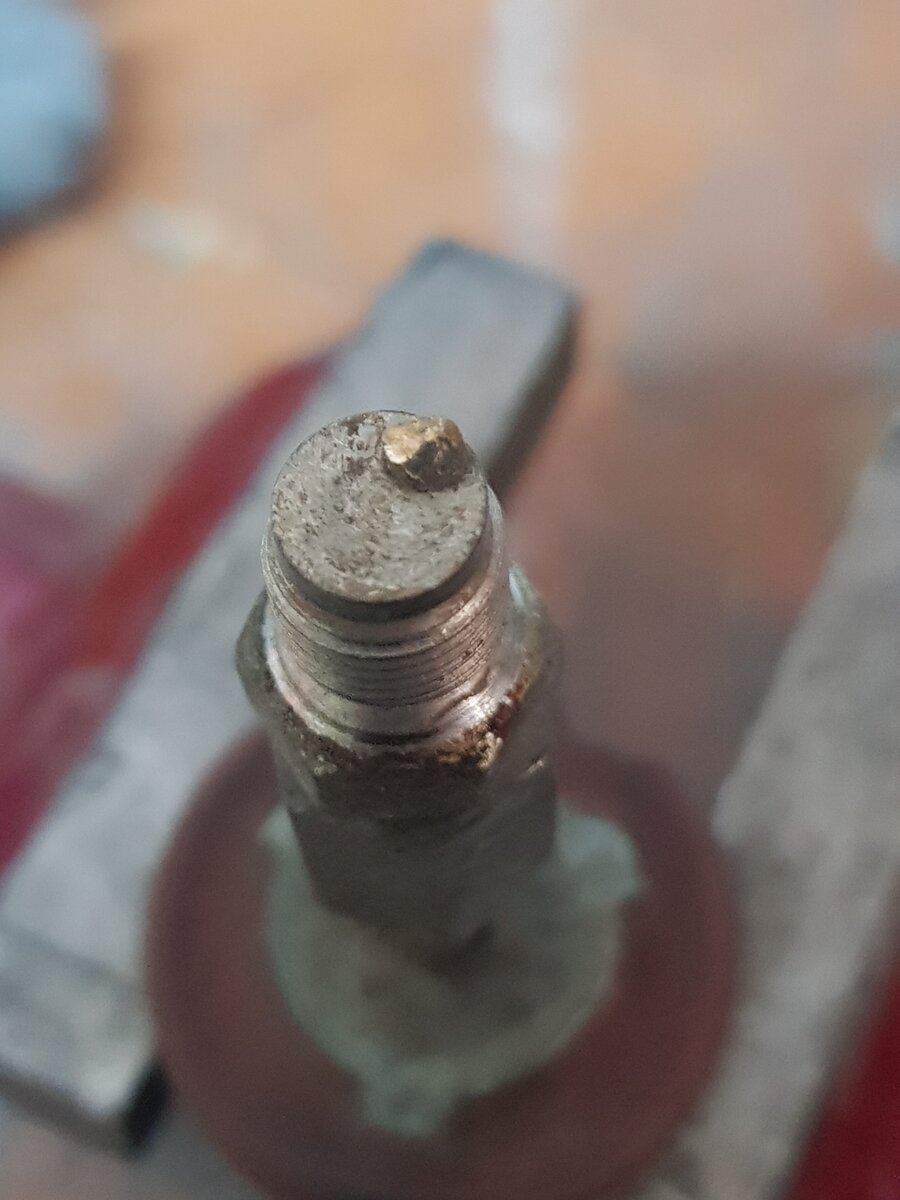

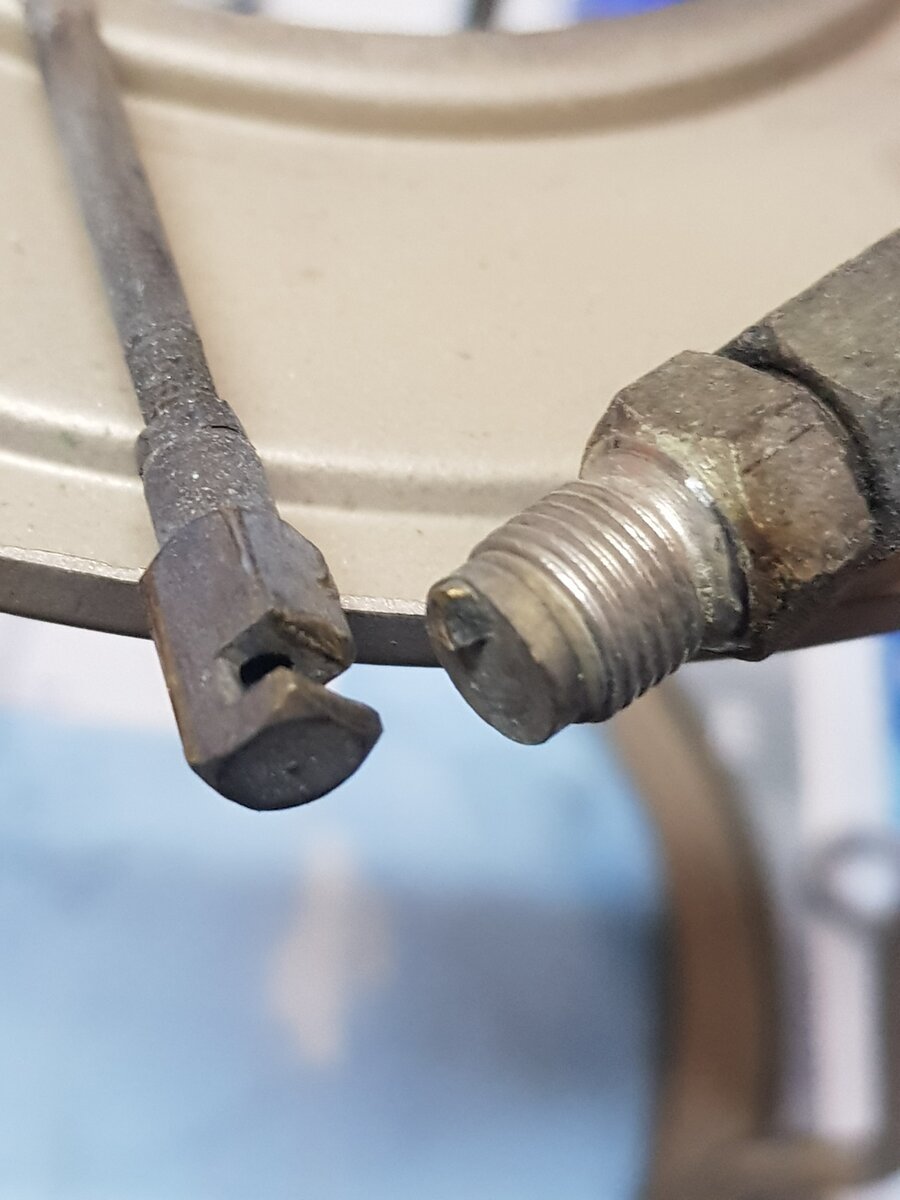

    My poorly lantern, the ecentric block pin is brocken,

    I may have the skill sets to repare it, or can i still get this part?

  11. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,887
    Location:
    Malaysia
    It looks similar to those used on the Petromax and clones. Perhaps these could be options if they could fit in.

    Last edited by a moderator: Nov 25, 2020
  12. Matti Kucer

    Matti Kucer Sweden Subscriber

    Offline
    Joined:
    Mar 4, 2018
    Messages:
    218
    Location:
    Sweden
  13. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    854
    Location:
    Whyalla. South Australia. Australia
  14. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    6,813
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Darryl Durdin

    If you are using Google to look at the Fogas.se website, use the translate function of Google. It gives a few weird English translations, but it useful if you do not speak Swedish.

    Tony

  15. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    854
    Location:
    Whyalla. South Australia. Australia
    Thanks for the tip.
    @Tony Press
    Im in the process of talking emails with them, i couldn't work out how to order, postage etc.
    But i think im on track

  16. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    6,813
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
  17. Stuart Gibbins

    Stuart Gibbins United Kingdom Subscriber

    Offline
    Joined:
    Sep 20, 2020
    Messages:
    11
    Location:
    Coventry
    Watching with interest as I've just started to resurrect my Optimus 200. I purchased a new ceramic, jet, seals, mantle etc from Base Camp. I had to wait for them to come in from Sweden, maybe they were sourced from Fogas?

    Stuart

  18. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    854
    Location:
    Whyalla. South Australia. Australia

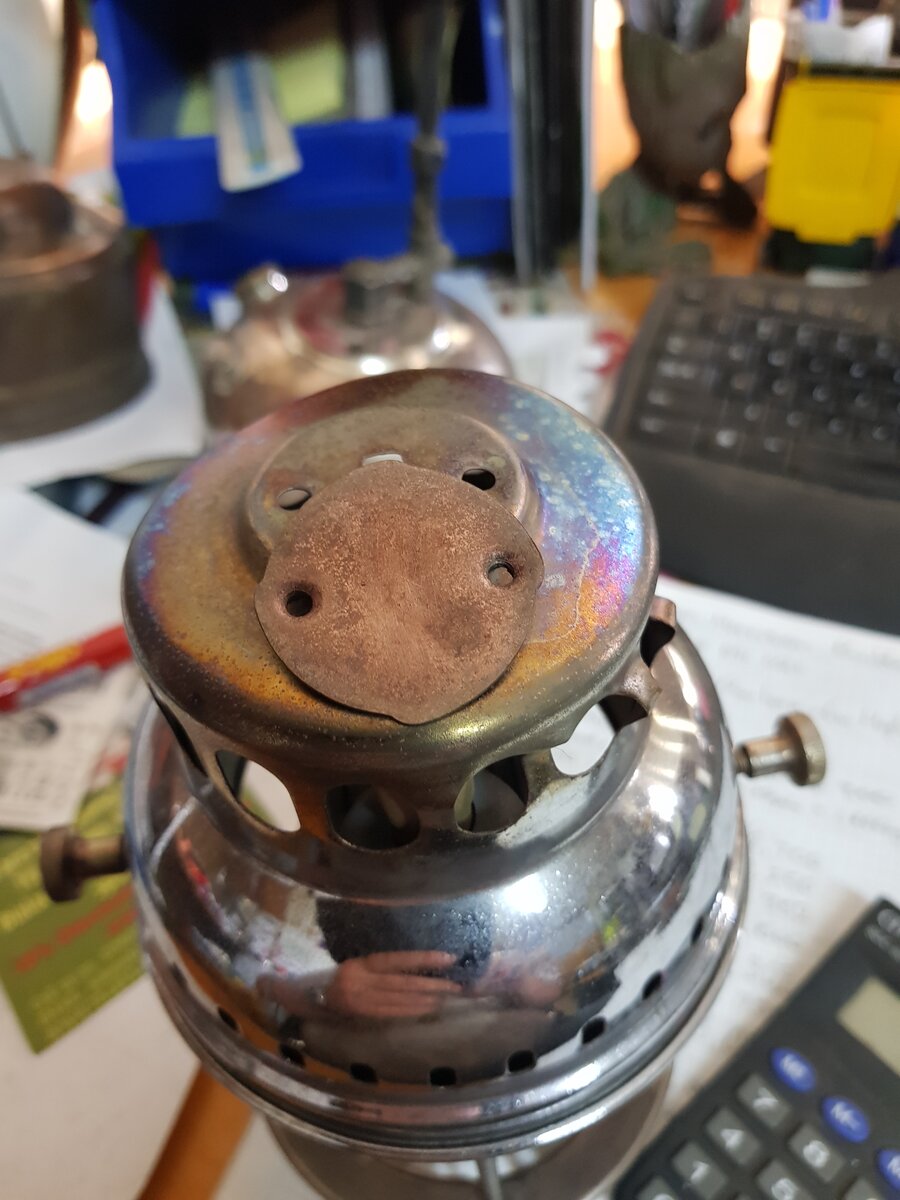

    Hi fellas i found this in my lantern any ideas what it was for, and did it come with a top cap / lid? 20201201_110016.jpg

  19. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,181
    Location:
    Somersby, New South Wales, Australia
  20. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,686
    Location:
    Copenhagen, Denmark
    As Martin said. For info, the screws should be 5/32" Whitworth thread.
