Optimus 300 fuel gauge glass - replacement

Discussion in 'Fettling Forum' started by Alex Smith, Jun 21, 2020.

  1. Alex Smith

    Alex Smith United Kingdom Subscriber

    Offline
    Joined:
    Jun 18, 2019
    Messages:
    620
    Location:
    Midlands, UK

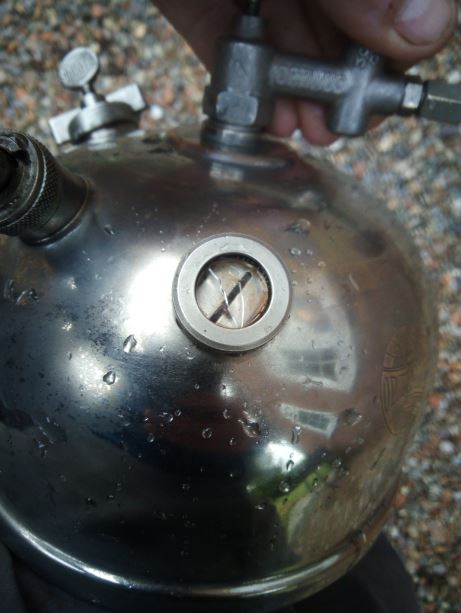

    Do you esteemed Gentlemen have any suggestions on a replacement glass for a Optimus 300 Fuel Gauge glass? The lantern won't hold pressure, it escapes via the cracked glass.

    Optimus 300 Cracked fuel guage lens.JPG

  2. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,023
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    I found some flat watch glasses on the Bay of Evil for a similar job. Curved glasses are also available.

    Tony

  3. Digout

    Digout Australia Subscriber

    Offline
    Joined:
    Feb 20, 2013
    Messages:
    479
    Location:
    Melbourne, Australia
    I recall someone was cutting replacements our of clear CD case covers.

  4. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    137
    Location:
    UK
    Is it the case then that a pressure seal depends on an intact glass sealed to the gauge casing? Sealed to the casing with what? I’ve only experience of pressure gauges on stoves and lanterns and a fuel level gauge on a Tilley FL6, where the ‘sender’ unit in the tank transmits movement to the gauge needle by magnetism.

    John

  5. Carlsson

    Carlsson Sweden Admin/Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    3,551

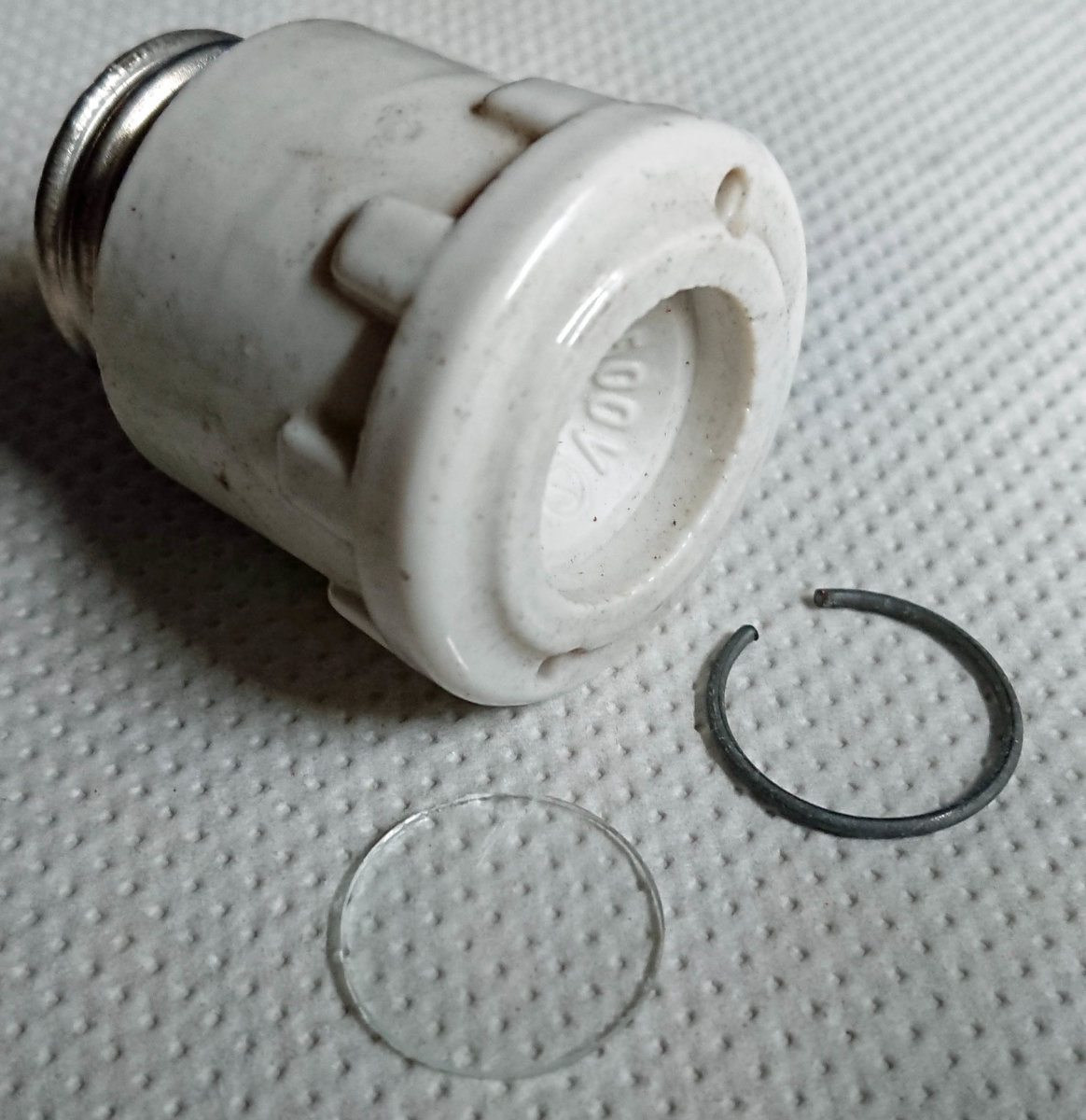

    I have used glasses from the ceramic holders of old fuses, as seen in this post on the same topic.

    I doubt that you had the same standard in the UK as we did with these, so probably you don't had this kind or size of the part.
    Just mention it in case you have a similar type.


  6. Norman

    Norman United States Subscriber

    Offline
    Joined:
    Jul 1, 2011
    Messages:
    537
    Location:
    Spokane, WA
  7. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    137
    Location:
    UK
    Link to post where this topic was covered answers my question, thanks. So the glass has to be provided with seals, unlike on pressure gauges.

    Nils said:

  8. Alex Smith

    Alex Smith United Kingdom Subscriber

    Offline
    Joined:
    Jun 18, 2019
    Messages:
    620
    Location:
    Midlands, UK
    Gentlemen, thank you for your responses. Very helpful as ever. @Norman thanks for the link, I'd have struggled to find that. Ordered one last night. We will see how we get on.

  9. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,370
    Location:
    Malaysia
    This's a great idea. Didn't cross my mind since I wasn't looking for a glass.
    In general, we don't use those here in the public (British Standard by tradition, adapted to local standards). However, they're commonly used in my workplace(plant), which is mostly German machineries and construction according to other European standards(DIN VDE, EN, etc).:). Great tip off.

  10. Levi Tomey United States

    Offline
    Joined:
    Apr 2, 2020
    Messages:
    149
    Location:
    Muncie Indiana USA
    @Tony Press Don’t hate on the bay. I buy everything for my lanterns there.... somewhat reliably

  11. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,023
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Levi Tomey

    I buy heaps of stuff on the Bay of Evil. I use the term for two reasons:

    One, it’s a difficult place to have “issues” resolved in; and

    Two, I don’t want the commercial name to appear in my posts.

    Tony

  12. Bo Ryman

    Bo Ryman Founder Member Subscriber

    Offline
    Joined:
    Sep 13, 2010
    Messages:
    336
    If you don't get the one you ordered, just contact me. I have a number for spare. The gasket as well. It is for free.

    Bo

  13. Alex Smith

    Alex Smith United Kingdom Subscriber

    Offline
    Joined:
    Jun 18, 2019
    Messages:
    620
    Location:
    Midlands, UK
    @Bo Ryman Thank you, that is a very kind offer. At the moment the package tracking shows it is heading towards the UK, so all well.
