Optimus 930 300CP

Discussion in '930' started by Johan Osinga, Aug 14, 2019.

  1. Johan Osinga

    Johan Osinga Netherlands Subscriber

    Offline
    Joined:
    Feb 24, 2015
    Messages:
    42

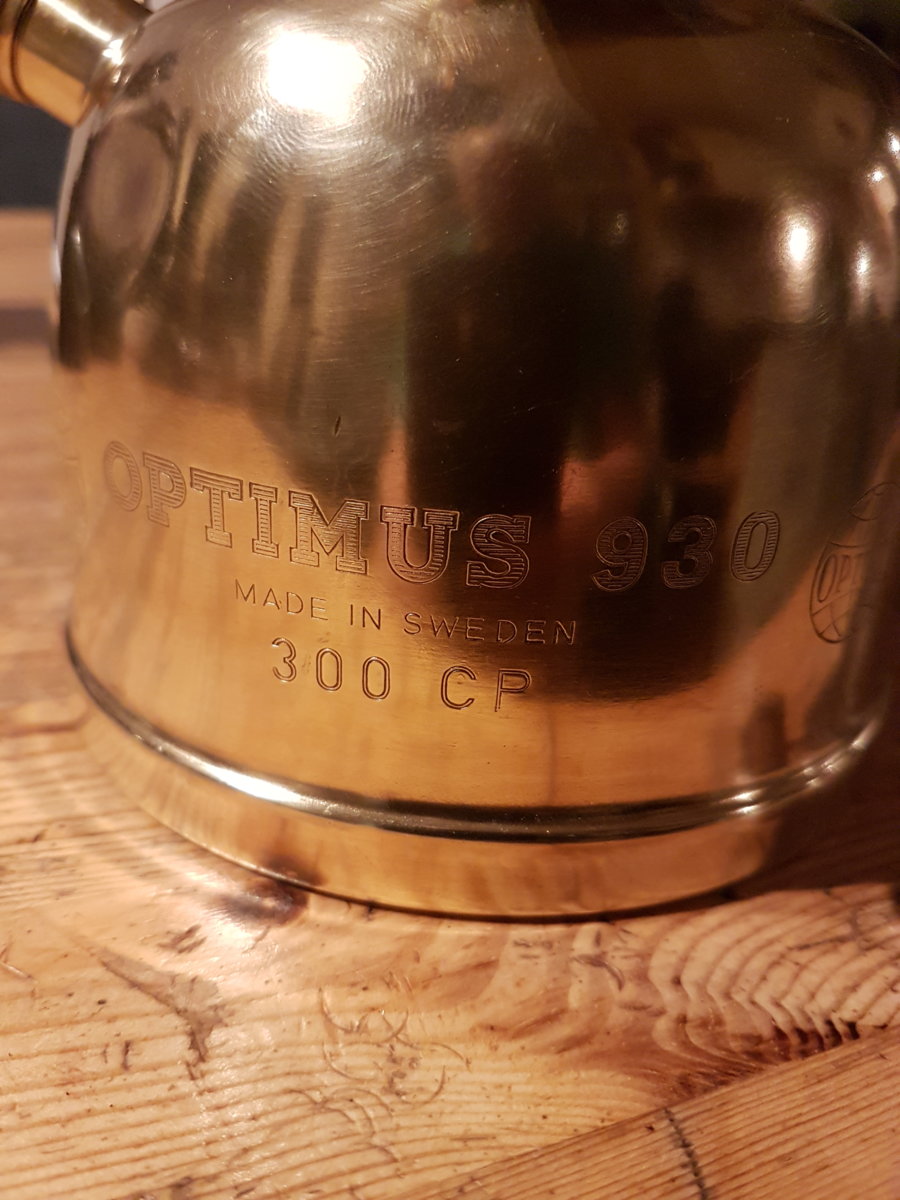

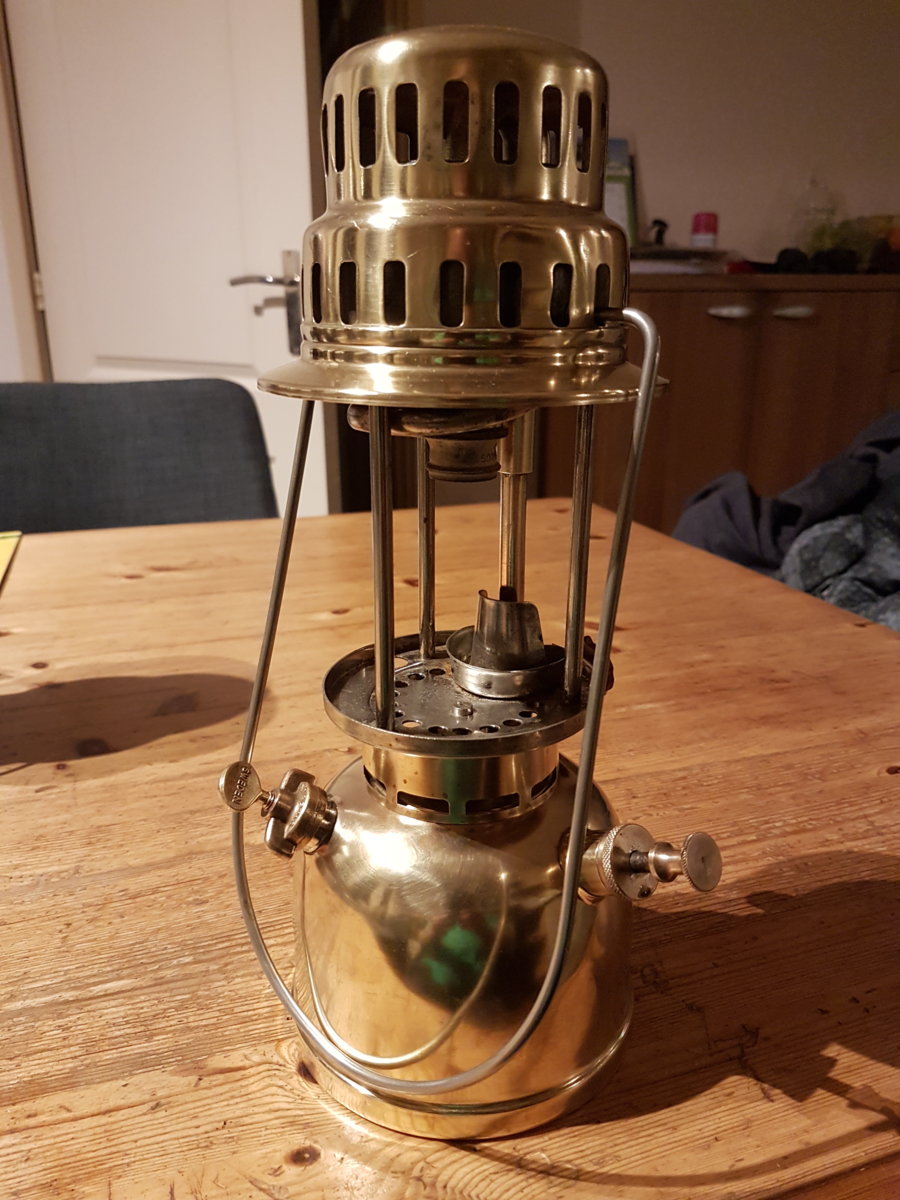

    Here is an brass Optimus 930 300cp. I found this lantern on a fleamarket in Normandie,France.
    It was missing the globe. The hood has a big dent, but it was in good condition. I was lucky to find an original half frosted globe on Tradera.

    20181014_191624.jpg 20180908_161951.jpg 20180908_161956.jpg 20180908_162002.jpg 20180908_162010.jpg 20180908_162017.jpg 20180908_162032.jpg 20180908_162600.jpg 20180908_162610.jpg 20180908_164057_001.jpg 20180908_164059.jpg 20180908_164231.jpg 20180908_164331.jpg 20180908_164342.jpg 20180908_164410.jpg 20180908_164420.jpg 20180908_164425.jpg 20180908_164441.jpg 20180908_164459.jpg 20180908_164503.jpg 20180911_211033.jpg 20180911_211045.jpg 20180911_211055.jpg 20180911_211106.jpg 20180911_211117.jpg 20181014_191624.jpg 20181014_191635.jpg 20181014_191654.jpg

  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    10,335
    Location:
    Shetland Islands UK..
    Well rescued!:thumbup:

  3. Alex Smith

    Alex Smith United Kingdom Subscriber

    Offline
    Joined:
    Jun 18, 2019
    Messages:
    910
    Location:
    Midlands, UK
    Lovely job, well done.

  4. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,855
    Location:
    Toowoomba Australia
    Well done @Johan Osinga
    I love the photos, very informative.
    Cheers
    Pete

  5. Harder Sorensen

    Harder Sorensen Subscriber

    Offline
    Joined:
    Jun 6, 2018
    Messages:
    58
    Congrats on a nice brassie and a job well done on the restoration!

  6. Lincoln Cushing United States

    Offline
    Joined:
    Oct 13, 2019
    Messages:
    2
    Location:
    Berkeley, California

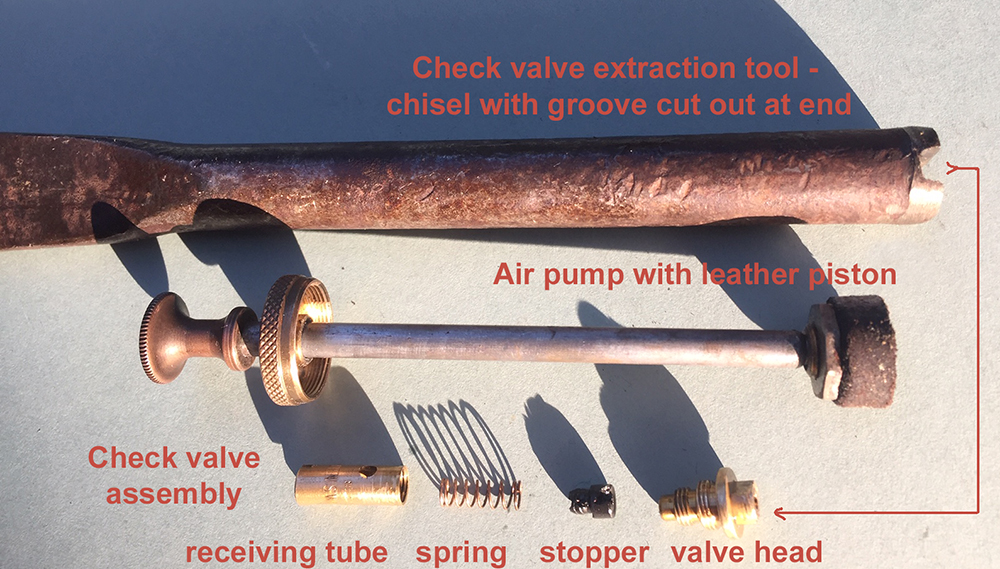

    I really appreciate the existence of this "community" - I've been trying to fix the air pump check valve on my model 930-300 CP. The photo with the exploded diagram and suggestion for simply making an extraction tool was great, attached is my own version. I succeeded in getting the valve out, but the tiny little rubbery stopper has become too brittle, so I'm trying to figure out how to fabricate something else that works. Has anyone tried using a tiny ball bearing instead? Thanks exploded photo.JPG IMG_7309-med.JPG

  7. Carlsson

    Carlsson Sweden Admin/Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    3,578
    A little check ball instead of the rubber was an interesting idea!
    They are often used in fuel systems for engines. Like in my hot bulb engines, where they are used in three places; two in the fuel pump and one in the fuel injector, and they work great.
    I have used small ball bearing balls meant for bicycle hubs, and the seats are brass just as it would be with the NRV here.

    I'm not convinced that it would work for our NRV's though, since the pressure on the ball against the seat isn't by far as large as in fuel systems (the spring is mainly there to keep the ball seated, not for the actual seal) but it would absolutely be interesting to give it a try.
    If so, I think the brass seat need some machining first so it won't be so thin.
    When I change a ball in a fuel pump or injector, I always put a new bearing ball in place, tap it firmly with a hammer to re-form the seat. Then that ball is discarded (they are really cheap) and a new one is installed.

  8. Lincoln Cushing United States

    Offline
    Joined:
    Oct 13, 2019
    Messages:
    2
    Location:
    Berkeley, California
    Carlsson- yes, I was assuming some form of shape-tuning would be needed. I'm now also considering using a tiny rubber/neoprene ball instead of metal ball bearing. Will dig around and see what works, promise to share. Thanks again.

  9. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    1,322
    Location:
    North Yorkshire
    Alternatively, go to
    www.base-camp.co.uk/Petromax/Petromax Spares Price List.htm and look for this item:
    [​IMG] 17 Check valve cone with packing £ 0.80

    Another alternative : britelyt.com/product/new-part-10-pump-valve-complete/

    O.K. it looks a little different but it will screw straight in.

    Henry.

  10. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,294
    Location:
    Hertfordshire
    I found a lamp yesterday that needed a ball instead of a rubber seal. This was a mid 1920s Welsbach lamp and the pump kept pushing out at me. It had worked before OK so I never investigated but I found a spring and a rubber seal which was flat and a bit too small for the tube but the tube end was just a hole. No spigot. I tried a new rubber which didn't work but then engaged brain and shoved a 5/16 dia SS ball in there. It wouldn't work without the spring but now I get a perfect seal. Those spring loaded Primus type pump NRVs will probably work fine with a ball. Might have to experiment with the ball size and the spigot end will have to be squeaky clean but worth a try for sure. ::Neil::
