Peak 1 222 lantern

Discussion in 'Fettling Forum' started by iwoo, Feb 23, 2015.

  1. iwoo

    iwoo Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    116
    Location:
    Durham, England.
    Just tried my 222 lantern and it is leaking from the o ring in the fuel on/off knob, has anyone got details of what size it is or got a spare one?

  2. iwoo

    iwoo Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    116
    Location:
    Durham, England.
    Right I have measured the spindle that the o ring sits on (see attached) it needs to be petrol proof.



    Attached Files:

  3. iwoo

    iwoo Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    116
    Location:
    Durham, England.
    I have tried using an online o ring guide but its a bit confusing, do we have any experts on the team?

  4. Rangie

    Rangie Subscriber

    Offline
    Joined:
    Dec 8, 2012
    Messages:
    220
    Location:
    Caithness, Far North of Scotland
    Measure the dia of hole it sits inside as well please.
    There are calculators/guides online for o-rings.
    It depends on the material, there is a certain 'fit' depending on the degree of compression and cross-sectional area.
    We'll be looking at Viton and being Coleman from the imperial series most likely.

    Alec

  5. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,071
    Location:
    Hertfordshire
    This O ring and the way it is fitted are the main reason I really don't like these lanterns. They are prone to failure, I have had two leak on me so far, and I no longer trust the beast. You may be able to tighten it by pushing the clip a notch further on but the best option is to find a genuine Coleman O ring rather than try to find a non standard replacement. The right ring is engineered to have the right fit and compression to make a sound seal. ::Neil::

  6. iwoo

    iwoo Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    116
    Location:
    Durham, England.
    Good advice regarding the O ring lads, I reckon that I will just have to wait until a proper o ring comes along rather than rely on luck. I cannot even see the part listed in the parts manuals online so I do not hold out much hope.

  7. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,071
    Location:
    Hertfordshire
    Try this http://www.oldcolemanparts.com/home.php Murph often has parts no longer listed. ::Neil::

  8. iwoo

    iwoo Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    116
    Location:
    Durham, England.

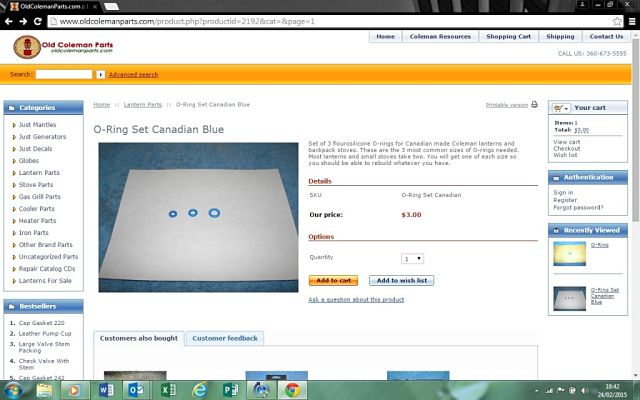

    Thanks for that link, this is the nearest I can find but it has no details on sizes, what do you reckon? 1424803944-o_rings_opt__1_.jpg


    Attached Files:

  9. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,071
    Location:
    Hertfordshire
    One of those might fit. I woold use the contact form and ask specifically for the Peak 1 valve O ring. ::Neil::

  10. ThosKiwi

    Offline
    Joined:
    Nov 7, 2011
    Messages:
    66
    Hello "iwoo" et al

    Here is a good LINK to the 222/226/229.. model 'O' rings,

    Fluorosilicone 'O'rings in sizes 005/007/009 to cover the range.
    They shouldn't be assembled dry, i.e. use 'O'lube or similar.

    Cheers ThosL

  11. iwoo

    iwoo Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    116
    Location:
    Durham, England.
    Thank everyone I have got some good information there, I have contacted the old coleman parts guy for advice also, brilliant.

  12. Rangie

    Rangie Subscriber

    Offline
    Joined:
    Dec 8, 2012
    Messages:
    220
    Location:
    Caithness, Far North of Scotland
    And whats the diameter....?

    Alec.

  13. iwoo

    iwoo Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    116
    Location:
    Durham, England.
    :oops: Sorry Alec I need to get into the garage to measure the groove diameter work and other stuff gets in the way :rage: , In the meantime things I can do whilst having a cup of tea at work, The old Coleman parts have that Canadian set which they inform me contain 2 of the washers I would need so, for $5 I would at least get the OEM spec washers, that will give me some confidence when I come to take a match to it.

    Looking at the design of the o ring between me and a fireball I guess its one lantern that Is definitely not going in the awning when it gets chilly. [-X

  14. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,669
    Location:
    North-East England
    You'd only bark your shins on the awning poles, anyway, Ian... ;) :lol:

  15. ThosKiwi

    Offline
    Joined:
    Nov 7, 2011
    Messages:
    66
    Hello,
    Here is the summary from my LINK , it is from post #23
    "005 - 3/32" ID x 7/32" OD - Fits the e-block on older Canadians and US models - my 222 and 226 used this
    007 - 5/32" ID x 9/32" OD - Fits the e-block on the new models - my 229 uses this
    009 - 7/32" ID x 11/32" OD - Fits the valve on all models"
    Thank you "Sobright" I hope you don't mind me quoting you.

    Cheers
    ThomasL

  16. iwoo

    iwoo Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    116
    Location:
    Durham, England.
    Alec, I had already given the diameter of the groove the O ring sits in at 5.92 mm, the length of the groove is 2.41 mm.

  17. ThosKiwi

    Offline
    Joined:
    Nov 7, 2011
    Messages:
    66
    Hello,
    As these lanterns and parts were mass produced in North America o, they wouldn't have used the metric system, so searching for 'O'rings in non_metric dimensions would be fundermentally easier.
    Cheers
    ThomasL

  18. iwoo

    iwoo Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    116
    Location:
    Durham, England.
    I got the set of 3 blue 'O' rings from the Old Coleman parts place,good service and well packaged so thanks to them, I used silicon grease to help it into place,lamp is now fully functioning and ready for a bit of outdoor only light when I am away in the Caravan.
