Petroman 807

Discussion in 'Other Brands' started by karli, Dec 30, 2011.

  1. karli

    karli Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    679
    Propably built at PETROMAX, Altena for the US market.

    300cp, gasoline

    Interesting details

    1325238170-IMG_0350.JPG 1325238185-IMG_0351.JPG 1325238202-IMG_0352.JPG 1325238234-IMG_0353.JPG 1325238255-IMG_0354.JPG 1325238272-IMG_0355.JPG 1325238298-IMG_0357.JPG 1325238320-IMG_0358.JPG 1325238354-IMG_0360.JPG 1325238396-IMG_0334.JPG 1325238423-IMG_0337.JPG

    Last edited by a moderator: Mar 31, 2017
  2. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,451
    Location:
    Copenhagen, Denmark
    Very interesting details. What is the filler cap made from? Is the quick lighter one of the Petromax variations?

  3. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    7,010
    Location:
    North-East England

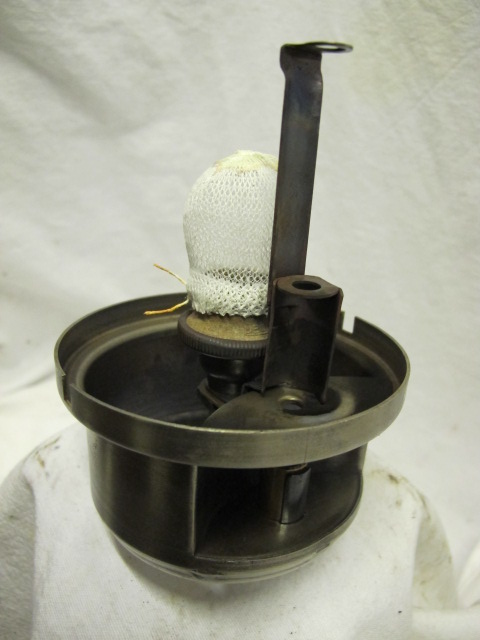

    Interesting - is that metal strip down the outside of the generator designed to prevent the mantle touching it and thus burning it out?

    Also seems to have quite an enlarged jet! - what's going on there..?

  4. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,187
    Location:
    Hertfordshire
    That metal piece looks like the adaptor to enable the use of a two tie mantle. Missing the ceramic block at the bottom and fitted the wrong way round. ::Neil::

  5. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,187
    Location:
    Hertfordshire
    The brand name Petroman was registered in 1954 to Graetz Aktiengesellschaft Hamburg (trade mark number 663242) and again in 1955 (trade mark number 669851). Therefore I assume any lanterns with this brand were made by Graetz KommanditGesellschaft (Graetz KG) in Altena alongside Petromax and Aida in the late 1950s and 1960s. ::Neil::

  6. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    7,010
    Location:
    North-East England
    Initially, I wondered if that's what it might be, but it seemed over-long and IIRC, doesn't resemble the adaptor I've got around here, somewhere...

    Last edited by a moderator: Mar 31, 2017
  7. karli

    karli Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    679

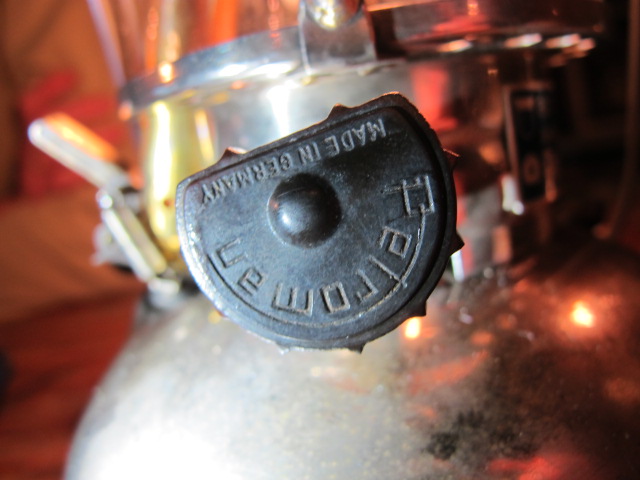

    The filler cap is made of a plastic.

    In German: Pertinax

    The preheater is not the like the Px construction.

    He has only one hole for the fuel from the tank.

    If you push on the knob of the cap, the tank

    looses his pressure very fast.

    A very good idea :thumbup:

  8. HighlandDweller

    Offline
    Joined:
    Mar 9, 2014
    Messages:
    604
    I know this is an old topic, but the Petroman is a dual fuel Gasoline-Kerosene lantern and the metal piece on the generator is used to alter the fuel-air mixture. When fitted the lantern will burn gasoline and when removed it will burn kerosene.
