Petromax 828 "Sickentank"

Discussion in 'Fettling Forum' started by Dieselross, Jun 20, 2021.

  1. Dieselross

    Dieselross Germany Subscriber

    Offline
    Joined:
    Sep 1, 2019
    Messages:
    61
    Location:
    Deutschland
    Moin,

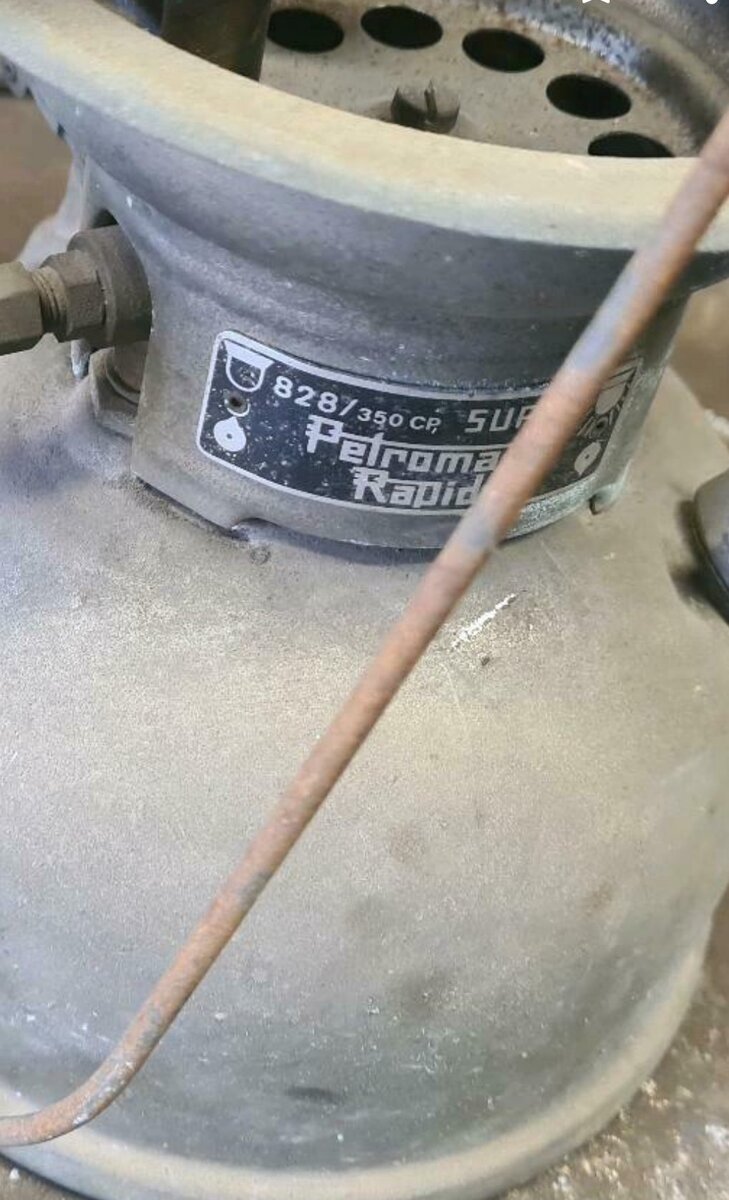

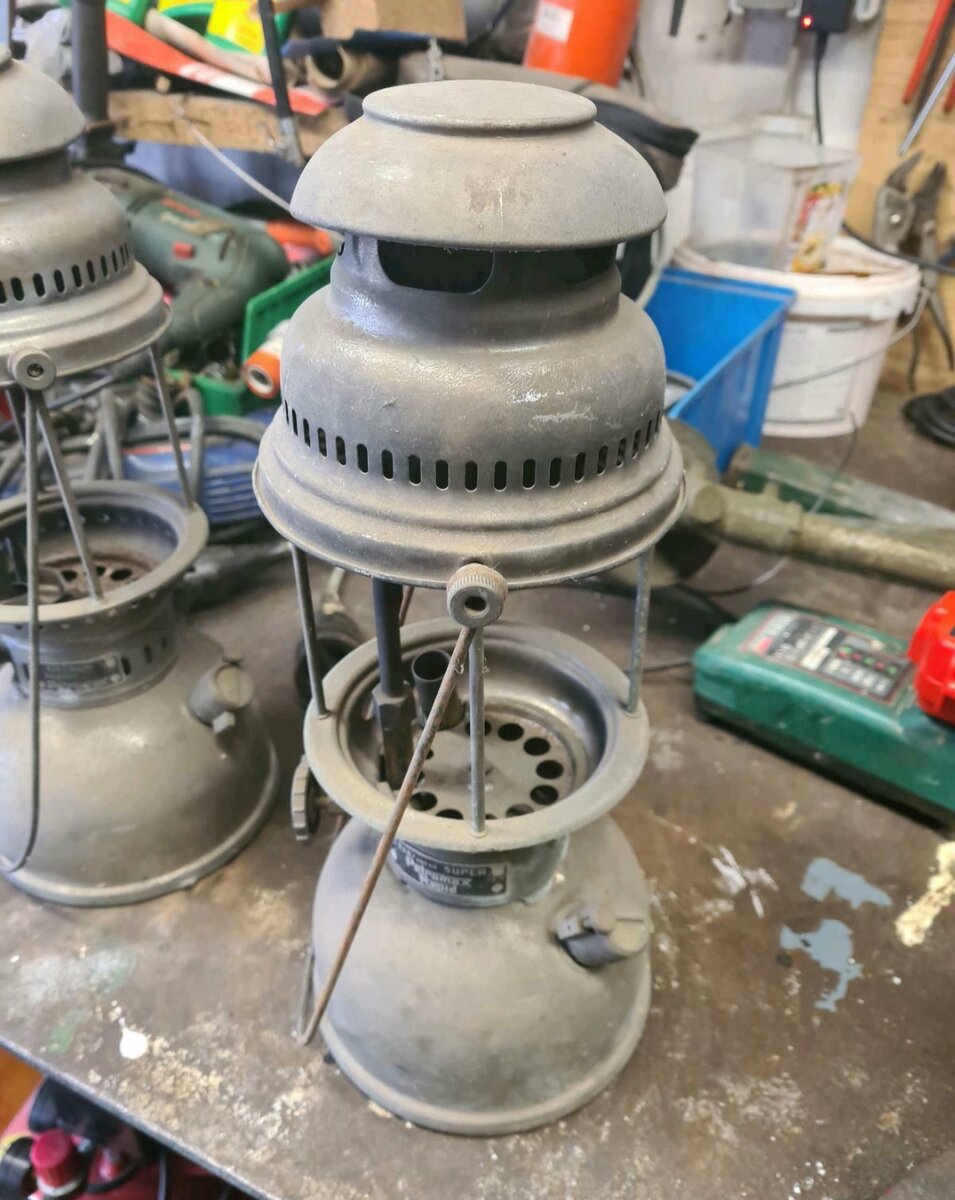

    I got an 828 "Sickentank" that I bought as a parts carrier.
    Screenshot_20210527-191955.jpg Screenshot_20210609-222025(1).jpg Screenshot_20210609-222014(1).jpg Screenshot_20210609-222002(1).jpg



    When taking stock, I noticed that the lamp was completely untampered and technically new.

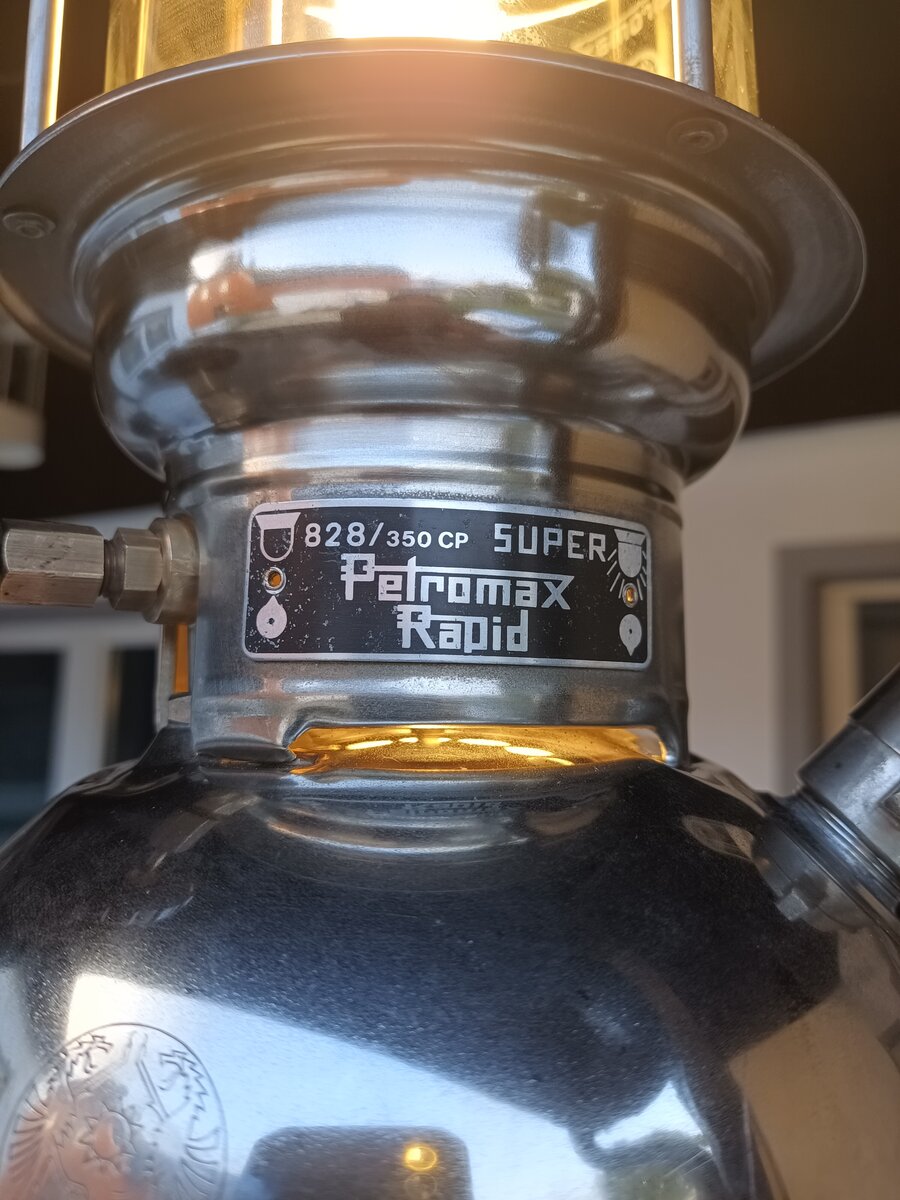

    I was able to recondition the surface, the technology only needed one cleaning.

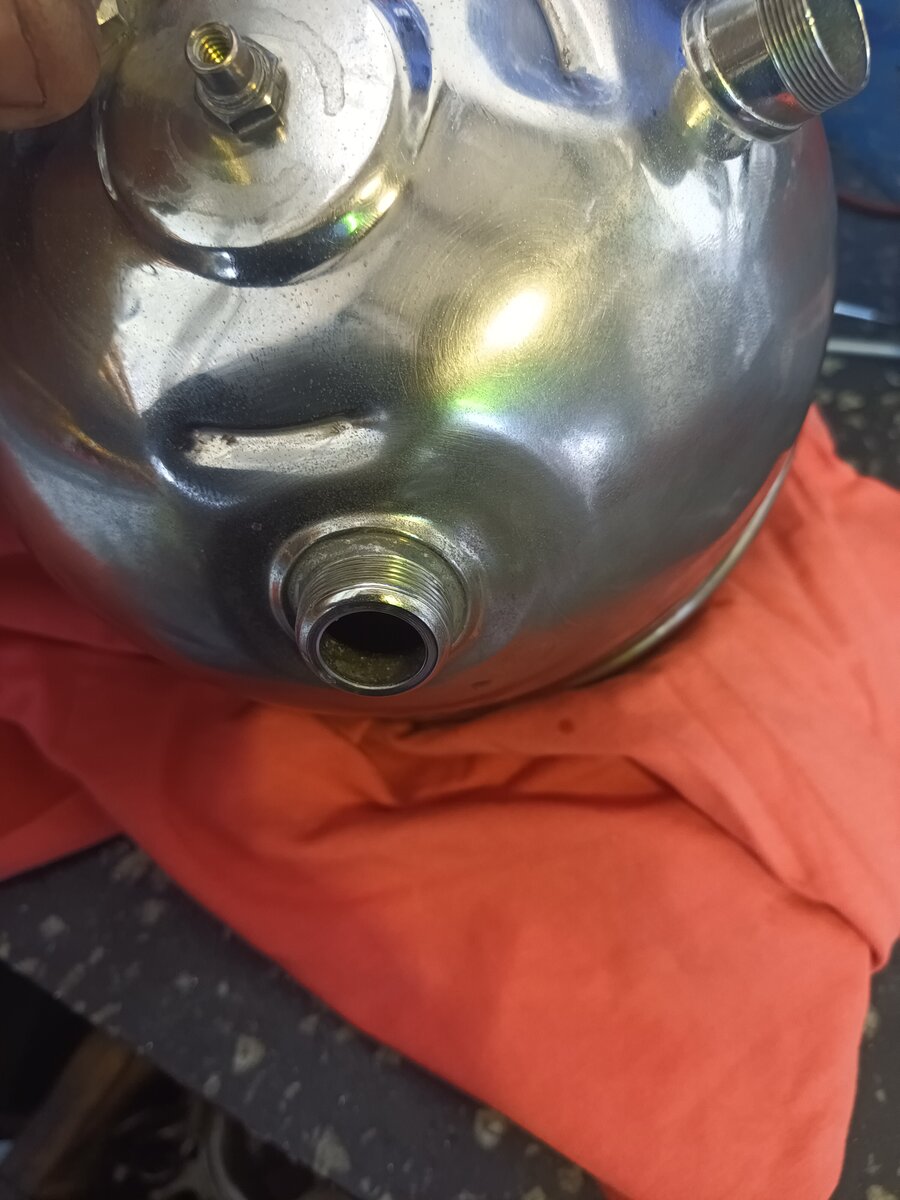

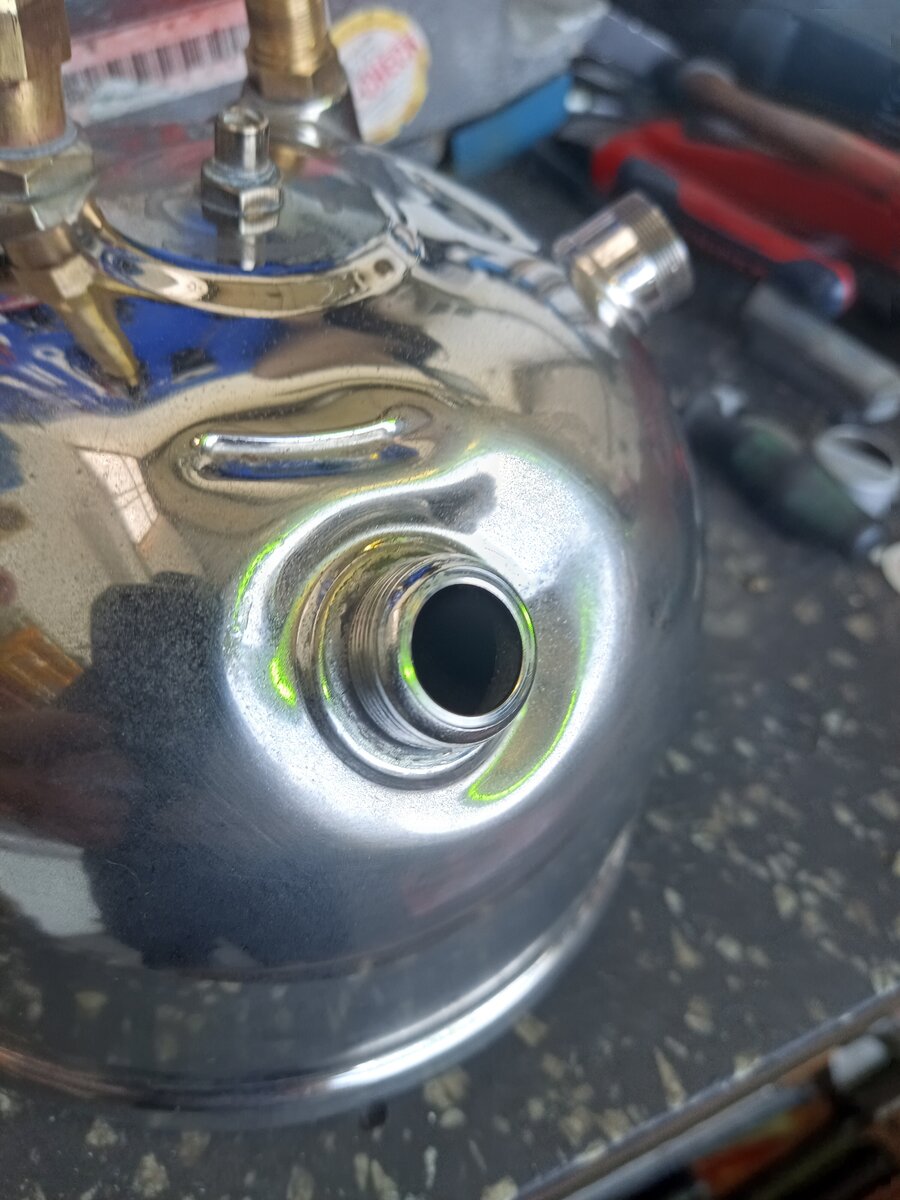

    Unfortunately, the tank had once received a bad hit on the pressure gauge and was badly depressed.
    IMG_20210609_071504_538.jpg IMG_20210609_072008_182.jpg

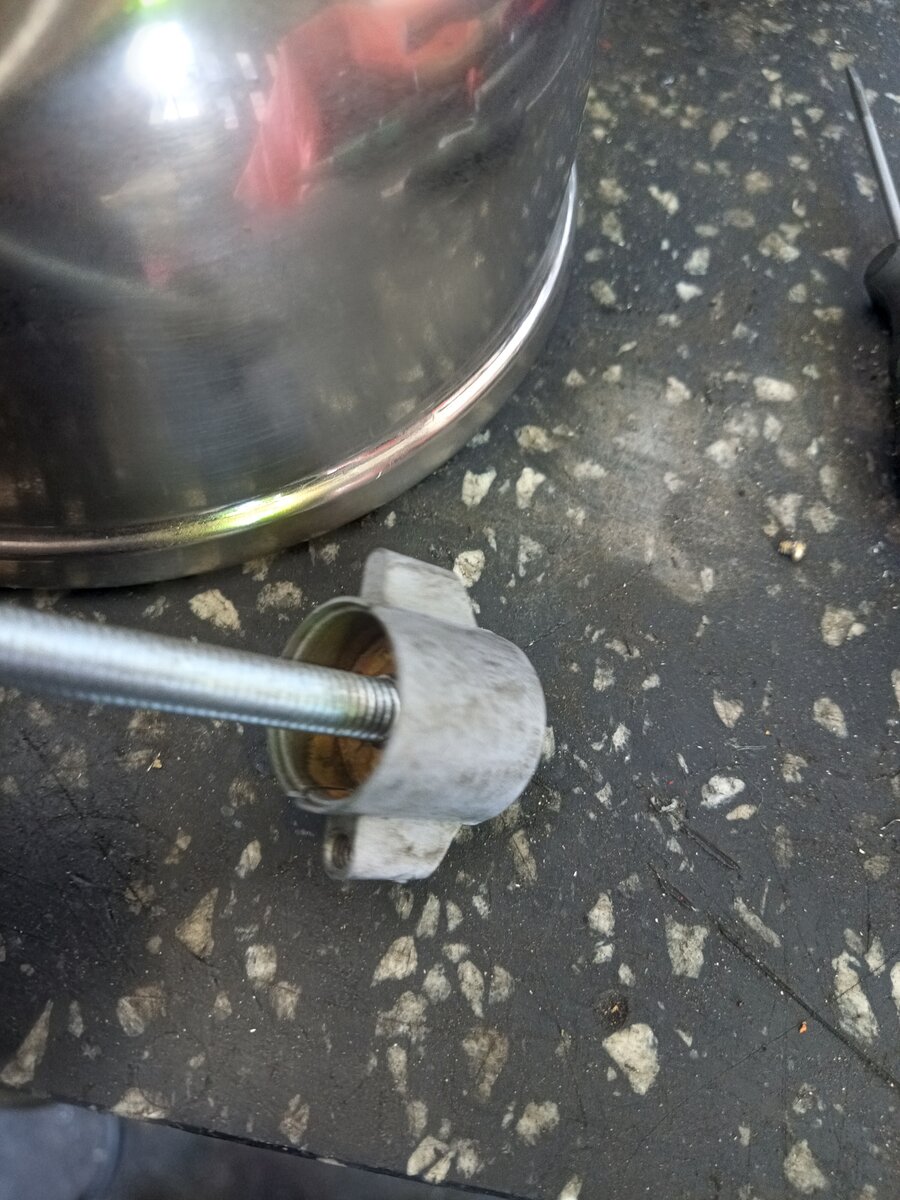

    With a self-made pulling device from a defective manometer from Chinese production, I was able to carefully pull the nozzle out again.

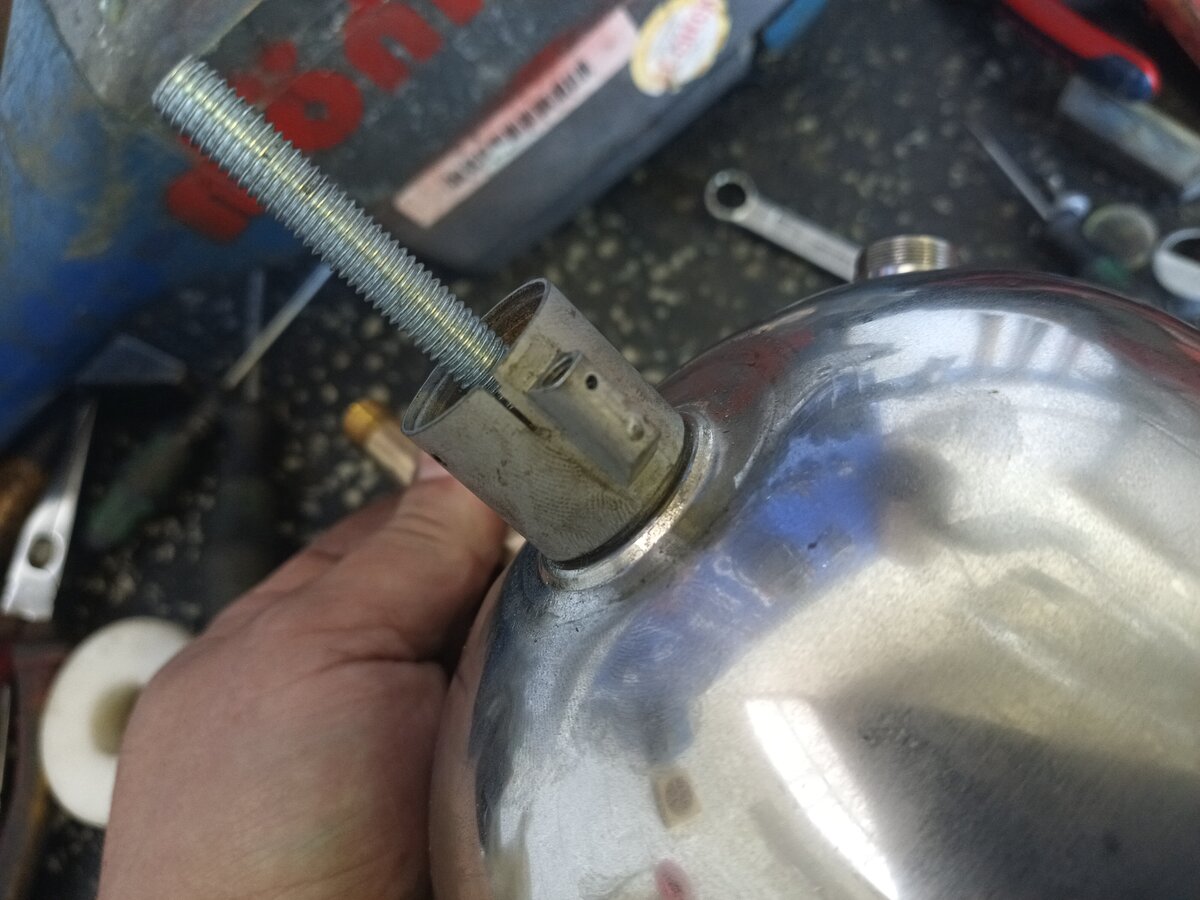

    I pulled the socket out again with a threaded rod that was inserted into the old manometer.

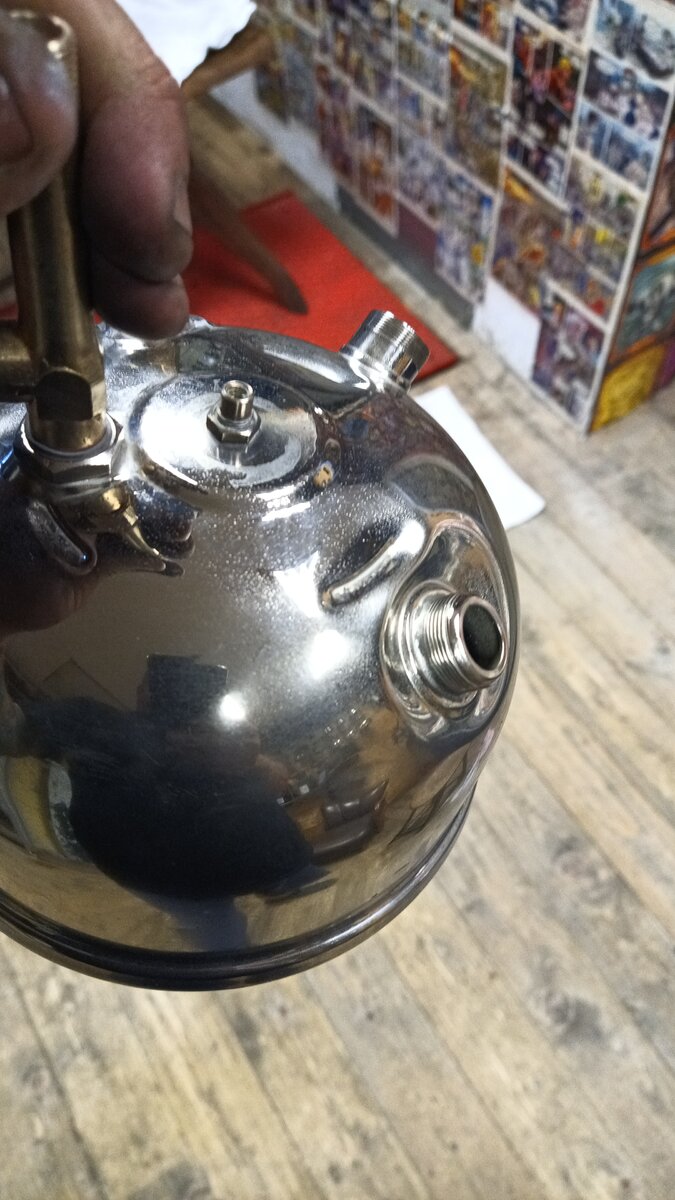

    A plastic pipe is used for support by pulling very carefully and checking frequently, I was able to quickly and completely eliminate the damage.



    IMG_20210609_071959_821.jpg IMG_20210609_205120_132.jpg IMG_20210609_204615_867.jpg IMG_20210609_204555_245.jpg IMG_20210609_205123_217.jpg


    Attached Files:

  2. MarkC

    MarkC Subscriber

    Offline
    Joined:
    Feb 17, 2018
    Messages:
    278
    Location:
    Tallinn, Estonia
    Looks like 2 different founts. Well done.

  3. John

    John United States Subscriber

    Offline
    Joined:
    Jan 8, 2011
    Messages:
    678
    Location:
    Dallas, Texas; United States
    Very well done, I never would have thought of that.

  4. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    1,359
    Location:
    Brighton UK
    Excellent job ! thanks for sharing that idea :clap:

  5. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    1,992
    Location:
    Scottish Highlands
    Well done, an excellent job and a fount saved!

  6. Dieselross

    Dieselross Germany Subscriber

    Offline
    Joined:
    Sep 1, 2019
    Messages:
    61
    Location:
    Deutschland
    Moin,
    Thank you for your praise.
    It is always a challenge to achieve a good result with little effort in such work.

    I trained as an agricultural machinery mechanic.
    There is a principle in the profession that is also very helpful with old lamps.

    1. That has to be done
    2. It must not cost anything and
    3. it has to last forever,
    so that the farmer is satisfied.

  7. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    11,964
    Location:
    Shetland Islands UK..
    Well fettled!:thumbup::clap::clap::thumbup:

    That is a great work principle!:thumbup::thumbup:

  8. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    1,992
    Location:
    Scottish Highlands
    Haha! I know this well! Especially the ‘must not cost anything’!

  9. Dieselross

    Dieselross Germany Subscriber

    Offline
    Joined:
    Sep 1, 2019
    Messages:
    61
    Location:
    Deutschland
    Moin,
    Deep inside, we are all little Farmers.....

  10. Steven67

    Steven67 Germany Subscriber

    Offline
    Joined:
    Apr 2, 2021
    Messages:
    31
    Location:
    Goeppingen, Germany
    Very good idea!
    However .. i hope, that i never have to use it ;-)

  11. bp4willi

    bp4willi Germany Subscriber

    Offline
    Joined:
    Jan 21, 2014
    Messages:
    806
    Location:
    Niers, Germany
    Ohh. High price ahould not prevent you from buying quality.
    Low quality buyers buy twice.

  12. george United States

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    3,050
    Location:
    USA
    Hi, thank you!

  13. eiremax

    eiremax Subscriber

    Offline
    Joined:
    Jul 5, 2014
    Messages:
    555
    Beautiful looking lanterns, great work on the tank.
