Pricker Coleman Milspec

Discussion in 'Fettling Forum' started by BradB, Jun 16, 2021.

  1. BradB

    Offline
    Joined:
    Apr 17, 2017
    Messages:
    25
    My wife bought for me a 1956 Coleman milspec lantern. It came without tool or pricker. I understand the tiny jet is only 0.0045 inch, or about 0.11 mm. I can’t find any prickers for sale. Any ideas how to make one or find wire that size? Brad

  2. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    643
    Location:
    Lancashire, UK
    The filter in the valve end of the generator effectively (I’ve found) makes pricking the jet unnecessary.




    Jets so fine are butane appliance territory and the manufacturers of those advocate using an airline to remove a blockage if needed, or they’ll often have a plug of filter material in the jet cavity - again, to prevent a blockage.

    Finest Campingaz pricker I have is way too big for the Milspec jet.



    Hah! I was forgetting, the Coleman tool has the prickers! Old Coleman Parts?


    John

    Last edited: Jun 16, 2021
  3. BradB

    Offline
    Joined:
    Apr 17, 2017
    Messages:
    25
    Thanks John @presscall , I didn’t see it listed at OCP but I will shoot them an email. Brad

  4. BradB

    Offline
    Joined:
    Apr 17, 2017
    Messages:
    25
    No such luck at OCP. They don’t have them and can’t get them.

  5. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    643
    Location:
    Lancashire, UK
    @BradB Sorry to hear that. On the plus side, if my experience of running a Milspec is anything to go by the jet won’t need pricking - the filter’s effective.

  6. BradB

    Offline
    Joined:
    Apr 17, 2017
    Messages:
    25
    I hope so. I haven’t tried mine yet. It is in pieces and some in the rust bath. I have a spare generator coming from OCP, but it seems some people claim the new ones are plugged. Operator error?

  7. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,516
    Location:
    Somersby, New South Wales, Australia
  8. BradB

    Offline
    Joined:
    Apr 17, 2017
    Messages:
    25
    Thanks @ROBBO55 . It seems in the USA you have to be a licensed acupuncturist to purchase these!

  9. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,516
    Location:
    Somersby, New South Wales, Australia
    @BradB
    If you find you need a pricker let me know. I'm sure we can work it out.

  10. BradB

    Offline
    Joined:
    Apr 17, 2017
    Messages:
    25
    @ROBBO55 , thanks for the offer. I am new to the milspecs, but it seems many owners could not get them to run without. We will see. I will soon be reassembling the lantern. Brad

  11. BradB

    Offline
    Joined:
    Apr 17, 2017
    Messages:
    25

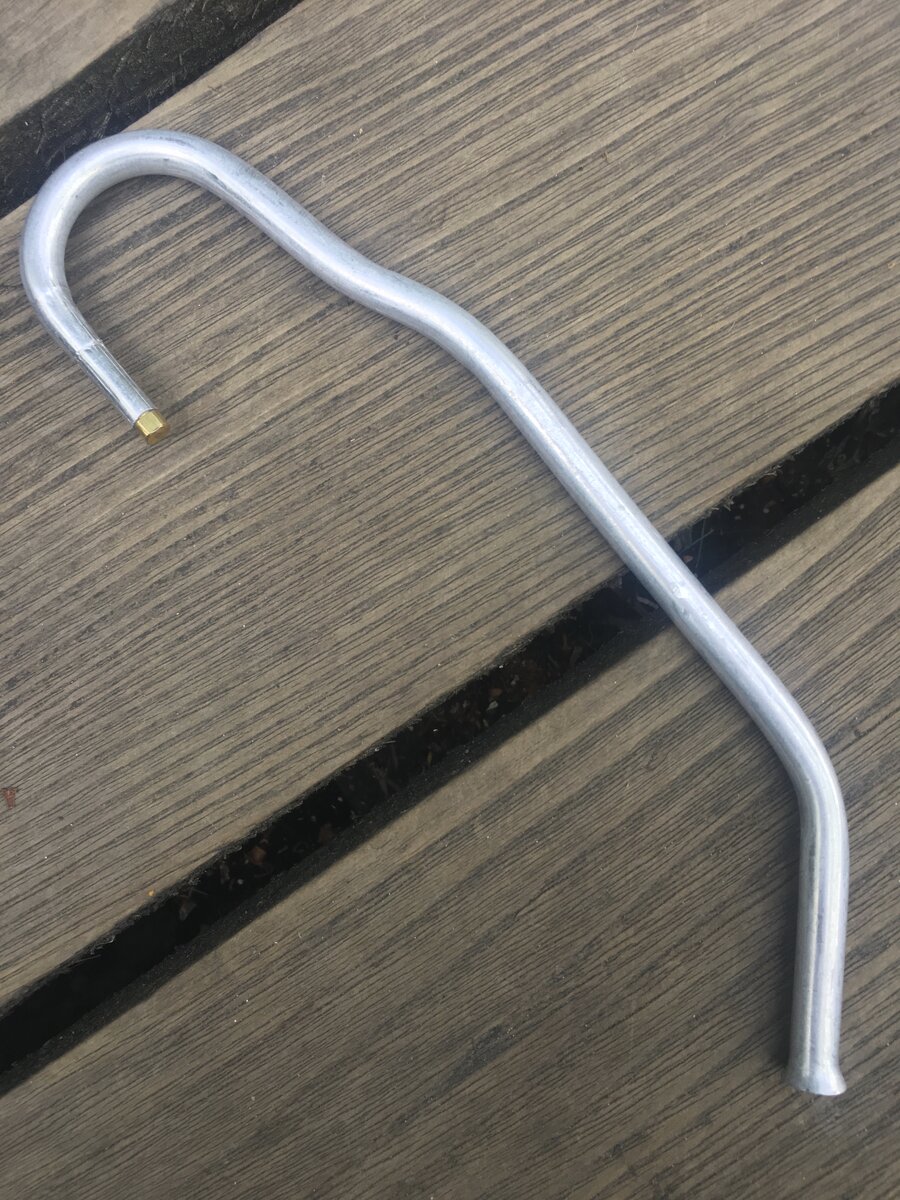

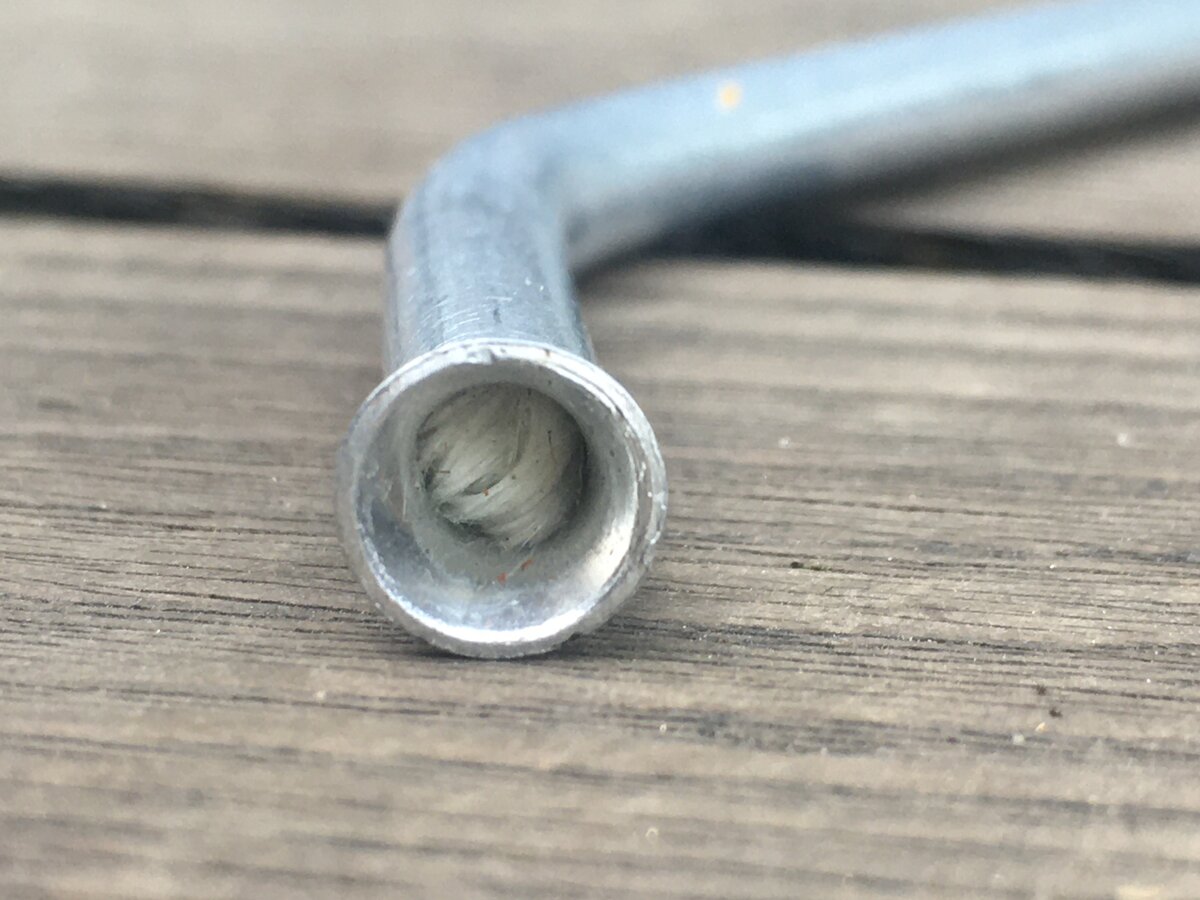

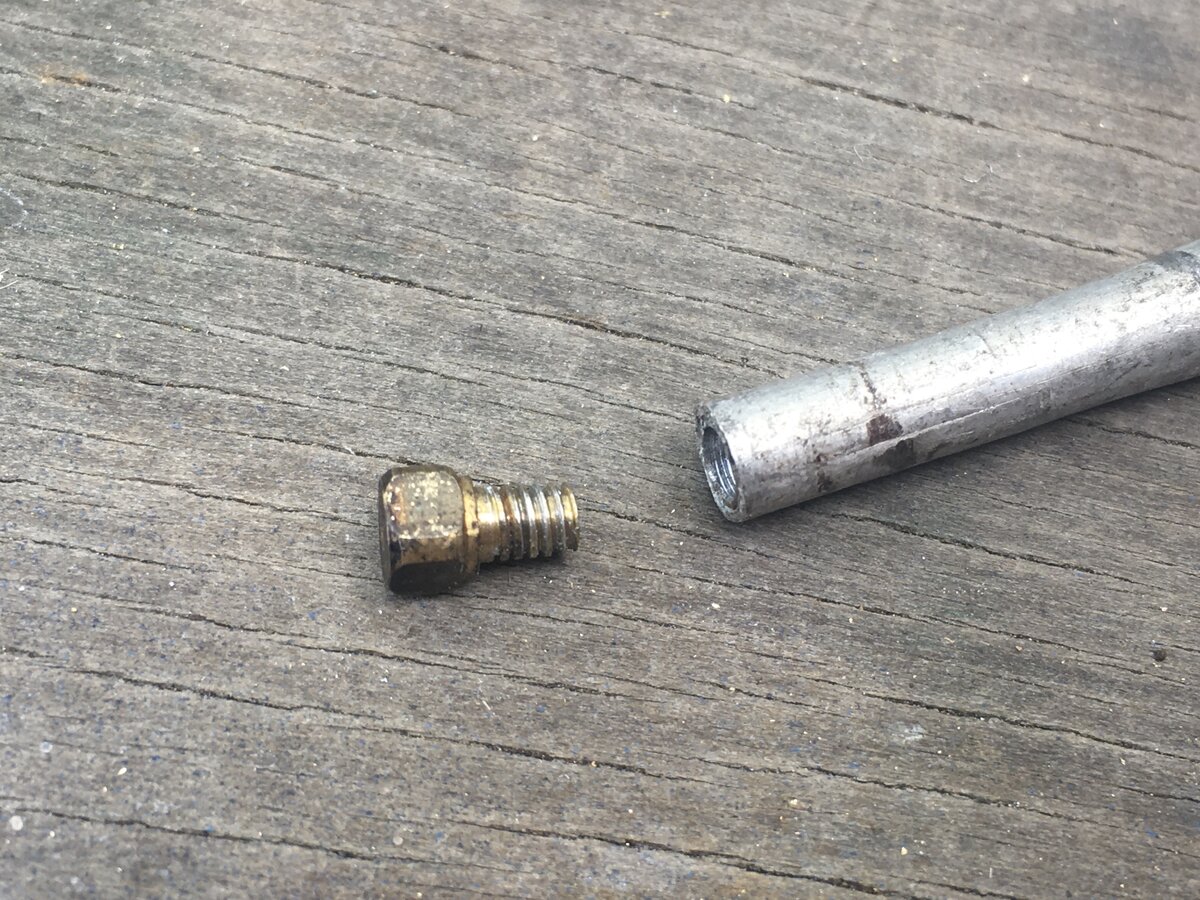

    I put the lantern back together and it looks very nice and is in good condition. But, it won’t light. I have fuel delivered to the base of the new generator, but nothing out the other end to the mantle. I removed the generator and I have the jet soaking in acetone. With my air pressure tank I blew out the tipless generator and fuel came out, so it is clearly a clogged jet. I have it back in the acetone, hope for the best. An interesting note, the broken original generator has a jet that will not screw into the new replacement. Appears to be different threads.

  12. BradB

    Offline
    Joined:
    Apr 17, 2017
    Messages:
    25
    I found an outfit that will sell needles to me without my medical credentials. Good grief! Now I have 100 needles coming, 0.10 mm diameter. The things we do for flame!

  13. Pancholoco1911 United States

    Offline
    Joined:
    Nov 26, 2019
    Messages:
    260
    Location:
    USA
    @BradB you can get pricker wire almost in every size for lamps. There is a seller on eBay that sells then relatively cheap.

  14. BradB

    Offline
    Joined:
    Apr 17, 2017
    Messages:
    25

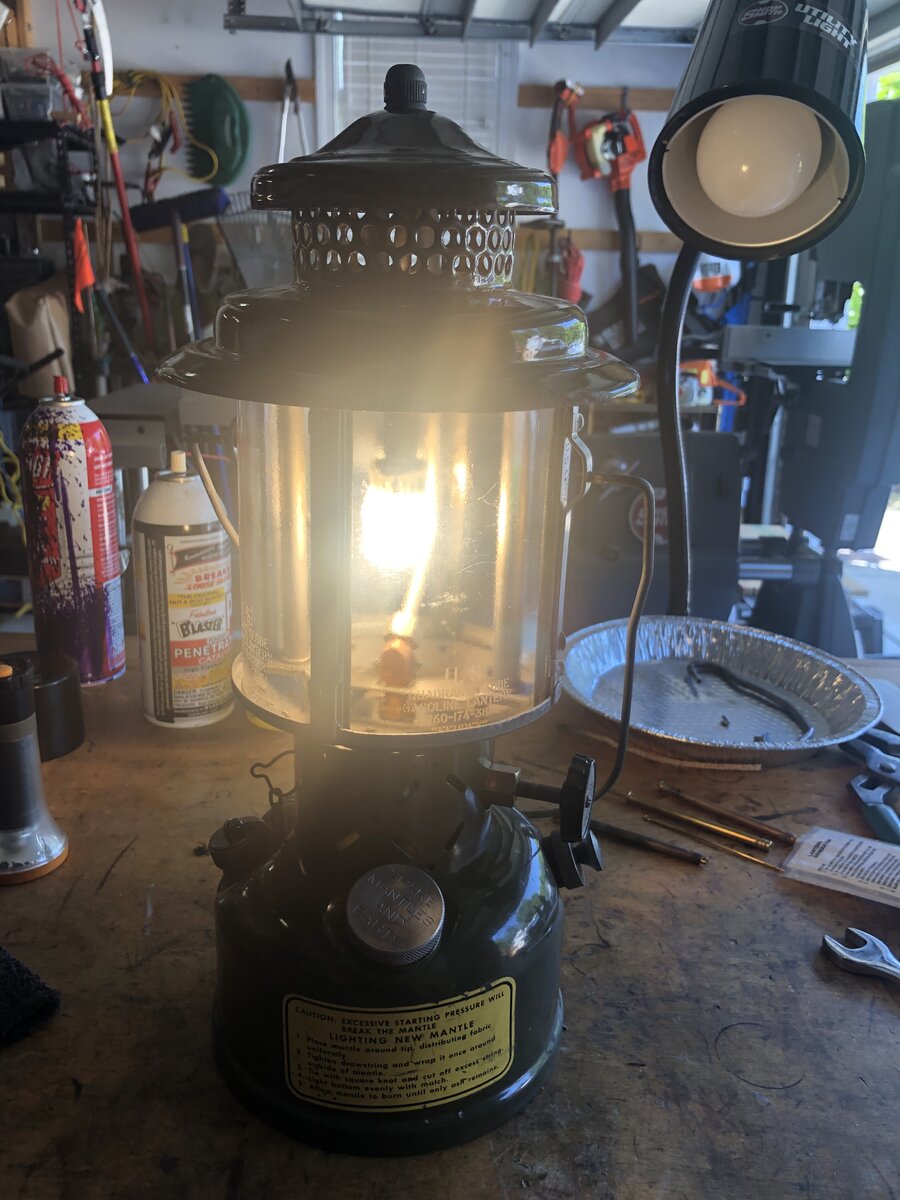

    13275673-6275-43FB-9EF9-BDA492D01D2D.jpeg Waiting for my acupuncture needles I became impatient. Although my new generator is clear and passes fuel, neither of my jets will pass fuel. As an experiment, I installed a jet from a 220 generator. Supposed to be much larger. With a bucket of water ready, fire extinguisher, safety goggles, and welders gloves, I pumped 3 pumps. It lit immediately, flamed a bit for, then turned bright. It has been running now, seemingly happy, for ten minutes on 15 pumps.

  15. BradB

    Offline
    Joined:
    Apr 17, 2017
    Messages:
    25
    After nearly an hour it seemed the lantern had dimmed just slightly. Ten more pumps brought it back to full roar. I am calling it a win! Brad

  16. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,548
    It looks great to me!

  17. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    3,276
    Location:
    Toowoomba Australia
    @BradB
    Well done mate, she’s a roaring success.
    There’s nothing like the roar of a MilSpec whilst having a quiet beer or three.
    Cheers
    Pete

  18. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,516
    Location:
    Somersby, New South Wales, Australia
    @BradB
    I'm glad you're got it going with the 220 nipple. It proves the only thing that was wrong with the lantern was a blocked jet.

    100 Acupuncture needles :lol:, I found the same, originally only wanted a couple but had to buy 100. But you'll find many more uses for then down to track.

  19. Buckaroo

    Buckaroo Australia Subscriber

    Offline
    Joined:
    Mar 21, 2020
    Messages:
    230
    Location:
    Wollongong, Australia
    I’m yet to add a milspec to my collection or even see one!

  20. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    1,992
    Location:
    North Yorkshire

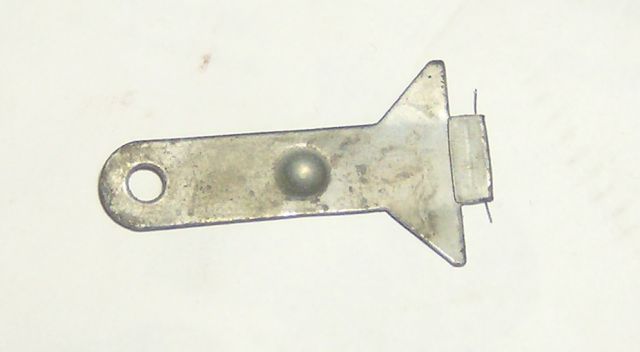

    So why are they still listed ? Milspec Wrench - 184

    DSCN1325 (2).JPG

  21. BradB

    Offline
    Joined:
    Apr 17, 2017
    Messages:
    25
    Good question. I thought I heard these were missing the pricker. I ordered one anyway, so we will see. Thanks, Brad

  22. BradB

    Offline
    Joined:
    Apr 17, 2017
    Messages:
    25
    I received two more generators today. I tried one of them. The stove would light, unlike my previous new generator, but would not pass enough gas to burn brightly. Not even a hiss! There’s a reason the directions on the side of the fount say to disassemble the tip and use the pricker. I just can’t figure out why the Army picked a high maintenance design, compared to a standard Coleman with built in pricker. Still waiting for those acupuncture needles and milspec wrench.

  23. Toby Garner

    Toby Garner United States Subscriber

    Offline
    Joined:
    Jun 13, 2021
    Messages:
    111
    Location:
    SW Missouri
    Brad it's common to need to prick those NOS milspec gens. I'm not sure why... But being a tiny orfice it's easily restricted. I agree they were not a great design, but I believe their intent was to make it easy for a soldier (normally a young man) to just swap gens and have a running lantern again.


  24. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    2,081
    Location:
    Malaysia
    With a 0.0045" gas tip(jet) orifice, you won't find many common items to prick them. It can hardly be seen without a magnifier. You need to be young enough to use it :D.
    Nevertheless, from my experience with a Milspec, I find that its very helpful if you could ensure a particle-free fuel being delivered to the gas tip. They do reduce the need for frequent prickings. The fibrous stuffing(likely asbestos) is quite necessary for that. I have actually replaced the stuffing with a finely braided metal wire screen(made from the grounding shield/screen of a thermocouple lead wire). I think its made of nickel-coated copper. Its sufficiently fine to work as a filter and not as likely to shed or release free particles into the fuel stream as asbestos fibres. It acts as a sink for any carbonized fuel and greatly reduce the chances of blockage in the gas tip orifice.

  25. BradB

    Offline
    Joined:
    Apr 17, 2017
    Messages:
    25
    You are certainly right about finding nothing around my shop to use as a pricker. That why I am soon to be the proud owner of 100 acupuncture needles, 0.10 mm. Hmm, starting to remind me of my adventures with #8 tippet for my fly fishing leaders. How in the world do you tie a knot with something you can’t see or feel?

  26. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    2,081
    Location:
    Malaysia
    Anything less than 0.20mm is finer than the bristles of most wire brushes around.
    I'd need at least a magnifying glass to work on those individual needles that has not been attached to anything yet.

  27. BradB

    Offline
    Joined:
    Apr 17, 2017
    Messages:
    25
    It has been interesting. I received my 0.10 mm acupuncture needles. As above in this thread, I could not get the milspec to work using the standard jet, which is 0.0045 inches. I don’t know the size of a Coleman 220 jet, but the lantern lit and burned well with that jet. My suspicion, untested by me, is that it may burn more fuel with the larger jet.
    I purchased three new generators and none would work with the standard jet. Using the acupuncture needles to prick the jet, from the inside pushing out, the lantern would light, but would not pass enough gas to burn brightly. Next, using my magnifying glasses, I reamed the jet with the needle, from the outside pushing in. Suspecting my 0.10 mm needles to be a bit too small, I tried to swirl the wimpy needle in the opening. Hitting that tiny opening with the needle is not easy. However, that did the trick and the lantern lit and burned as designed. There seems to be no good substitute for the standard pricker, which I have not been able to locate. I did purchase the milspec wrench from OCP, but, as I suspected, they do not have a pricker.

  28. Toby Garner

    Toby Garner United States Subscriber

    Offline
    Joined:
    Jun 13, 2021
    Messages:
    111
    Location:
    SW Missouri
    Brad the 220 gas orfice would be a .008 for reference. Many of the NOS milspec gens need to be pricked before use. Hard to do without the proper tool as you've found :) here's a useful Coleman orfice chart for future reference.

    Coleman Generators

  29. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    2,081
    Location:
    Malaysia
    The 0.1mm acupuncture needles should be good enough. You don't want to enlarge the orifice any further.
    The only thing is to attach or crimp it with a piece of suitable sheet metal or something so that you can hold it steadily while pricking. Similar to what they did on a standard Milspec wrench.
