Primus 1020 (AN, 1949)

Discussion in '1020' started by Tony Press, Jul 24, 2018.

  1. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,758
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Here is a rather rough Primus 1020. It was bought in Australia and is most likely an Australian import from around that period.

    Note that it has an Aladdin bail (as it came with).

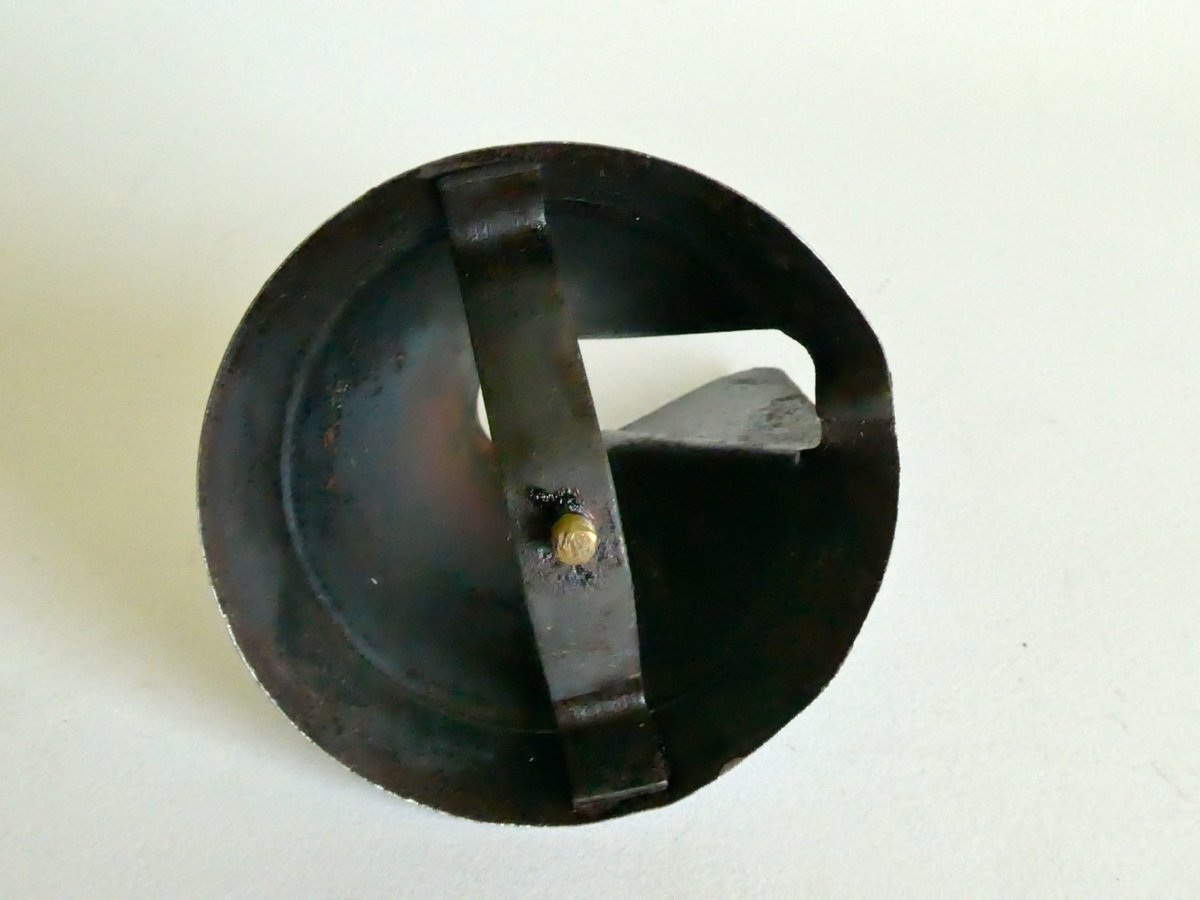

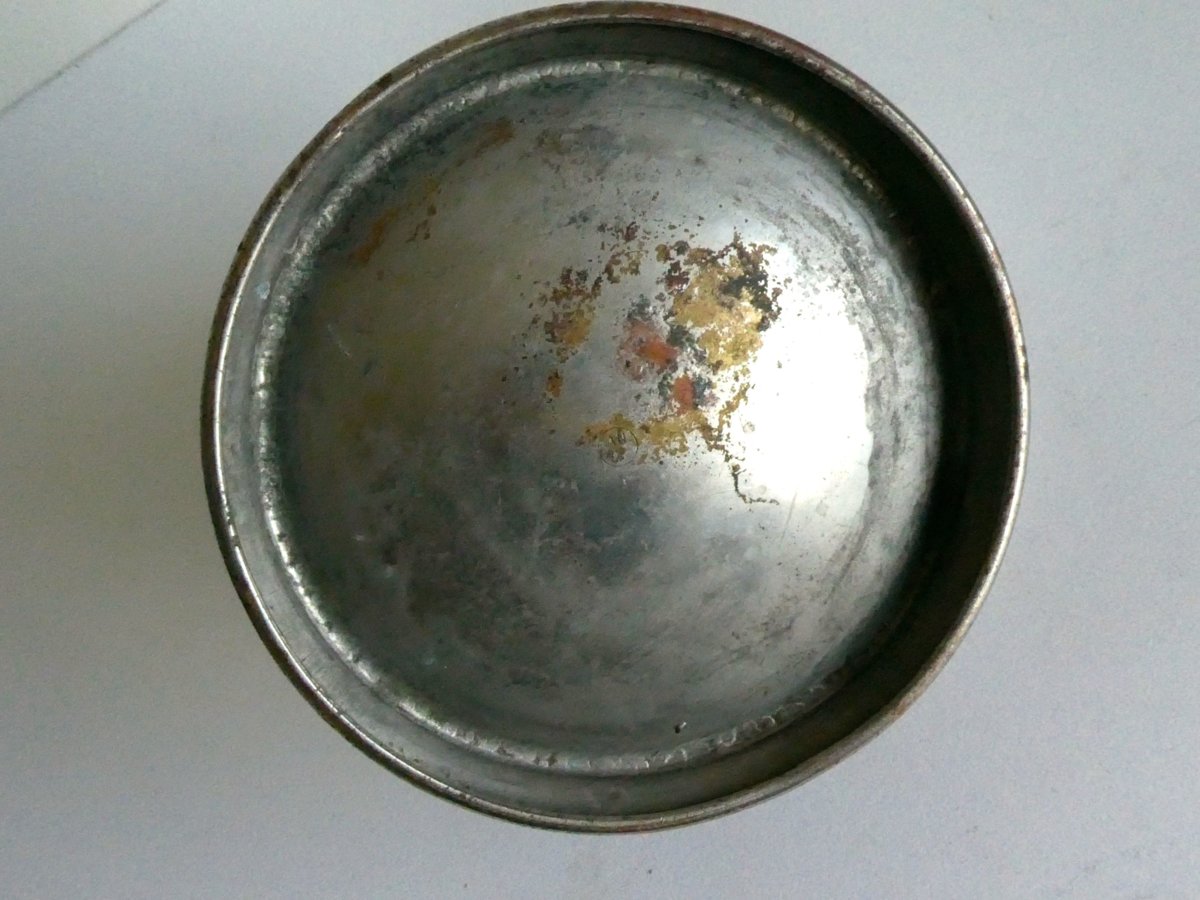

    The underside of the inner hood.

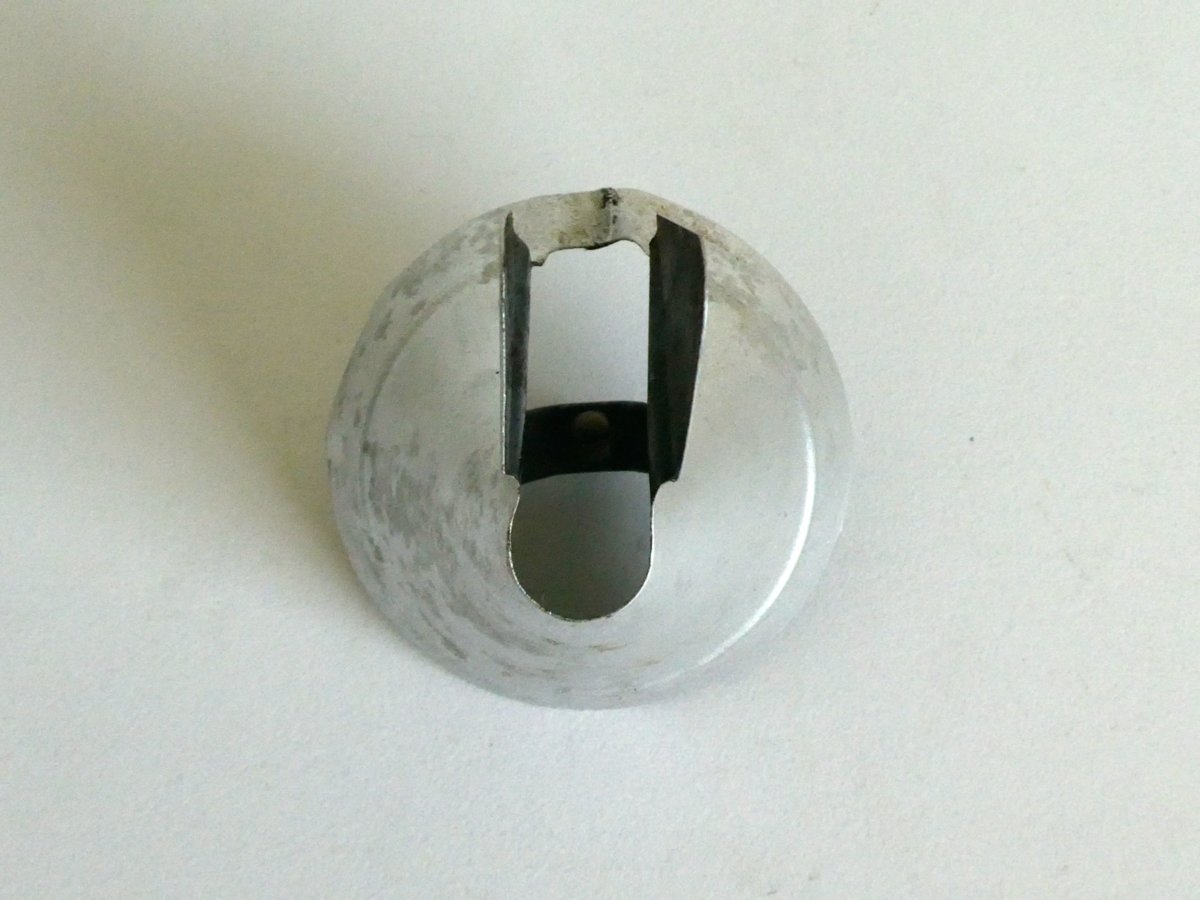

    Inner hood.

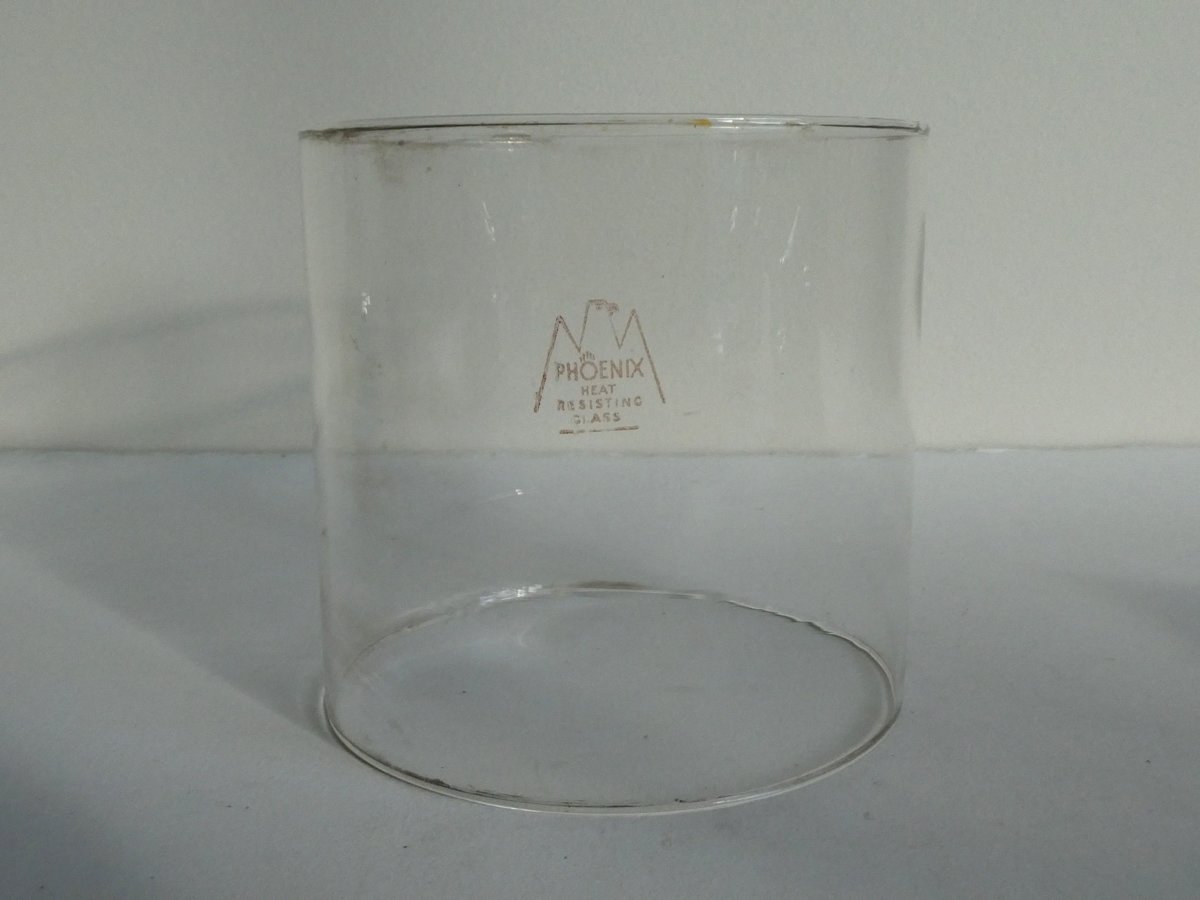

    It came with a "Phoenix" globe (chimney):



    Discussion about the nipple/jet is here:

    Help needed: Primus N0. 1020 Nipple (Jet )

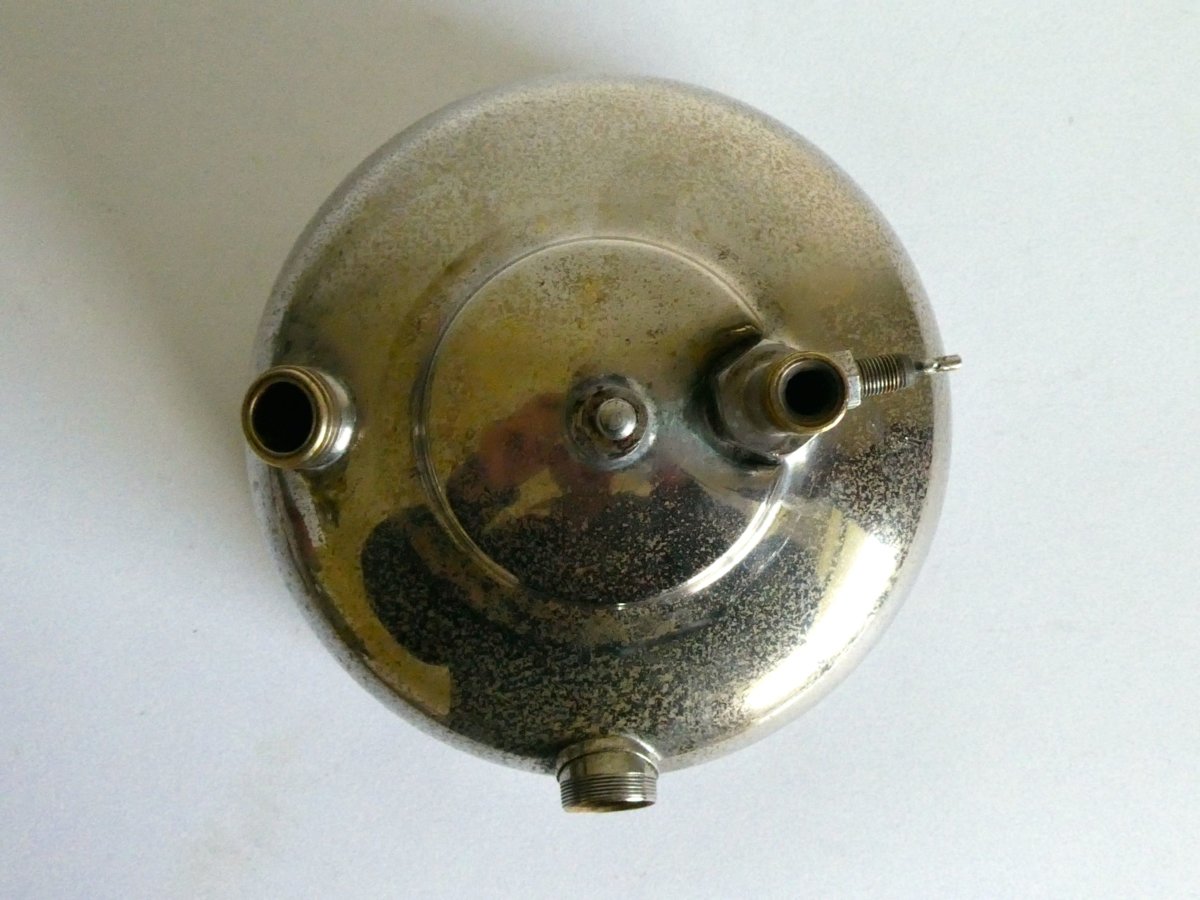

    The tank has lost a lot of nickel. Otherwise the lantern is OK.

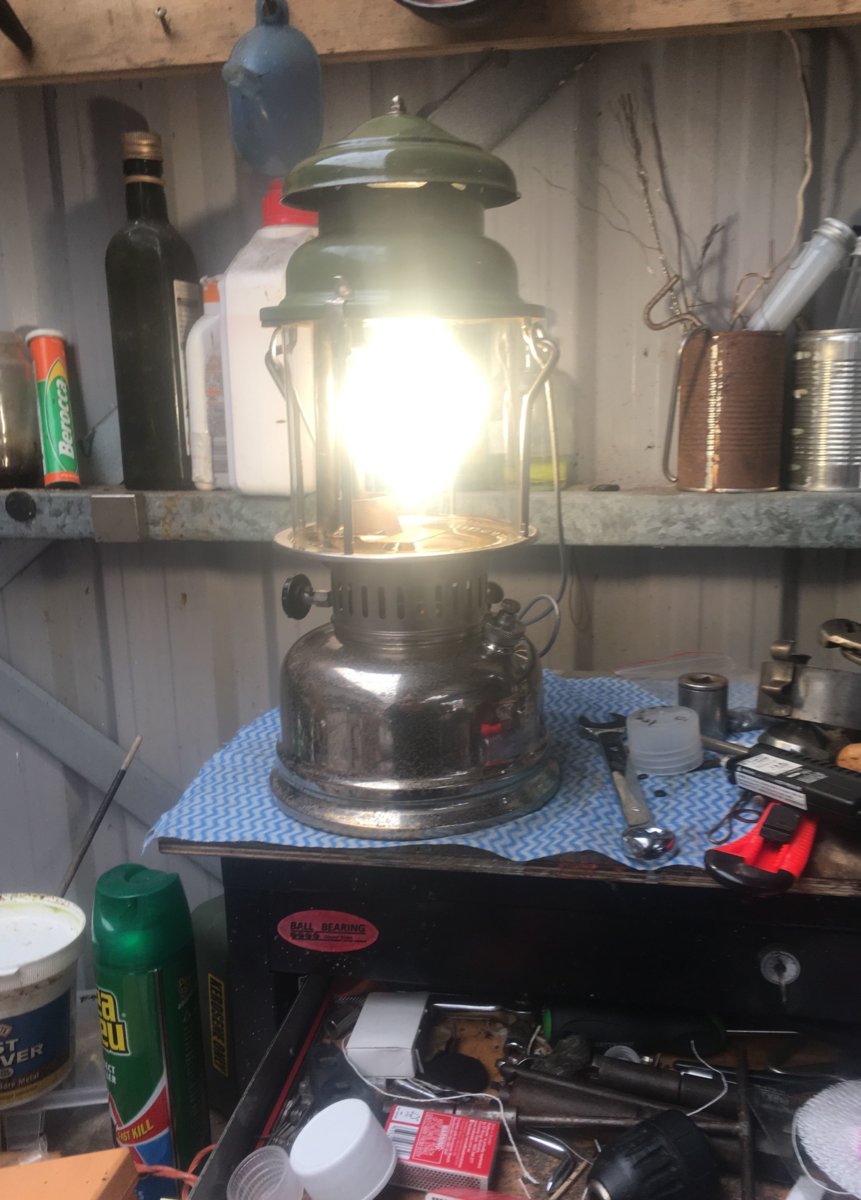

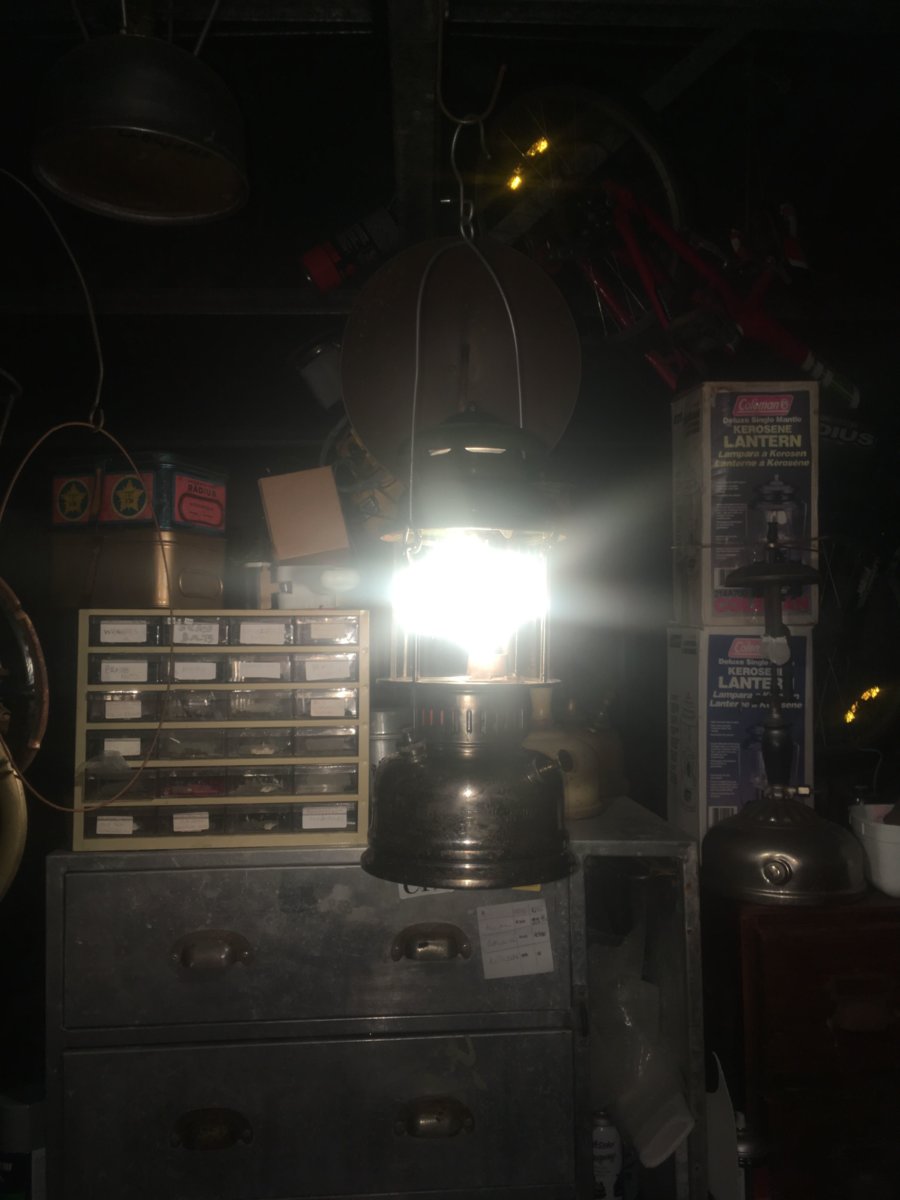

    Up and running: IMG_E8233.jpg




    Cheers

    Tony

  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    15,180
    Location:
    Shetland Islands UK..
    Well saved and it's a grand old lantern once again!:thumbup::thumbup:

  3. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    875
    Location:
    Gujan-Mestras - Gironde - France
    Nice job and well saved :clap:

  4. Andrew T

    Offline
    Joined:
    Mar 1, 2016
    Messages:
    558
    Location:
    Port Elizabeth South Africa
    Besides the nickel loss it looks very good compared to mine.
    Thanks for the detailed pictures as I have not taken mine apart that much . Mine is dated AN 10.

  5. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    2,050

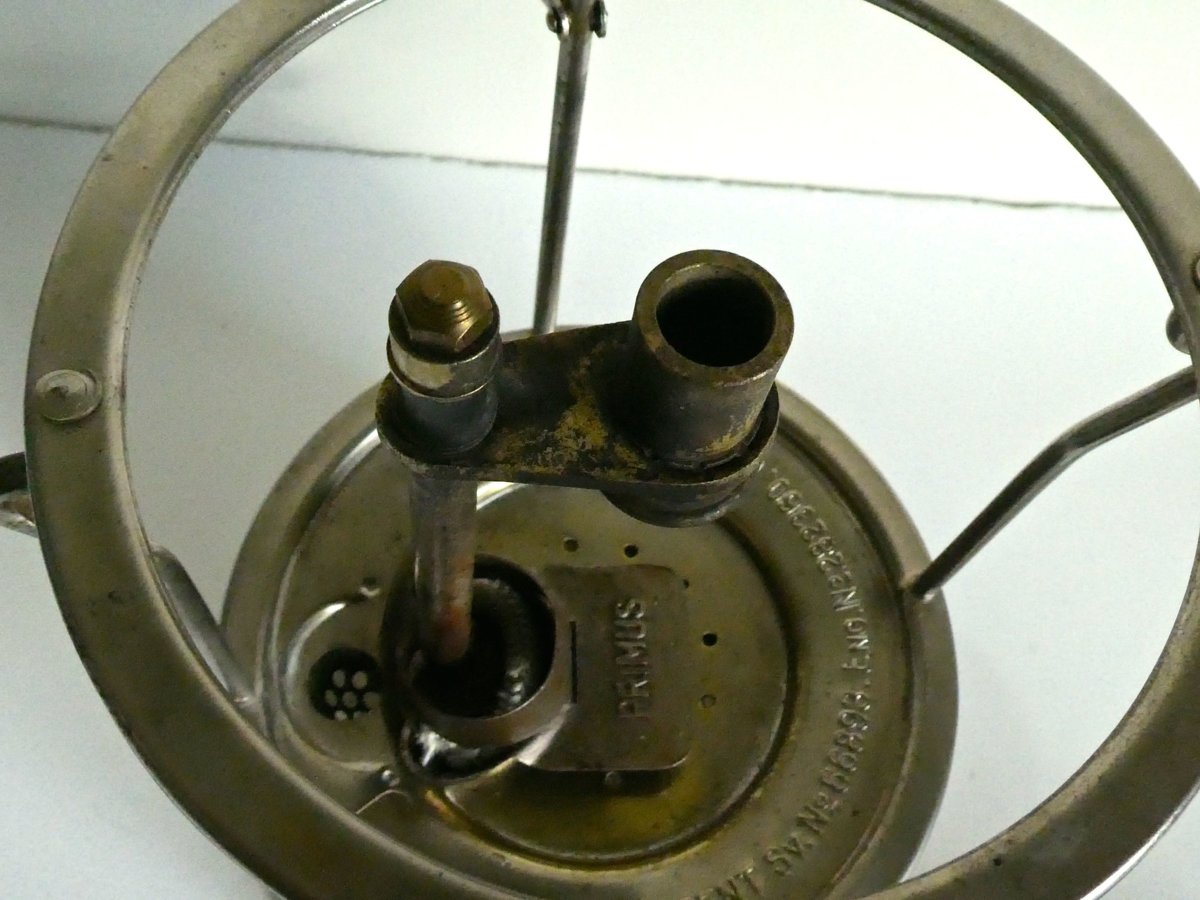

    A very good acquisition, Tony! The vent looks remarkably good, so it is likely that the lantern has low "mileage". It appears that someone turned the J-tube a couple of turns too deep into the air tube, lifting the mixing chamber off its seat. Doesn't seem to have impacted the performance on yours, though. Wonderfully reliable lanterns that can easily compete with a 500cp Coleman 237 for brightness.

  6. Harder Sorensen

    Harder Sorensen Subscriber

    Offline
    Joined:
    Jun 6, 2018
    Messages:
    102
    Rough or not- well done on the cleaning/restoring part :thumbup:

  7. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,758
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Phil

    As this is my first fettle of a 1020, I hadn't picked up on that nuance, and hadn't touched that part.

    Upon inspection, I find that:

    1. As it appears in the above photographs, the air tube is screwed firmly into the J-tube.

    2. One rotation "looser" made it very loose in the J-tube.

    3. I noticed that the air tube appeared a bit bent, and straightened it. mixing chamber now sits lower on the air tube, leaving only a 1mm space between the "seat" of the vapouriser and the mixing chamber.

    3. If I now unscrew the J-tube one rotation, besides the looseness, there is a gap between the seat of the vapouriser and the mixing chamber, and a 1mm gap between the seat of the J-tube and the top of the burner.


    I will leave it at 3. above and light it tonight and see how it goes.


    Now all I need is a new nipple (and pricker).


    Cheers

    Tony

  8. Handi-man Australia

    Offline
    Joined:
    Mar 9, 2018
    Messages:
    83
    Compared to my 1020 that's a gem . You must have rather high standards !

  9. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    2,050
    Tony, I think the 1020 is fairly tolerant in the above regard. I have worked on quite a few where the j-tube is a bit wobbly. I suppose the worst that could happen if things are too far out of kilter is a bit of a smell when running. To stop outright rattling I've pinched the j-tube ends a fraction closer together sometimes or flared the threaded end a mite.
    I'm curious about the globe on your 1020. Is the same brand globe sometimes also found on the Aladdins there?

  10. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    3,226
    Location:
    Copenhagen, Denmark
    I was thinking the same. I am sure I have seen one before, but can't remember where. From memory I don't think it was an Aladdin.

    I have also flared the threaded end of the mixing tube. Works in most cases.

  11. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,758
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @phaedrus42

    It is running very well with the 1mm gap between the seat on the vapouriser and the bottom of the mixing tube; but I might try one more fiddle to get it to sit flush.

    @Nils Stephenson & @phaedrus42

    I had the same thought as you: where have I seen that globe before? I immediately thought Aladdin, so I’ll go and check my Aladdins when it gets light.

    Cheers


    Tony

    Edit: My NIB Aladdin branded globe is the same diameter as the Phoenix globe; but the Phoenix globe is 2mm shorter.

    Aladdin: Outside diameter 124mm; height 119mm.

    Phoenix: Outside diameter 124mm; height 117mm.

    Last edited: Jul 25, 2018
  12. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    8,218
    Location:
    North-East England
    I've at least one globe with the Phoenix logo and text on one of my Buflam lanterns - an uncommon British Petromax clone. I've almost certainly posted images of it here so maybe that's it.

    0351 Buflam lantern

    I'll have a look in the morning...

  13. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    3,226
    Location:
    Copenhagen, Denmark
    How is the fit in the globe cage base? The quoted size for the 1020 is 122mm x 122mm but there is usually plenty of room.

  14. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,758
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Nils Stephenson

    It fits as if it were made for the lantern! It's not too wide, or too short for the rim of the top of the cage, but you can lift it up a bit from the bottom.


    Cheers

    Tony

  15. Titoo

    Titoo France Subscriber

    Offline
    Joined:
    Jul 23, 2016
    Messages:
    639
    Location:
    FRANCE: 25 Franche Comté
    Hi Tony,

    Primus N°1020 it's a very good lantern :thumbup:

    Exellent job Tony :clap:

    Regards,
    Titoo

  16. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,758
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Thanks, @Titoo.


    Cheers

    Tony
