Primus jets and bend pricker needles

Discussion in 'Fettling Forum' started by Kuman, Jan 11, 2021 at 9:46 PM.

  1. Kuman

    Kuman Sweden Subscriber

    Offline
    Joined:
    Sep 4, 2020
    Messages:
    42
    Location:
    Sweden
    I got tired of problems with bent pricker needles on my Primus 1001 "blue hat". After yet another procedure of straightening pricker's wire I looked closely onto root-cause of the problem.

    Obviously it is the pricker rod which is "wobbly" in its upwards movement. That causes the pricker to be sometimes off-centre when it should enter the jet. Not much to be done with "wobbliness" - I don't have spare parts to rebuild this assembly.

    But upon looking closer on Primus jet (modern replacement) I notice that they have a flat area, plateau, which is trapping the needle if not perfectly centred.

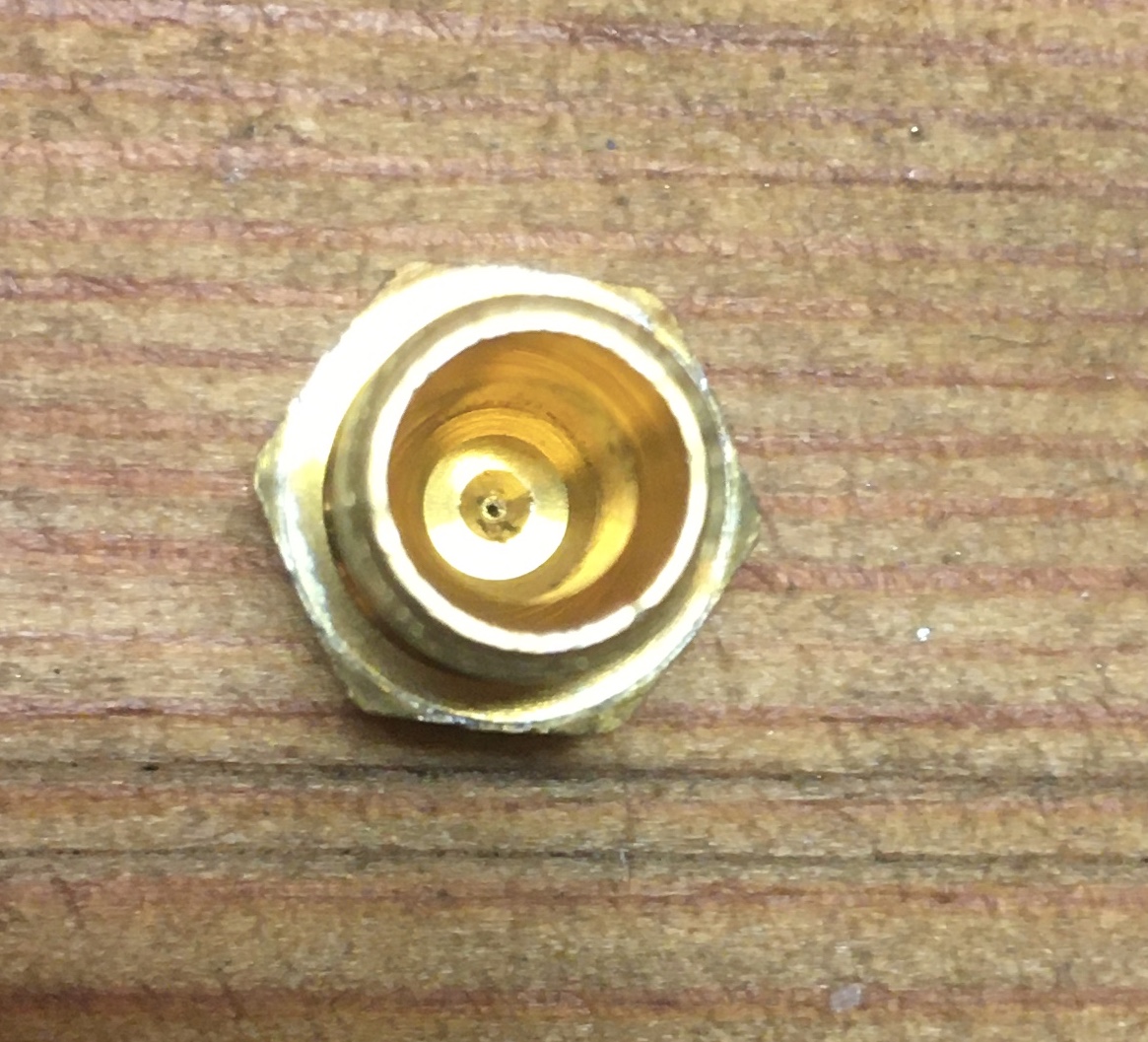

    Below is a close-up of Primus jet's inside:

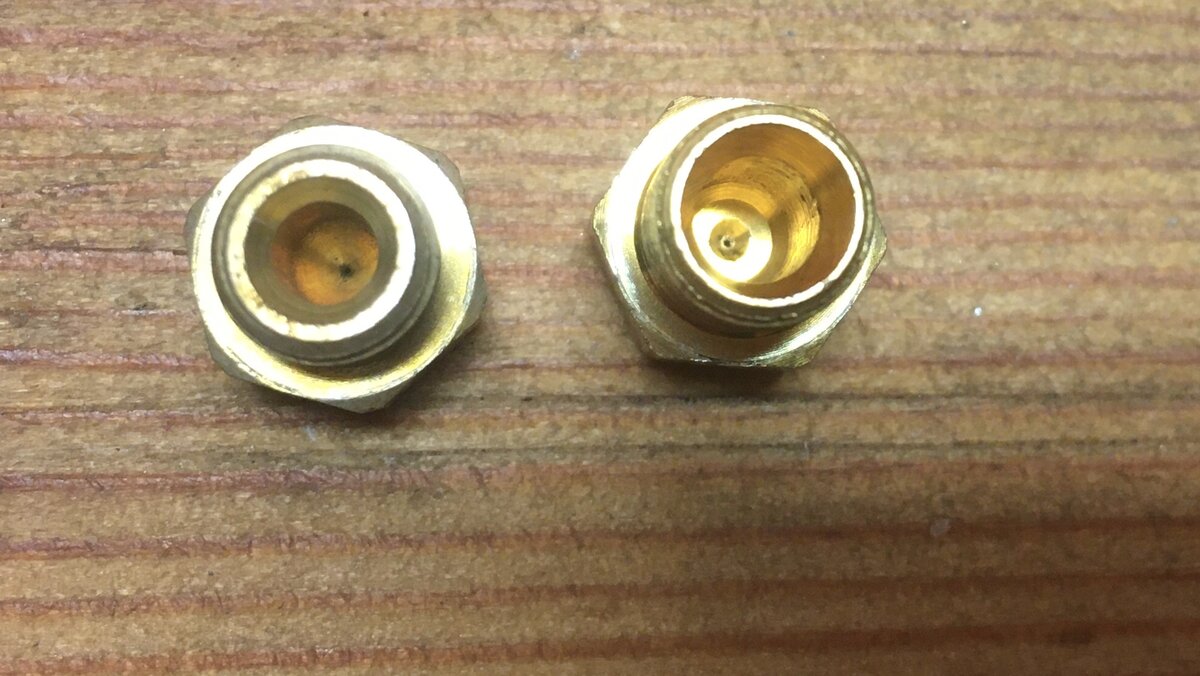

    Compared to Optimus jet (left below) one can see the plateau in Primus:


    Why do they do it like that is beyond me, probably something with saving production costs. I'm not sure if original Primus parts also have this flat surface.
    To cure the problem one takes the biggest drill bit which can go into the opening. In this case it is D=4mm drill.

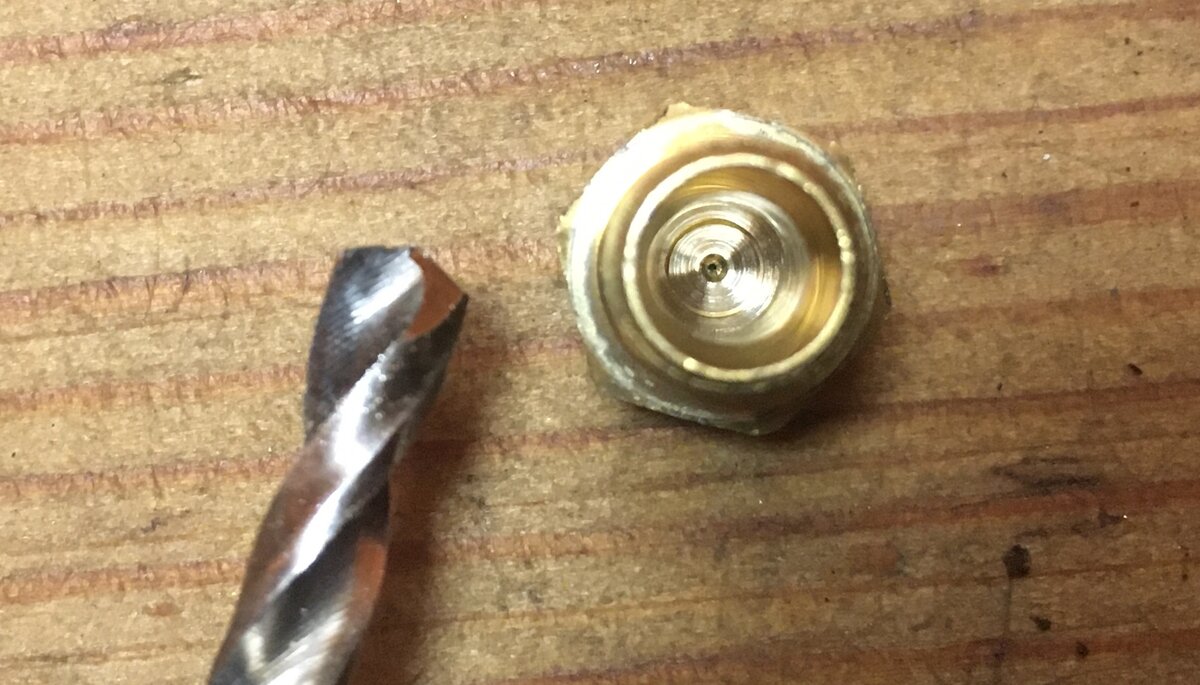

    Below you can see that the plateau is gone: drill's cutting surface is making nice dome inside the jet.


    What is left is to polish "the dome" to remove burrs. I do it by applying drill at high speed but with just very lightly handheld jet. This takes care of all burrs.

    Due to wide drill this procedure does not affect the jet opening at all - the drill never reaches the small cavity with jet.

    I reassembled the lantern and lighted it. All is as normal, light level is the same, no flames etc. Only that now I can safely use the pricker to clean the jet. No more straightening of this tiny wire!

    I hope that helps you guys.

  2. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    2,684
    Location:
    Copenhagen, Denmark
    I've never understood why, but that flat area is the way all original Primus jets are. Not the smartest idea, but with the correct cleaning rod, the needle centers enough to be within the small conical area.

  3. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,100
    Looks like an easy fix and very useful. This is exactly why this forum is so useful. Thanks @Kuman

  4. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    505
    Location:
    Gujan-Mestras - Gironde - France
  5. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,887
    Location:
    Malaysia
    The Primus jet is unique. Its just different from the jets of other makes.
    You'd likely need an end-mill to make the flat part inside the jet.
    There must be a particular reason why it was made that way. Its actually more difficult to re-produce the multiple steps as compared to a straight conical end towards the orifice.

  6. Kuman

    Kuman Sweden Subscriber

    Offline
    Joined:
    Sep 4, 2020
    Messages:
    42
    Location:
    Sweden
    I agree: milling flat-bottom cavity at certain depth and then following it by centered drill of small diameter then followed by another tool ”puncturing” jet hole (Primus) - compared to drilling conical opening finished with jet hole puncture (Optimus).
    So much work!
    There certainly must be a good reason Primus made it their way. These people were very smart and everything is there for a reason.
    My modification might not affect performance of my 1001 but may be disastrous for another Primus lantern.
    So feel free to take my experience but beware of risks.

    @MYN you turned my head around with this comment - thanks!
    I’ll dig into that a bit more and make some experiments.

  7. JonD

    JonD Subscriber

    Offline
    Joined:
    Apr 15, 2014
    Messages:
    836
    Location:
    Hertfordshire, England
    I should think the original was done with something similar to a spade bit, all in one operation. Drill bits for brass are best with near zero rake angle as it stops grabbing and chatter so a spade bit suits that well.

    Drilling the jet hole would be the last operation of course.

  8. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    439
    Location:
    UK
    @Kuman Excellent research and remedial work. Thank you.

    John

  9. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,181
    Location:
    Somersby, New South Wales, Australia
    Nice work, Kuman :thumbup:

  10. Norman

    Norman United States Subscriber

    Offline
    Joined:
    Jul 1, 2011
    Messages:
    618
    Location:
    Spokane, WA
    @Kuman

    Well done and thank you for sharing with us.

    Cheers,
    Norman

  11. JEFF JOHNSON
