Projekt no 1

Discussion in 'Fettling Forum' started by Grundsoe, Nov 8, 2022.

  1. Grundsoe Denmark

    Offline
    Joined:
    Nov 8, 2022
    Messages:
    10
    Location:
    Denmark

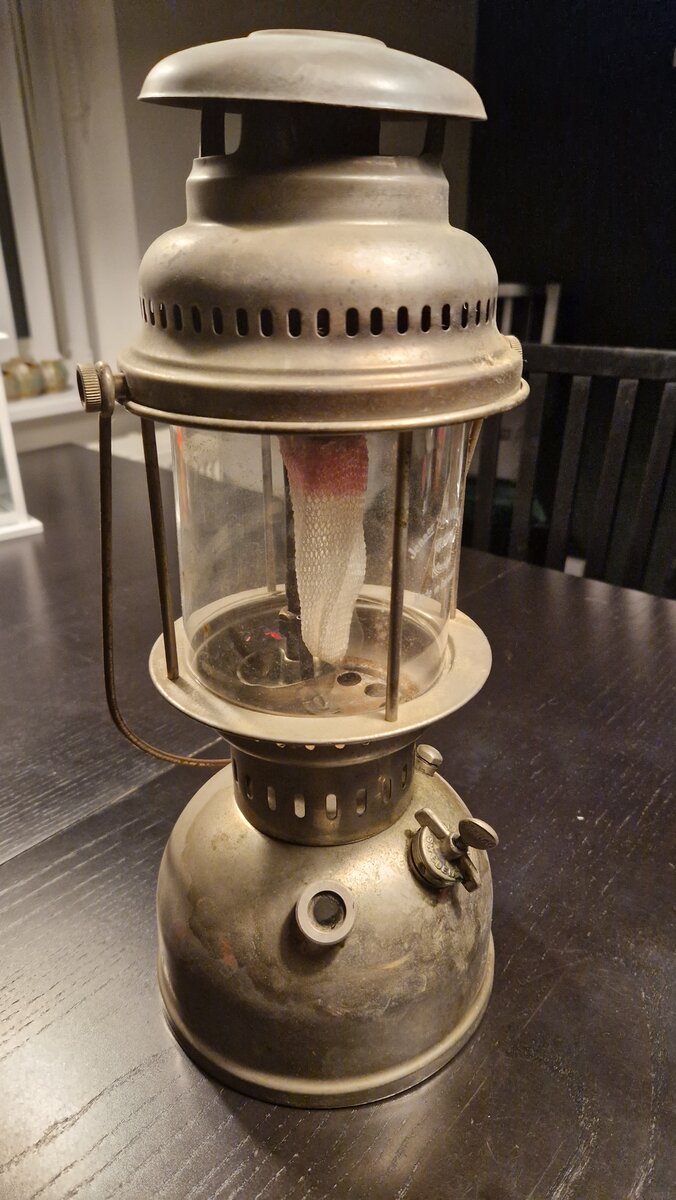

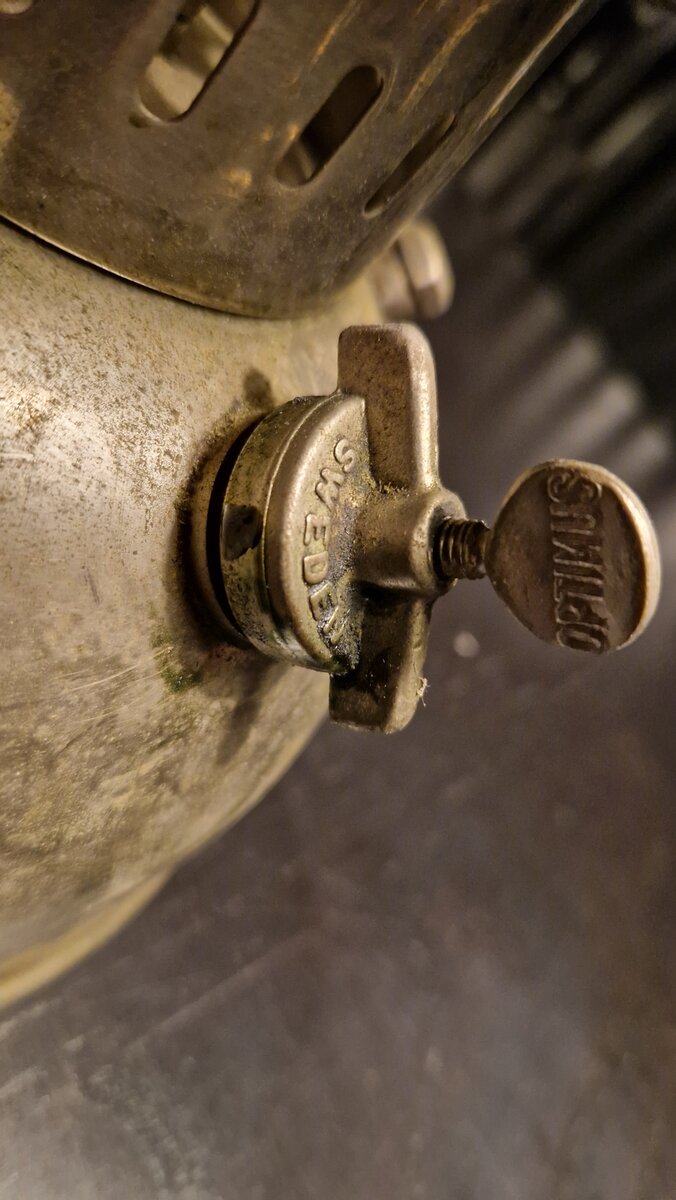

    I picked this one up today (my first one), I think there is alot of work in it, but it will be fun. I Hope I can make it shine again. Can anyone tell me how old it is ?
    20221108_181741.jpg 20221108_181755.jpg 20221108_181809.jpg 20221108_181828.jpg
    Best regards
    Thomas

  2. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    1,502
    Location:
    Lancashire, UK
    No ‘P’ after the ‘300’ designation, nickel plated and not red enamelled top. 1940’s as a rough guess. @Nils Stephenson

    John

  3. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    15,438
    Location:
    Shetland Islands UK..
    Welcome aboard!:thumbup:

  4. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    3,271
    Location:
    Copenhagen, Denmark
    Hi Thomas and welcome to the forum.

    Your lantern is from the mid to late 1940s. Everything seems to be there so should clean up alright and work well.

  5. Grundsoe Denmark

    Offline
    Joined:
    Nov 8, 2022
    Messages:
    10
    Location:
    Denmark
  6. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    1,502
    Location:
    Lancashire, UK
    People seem to have their favourites, but a diluted citrus solution gets frequent mention. Over on Classic Camp Stoves long-time fettler Kerophile makes up a mix of wallpaper paste with the dluted citric acid and applies it to components to take effect over an hour or two, then rinsed off with warm water.

    Personally, I first strip a lantern or stove down to component parts and wash them in a warm, mild detergent solution, often using an ultrasonic cleaning machine. Whatever residue is left is removed with the wallpaper paste laced with citric acid.

    For final polishing the usual tip is to avoid cleaning liquids or pastes containing ammonia (not good for brass) and those that are significantly abrasive.

    John

  7. Grundsoe Denmark

    Offline
    Joined:
    Nov 8, 2022
    Messages:
    10
    Location:
    Denmark
    @presscall thanks, I will look into the mix of wallpaper paste and citrin acid. And try that ;)

  8. Grundsoe Denmark

    Offline
    Joined:
    Nov 8, 2022
    Messages:
    10
    Location:
    Denmark

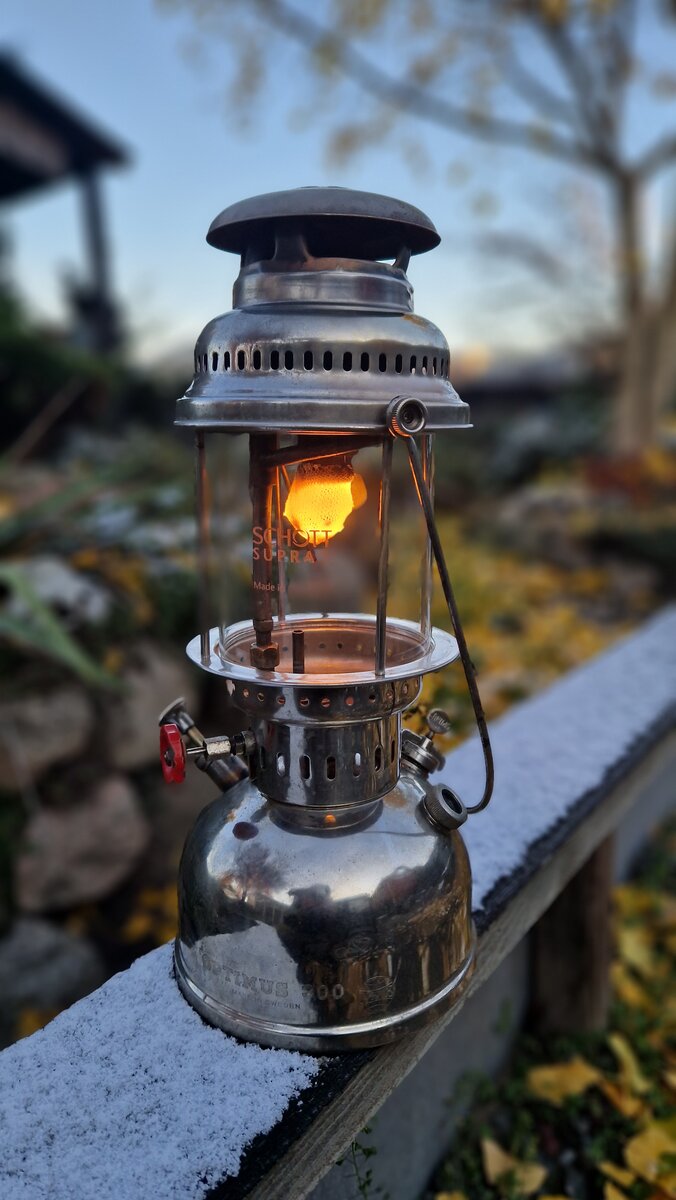

    This is how it looks now, still having some trouble to make it burn right ;)

    20221120_150431.jpg 20221120_145828.jpg

    Last edited by a moderator: Nov 23, 2022
  9. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,816
    Location:
    North Yorkshire
    The mantle doesn't look to be properly formed. Perhaps the lamp needs more pressure.

  10. Grundsoe Denmark

    Offline
    Joined:
    Nov 8, 2022
    Messages:
    10
    Location:
    Denmark
    @Henry Plews what is the correct way to form the mantle ?
    Best regards
    Thomas

  11. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,816
    Location:
    North Yorkshire

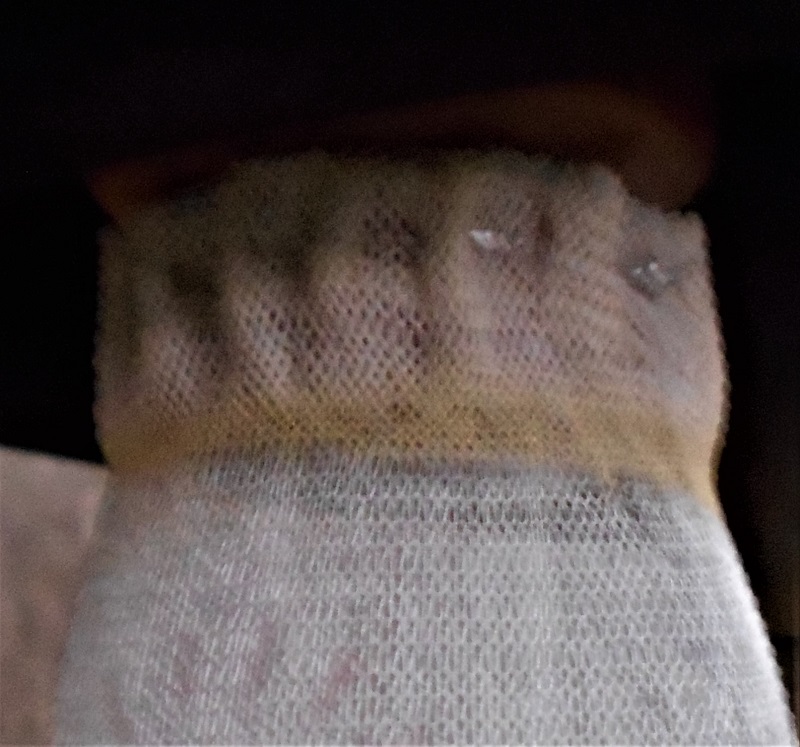

    It helps if the folds are evenly spaced

    DSCN2617 (3)R.jpg

    but basically, plenty of pressure. Because your lantern is an Optimus, you should be able to pump it until your thumb hurts.

  12. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    1,502
    Location:
    Lancashire, UK
    @Grundsoe You certainly made a great job of the cleaning.

  13. Grundsoe Denmark

    Offline
    Joined:
    Nov 8, 2022
    Messages:
    10
    Location:
    Denmark
    @Henry Plews you where right ;) new mantle and more pressure, and it runs perfect....thanks
    Best regards
    Thomas

  14. X246A

    X246A United Kingdom Subscriber

    Offline
    Joined:
    Jan 11, 2011
    Messages:
    1,216
    Location:
    Norfolk, England
    @Grundsoe

    Congratulations, it feels really good when you get an old lantern running well.

    Regards, Jeremy

  15. Grundsoe Denmark

    Offline
    Joined:
    Nov 8, 2022
    Messages:
    10
    Location:
    Denmark
    Thanks everyone, now I cant wait untill project no 2 ;)
    Best regards
    Thomas

  16. X246A

    X246A United Kingdom Subscriber

    Offline
    Joined:
    Jan 11, 2011
    Messages:
    1,216
    Location:
    Norfolk, England
    And neither can we!

  17. Grundsoe Denmark

    Offline
    Joined:
    Nov 8, 2022
    Messages:
    10
    Location:
    Denmark

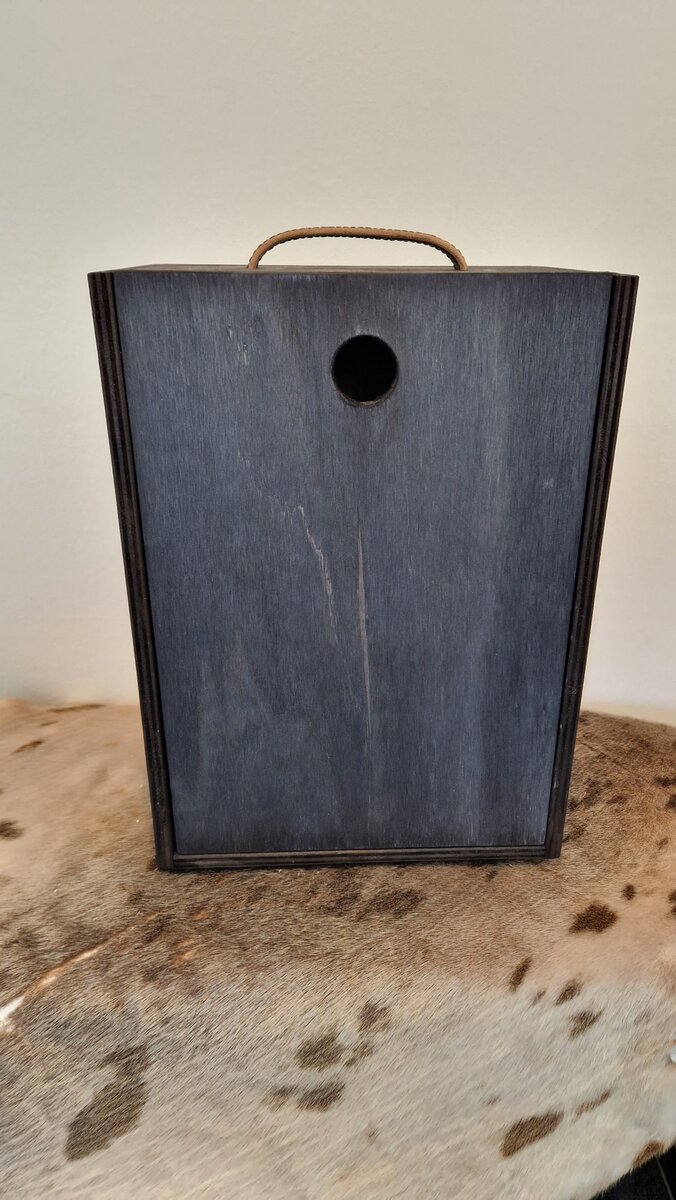

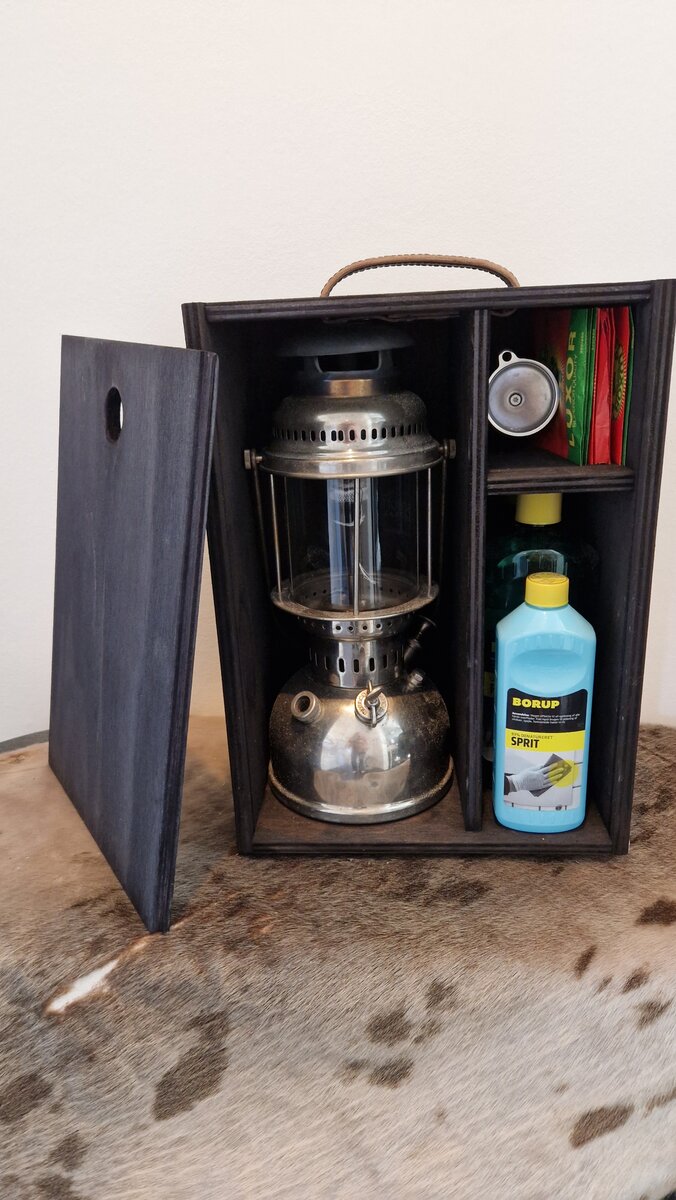

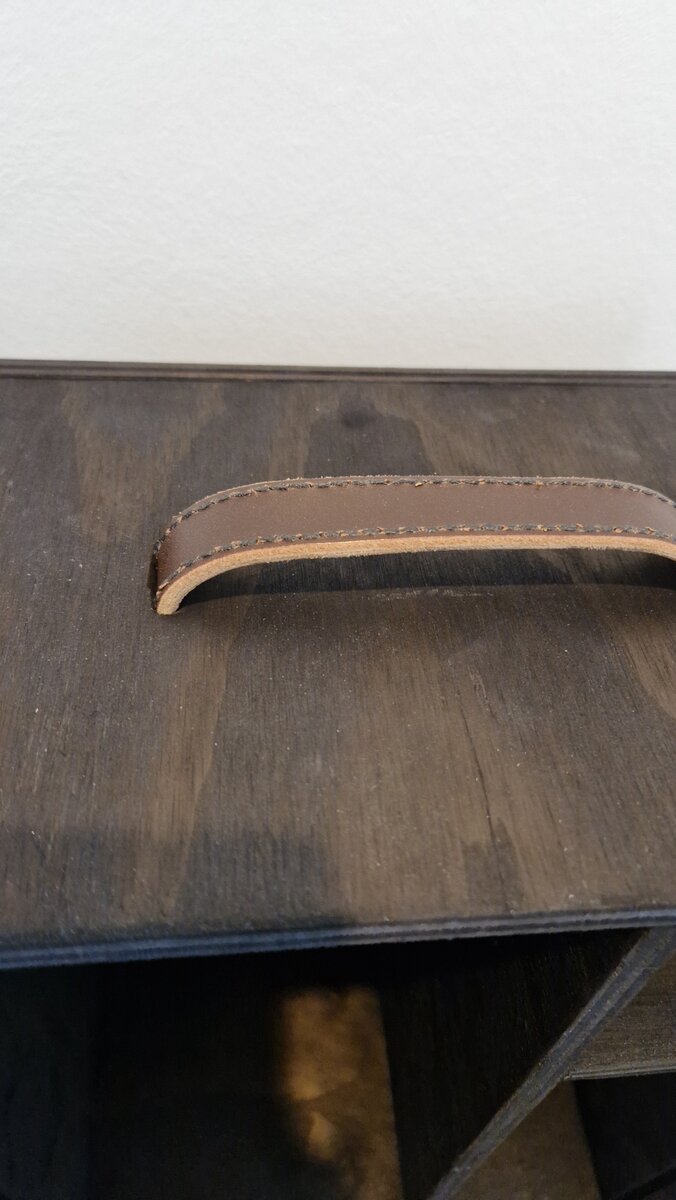

    Made this box ;) 20230311_104748.jpg 20230311_131658.jpg 20230311_131703.jpg 20230311_131938.jpg 20230311_132026.jpg

  18. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    2,760
    Location:
    N E Scotland
    Nice job and that lamp looks great.

  19. Paul Burnell Ireland

    Offline
    Joined:
    May 12, 2023
    Messages:
    120
    Location:
    Ireland
    I love the box....great kit. Everything in the one place, very practicle.
