Radius 119

Discussion in '119' started by Darryl Durdin, Feb 26, 2022.

  1. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    1,500
    Location:
    Whyalla. South Australia. Australia

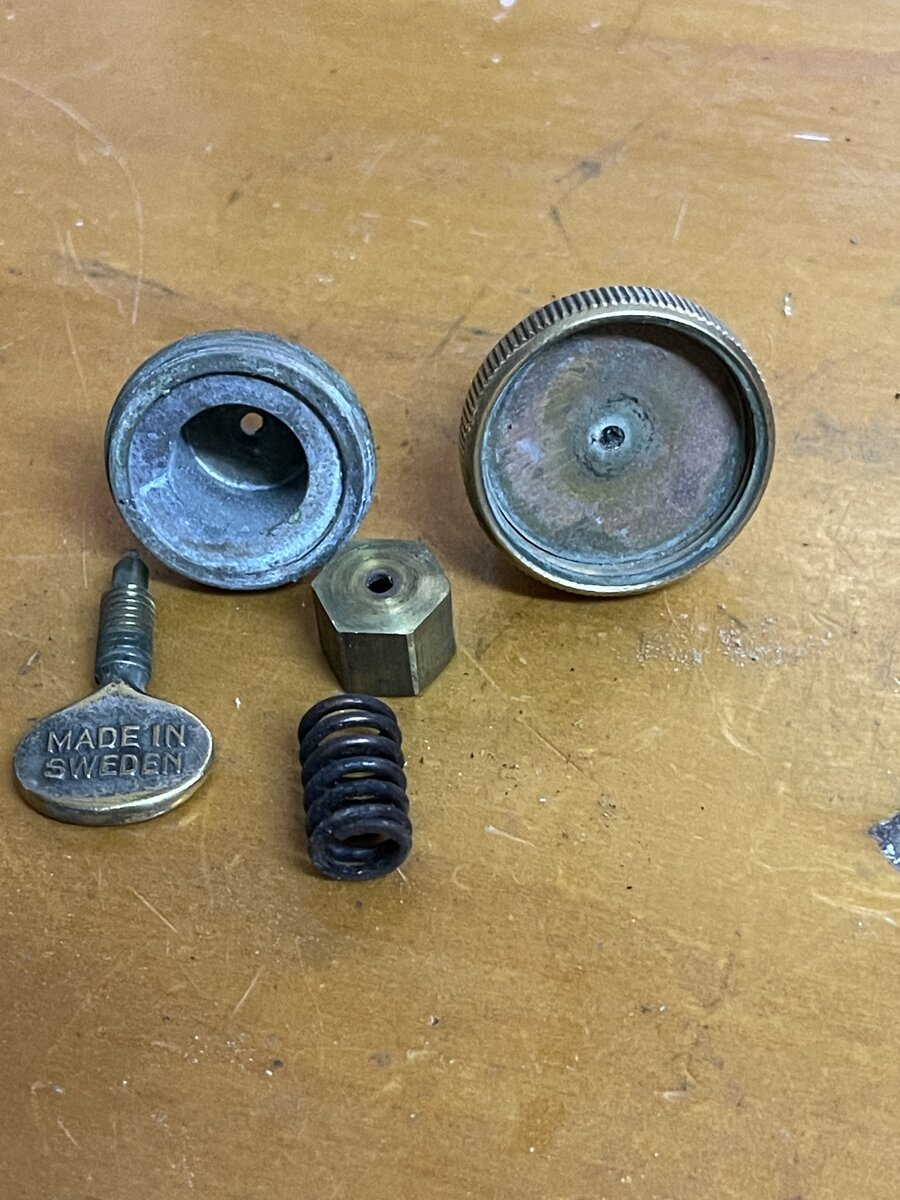

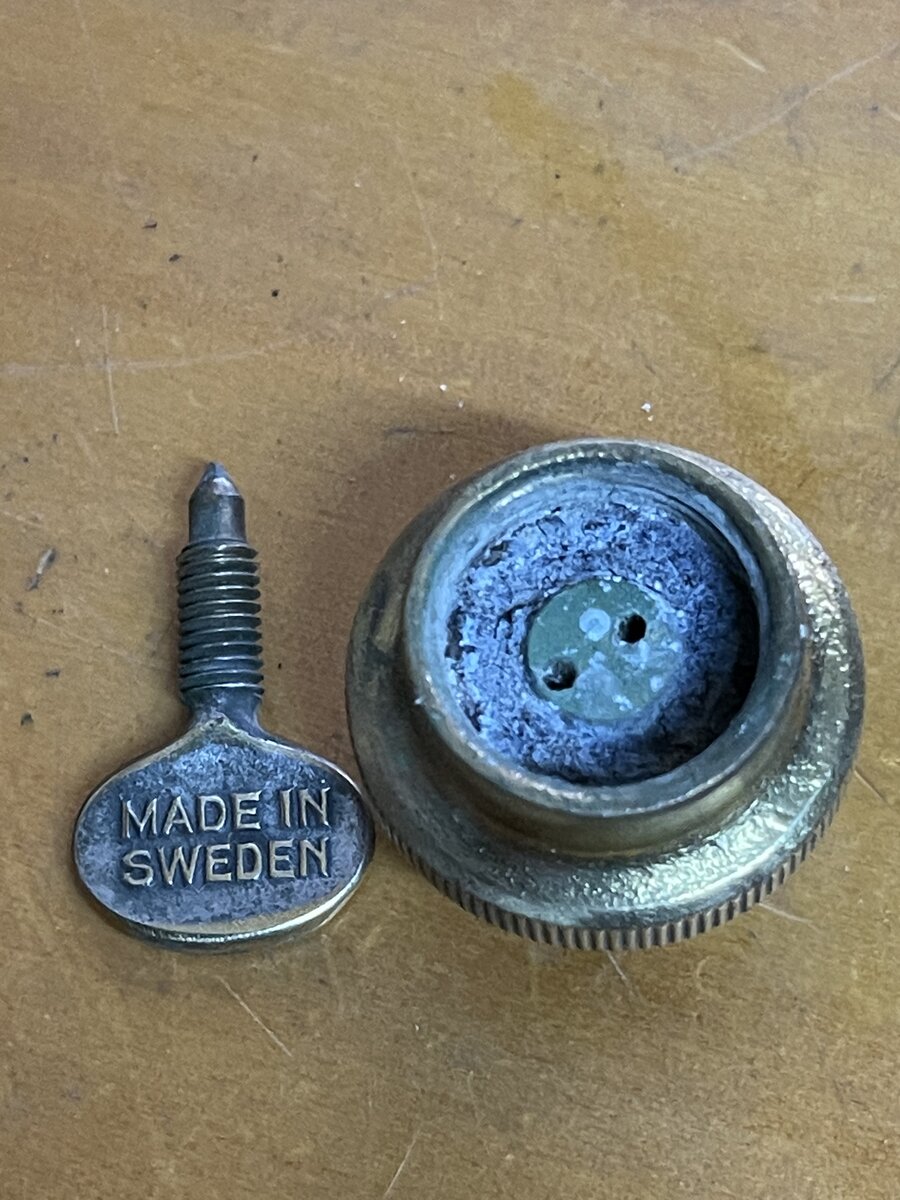

    Hi fellas I had this radius 119 proudly sitting on my top shelf in my office for a few years, it was a good find, no glass. I had bought jet , needle and the fuel cap pressure seals, I came across a radius globe the right size it has import on it,

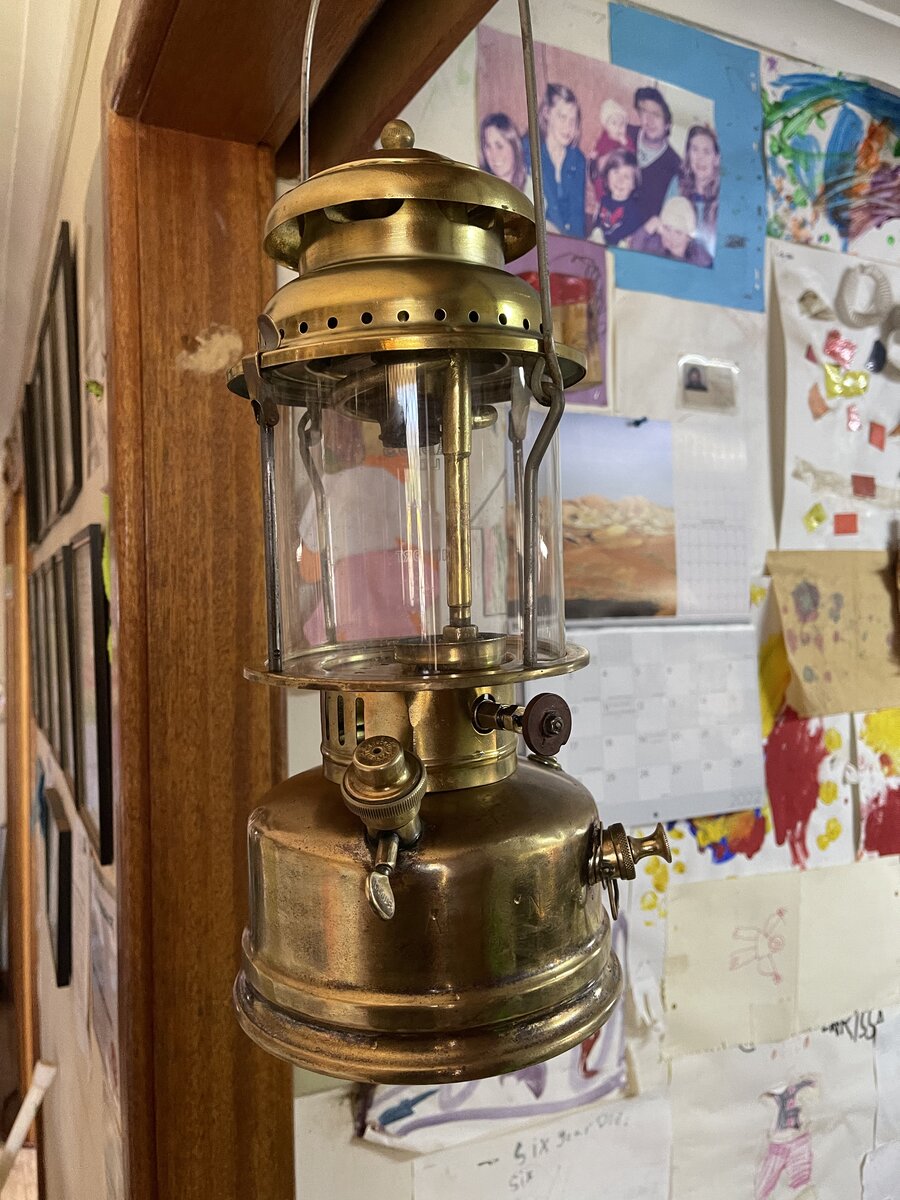

    The lantern looked all brass, it had the usual patina and surface grime and dust.
    I would look at it up on my shelf and say I’ll get it going one day, so I did and here it is.

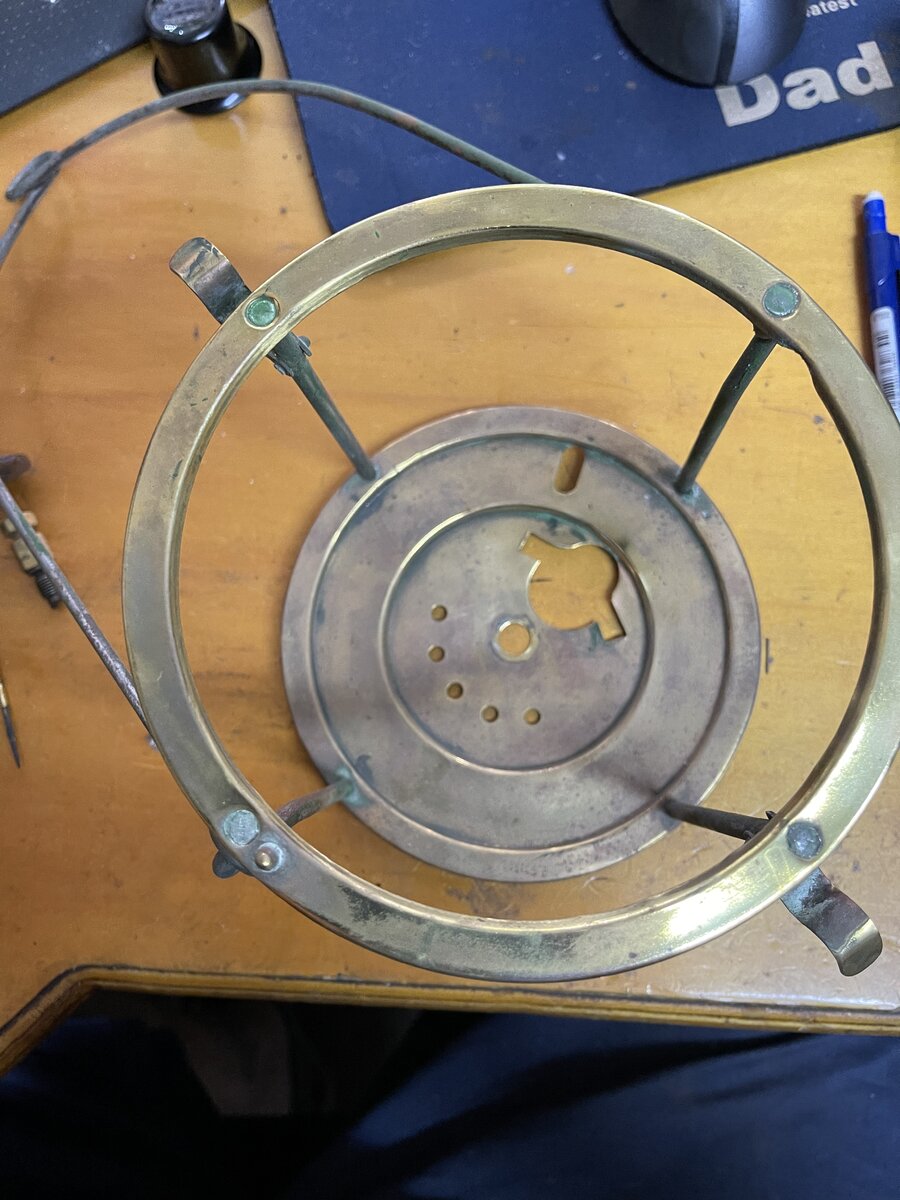

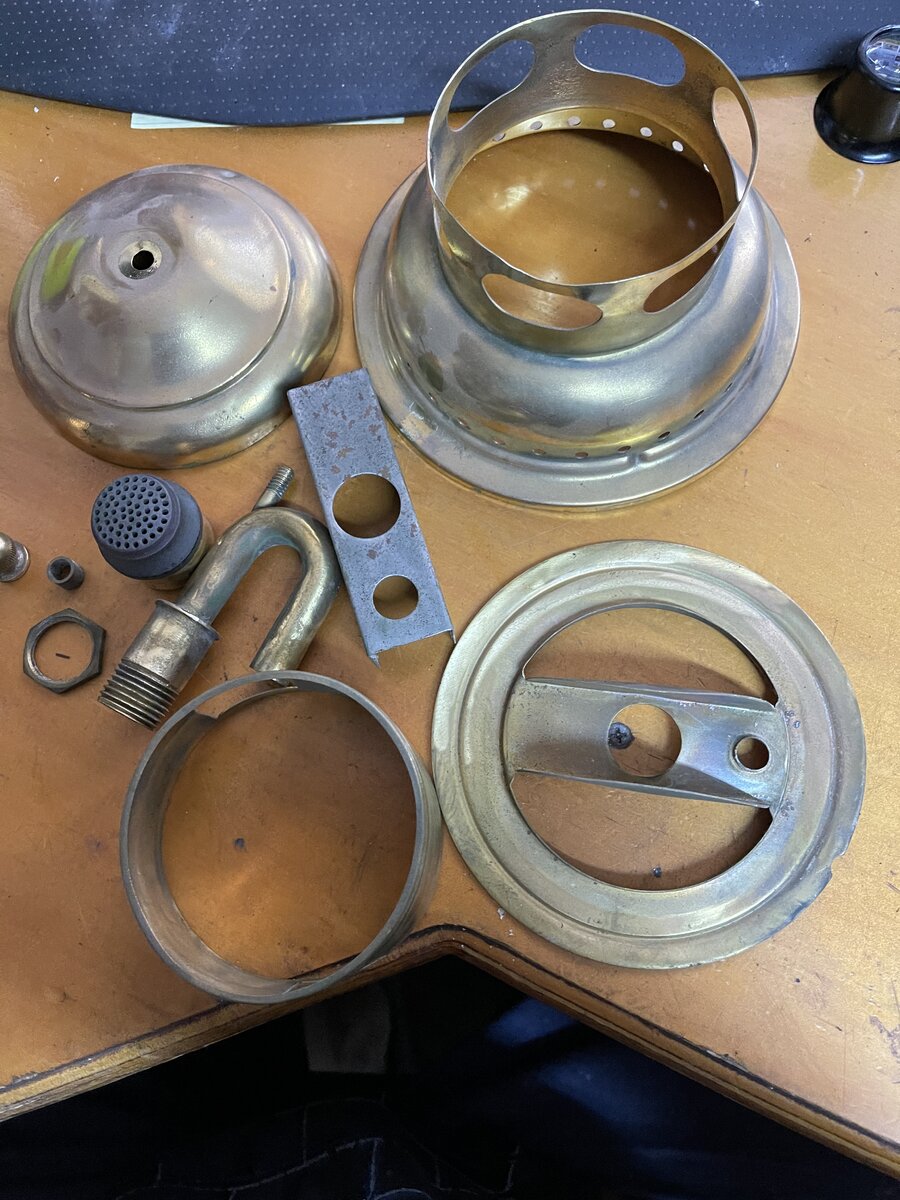

    I stripped it down. The parts I washed in hot soapy water, a bit of polish with 0000 steel wool, it all came up good clean with as much patina as found,
    89ED82A3-FDB0-4CC3-A1A1-7C245AE12B20.jpeg 77DD570A-169D-44D4-8AA9-F677C8F5536F.jpeg FA0FA681-7984-4F3D-A435-62348625D83E.jpeg CDB3F6B4-A800-43EA-843D-BF35D5FBC97F.jpeg AB74FC7F-EE5C-42EB-BBB9-27C9F30DF2D0.jpeg 4CB1A006-B552-47D4-9025-32C1281FA007.jpeg E898F163-5C37-4210-B448-7C99FF9900F8.jpeg 89C68767-6DC8-47C8-9538-8C9D9B529ABF.jpeg 8487453F-8DCD-4945-8D9B-ED21A5C96BEF.jpeg

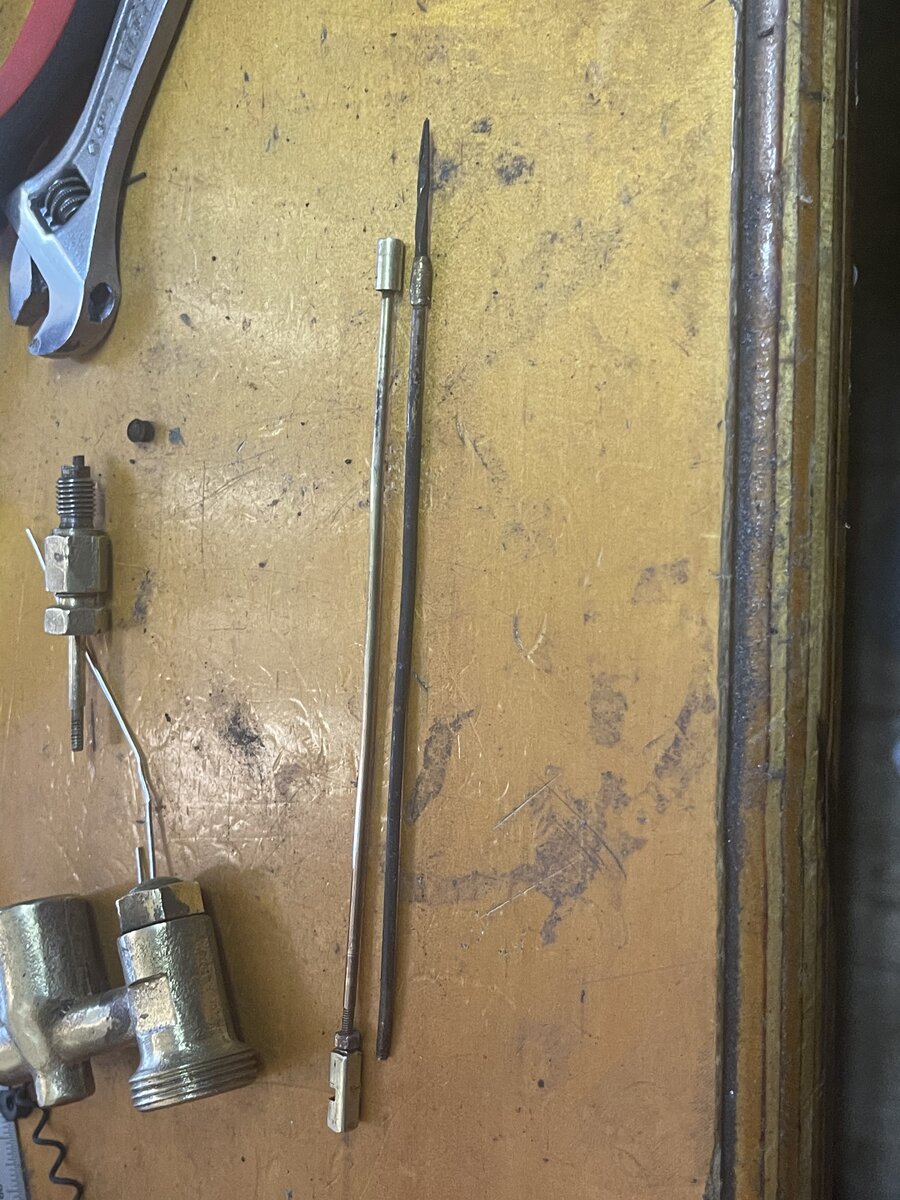

    the pricker was a bit out of the ordinary it has a spiral taper, I have not seen anything like it before. ABBA9285-2814-48E7-874C-422F8E972BA5.jpeg

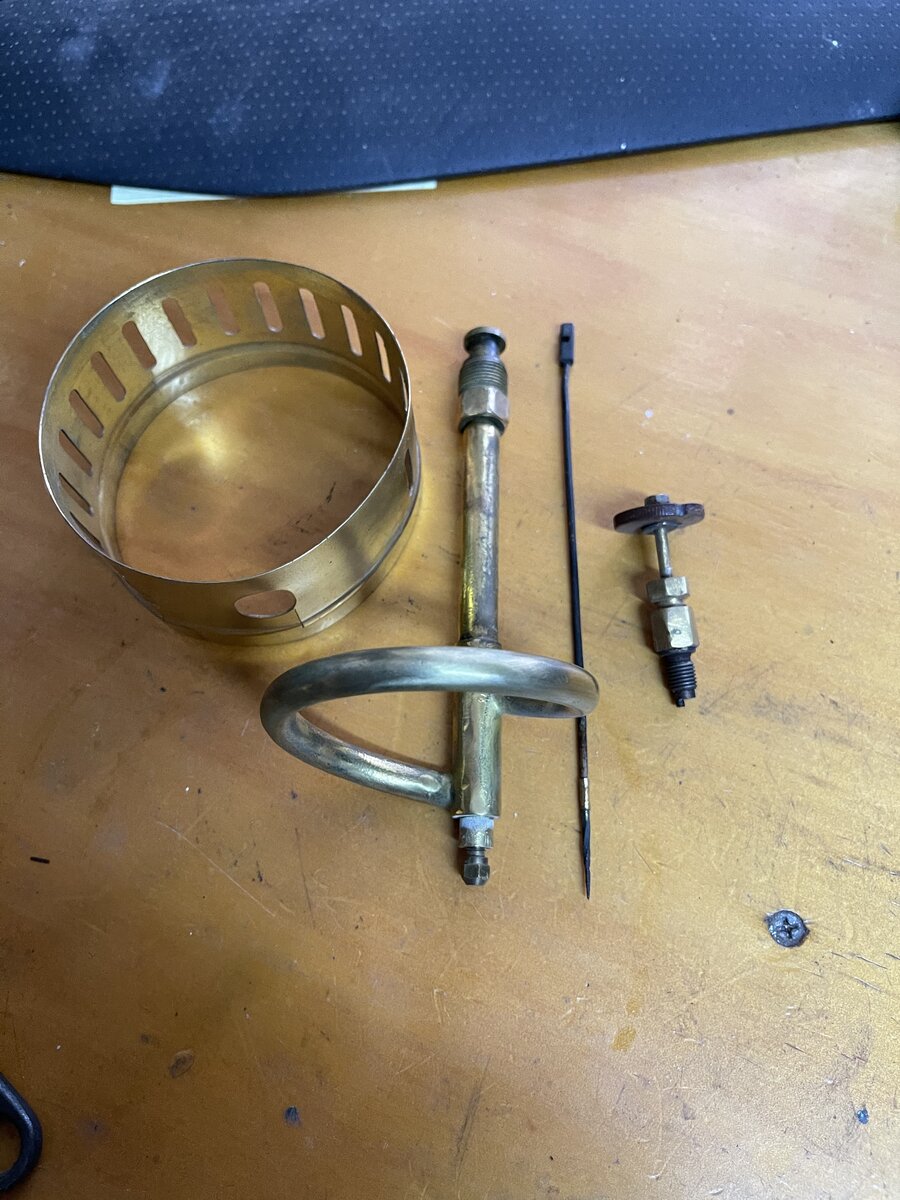

    The Preston loop generator was choked I lean it out with the heat and cool a few times, the I used a long drill to drill it out it was quite blocked. I used break cable to clear as much as I could from the loop.
    I used the original eccentric block a pricker rod from an 1 A Aladdin perfect for the job.
    new pricker and jet.

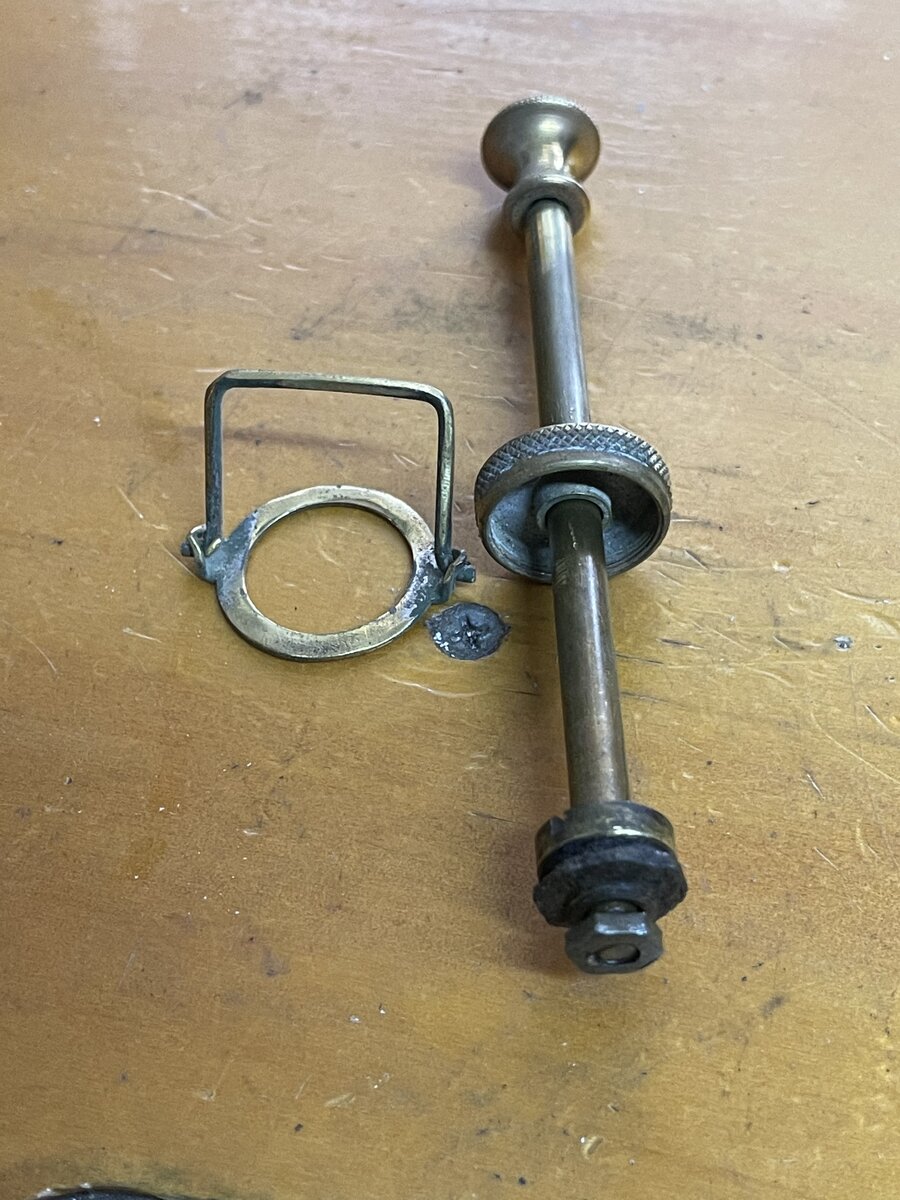

    I maid a new generator seat seal from lead, new graphite packing in the pricker control

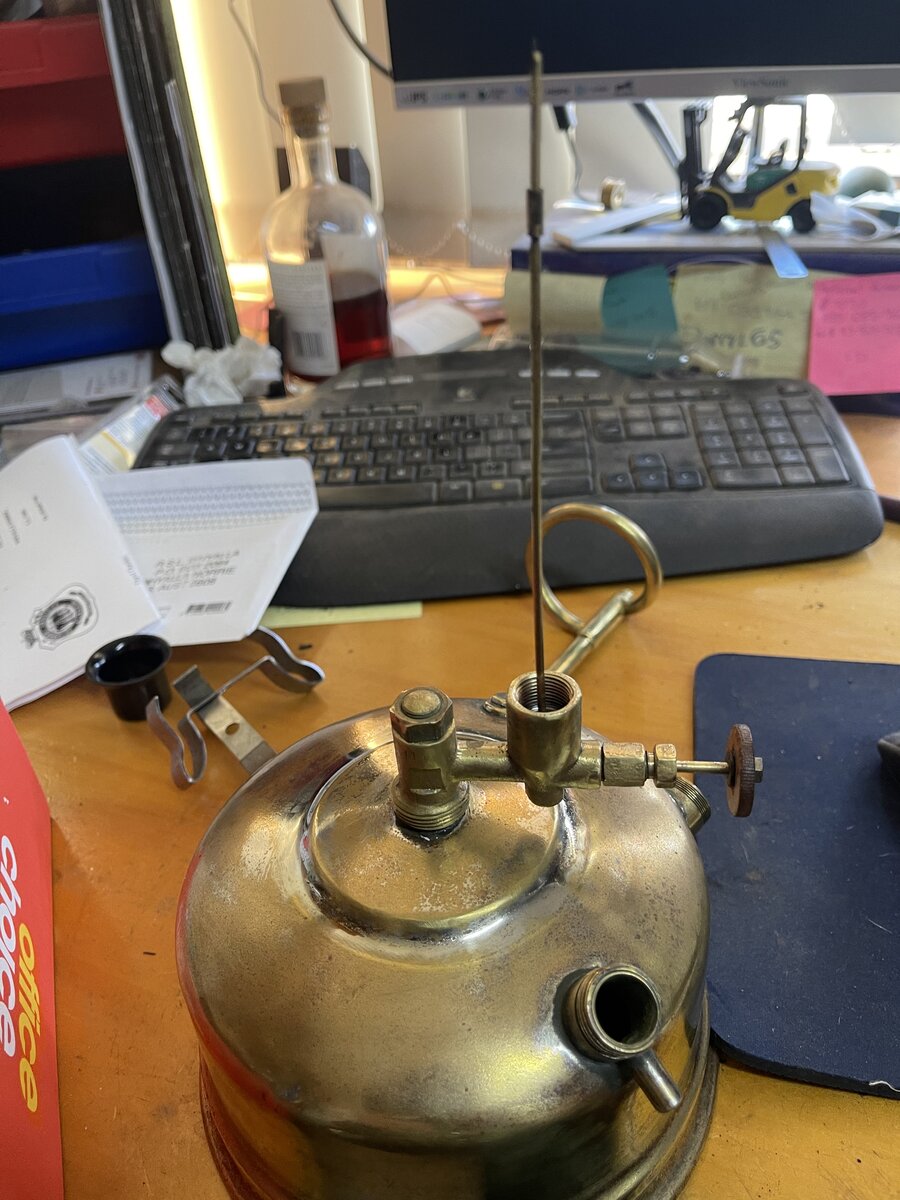

    some fine tuning on the pricker length, the reassembly went well.

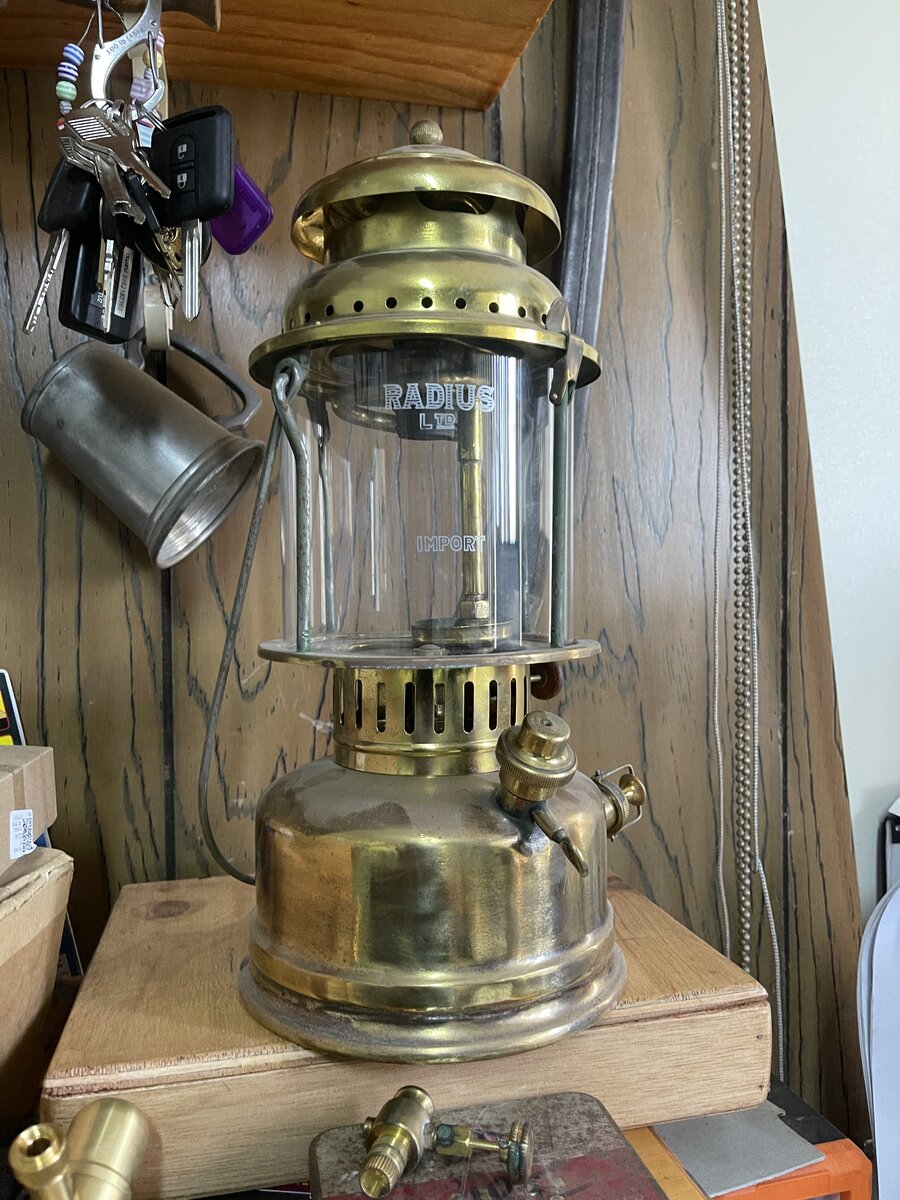

    Finished looking good, dunk test was good.

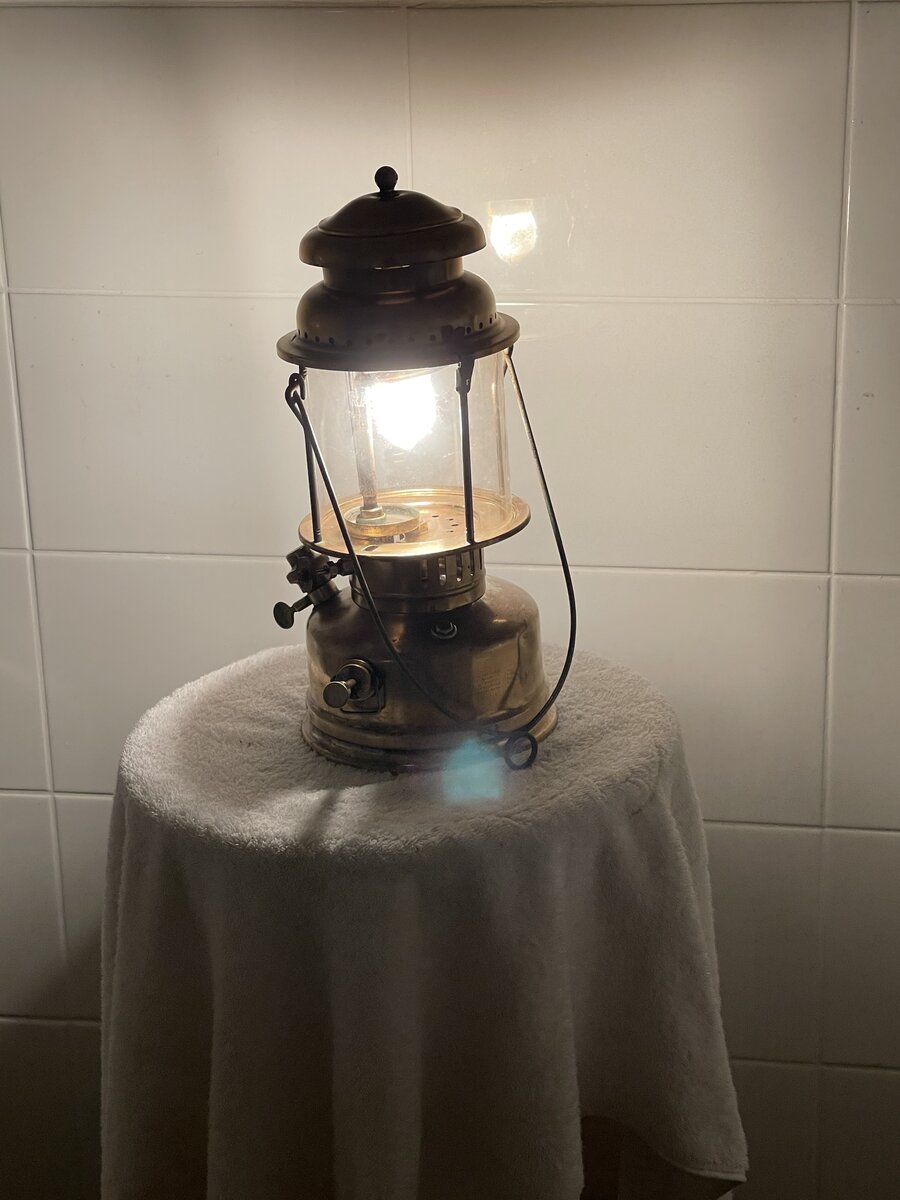

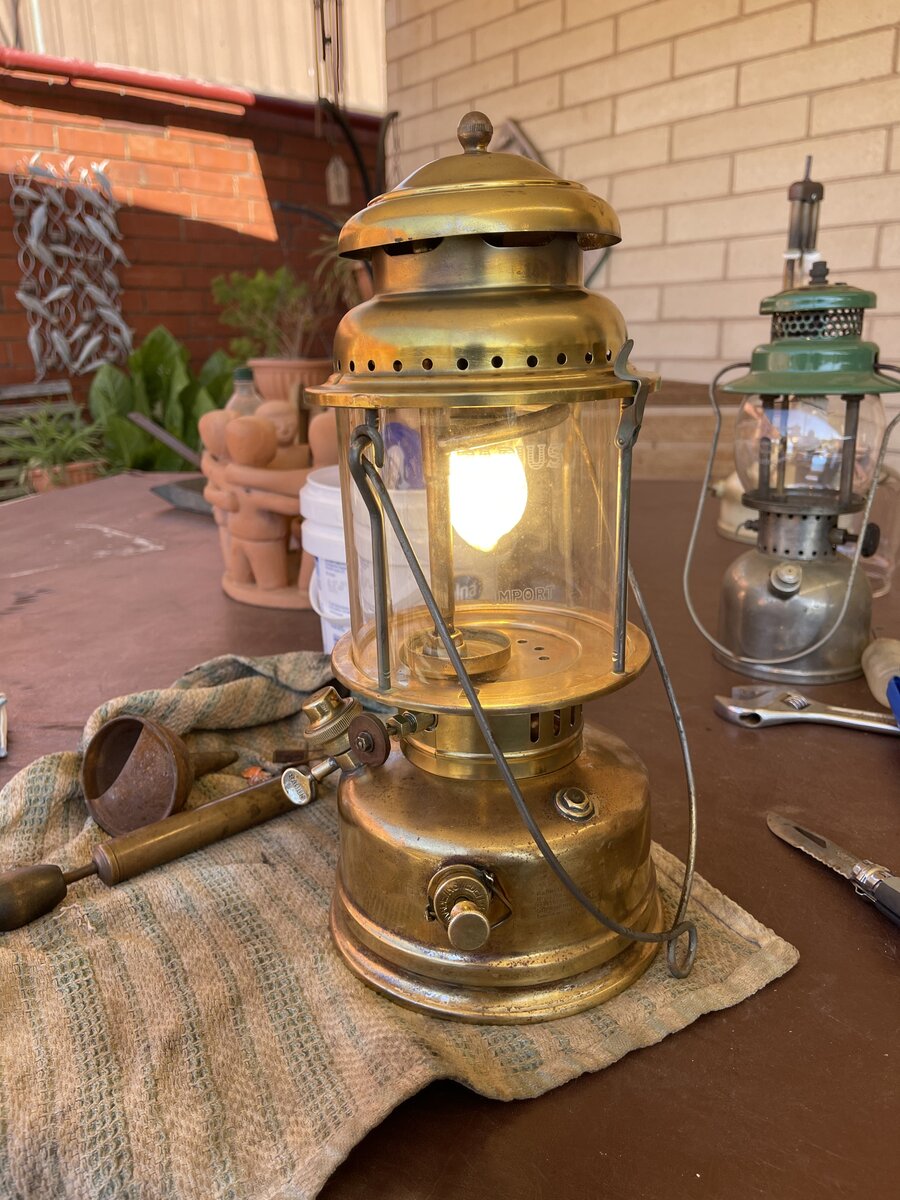

    test run B662356F-0E7D-4BAF-A9E9-C94C5ABF5F65.jpeg 8A2B7F91-826B-494D-8474-19106697F594.jpeg
    the money shot.
    Very happy with my work, learnt about new pricker being different, there was either a disaster or someone has good work skills.

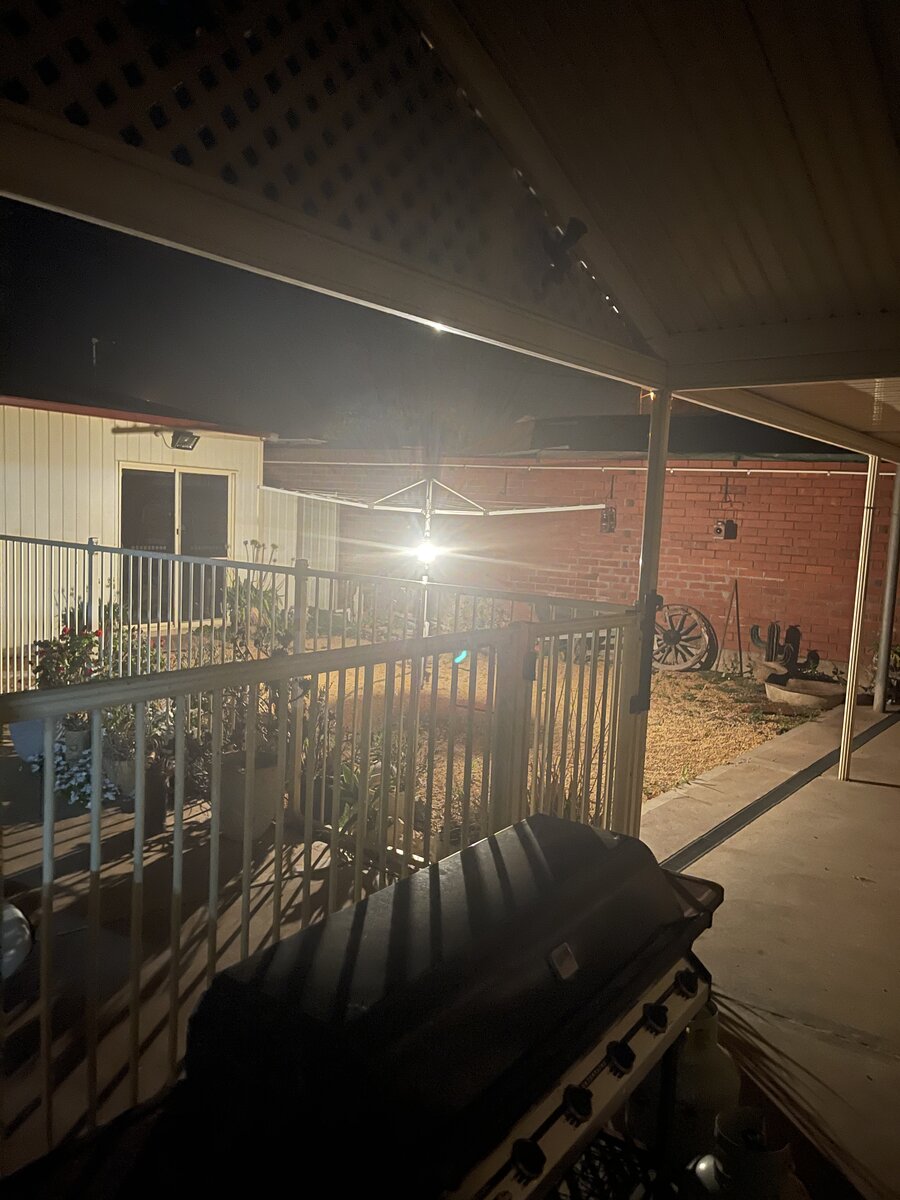

    A very cool bright lantern in my collection C6857839-268B-49B5-99BC-22E3CD81467D.jpeg

  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    15,013
    Location:
    Shetland Islands UK..
    Well saved!:thumbup:

  3. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    3,215
    Location:
    Copenhagen, Denmark
    Well done Darryl. It appears to be working well. The 119 usually works well and is a quiet runner.

    The one you have would be from somewhere between 1934 and 1937. It is not unheard of to find original brass versions but a lot have just had their nickel coating removed. I believe that was very popular in the 70s and 80s.

  4. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,594
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Darryl Durdin

    Well done.

    Do you think it is the brass version, or was it once nickel plated?

    Tony

  5. Fireexit1 United Kingdom

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    3,141
    Location:
    Brighton UK
    Nice job mate. Lovley to see it running again.
    Are there many Radius lanterns in Oz ?

  6. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    3,698
    Location:
    Somersby, New South Wales, Australia
    It's cleaned up nicely, Darryl :thumbup:

  7. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    1,500
    Location:
    Whyalla. South Australia. Australia
    It still has some nickel plating here and there in the creases hard to get at
    @Tony Press ,
    Not many that I have come across, I can assume they are about the place @Fireexit1

  8. Reinhard

    Reinhard Germany Subscriber

    Offline
    Joined:
    Oct 15, 2018
    Messages:
    730
    Location:
    Germany
    Very cool :clap:
    Manufactured by the descendants of the Vikings in the golden age of pressurelamps.

    Regards,Reinhard
