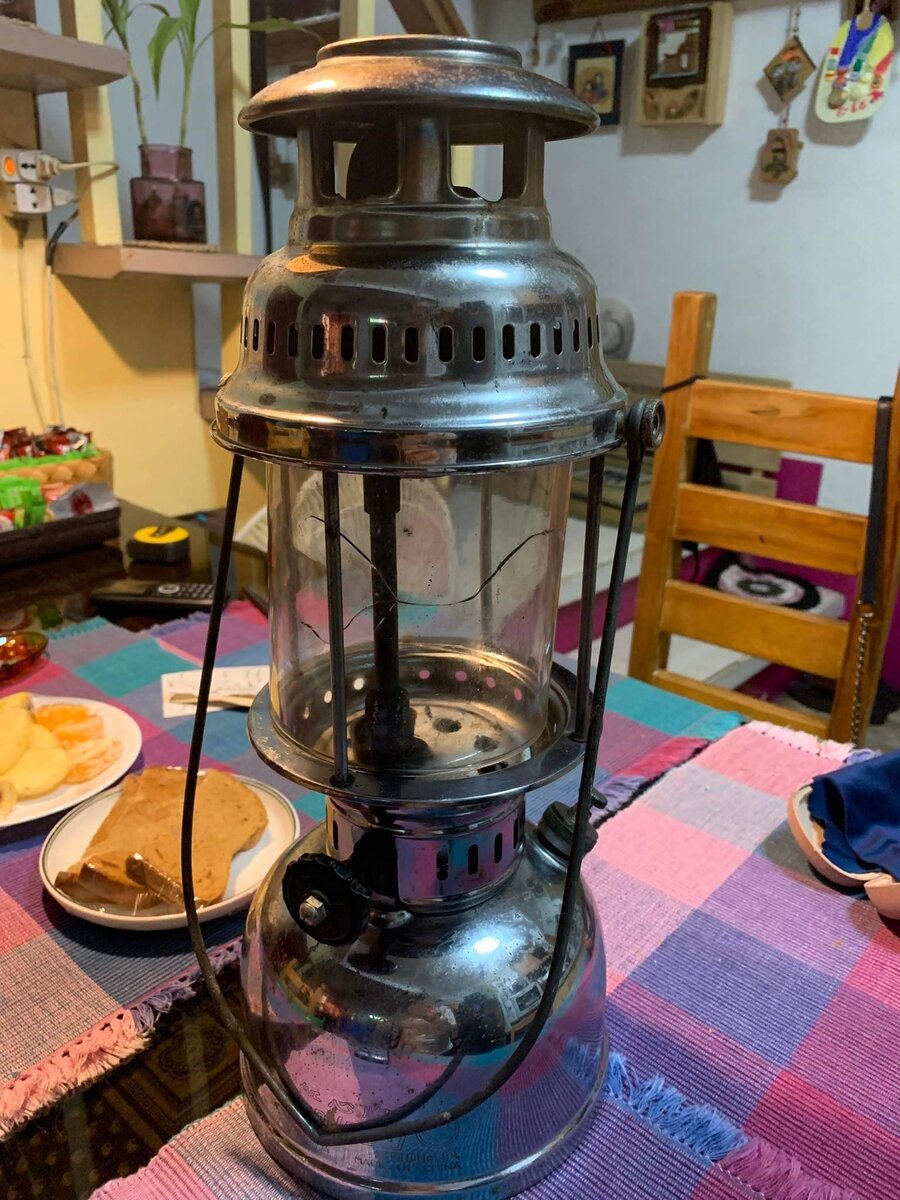

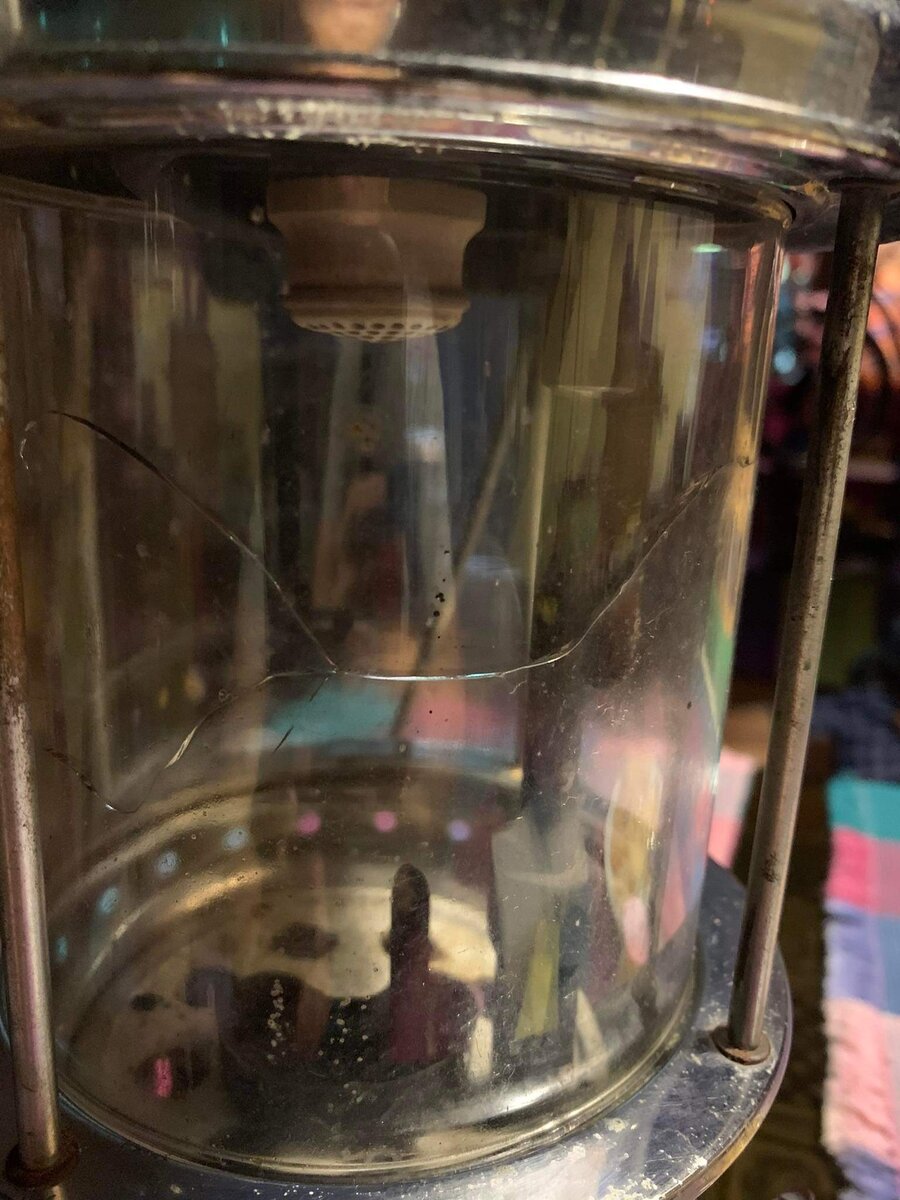

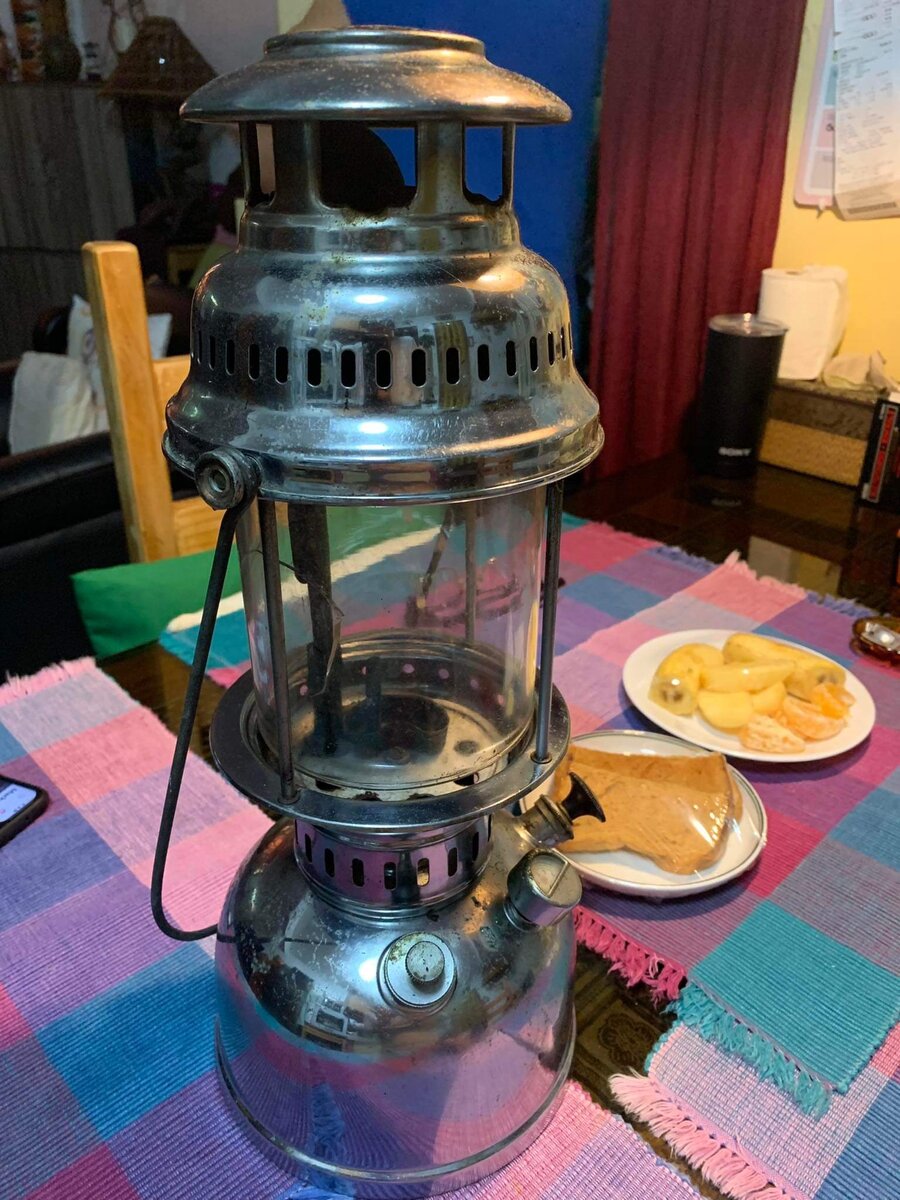

    I've just purchased a Red Heart pressure lamp off FB Marketplace. Not entirely sure what its currently condition is, but glad I saw this website so I can get tips and ideas on how to restore it.

    I'll post updates!

    received_931141817791043.jpeg received_351397016818032.jpeg received_3036775119878988.jpeg

    Last edited by a moderator: Jan 11, 2022
  2. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    2,133
    Location:
    Scottish Highlands
  3. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,149
    Location:
    North Yorkshire
    Apart from the glass the lamp looks to be in good condition but looks can be deceiving. I'd start by doing a pressure test, take off the top and burner and lift out the glass. Make sure the pump leather is soft and pliable with no splits or tears. If it is dry, add a little oil (vegetable or mineral). Tighten the filler cap and air screw, turn the needle control so that the pointer is down and with a finger firmly over the jet, work the pump 50 times then hold the lamp under water. If there are any leaks, air bubbles will show which areas need attention.

  4. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    2,574
    Welcome.
    Besides the good looks: change the pre-heater cup position.

  5. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    12,560
    Location:
    Shetland Islands UK..
    Welcome aboard!:thumbup:

  6. Gelo888 Philippines

    Offline
    Joined:
    Jan 11, 2022
    Messages:
    6
    Location:
    Philippines
    wow thanks for this,mate! I am totally new to this and I just bought this to restore it (hopefully!) and use it when we go camping.

    I will do as you've advised and will provide updates here.

  7. Gelo888 Philippines

    Offline
    Joined:
    Jan 11, 2022
    Messages:
    6
    Location:
    Philippines
    It's a Red Heart 805 350cp. I've just disassembled it now to check the individual parts. Will do some light cleaning and will do a pressure test tomorrow. Thanks everyone!

  8. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,763
    Location:
    Somersby, New South Wales, Australia
    Welcome to CPL @Gelo888
    It should clean up nicely. :thumbup:

  9. Gelo888 Philippines

    Offline
    Joined:
    Jan 11, 2022
    Messages:
    6
    Location:
    Philippines

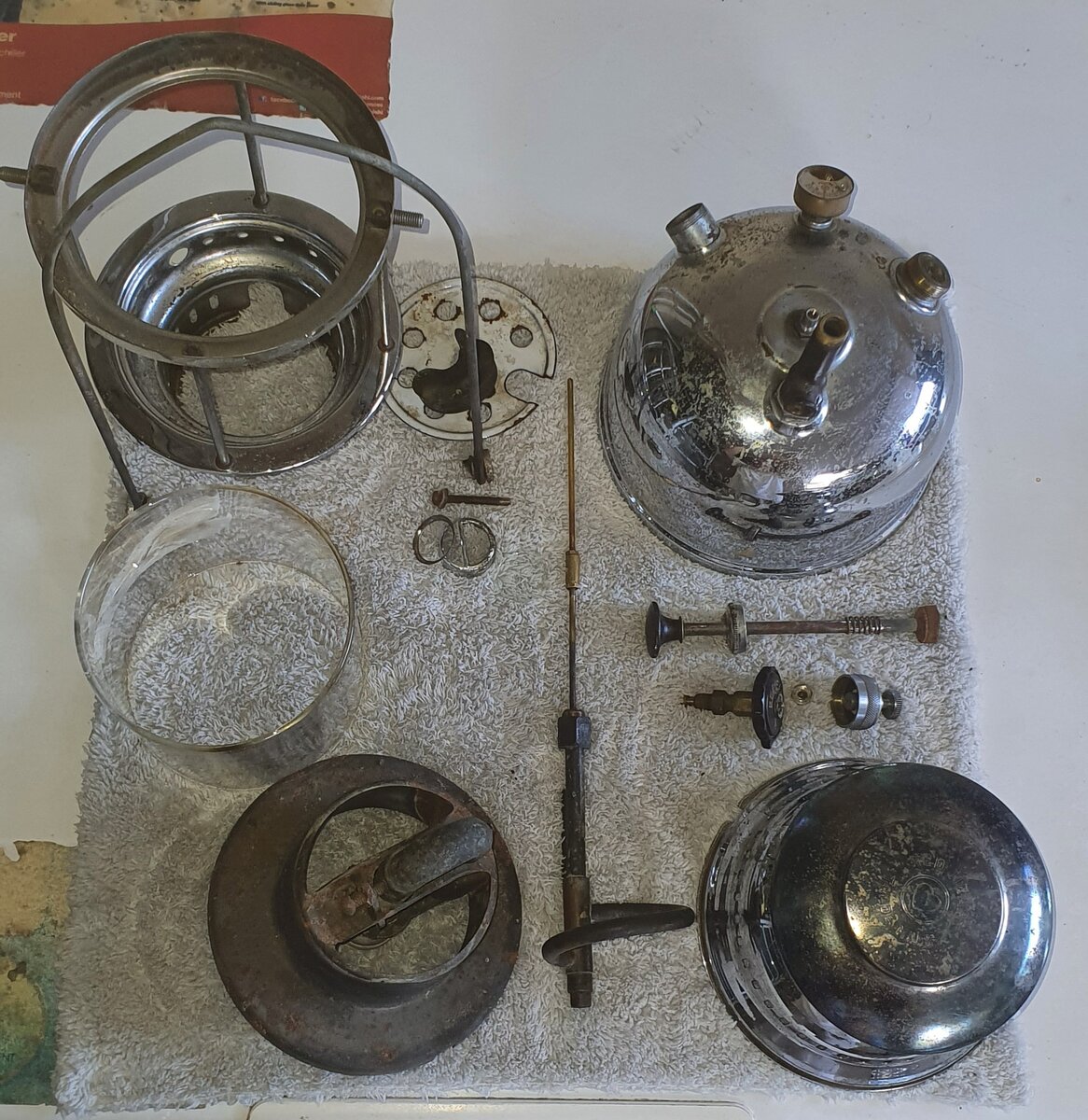

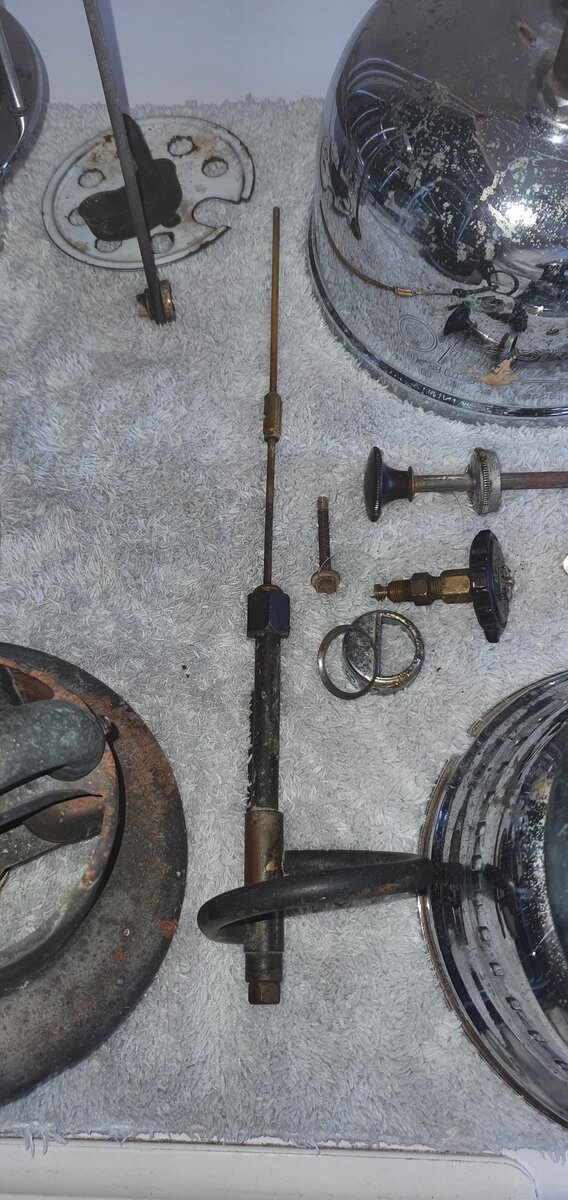

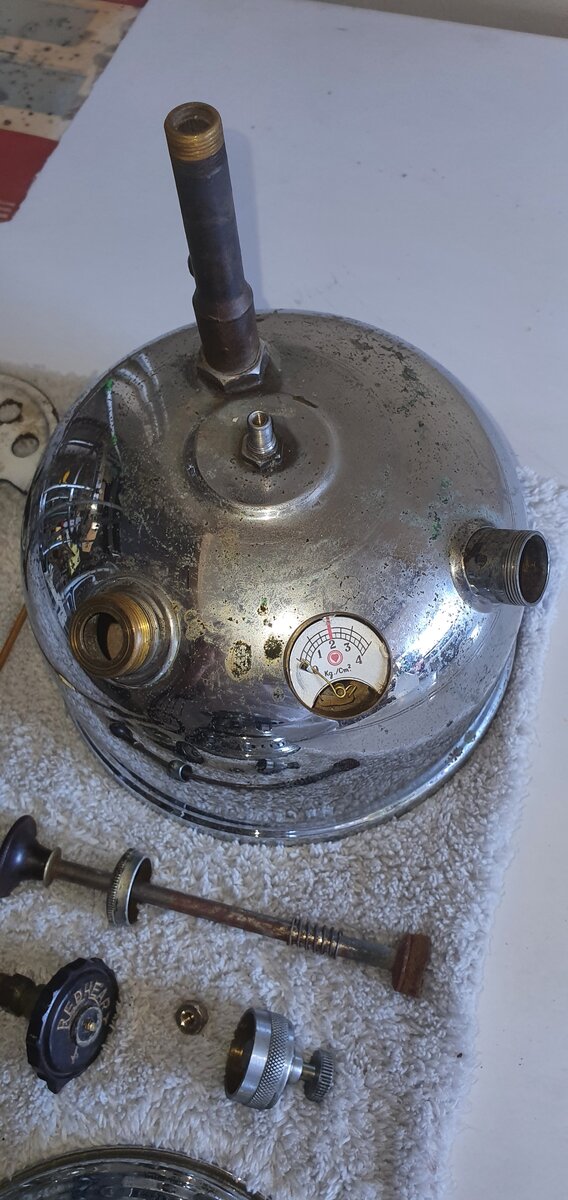

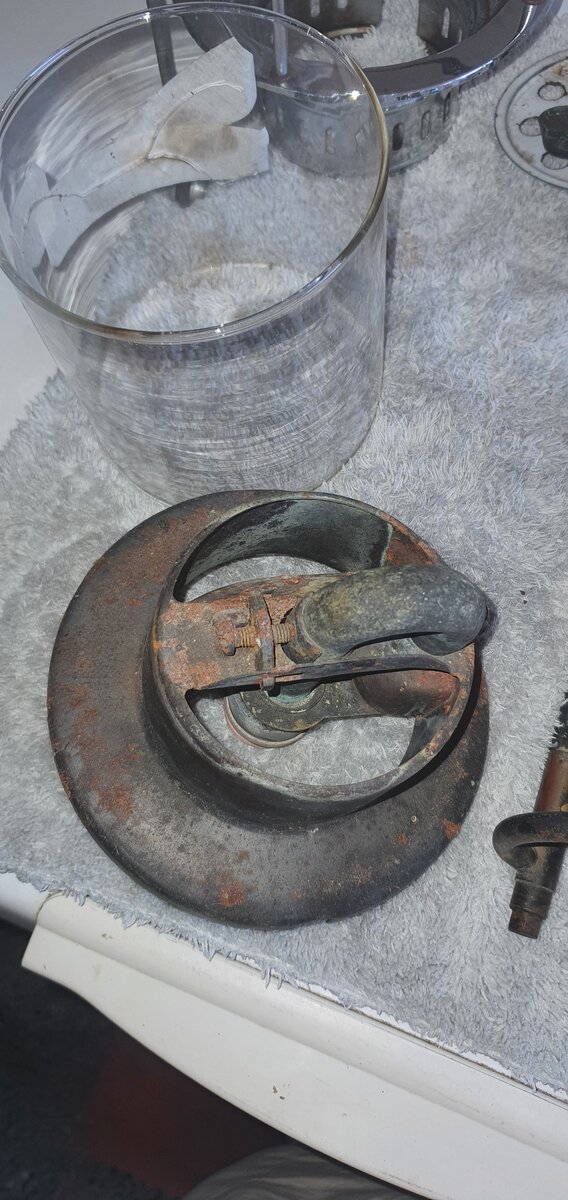

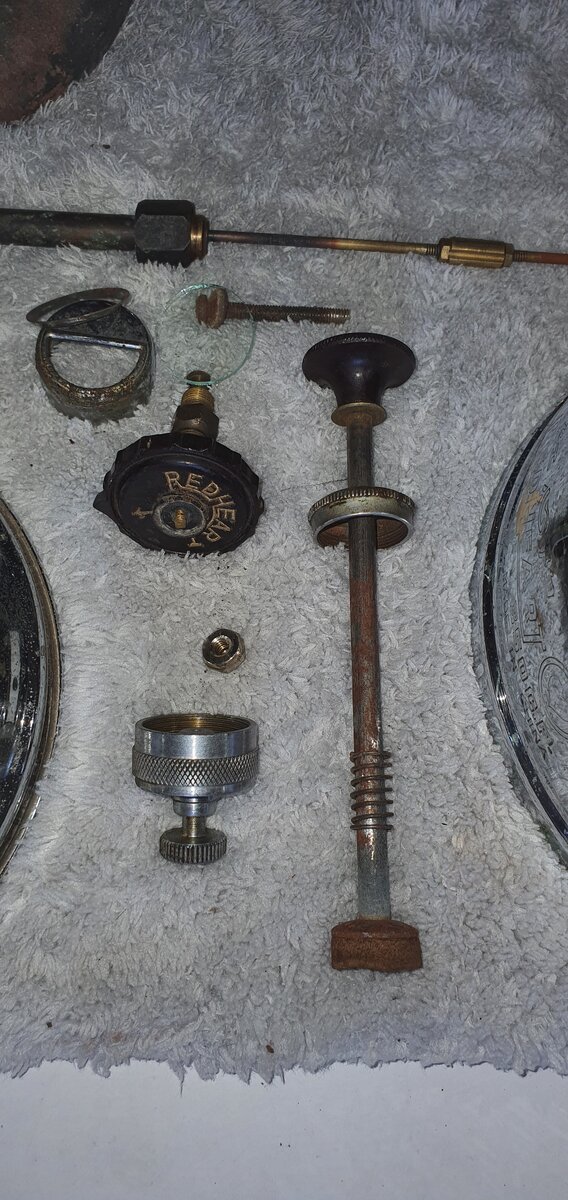

    now disassembled.

    20220112_134256.jpg 20220112_134557.jpg 20220112_134615.jpg 20220112_134620.jpg 20220112_134635.jpg

    Last edited by a moderator: Jan 12, 2022
  10. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,149
    Location:
    North Yorkshire
    If you are new to this type of lantern and unsure of the part names have a look here Magnalux Lantern Spares and here Petromax Spares Price List

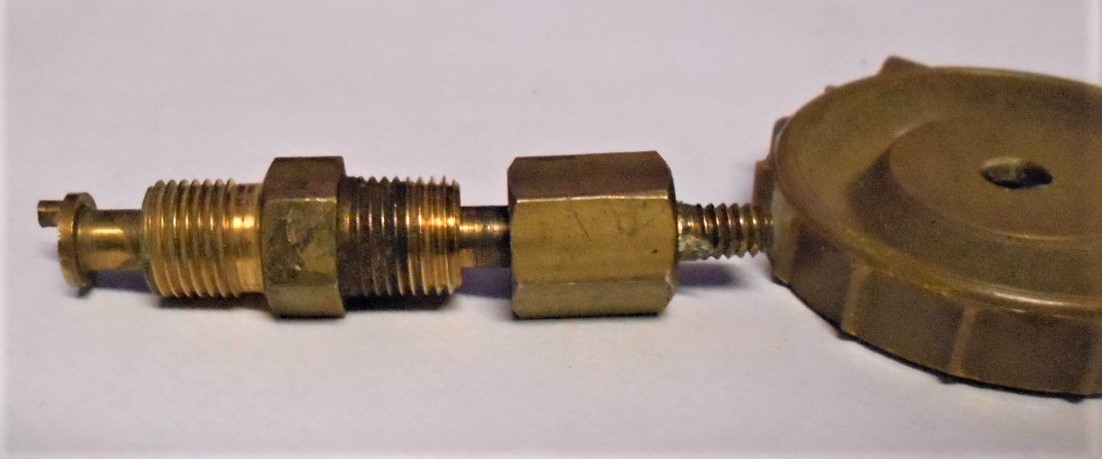

    Looking at the conducting rod (#104) sticking out of the upper vapouriser (#152) I wonder if there is a valve at the bottom of the lower vapouriser (#153). Although not really necessary on your lamp the fuel valve (also called foot valve) consists of a spring loaded rubber pip in its own special brass cup (#193) which can help prevent leaks when transporting the lamp with fuel in the tank so before reassembling the lamp, put the conducting rod down into the lower vapouriser and see if there is any resistance, don't worry if there isn't but if there is it will indicate the presence of a valve which you may want to service while everything is still in bits. If this is the case, count the turns as you unscrew the lower vapouriser (I've found it's usually 7 or 8 full turns), it will help when you put it back in. IF you do this, you will need either a new lead washer (remove the old one first) or some PTFE tape on the threads so that the lower vapouriser is in the correct position AND tight enough to not leak.

    Again, when it comes to rebuilding the lamp, you may find it eaier to reinstall the eccentic #114 (needle control) if you partially dismantle it.
    DSCN1980 (2).JPG


    That pump leather definitely needs oiling.

  11. Gelo888 Philippines

    Offline
    Joined:
    Jan 11, 2022
    Messages:
    6
    Location:
    Philippines
    Again, thanks for these great tips and will work further on this one over the weekend.

  12. Gelo888 Philippines

    Offline
    Joined:
    Jan 11, 2022
    Messages:
    6
    Location:
    Philippines

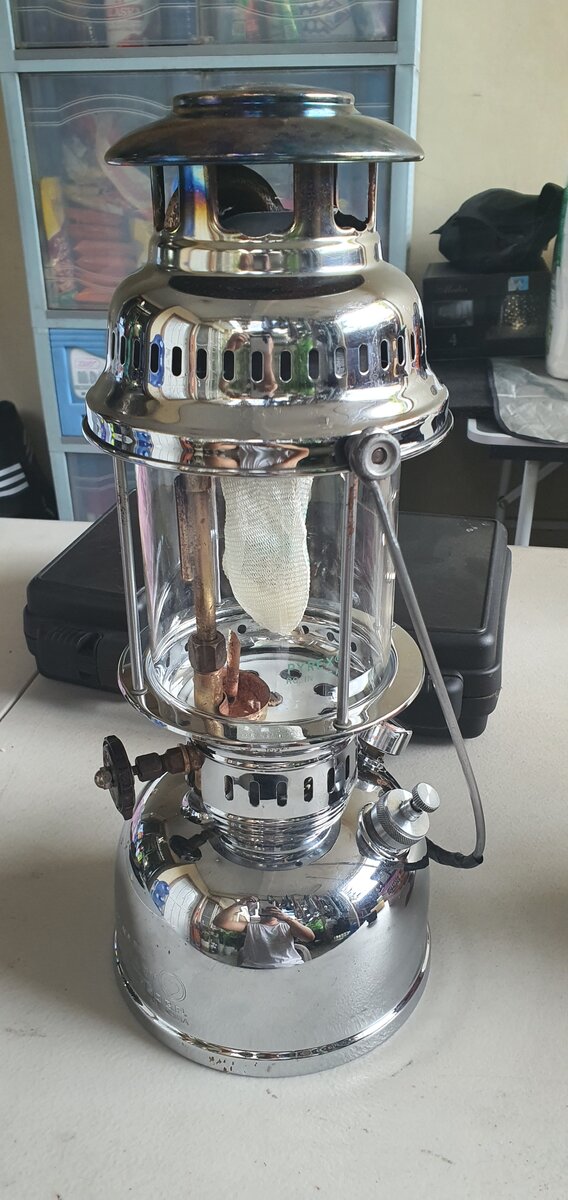

    20220116_164613.jpg all i need to do now is test it. any tips on how should I proceed with the testing, making sure I don't burn our place down! haha

  13. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    2,574
    Well download a manual and read it, read it again. Making sure you understand how these "machines" work. So if you or the machine produces a fire ball, you know how to act.
