Repair Hasag 351 L

Discussion in 'Fettling Forum' started by Reinhard, Jan 15, 2025.

  1. Reinhard

    Reinhard Germany Subscriber

    Offline
    Joined:
    Oct 15, 2018
    Messages:
    953
    Location:
    Germany
    Just a few days ago,this old Hasag 351 L arrived from France to me.It was offered with a photo proof when it lit up. But if you look at the parts it becomes clear that it couldn't have lit up. After stripping off the paint ,it turned out that it was a very early Hasag 351 L that was chrome-plated and once had a sticker.
    IMG_20250103_181323.jpg $ IMG_20250103_181315.jpg IMG_20250103_152132.jpg IMG_20250103_152146.jpg IMG_20250103_152042.jpg IMG_20250103_165720.jpg

    An early Hasag 351L can be recognized by the vaporizer,the short ventilation slots in the collar and the hoodcap.

    IMG_20250114_184425.jpg IMG_20250115_172735.jpg IMG_20250115_172919.jpg

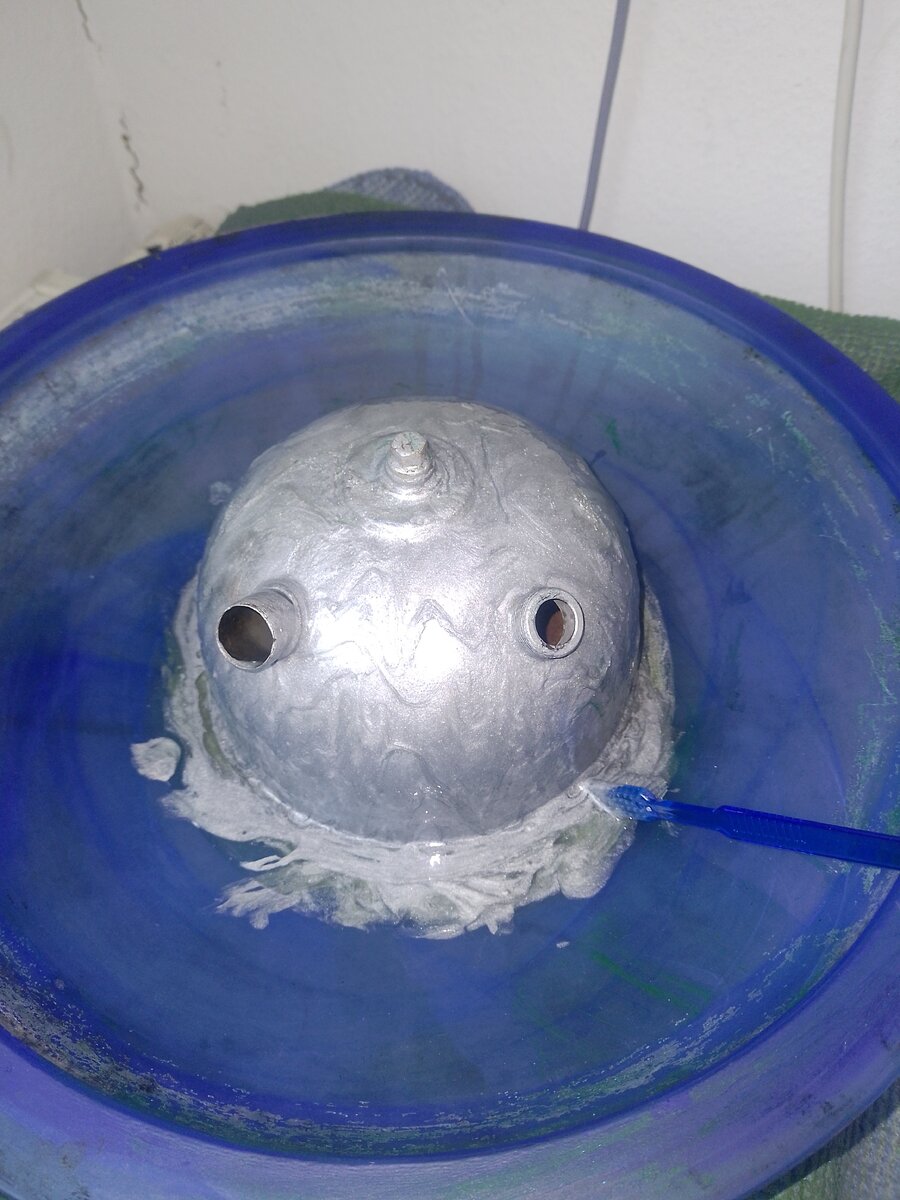

    Because the threaded bushings are very solid ,I needed high temperatures and a Lot of silver solder to seal the leaks.
    IMG_20250108_152226.jpg IMG_20250108_153640.jpg

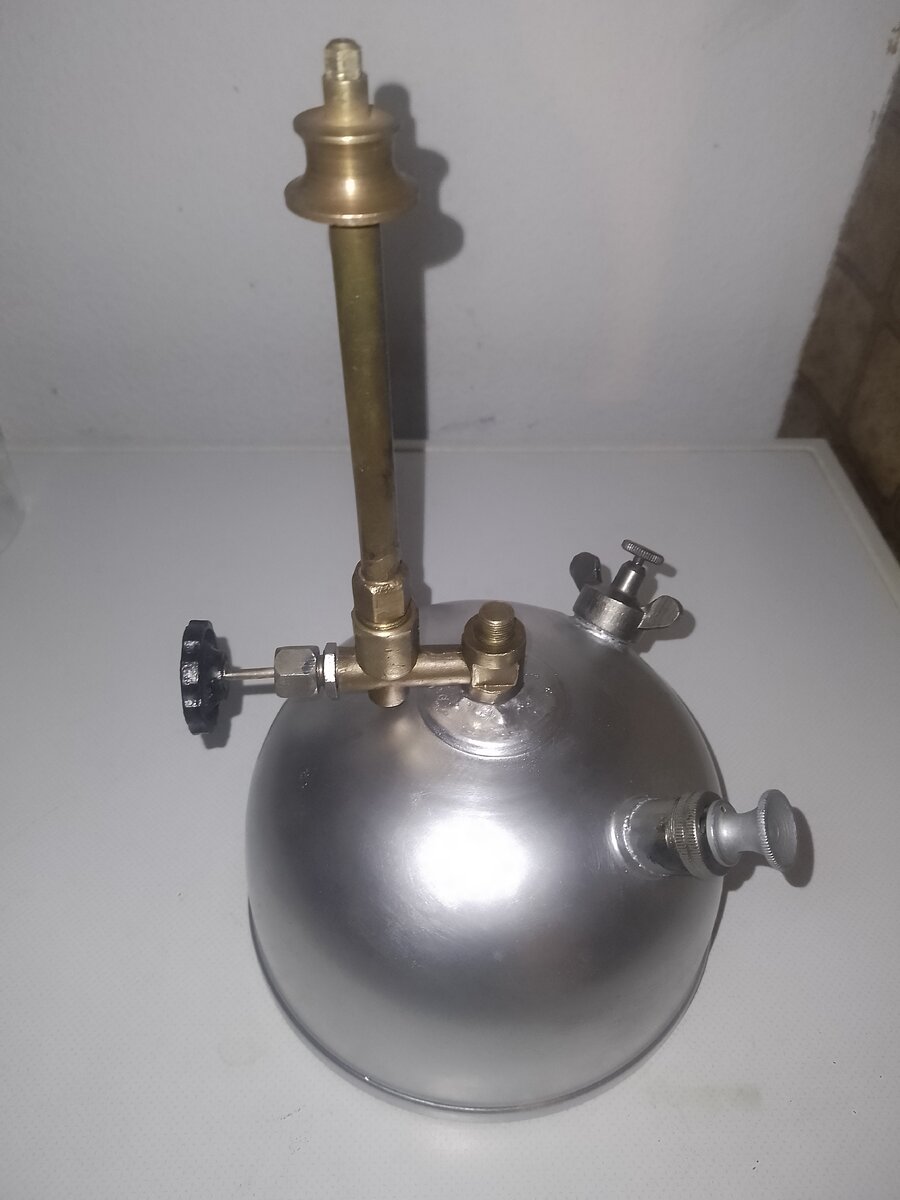

    After I testet the pressure vessel and painted it with chrome spray ,the lamp was allowed to burn a liter of kerosene today.

    IMG_20250115_172831.jpg IMG_20250115_172645.jpg

  2. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    3,617
    Location:
    Malaysia
    The repairs look very neat. It is clearly functional now. Was it originally intended to burn benzin or kerosene?

  3. Reinhard

    Reinhard Germany Subscriber

    Offline
    Joined:
    Oct 15, 2018
    Messages:
    953
    Location:
    Germany
    The manuel states that you can use both fuels.Be careful when using petrol.
    I also had to make the handwheel shaft moveable and seal it.I also repaired the J-tube.

  4. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    3,988
    Location:
    Somersby, New South Wales, Australia
    Nice work Reinhard :thumbup:

  5. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    15,668
    Location:
    Shetland Islands UK..
    Well saved!:thumbup::thumbup:

  6. Willy Germany

    Offline
    Joined:
    Feb 28, 2023
    Messages:
    86
    Location:
    germany
    Elaborate and professional work with very nice shining results.
    Chapeau!
