Repair of Tilley 246 ‘pork pie’ hood

Discussion in 'Fettling Forum' started by presscall, Jul 6, 2020.

  1. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    293
    Location:
    UK
    A project from a clear-out of ‘deep storage’ in my shed, a ‘2nd version’ Tilley 246 ‘pork pie’ in need of attention.

    The hood to be attended to is the one on the left. The one on the right’s from my ‘3rd version’ example as a model for what I wanted to reconstruct.



    What you see there is a much earlier repair, nicely done by somebody with the use of copper strip and copper rivets, enamelled cap bolted to point where the strips converge.



    Hanging on by a thread, as it were. Time to construct something more substantial.



    All credit to whoever had done that repair though. It must have been in an era where the lantern had regular use and not as a collector’s item. It was valued enough to do that repair and the solder work to the base. Roughly wiped with lead solder, functional, robust and no concession made to cosmetic appearance.



    Base too had become porous in several places.



    I intend to retain those signs of a hard working life. Plenty of immaculate restorations in the Lamp Reference Gallery but this won’t be one of them. Still, like that former owner, I’m making the effort to keep it alive and kicking!

    My CCS-themed hobby threw up a scrap fuel tank and the dished-out base panel provided just the right contour to cut out this component, the rim of the top turned down with Knipex pliers.




    The marker pen spot provided a reference point when adjusting for ‘fit’.



    Those projecting ‘lugs’ are to provide positive location and stop the components moving when silbrazing (‘hard’ soldering) them together. Ground off subsequently to allow the air inlet shield to slip over the hood. Joining surfaces cleaned up with an abrasive wheel in a Dremel.




    Silbrazed ...



    ... dunked in boiling water to dissolve the glass-like borax flux residue.



    Consistent with the rest of the lantern I didn’t go for either shiny brass or barbecue paint matt black. Just a wipe-over with a rag, the patches of oxide burnt off by the silbrazing torch will soon oxidise ‘back to black’ in use.

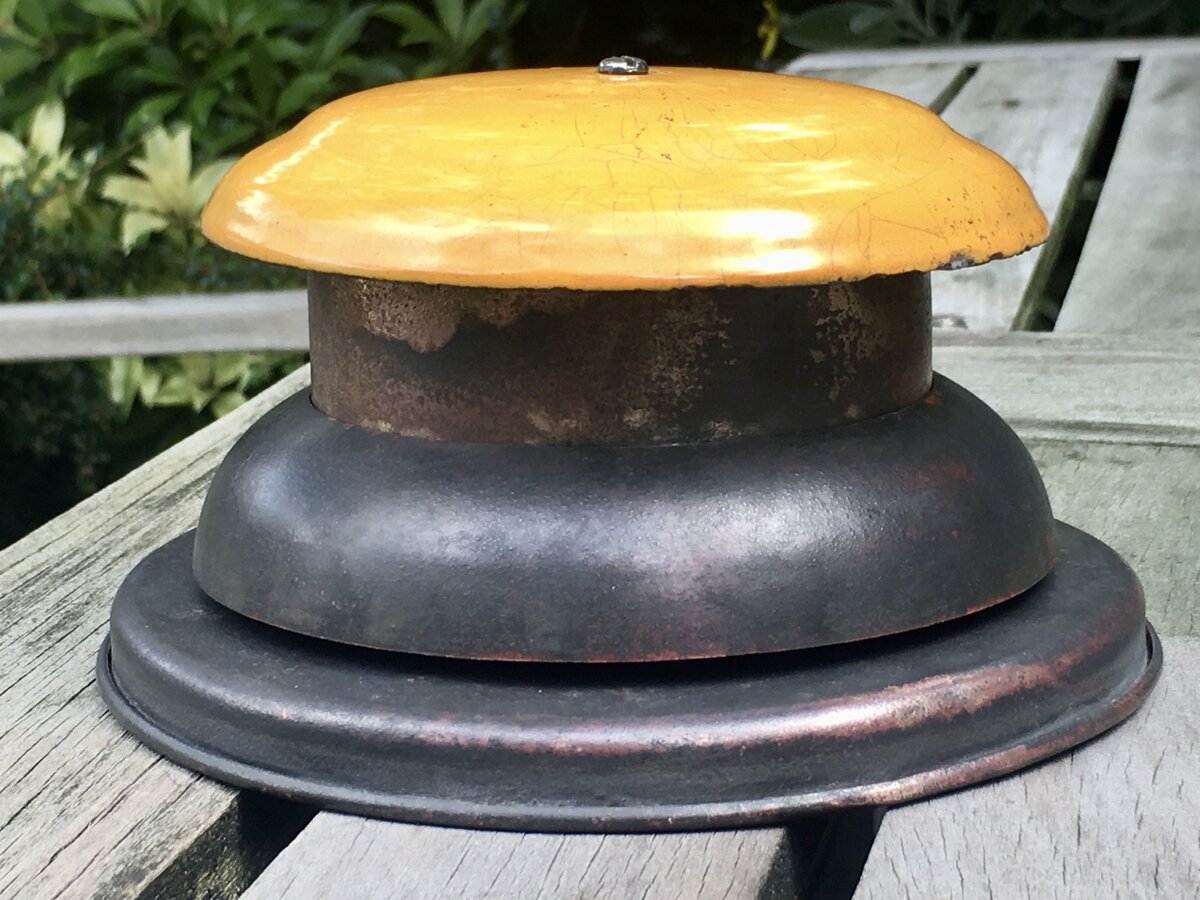

    Cap back on ...



    ... burner installed, must find a mantle.



    John

  2. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    293
    Location:
    UK
    Lit. I doubt it was ever lit in daylight during its working life!


  3. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    293
    Location:
    UK
    Within an hour of the first firing after the repair in fact.


  4. Gary Waller

    Gary Waller Subscriber

    Offline
    Joined:
    Apr 3, 2018
    Messages:
    261
    Looks great and is working well. The hoods on the porkpie lamps are a problem as they become very fragile.
    It’s a neat repair...:clap::clap:

  5. george

    george United States Subscriber

    Online
    Joined:
    Nov 8, 2011
    Messages:
    2,158
    Location:
    USA
    Nice job, looks great!

  6. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,886
    Location:
    Shetland Islands UK..
    Well fettled!:thumbup::thumbup:

  7. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,901
    Location:
    Somersby, New South Wales, Australia
    Nice work John. It should be usable for many more years now. :thumbup:

  8. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,203
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Well done, John.

    I often wonder what happens to require solder on the base plate of a brass-bottomed X246s...:-k

    Cheers

    Tony

  9. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    293
    Location:
    UK
    Is that a known phenomenon Tony? Had me wondering too. You’re the scientist! I know, not your field. George (Kerophile) over on CCS would probably have an idea, as a former metallurgist. I’ll give him a shout.

    John

  10. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,203
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    John

    I've seen a few brass-bottomed tanks with that king of solder work (on the plate, not the rim). Were they railway fettlers lamps being repeatedly placed on rocky ballast?

    George might have some insight.

    Tony

  11. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    293
    Location:
    UK
    That’s plausible, certainly, and this example of mine has taken a hammering to the base rim. Weight of the thing could induce the holder to plonk it down with some force!

    John

  12. MrAlexxx

    MrAlexxx Subscriber

    Offline
    Joined:
    Nov 18, 2015
    Messages:
    111
    Well done John!

    Alex

  13. Buggerlugs

    Buggerlugs Australia Subscriber

    Online
    Joined:
    Apr 4, 2020
    Messages:
    571
    Location:
    Australia Melbourne
    @presscall
    That sure does look fine, if you hadn't shown the earlier photos who would know.

  14. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    293
    Location:
    UK
    @Tony Press
    I did, and he said:

  15. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,203
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @presscall

    That’s a great answer from George - certainly an understanding of metallurgy that goes beyond my recollections of basic chemistry.

    There’s a lesson in there, I think: always clean your Tilley tanks regularly by dumping the old kero and replacing it with new.

    Cheers

    Tony

  16. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    293
    Location:
    UK
    Indeed, or by following the directions on the war-time steel font of my EX-100.


    Ironic really, the EX can’t have had that fastidious attention during its life and is pinhole-free, the brass font 246 falling prey to galvanic electrolysis.

    John

  17. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    1,194
    Location:
    North Yorkshire
    Perhaps it's just coincidence but in my experience - two X256's and one TL136 - it's always the pork pie tanks which suffer this phenomenon.

    Henry.

  18. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    1,070
    Location:
    Wirral
    Hum... Interesting?

    Here's something I found...Most modern Brasses are 67% Copper and 33% Zinc..However the amount of Copper may range from 55% to 95% by weight, with the amount of Zinc varying from 5% to 40%.
    Lead is commonly added to Brass at a concentration of around 2%.

    The Brass used then may have had a higher or lower amount of Copper or Zinc than before the war or later on due to shortages of supplies??? ( the shortages of Brass and the effects on Tilley founts being produced in Steel are well noted)

  19. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    293
    Location:
    UK
    @podbros
    What you suggest makes sense together with @Henry Plews ’s longstanding aquaintance with the marque and his observation and Tony’s earlier comment
    I’m in the process of draining/flushing/purging (with Marine Clean) the Tilley font and since I’ve some POR15 on order for a Governor paraffin stove tank riddled with stress cracks I’ll pop some of the sealer in the Tilley font for good measure - fuel valve/pickup tube removed first!

    John
