Repairing a worn out Kayen burner

Discussion in 'Fettling Forum' started by Tony Press, Jul 25, 2020.

  1. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,202
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    This is a “last resort” repair to a Kayen burner.

    Well-used Tilley and Kayen burners have the tendency to wear out at the thread joints, particularly at the points where the air tubes and mixing tube meet the main burner body.

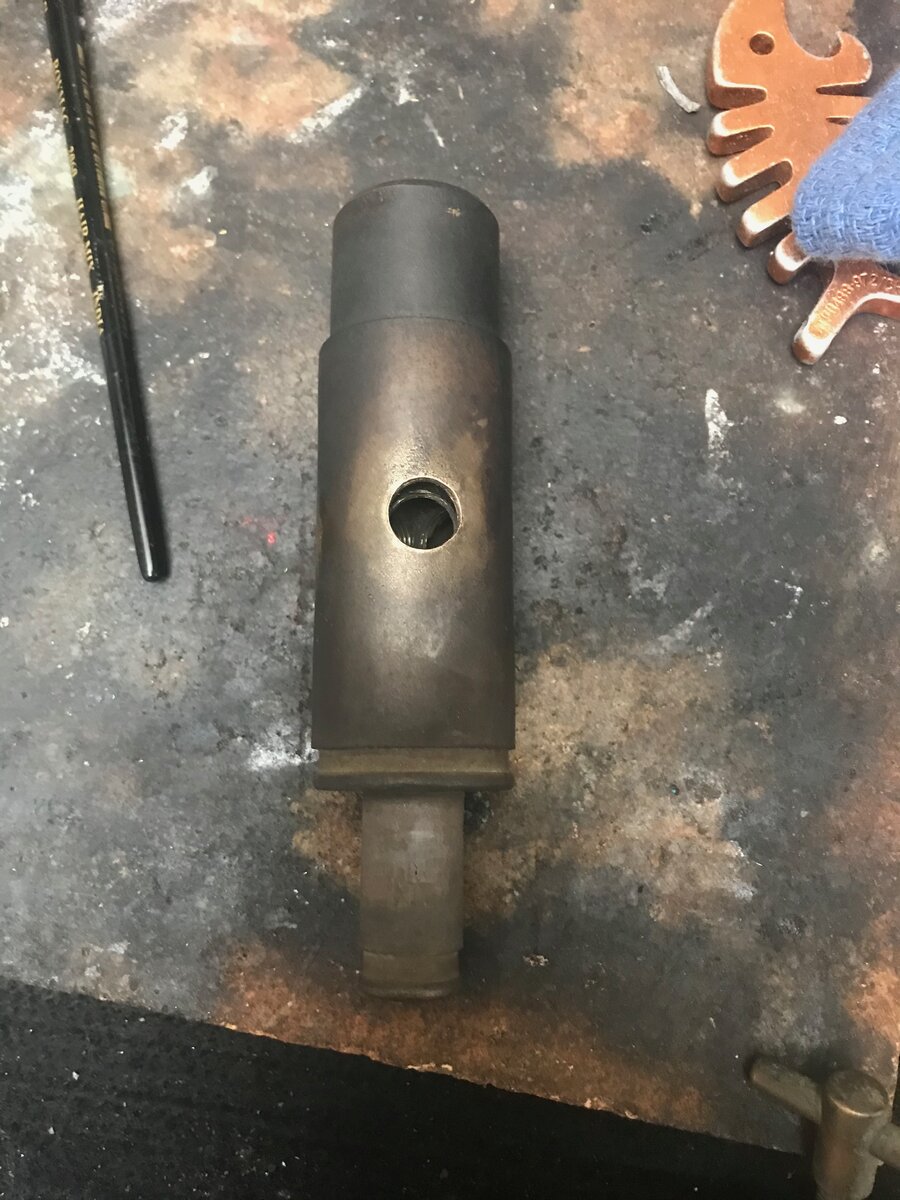

    This old Kayen burner is off a copper Kayen. Most of the burner was fine, except for the air tubes at the burner ends. They were very loose in the burner. The air tubes on this particular Kayen burner are also of thinner brass tubing with a smaller external diameter than standard Tilley air tubes.


    Here is the Kayen burner next to an old (long) Tilley burner. The Kayen burner is much taller and the burner body is larger than the Tilley.




    John (@presscall ) sets a very high standard for silbrazing, and it was he who induced me to take up silbrazing for brass stove and lantern repairs.


    1. I thoroughly cleaned the parts I was going to silbraze together - the burner threads and immediate surrounds, and the threads on the air tubes - using 30% sulphuric acid, a Dremel wire brush, and steel wool.

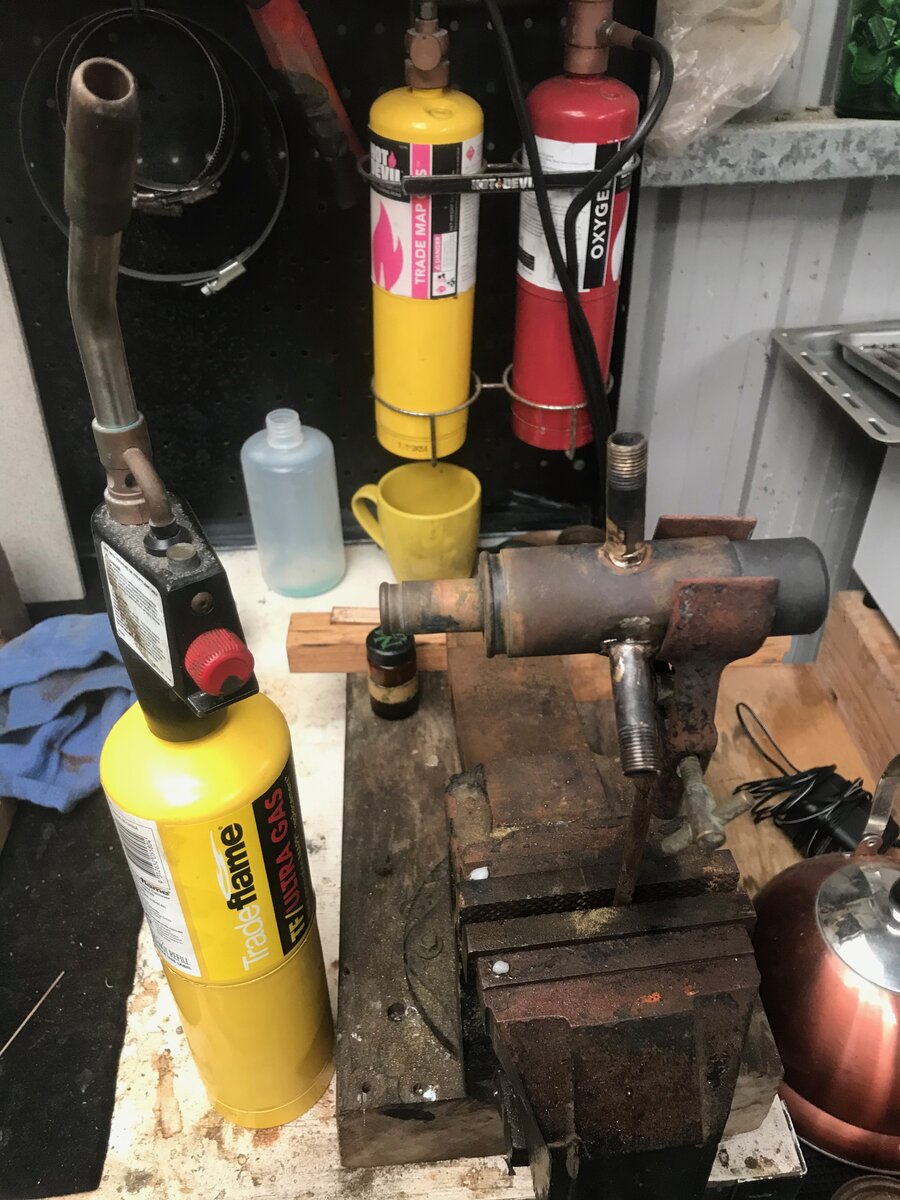

    2. I set the burner up in a laboratory clamp in a vise on my hot table.

    3. I applied plenty of flux.

    4. I used a MAPP torch, and, because of the mass of the brass burner I had to apply a lot of heat to the burner before applying the brazing rod.


    IMG_9577 (1).jpeg

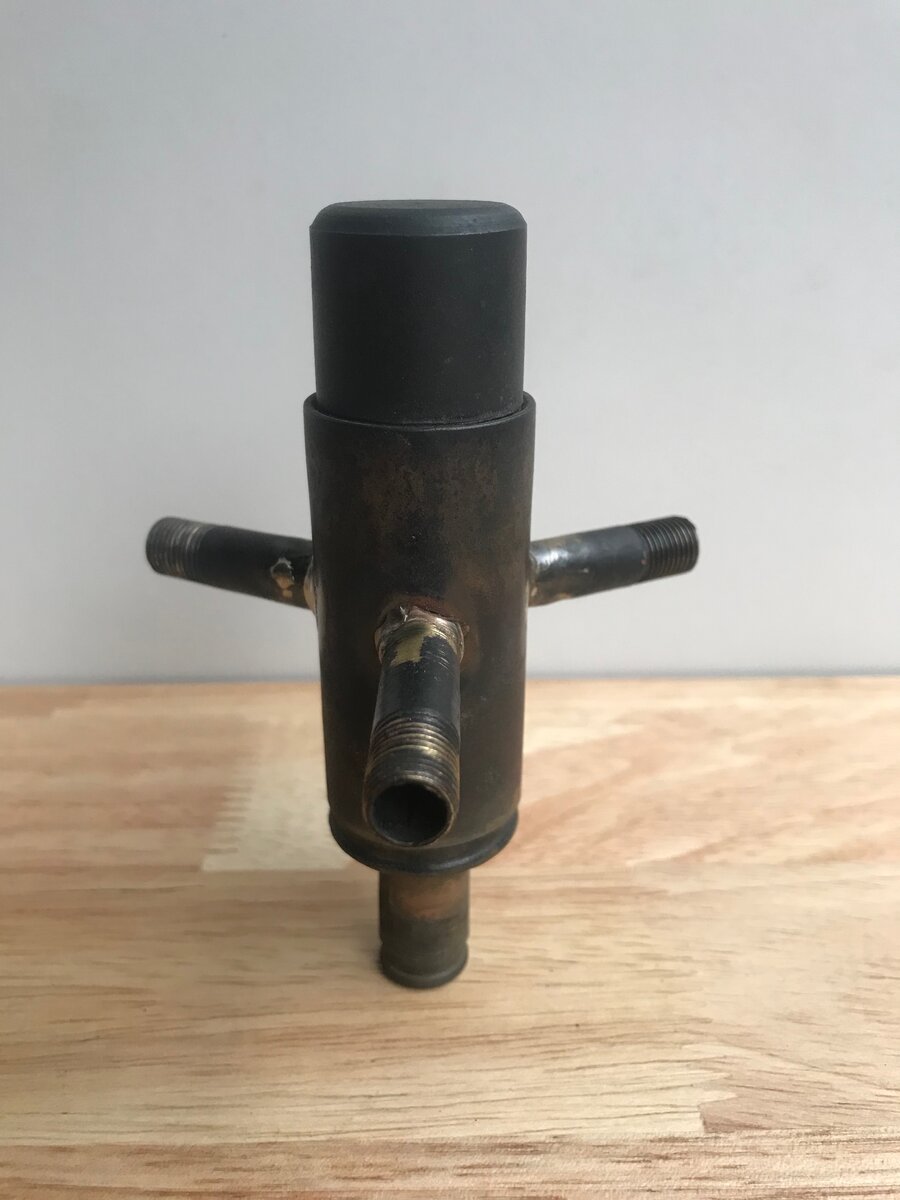

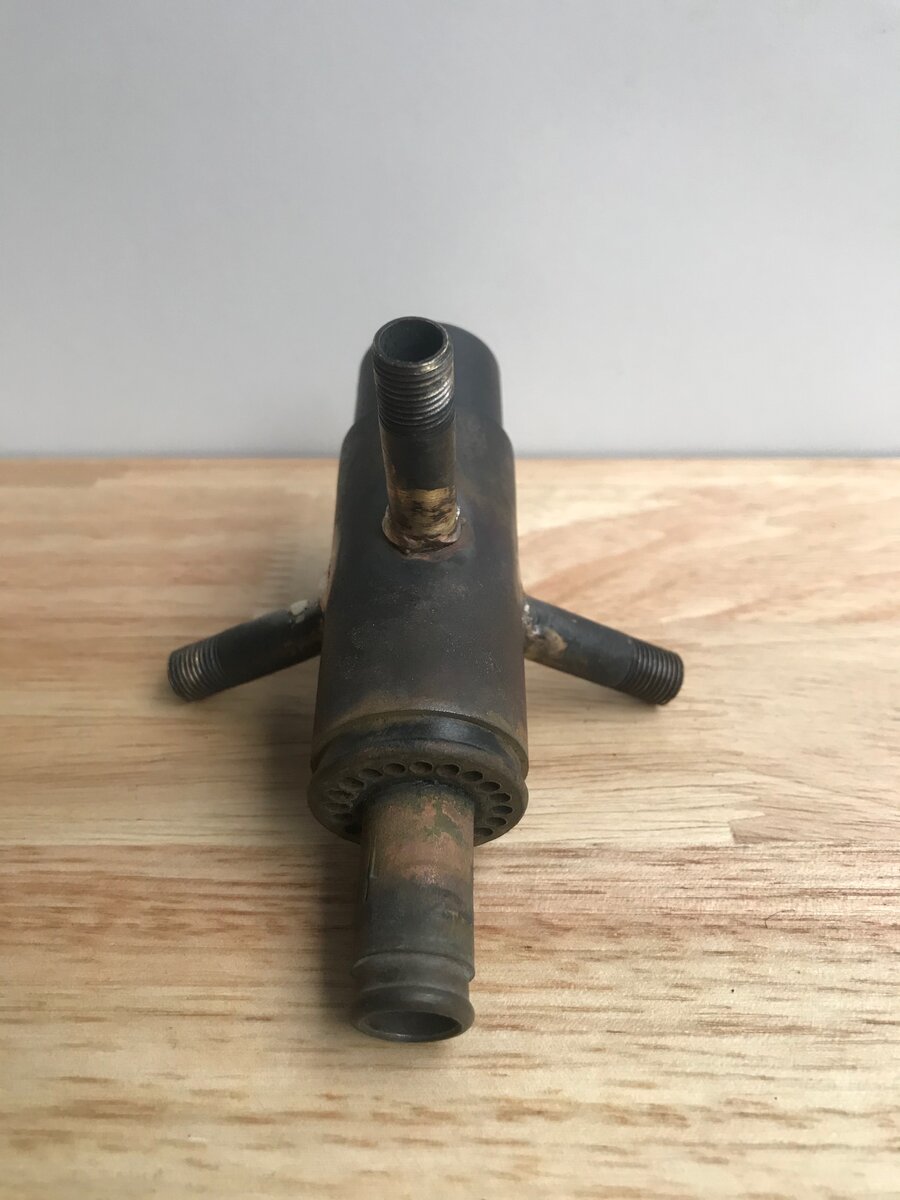

    The repair does not have to be too pretty because the burner is hidden in the hood; but the treads must not leak air, and the vapouriser must engage properly with the burner.

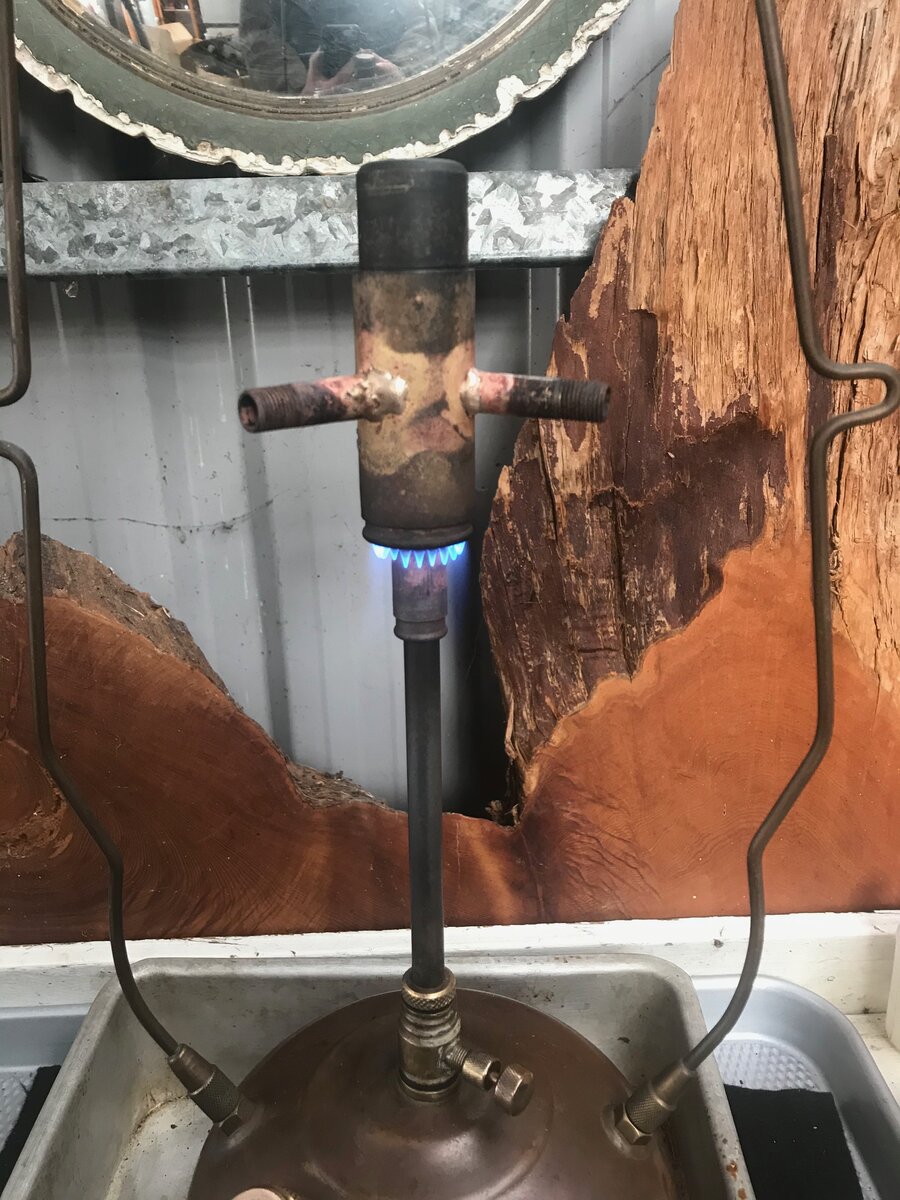

    I am very happy that this historic piece of Australian lamp history is able to use its original (if modified) burner. This should last another 60 years or so!


    Cheers

    Tony

  2. Buggerlugs

    Buggerlugs Australia Subscriber

    Offline
    Joined:
    Apr 4, 2020
    Messages:
    571
    Location:
    Australia Melbourne
    @Tony Press
    Wow that's a top job, you should be very proud of that awesome work you have done, I'm impressed great to see, keep up the excellent work mate.

  3. Andrew T

    Offline
    Joined:
    Mar 1, 2016
    Messages:
    298
    Location:
    Port Elizabeth South Africa
    Well saved on that one.

  4. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    292
    Location:
    UK
    @Tony Press
    Thanks for the nod, Tony, but all credit to you for retrieving that old-timer burner.

    John

  5. Norman

    Norman United States Subscriber

    Offline
    Joined:
    Jul 1, 2011
    Messages:
    559
    Location:
    Spokane, WA
    Well done Tony.

  6. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,870
    Location:
    Shetland Islands UK..
    Well fettled!:thumbup::clap::clap::thumbup:

  7. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    481
    Location:
    Gujan-Mestras - Gironde - France
    Fine job Tony, well saved !!!

  8. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,897
    Location:
    Somersby, New South Wales, Australia
    Nicely Done, Tony. :thumbup:
