Simpson & Cucart nr. 1 Sistem Buenos Aires

Discussion in 'Other Brands' started by didier, Apr 7, 2024.

  1. didier Argentina

    Offline
    Joined:
    Dec 24, 2020
    Messages:
    83
    Location:
    buenos aires Argentina

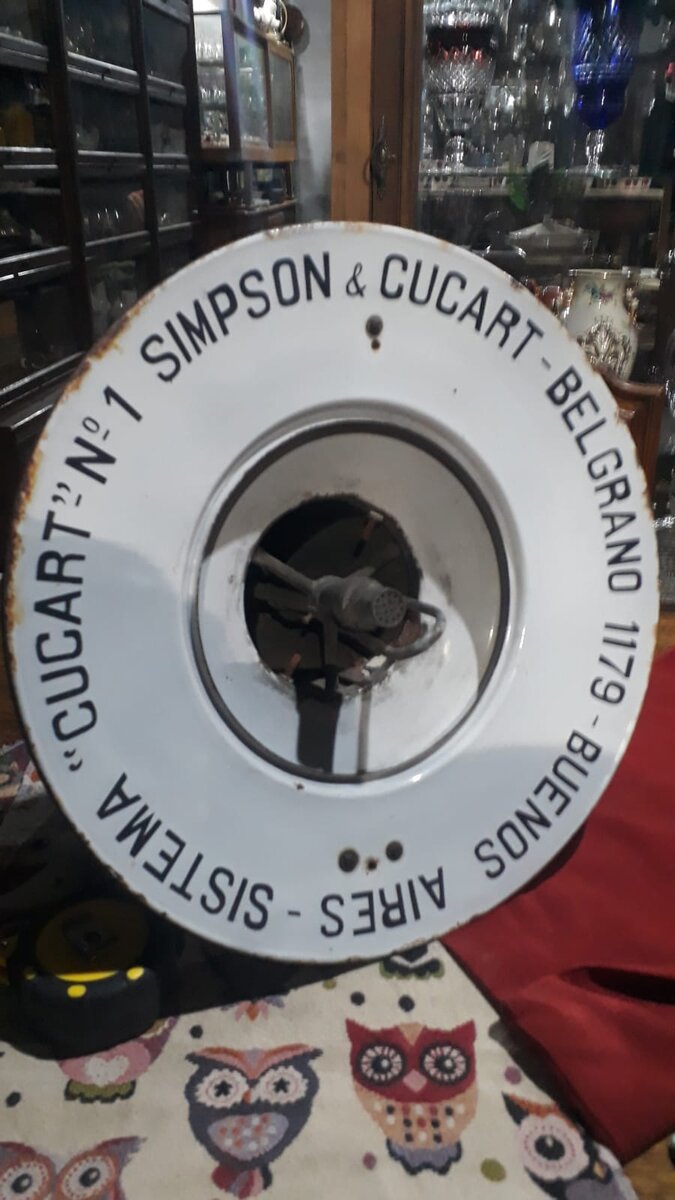

    simpson cucart sistema nr 1 lamp.jpg cucart.jpg




    all information of this lamp is welcome...

  2. didier Argentina

    Offline
    Joined:
    Dec 24, 2020
    Messages:
    83
    Location:
    buenos aires Argentina
  3. didier Argentina

    Offline
    Joined:
    Dec 24, 2020
    Messages:
    83
    Location:
    buenos aires Argentina
    what do I miss here? how to connect this to the fuel chamber, principals? any suggestion I need to restore this one?

  4. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,830
    Location:
    North Yorkshire

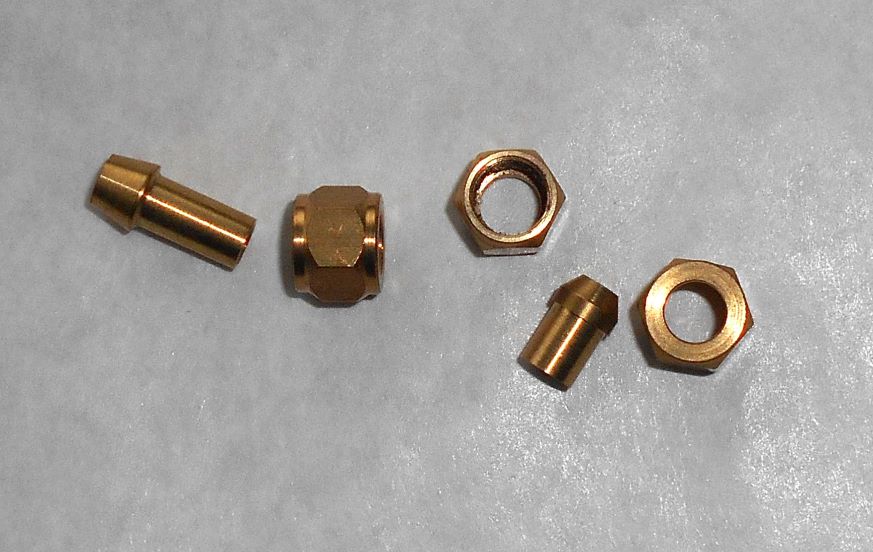

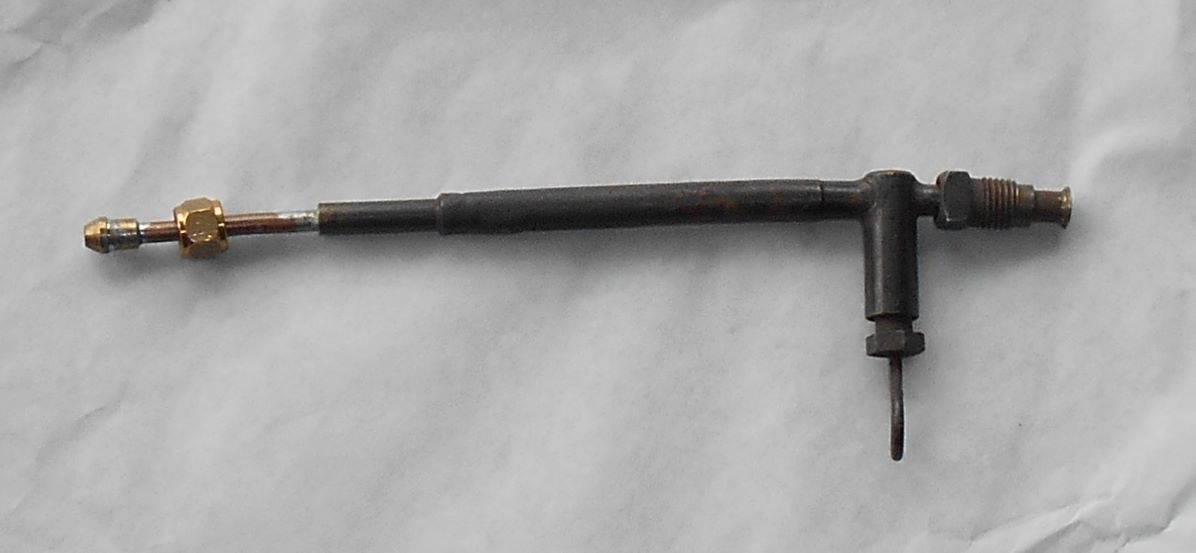

    Hi @didier, I used 4mm diameter copper tube and some connecters like these. I got the connecters from a shop which sells parts to people who make model steam engines.

    Does this part Didier lamp 01CR150TCR50.jpg

    look anything like this ?

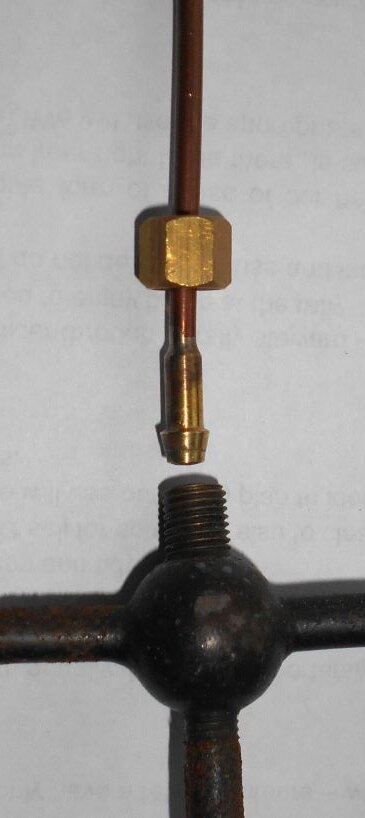

    DSCN3090CR50R75 - Copy.jpg


    I used the tank from a spare lamp for a fuel container and an old generator to connect the tube to the fuel tank.

  5. didier Argentina

    Offline
    Joined:
    Dec 24, 2020
    Messages:
    83
    Location:
    buenos aires Argentina
    oh interesing

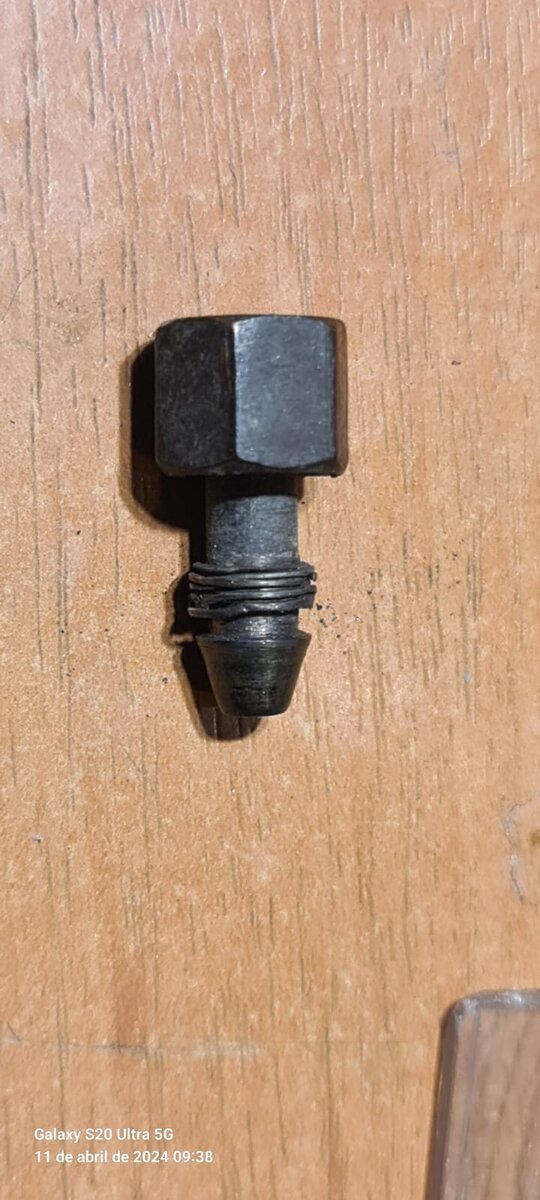

    it is a bit different, but yes, the same principal of course. ref. new

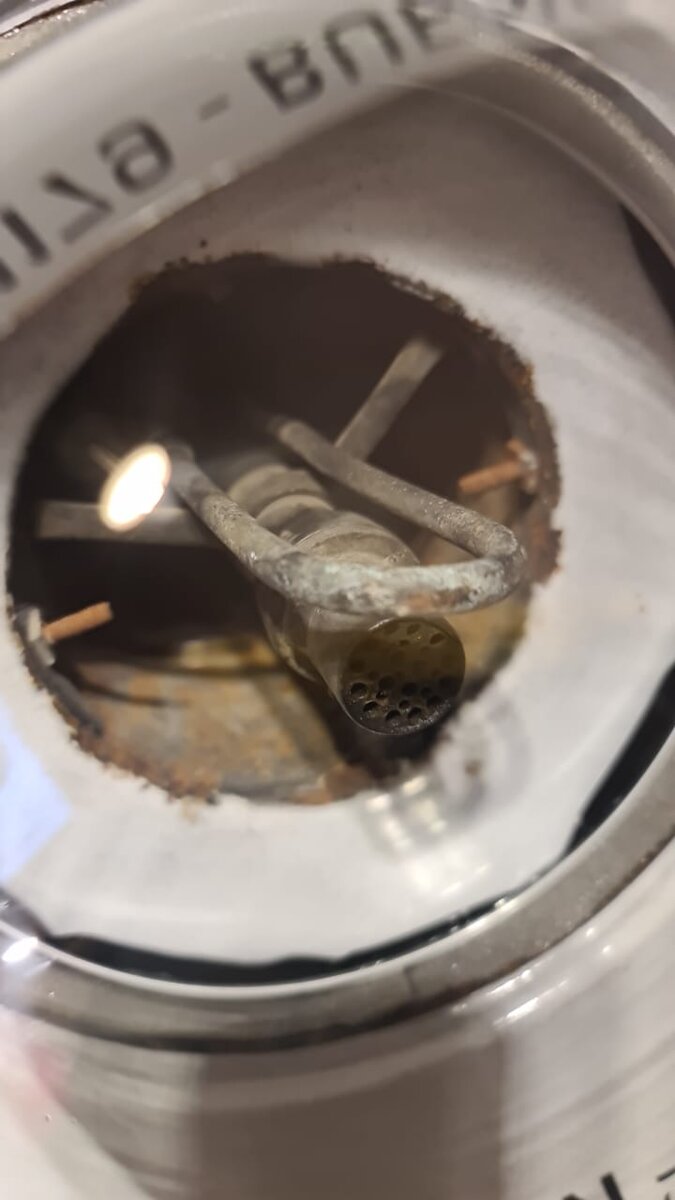

    WhatsApp Image 2024-04-11 at 09.56.14_e54a8fcb.jpg WhatsApp Image 2024-04-11 at 09.56.15_4c819714.jpg WhatsApp Image 2024-04-11 at 09.56.15_df5193b3.jpg WhatsApp Image 2024-04-11 at 09.56.15_fac24d3a.jpg WhatsApp Image 2024-04-11 at 09.58.10_8339a668.jpg WhatsApp Image 2024-04-11 at 10.15.04_6d0ade83.jpg WhatsApp Image 2024-04-11 at 10.15.05_cc31b342.jpg WhatsApp Image 2024-04-11 at 10.18.25_03a3d688.jpg WhatsApp Image 2024-04-11 at 10.18.36_b45d068e.jpg WhatsApp Image 2024-04-11 at 10.18.36_dfcbeb43.jpg

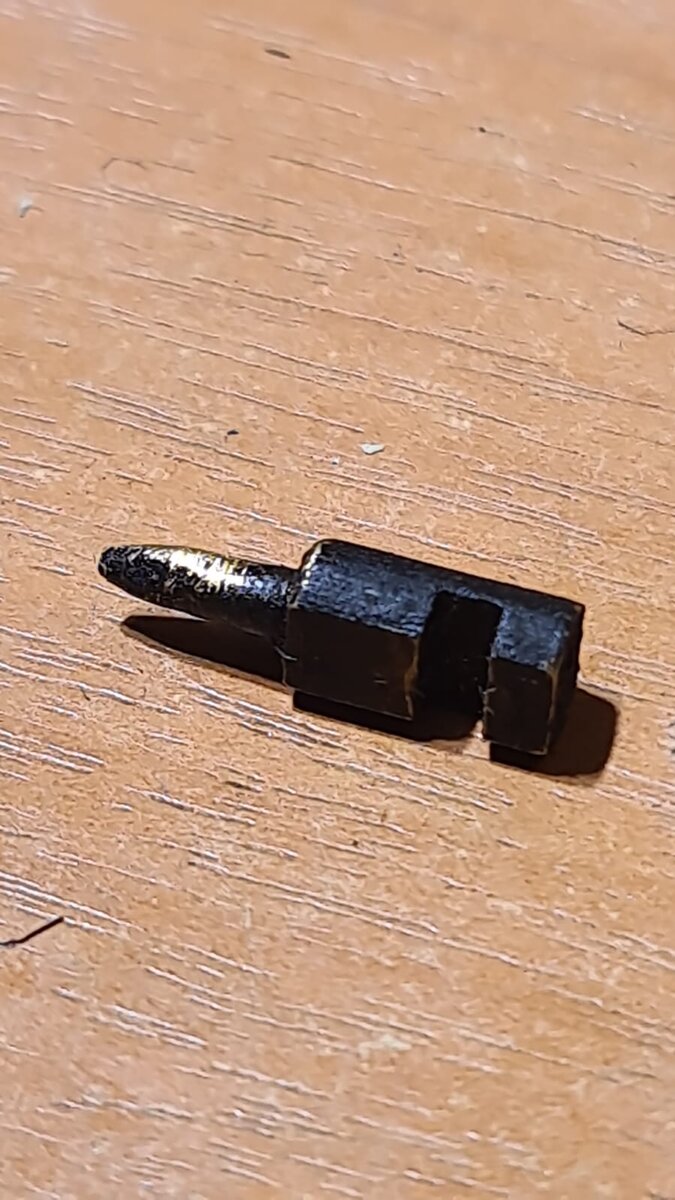

    missing the steel needle at the last pictures = fundamental for its working
    does it needs a gas mantle or not? does somebody knows where to buy the glass protector ? looks like it needs one? is on 3 cm diameter....

  6. Pancholoco1911

    Pancholoco1911 United States Subscriber

    Offline
    Joined:
    Nov 26, 2019
    Messages:
    422
    Location:
    México
    Looks more like for gasoline and the burner is pretty similar to a few HW lamps I have here in the states

  7. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,882
    Location:
    Hertfordshire

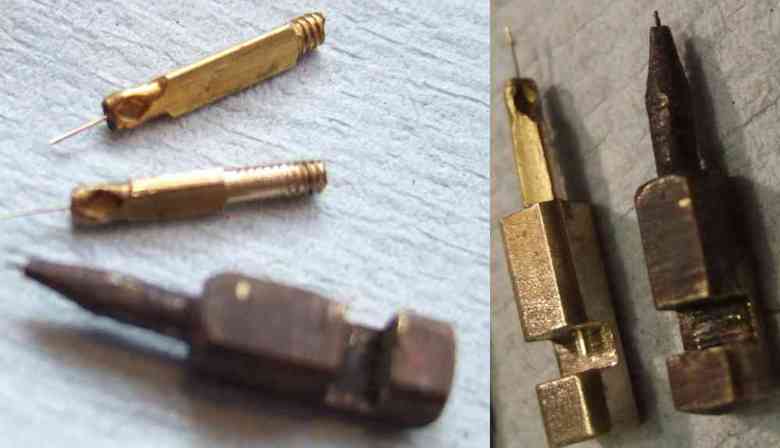

    You can fit a Petromax needle by cutting off the brass nose and drill & tap the eccentric block M2. The needle has to be modified by grinding off the sides to fit into the jet and extend the thread so it will screw into the eccentric. That burner is very like the AGM & Nulite types which have been fettled like this. ::Neil:: !!AGM_pricker_fettle_04.jpg

  8. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    932
    Great advice, Neil! Much easier than other work!
    The jet is missing too so, if AGM look alike burner: would a petromax jet fit on this lamp? Or any other?

  9. didier Argentina

    Offline
    Joined:
    Dec 24, 2020
    Messages:
    83
    Location:
    buenos aires Argentina
  10. didier Argentina

    Offline
    Joined:
    Dec 24, 2020
    Messages:
    83
    Location:
    buenos aires Argentina
    yes very nice advice about the petromax..

  11. didier Argentina

    Offline
    Joined:
    Dec 24, 2020
    Messages:
    83
    Location:
    buenos aires Argentina
    can you post some picture of the lamp that would be Similar. What is the HW lamp?

  12. didier Argentina

    Offline
    Joined:
    Dec 24, 2020
    Messages:
    83
    Location:
    buenos aires Argentina
    ok, found it. HOLLOW WIRE LAMP (ref. Gloria) sorry i was asking you first before investigating....

  13. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,882
    Location:
    Hertfordshire
    I'm not sure but I would expect the threads to be different at least and I suspect the P'Max is a larger Dia as well. I know you have to reduce the pricker dia to make it slot into an AGM jet which implies the P'Max is bigger. Could perhaps be possible to cut a smaller thread on a P'Max jet if there is enough metal to allow that but I have no idea what that thread is. I would look for a similar American jet from makes like AGM, Coleman or Nulite. Problem here though is we don't know the cp of this lamp. The AGM and Nulite types are 400cp and the Coleman 300cp but this beast could be anything from 200 to 800cp. ::Neil::

  14. didier Argentina

    Offline
    Joined:
    Dec 24, 2020
    Messages:
    83
    Location:
    buenos aires Argentina
    well you could be right NEIL, due they had a business relation with WELSBACH lamps.... ref. post

  15. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    932
    Ok. I'll look, perhaps I have a Nulite jet here.

  16. Pancholoco1911

    Pancholoco1911 United States Subscriber

    Offline
    Joined:
    Nov 26, 2019
    Messages:
    422
    Location:
    México

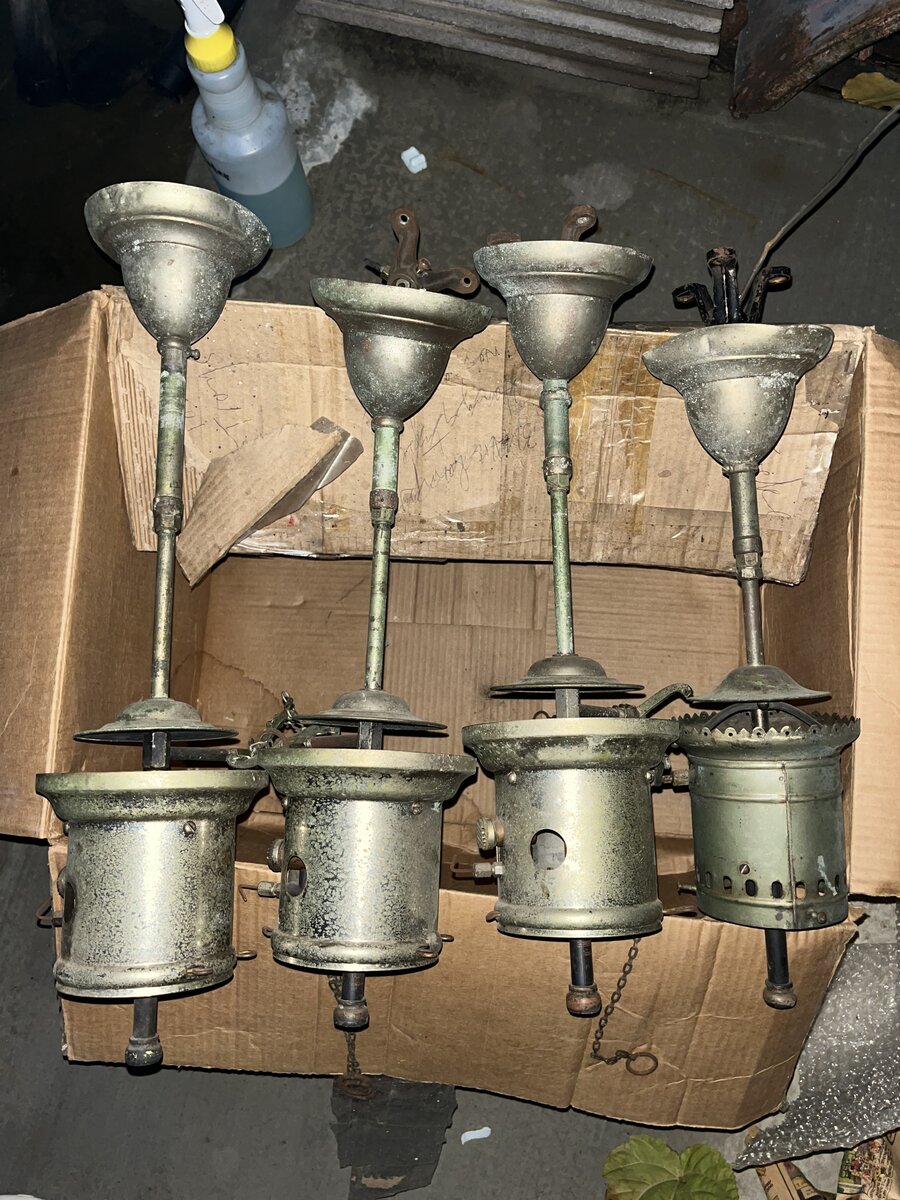

    These are my lamps and unfortunately I don’t have them handy but as soon as I get to my storage I’ll take some pictures from the burner. I found a burner image online and shared it here. Same burner as my lamps


    Attached Files:

  17. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,882
    Location:
    Hertfordshire

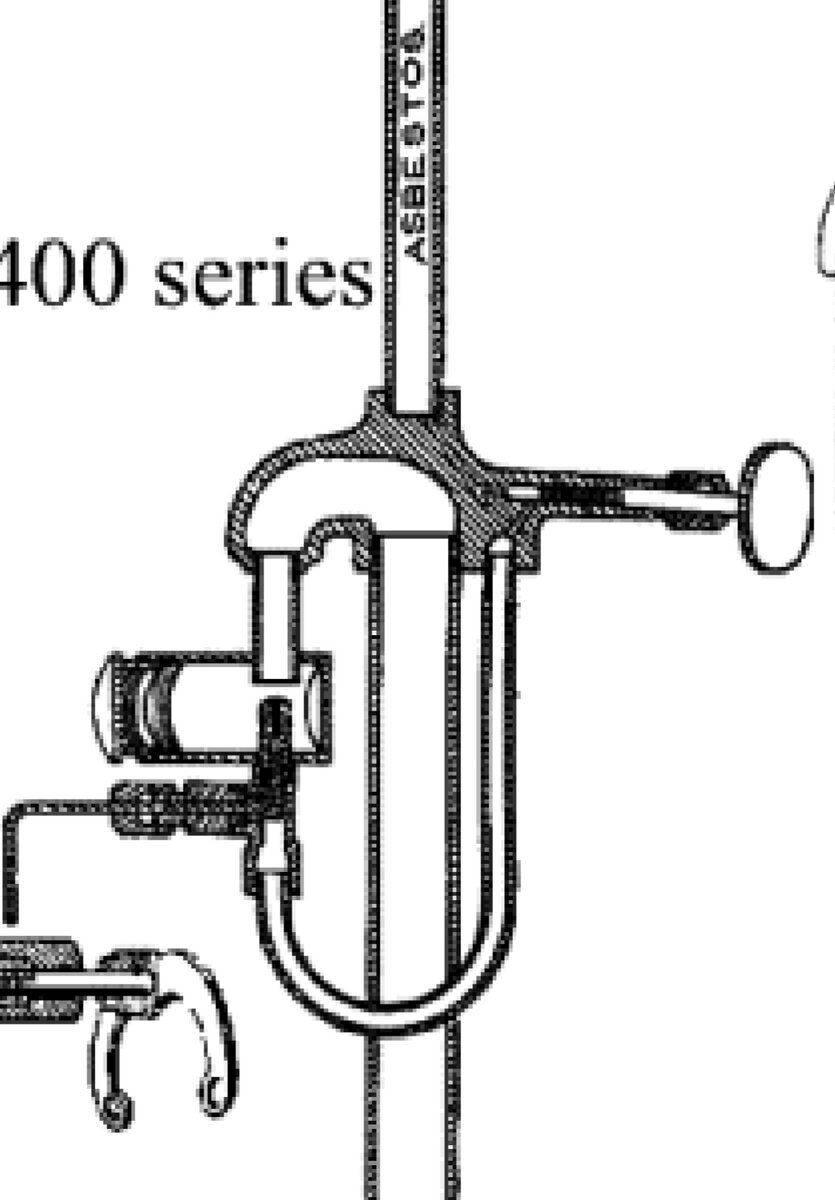

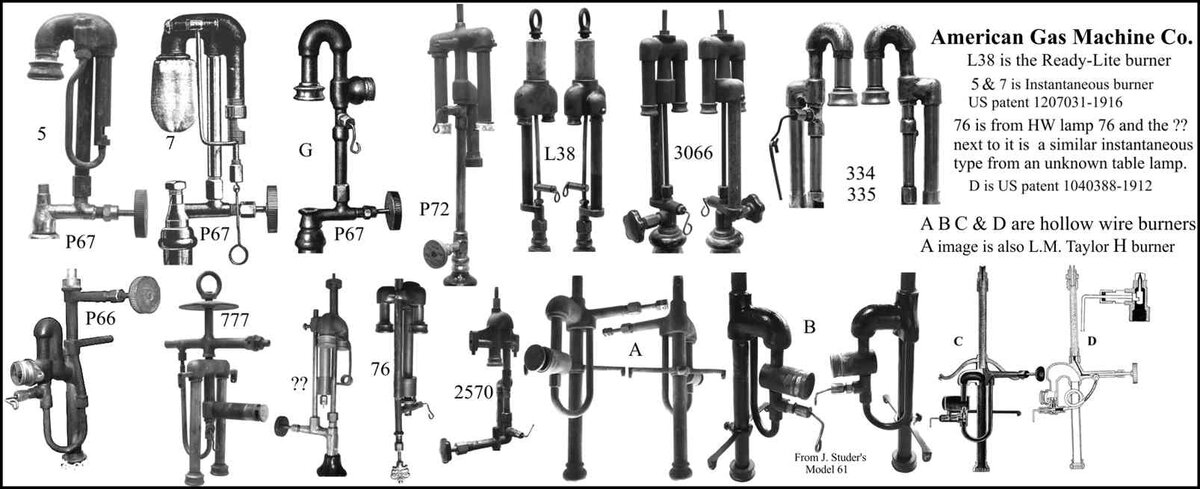

    These are the AGM burner images from the PLC and the Nulite HW burner from the 1912 catalogue. ::Neil:: !!AGM_burners-a.jpg !!Nulite Cat 69-444 lamp burner.jpg
