Stanleys 961 Pendant

Discussion in 'Stanleys' started by Mackburner, Oct 10, 2010.

  1. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,820
    Location:
    Hertfordshire

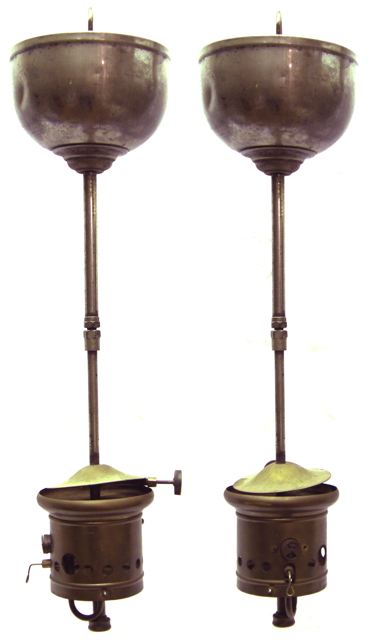

    This is Stanleys model 961 300-400 cp single mantle gasoline pendant. It is all AGM parts but not an AGM model as they never sold a lamp like this.


    1286710188-AGM_Stanleys_Pendant_02.jpg 1286710204-AGM_Stanleys_Pendant_03.jpg 1287950014-AGM_Stanleys_Pendant_label.jpg

    Last edited by a moderator: Apr 1, 2017
  2. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,820
    Location:
    Hertfordshire

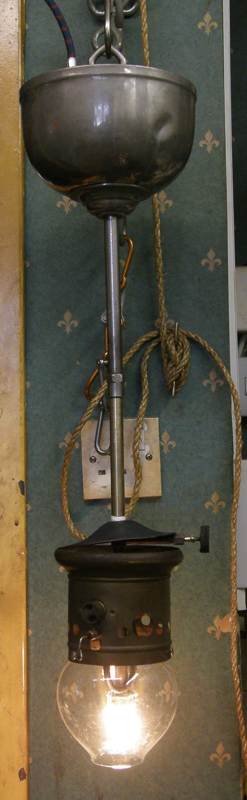

    It's taken a few years but this one finally runs. There were some serious issues with it. The lower feed tube was split, the pricker wire was broken and the valve wheel had been glued and melted. The needle valve had a broken tip as well. I spent a day with Stu who had made some new prickers for this type of lamp and we soldered a brass sleeve over the feed tube. He cut the spindle and reformed the tip and then re joined the spindle with a sleeve. I fired it up just now and whilst it is not 100% as there is a halo around the mantle it runs pretty well and after having the lamp for maybe 10 years it lives again.


  3. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,289
    Location:
    Shetland Islands UK..
    Well saved!:thumbup::thumbup:

  4. Tony Press

    Tony Press Antarctica Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    4,490
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Mackburner

    Well done! (Great work, Stu!).

    Cheers

    Tony

  5. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,358
    Location:
    Somersby, New South Wales, Australia
    Congratulations! It's looking good :clap:
