Still Leaking.

Discussion in 'Fettling Forum' started by Johnny19, Feb 26, 2021.

  1. Johnny19

    Johnny19 United Kingdom Subscriber

    Offline
    Joined:
    Jul 5, 2020
    Messages:
    278
    Location:
    Liverpool
    Hi Guys, I've just replaced the main tank washer because of a leak, the old one was flat and brittle.
    It's still leaking though! Any ideas?

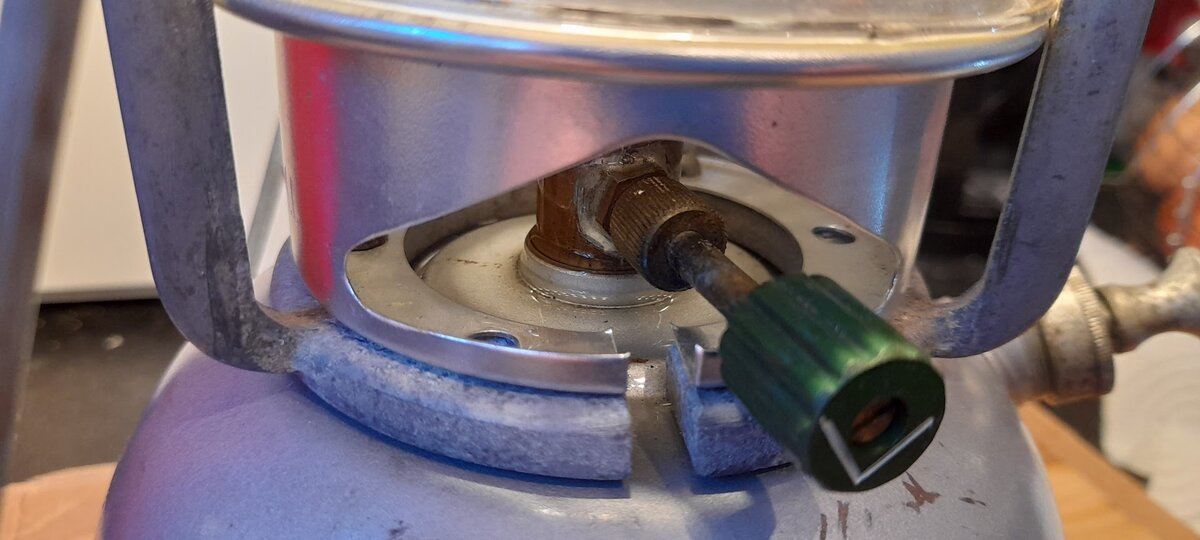

    Its a Vapalux M1.... Leak.jpg

  2. R100

    R100 United Kingdom Subscriber

    Offline
    Joined:
    Jul 26, 2019
    Messages:
    344
    Location:
    High in the Linconshire mountains
    By tank wsher, do you mean the washer between the tank and control cock? Have you checked that the mating faces are not damaged. Do not over-tighten as that can displace the washer. Is the washer a Fettlebox item?

  3. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    1,837
    Location:
    North Yorkshire
    It could be the gland washer. Try tightening the gland nut but not so tight that you can't turn the needle control knob, if that doesn't work the, the seal will need replacing. Take off the green knob and the gland nut, remove the old seal from inside the gland nut and fit a new one.

    If you find it difficult to remove the old seal, burn it out with blow torch - you won't harm the brass.

    Still leaking ? Do a dunk test. Empty the tank, remove hood + burner and glass. Place finger (or thumb) firmly on top of vapouriser and pump plenty of air into the tank. Hold tank under water, air bubbles will indicate location of leak.

  4. Johnny19

    Johnny19 United Kingdom Subscriber

    Offline
    Joined:
    Jul 5, 2020
    Messages:
    278
    Location:
    Liverpool
    Thanks very much for Your replies Henry and R100, but I was just about to do an edit to the original Post as I've fixed it.
    I neglected to replace the rubber washer on the Vaporiser also. That's done and no leaks.
    The washers come from a kit I got from Julians site, a tin full of Bialaddin and Vapalux parts.

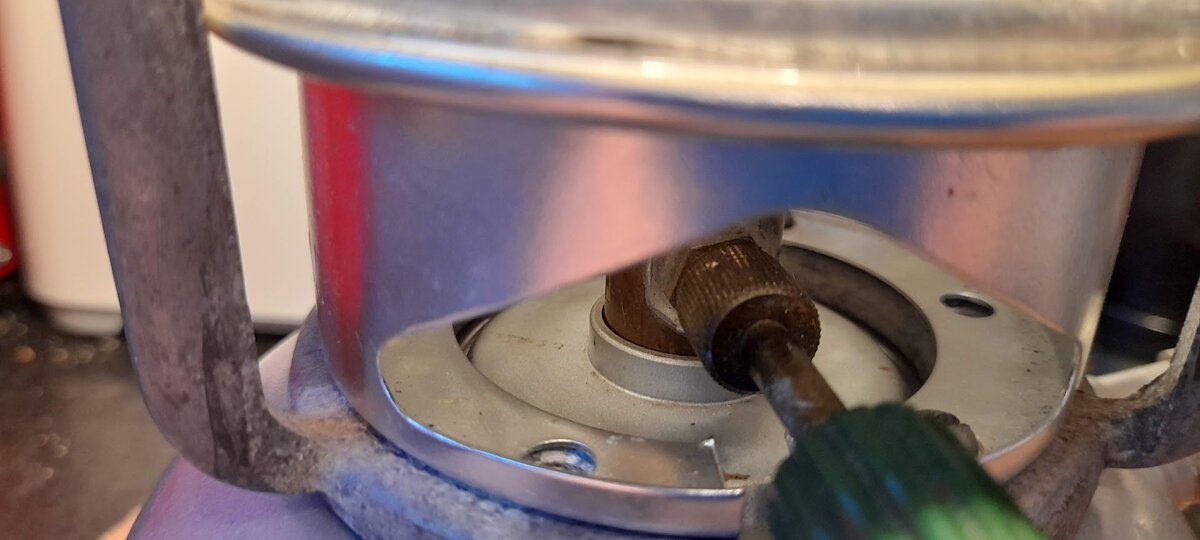

    Again thanks for Your replies, I guess we learn as we go along! M1 Dry.jpg M1 Lit.jpg

  5. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    1,837
    Location:
    North Yorkshire
    Very bright ! :thumbup:

  6. R100

    R100 United Kingdom Subscriber

    Offline
    Joined:
    Jul 26, 2019
    Messages:
    344
    Location:
    High in the Linconshire mountains
    Great stuff. One of my favourite lamps.

  7. Johnny19

    Johnny19 United Kingdom Subscriber

    Offline
    Joined:
    Jul 5, 2020
    Messages:
    278
    Location:
    Liverpool

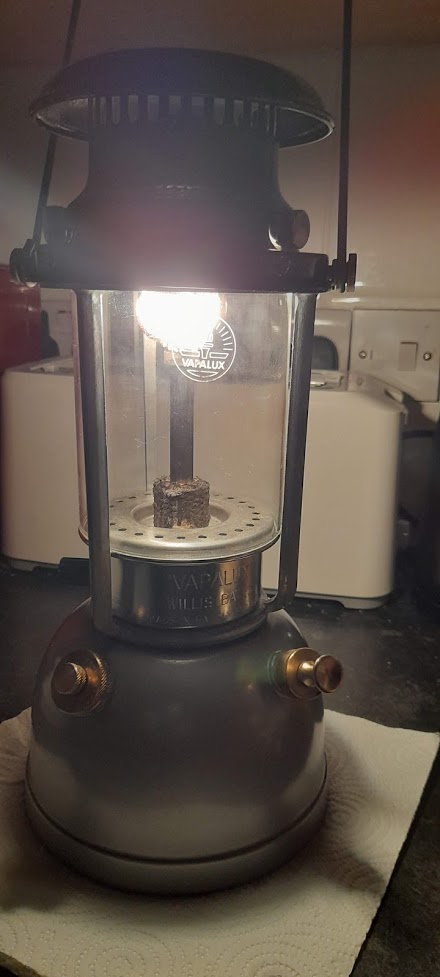

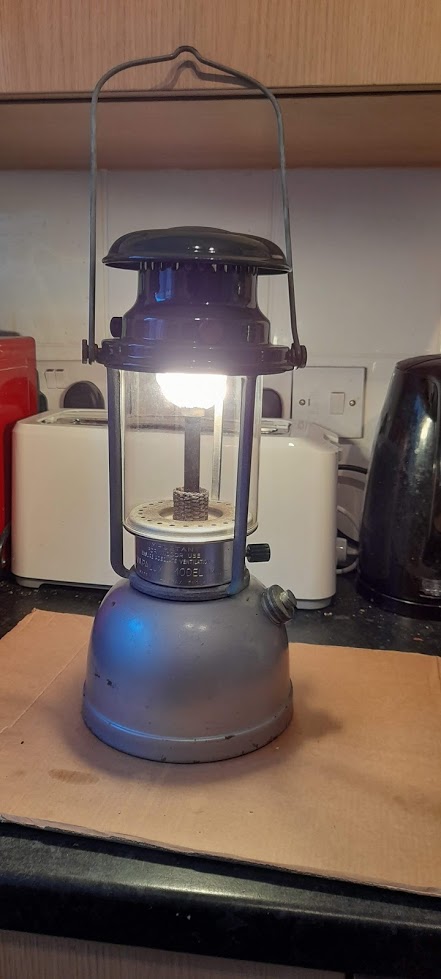

    Yes, M1.jpg M1 Lit.jpg I have 2 M1's Both in lovely condition. The other one has Brass coloured fittings and same green colour.

  8. bp4willi

    bp4willi Germany Subscriber

    Offline
    Joined:
    Jan 21, 2014
    Messages:
    724
    Location:
    Niers, Germany
  9. Norman

    Norman United States Subscriber

    Offline
    Joined:
    Jul 1, 2011
    Messages:
    654
    Location:
    Spokane, WA
  10. george United States

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    2,911
    Location:
    USA
  11. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    1,718
    Location:
    Wirral
    Looks great! :)
