Testing burners

Discussion in 'Fettling Forum' started by Tony Press, Aug 7, 2022.

  1. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

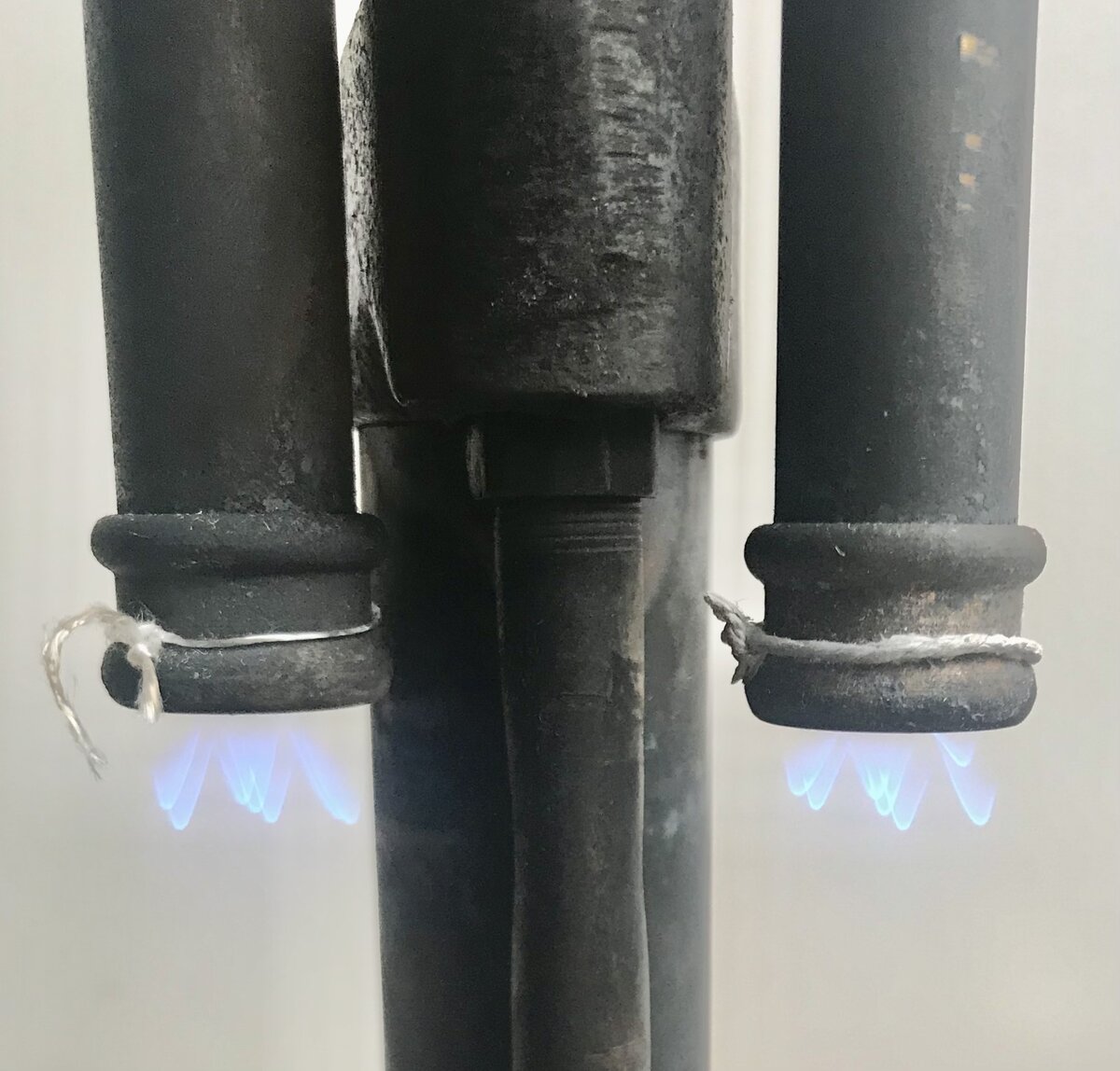

    As I’ve now got into a consistent practice of testing lamp and lantern burners before fitting mantles, I thought I’d start a thread on the subject for my own edification.


    These are photos of a Coleman 159X running in kerosene:





    The flame was solid and blue, and even in both burner caps, so I had no hesitation in fitting a pair of Coleman No. 21 mantles straight off.





    Cheers

    Tony

  2. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    3,087
    Location:
    Malaysia
    Great thread. I've always been carrying out initial tests on newly fettled lanterns without the mantles.
    That way, I'd know that the burner's working correctly to start with.
    Mantles are not exactly very common or cheap these days.

  3. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

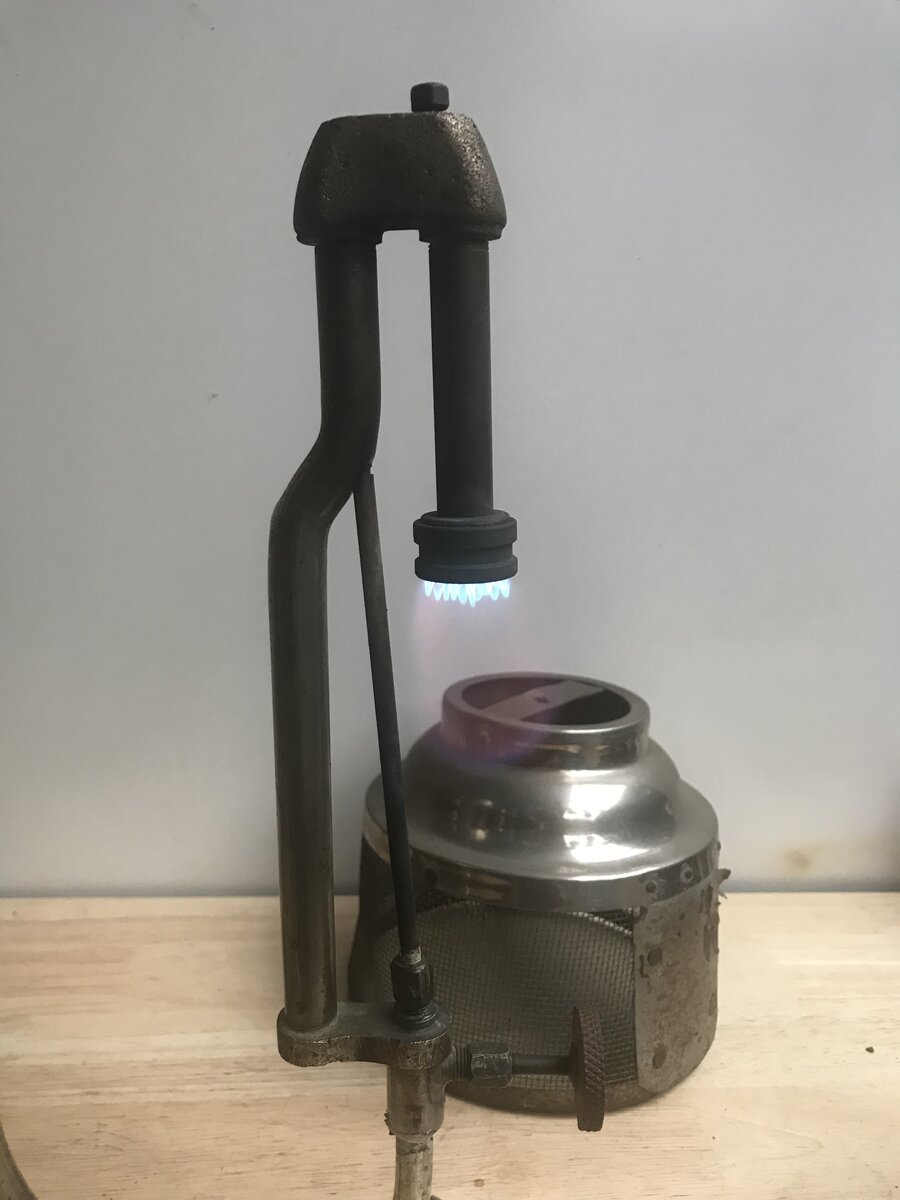

    Testing a rather aggressive repair to an early CQ burner (no patent stamp).

    The steel mesh was rusted out and the burner cap and burner tube threads at the mantle end were shot completely.

    I made new mesh, silbrazed the burner cap to the burner tube, and tested how it went:

    E616A345-56DE-4FB6-81C4-93CFD6AEAB00.jpeg 0F9EF32C-0349-470A-87BB-4401C448E6C4.jpeg C6082C58-BFDF-42BD-B19E-20D0B0A20435.jpeg 3AA8DA61-C677-4B6C-B409-877D8C12C9E7.jpeg

  4. Twoberth

    Twoberth Subscriber

    Offline
    Joined:
    May 28, 2018
    Messages:
    38
    Excellent work Tony.:thumbup:

  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Testing a Canadian Coleman 156 that was in pretty bad shape. I’m quite happy.





    Cheers

    Tony

  6. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    15,039
    Location:
    Shetland Islands UK..
    Yes, it's working well.:thumbup:

  7. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

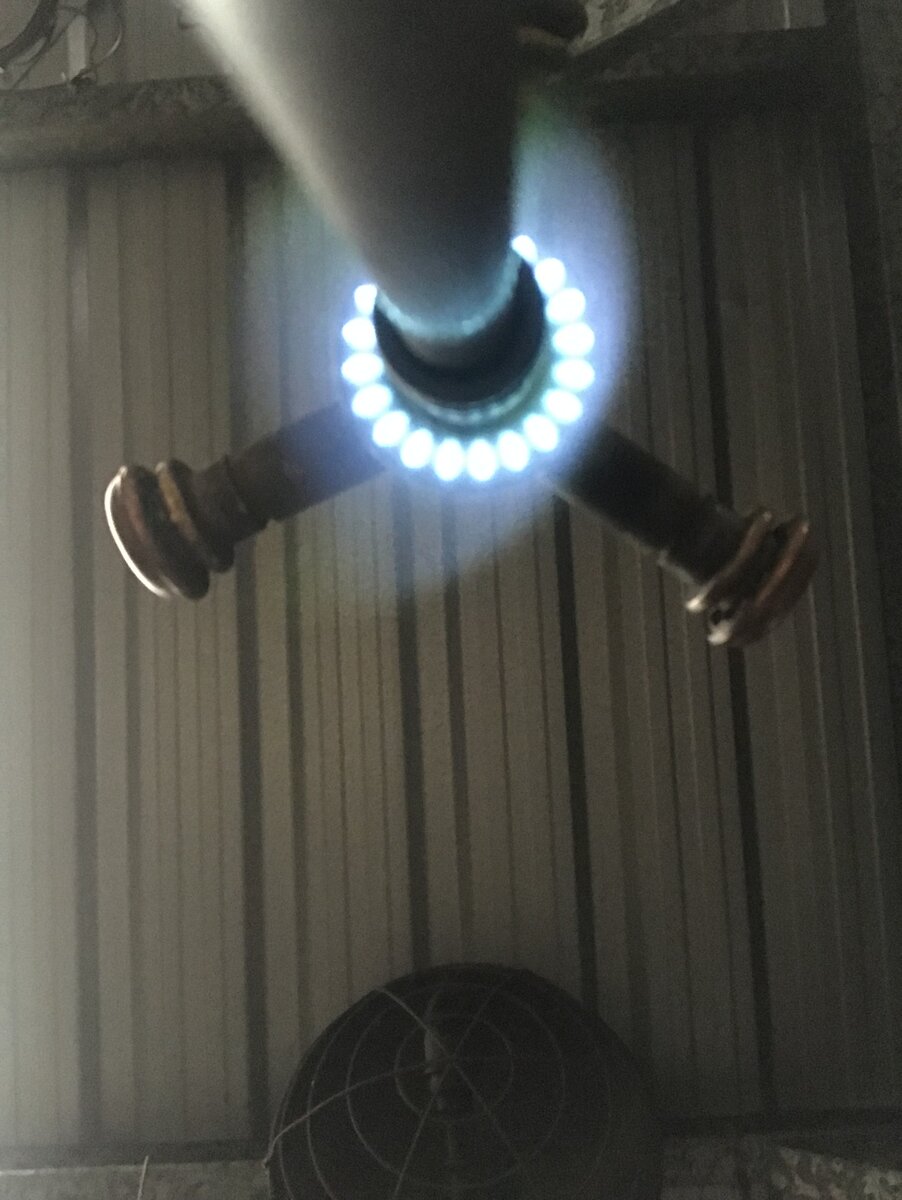

    Testing an old burner from a PL53. For sentimental reasons I’d like to use the original burner and the vapouriser.

    In this first test I’m using a vapouriser I know works well.


    Note the small flamelets from part of the burner.



    Having thoroughly cleaned the burner (without taking it apart), the flamelets became even all around.


    Here, testing the burner with the original vapouriser:





    All good!

    Cheers

    Tony

  8. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,735
    Location:
    North Yorkshire
    Nice photo's of the flamelets from the Tilley burner @Tony Press . My skill with cameras leaves a lot to be desired.

  9. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Thanks, Henry.

    The ones just posted were taken with an iPhone. To get them I needed a reasonable amount of light (provided by a Coleman wall lamp — hence the shadow).

    Cheers

    Tony

  10. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Testing a burner from an EX4.



    …and now the vapouriser that came with the lantern (after getting rid of all the carbon!).



    The original parts are fine.



    Tony

  11. Twoberth

    Twoberth Subscriber

    Offline
    Joined:
    May 28, 2018
    Messages:
    38
  12. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    I’m very happy with this effort…

    The jet in the generator was enlarged and producing large amounts of yellow flame even under low pressure, and the lamp was burning outside the test mantle.



    Some gentle peening of the jet (a very rare generator), and some packing in the generator to allow for greater vapourisation, resulted in this:






    Cheers

    Tony

  13. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    15,039
    Location:
    Shetland Islands UK..
    Well fettled!:thumbup::clap::clap::thumbup:

  14. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    3,230
    Location:
    .. next to the Chester & Birkenhead Rlwy
    I’d be happy too! :thumbup:

    is that an air restrictor at the bottom of the air tube there, Tony?

    regards

  15. James K

    James K United Kingdom Subscriber

    Offline
    Joined:
    Nov 10, 2017
    Messages:
    649
    I like that one, it's got that different thing going on.

  16. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @podbros

    It’s not an air restrictor — just the threaded wheel used to lock the burner assembly in place.

    Cheers

    Tony

  17. Twoberth

    Twoberth Subscriber

    Offline
    Joined:
    May 28, 2018
    Messages:
    38
    Very well fettled!

  18. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    3,230
    Location:
    .. next to the Chester & Birkenhead Rlwy
    Thanks Tony :thumbup:

    now I look closer I can visualise it better.. what I thought was a slot is a reflection off the tank

    nice bit of history :-)

  19. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    I can only run this with the fuel control just cracked open, otherwise the flames separate from the burners under pressure. But it does confirm to me that the generator is working well on this ~100-year-old lantern.

    It should run well with mantles on.





    Cheers

    Tony

  20. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Yes! Runs well…

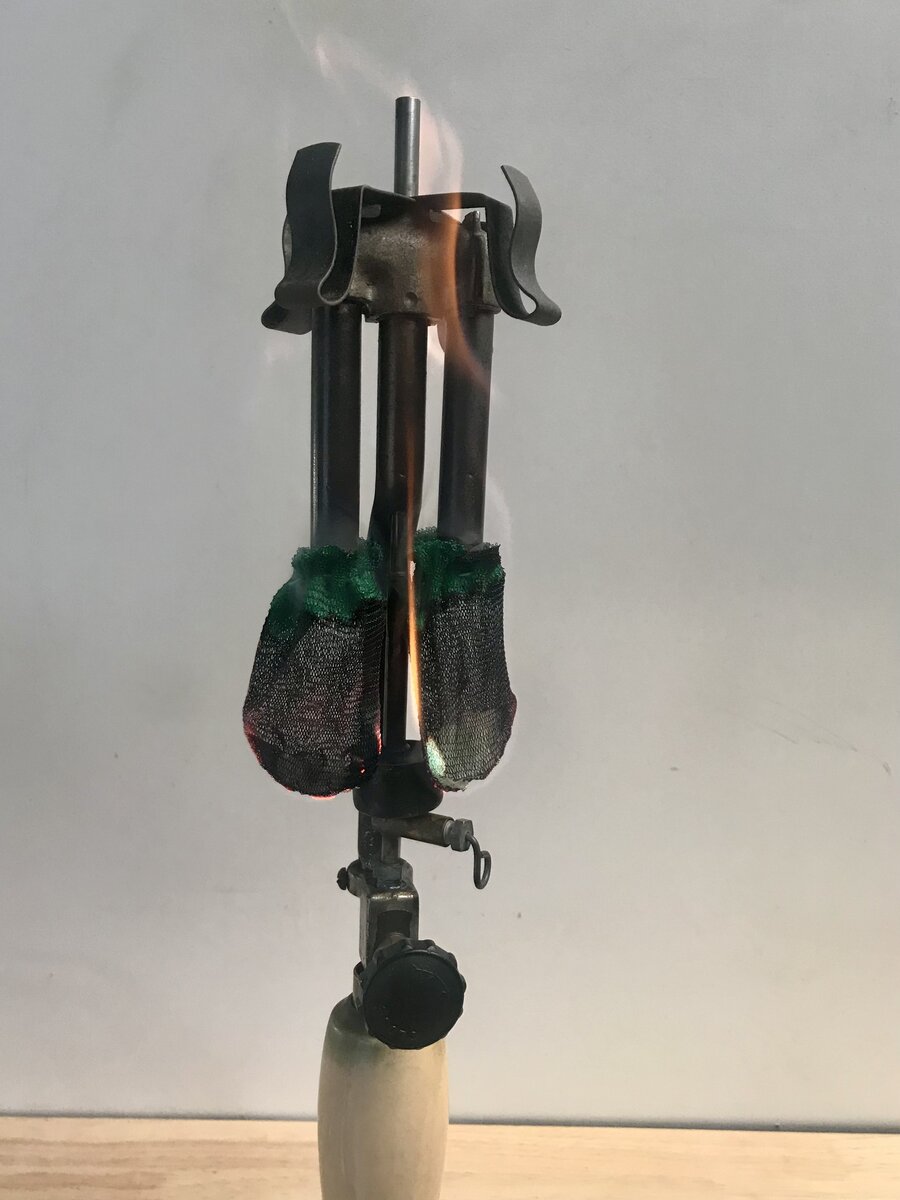

    [Using weird mantles for testing]



    Cheers

    Tony

  21. Unsal erten Turkey

    Offline
    Joined:
    Mar 29, 2022
    Messages:
    20
    Location:
    Türkiye
    Great job congratulations

  22. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Testing at 1 bar (~14psi).


    Definitely good enough for a test mantle.


    Tony

  23. AussiePete

    AussiePete United States Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    3,643
    Location:
    Toowoomba Australia
    I like this method. I’ve never tested the burners before adding mantles, I going to now.
    Thanks for sharing.
    Pete

  24. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    3,230
    Location:
    .. next to the Chester & Birkenhead Rlwy
    Good stuff and great photos .. I like the budget mantle idea too :thumbup:

  25. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @AussiePete @podbros

    On some lamps you need to test the flame under low pressure (like I just did with the one above) or the flame will separate from the burner and go out.

    If it’s very yellow at lower pressures you’ve got an air/fuel ratio problem — usually an enlarged jet or wasp nests you haven’t found yet.

    I have some very crappy mantles bought off the Bay of Evil that are useful for this kind of testing. I don’t always test with a mantle of the flame is good.


    Cheers

    Tony

  26. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

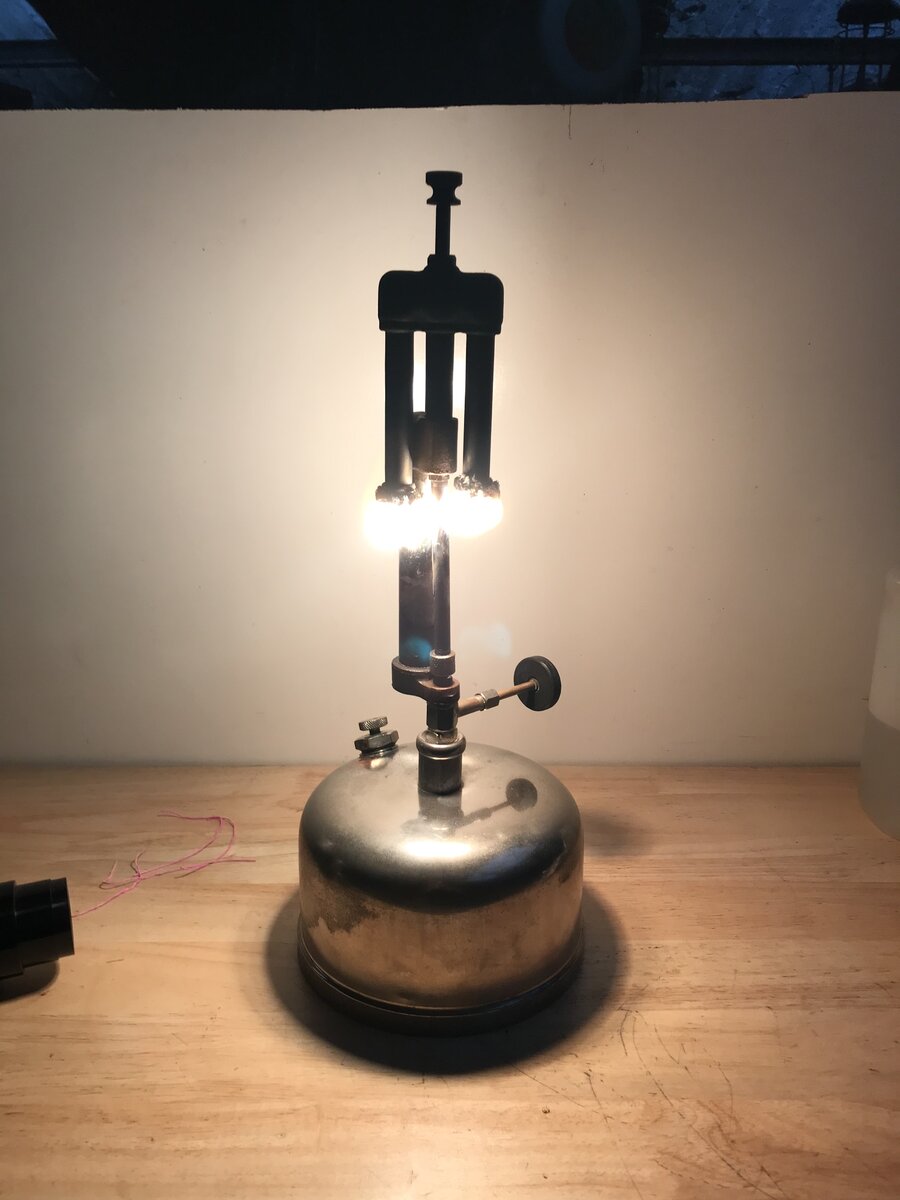

    1947 Coleman 242B


    Ready to rock and roll…

    Tony

  27. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    1928 CQ at 1bar.


    Cheers

    Tony

  28. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Correction: 1926.

    Tony

  29. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,631
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Full daylight…



    The end result was this.


    Cheers

    Tony

  30. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    15,039
    Location:
    Shetland Islands UK..
    A grand old lantern!:thumbup::thumbup:


Share This Page
