Testing burners

Discussion in 'Fettling Forum' started by Tony Press, Aug 7, 2022.

  1. Jacob van Pareen South Africa

    Offline
    Joined:
    May 9, 2023
    Messages:
    163
    Location:
    South Africa
    Coleman fuel is Nahphta!

  2. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Jacob van Pareen

    No need to get shouty...

    If you've been around here for a while, you'll have quite easily recognised that I know that Coleman fuel is naphtha.

    In my above post, I was relating that a professional in the field rated Shellite (which I confirmed for those unfamiliar with it, was pure naphtha) as a better fuel than Coleman fuel. Nothing more; nothing less.

    I haven't compared the MSDS for both fuels, but in any case the point is moot here in Australia, as Coleman fuel is very, very expensive. I understand that Coleman fuel has a rust inhibitor added to it, but I don't know whether Shellite does.


    Cheers

    Tony

  3. Jacob van Pareen South Africa

    Offline
    Joined:
    May 9, 2023
    Messages:
    163
    Location:
    South Africa
    Hi Tony,
    Do you know why that professional in the field, claims Shellite is a bétter fuel, than Coleman fuel?
    P S. One gets two types of Nahptha; light and heavy.
    Light Nahptha, being aliphatic, is what we call Benzine. I checked up on the composition of both light Nahptha and Coleman fuel; about the same!
    If your Shellite contains no aromatic hydrocarbons, it will be Light Nahptha, i.e. Like Coleman fuel. Aromatic hydrocarbons in there, and it will form more carbon in generators.
    Pity we don't have Shellite in South Africa, that I could test!

    PS Consider to blend a rust inhibitor into Shellite, then you would have a really good, cleaner burning fuel!

    Cheers,
    Jacob.

  4. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    I'll ask him in more detail next time I get a chance.

    Shellite is 100% "Light Aliphatic". I've just posted the MSDS in another thread.

    Tony

    Last edited: Aug 24, 2023
  5. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    3,615
    Location:
    Malaysia
    Hi Jacob,
    The Shellite that Tony mentioned is quite easily obtainable in Australia. It is also classified as a Petroleum naphtha. It is basically a mixture of light aliphatic(saturated) hydrocarbons with the cas no.64742-89-8, officially named as "Solvent naphtha, petroleum, light aliphatic". It might contain up to 30% n-hexane within.
    Coleman Fuel is a fuel that predominantly contains a mixture of aliphatic hydrocarbons with a cas no.68410-97-9, officially named as: "Distillates, petroleum, light distillate hydrotreating process, low boiling".
    While both are not exactly the same, they are still perfectly suitable as fuels for gasoline-type lanterns/stoves as they don't contain appreciable amounts of aromatic hydrocarbons. Both will still contain aromatics(such as benzene, toluene, etc) in trace amounts(<1% v/v or in parts per million) as unremoved contaminants.
    As info to all, there really are a lot of such liquids being named as "naphtha". Even the lighter ones are numerous, such as those included in the following file:

  6. Jacob van Pareen South Africa

    Offline
    Joined:
    May 9, 2023
    Messages:
    163
    Location:
    South Africa
    Good info.
    Thanks to everyone for helping me for a better understanding of suitable fuels for my lanterns.
    This forum is really invaluable!!

  7. Jacob van Pareen South Africa

    Offline
    Joined:
    May 9, 2023
    Messages:
    163
    Location:
    South Africa
    Thanks Tony.

  8. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

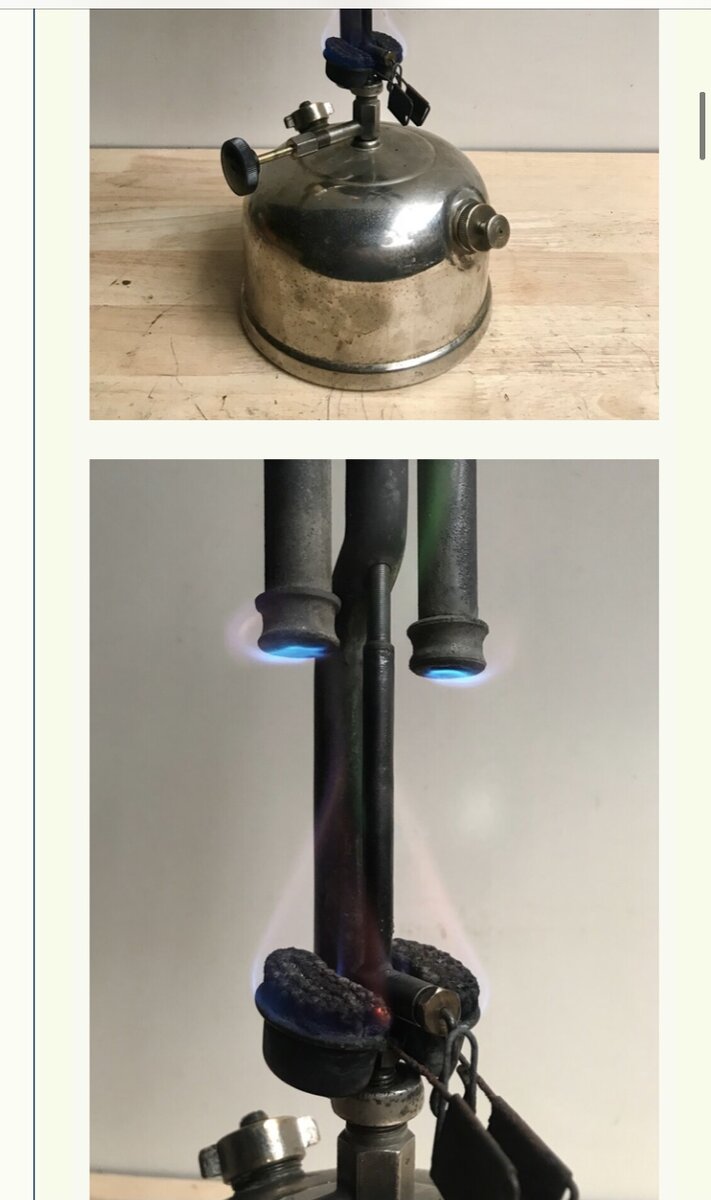

    This very old lamp gets a new life after some delicate fettling. Here I’m testing the burners after fettling, but I’ll put together a complete story in the Fettling Forum after I’ve done the rest.





    Now using my (ridiculous) throw-away test mantles:




    At least I now know that I’ve sorted the fuel, and burner systems. The rest should be easy.

    Cheers

    Tony

  9. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Testing a fettled 9/38 Canadian Coleman 228B.

    Low pressure.


    Higher pressure.



    It’s running well.

    Cheers

    Tony

  10. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Testing a Hipolito 250.







    I think this lantern will be fine!


    Edit: I’ve been looking at Neil McRae’s PLC and this lantern has some interesting features. I shall clean it up and put in the Reference Gallery.

    Cheers

    Tony

    Last edited: Oct 10, 2023
  11. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia


    This is a fine.


    Cheers

    Tony

  12. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Coleman 220D. Hard to see in the bright afternoon light, but it’s working well:



    Cheers

    Tony

  13. Remus1956

    Remus1956 United States Subscriber

    Offline
    Joined:
    Jan 17, 2024
    Messages:
    140
    Location:
    Los Angeles, Ca
    @Tony Press Hey have a stupid question but in a few of your photos you show something of a clip on type preheating cup over your generator. What is that? I am really new to pressure lamps as the only one I got going was a 159x, never seen a lot of these before.
    Thanks!

  14. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    The clip is to stop the pre-heating cup sliding up at hitting the mantles when you are moving your lamp around.

    Cheers

    Tony

  15. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    3,489
    Location:
    .. next to the Chester & Birkenhead Rlwy
  16. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Remus1956

    I may have misread. That clip @podbros shows is a Tilley pre-heater clip.

    Cheers

    Tony

  17. Remus1956

    Remus1956 United States Subscriber

    Offline
    Joined:
    Jan 17, 2024
    Messages:
    140
    Location:
    Los Angeles, Ca
    @Tony Press @podbros yeah that's it. Seems to be quite handy. So my understanding is that you can unclip it and clip it to other lanterns

  18. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Yes. It’s designed for the Tilley 169
    and 606 (plus other) vapourisers but useful elsewhere, including stoves.

    Pre-heating torch

    Tony

  19. Remus1956

    Remus1956 United States Subscriber

    Offline
    Joined:
    Jan 17, 2024
    Messages:
    140
    Location:
    Los Angeles, Ca
  20. Jacob van Pareen South Africa

    Offline
    Joined:
    May 9, 2023
    Messages:
    163
    Location:
    South Africa
    Well done, now you have the original Tilley pre-heater!

  21. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    1938 Petromax 828 ——> My first Petromax/Rapid full fettle.

    I’m not afraid of them anymore…;).





    Cheers

    Tony

  22. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    3,388
    Nice, looking at the flame of the rapid : it isn't working like it should. It should have a steel blue sturdy flame. Like a gas torch or paint stripper.
    Do you have a pre heater alcohol disc?
    The slow start method is that way easier then the tilley pre heater clip. Especially with glass in situ.

  23. Jacob van Pareen South Africa

    Offline
    Joined:
    May 9, 2023
    Messages:
    163
    Location:
    South Africa
    Tony,
    I miss the pre-heat cup?

  24. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @WimVe and @Jacob van Pareen

    I’ve pulled the rapid heater apart and cleaned it thoroughly, but I suspect it has an enlarged jet. I’ll give it one more service to see how it goes.

    This is my first Petromax Rapid service so I’m learning as I go.

    But… I actually prefer the alcohol preheat, and never use the rapid on my Geniol stoves etc. I do have a Petromax spirit dish that I was going to fit eventually.

    Stay tuned.

    Tony

  25. Nils Stephenson

    Nils Stephenson Founder Member

    Offline
    Joined:
    Sep 9, 2010
    Messages:
    3,303
    Location:
    Copenhagen, Denmark
    This generation Petromax rapid usually doesn't have a hole in the globe rest to allow filling and lighting a pre-heat dish. Makes it bit redundant to fit one.

  26. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    3,388
    With the old style "Dreh rapid", it is possible to open the valve more or less. Playing with it may also chance performance.

  27. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Nils Stephenson

    … Mais oui! ](*,)

    That means I’ll have to get that rapid working properly (or put a hole in a globe)…

    I’ll be back on the rapid pre-heater tomorrow.

    I have a whole line of Petromaxes to work on, now that I understand their basics.

    Cheers

    Tony

  28. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @WimVe

    I might give the tip of the rapid’s control shaft a good polish with fine emery paper to make sure it can be steadily opened.

    Tony

  29. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    3,615
    Location:
    Malaysia
    Perhaps the extra tiny air holes are a little clogged.
    If it doesn't turn out well enough, you always have the option of a blanking plug...:lol::p

  30. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    10,307
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @MYN

    I did clean the tiny air holes with a very fine tapered needle, but when morning breaks, I’ll go over the rapid pre-heater again.

    Cheers

    Tony
