Tilley AL 21

Discussion in 'AL11-AL12-AL21' started by Tom Pedersen, Nov 26, 2021.

  1. Tom Pedersen

    Tom Pedersen Denmark Subscriber

    Offline
    Joined:
    Nov 13, 2019
    Messages:
    185
    Location:
    Denmark
    Hello.

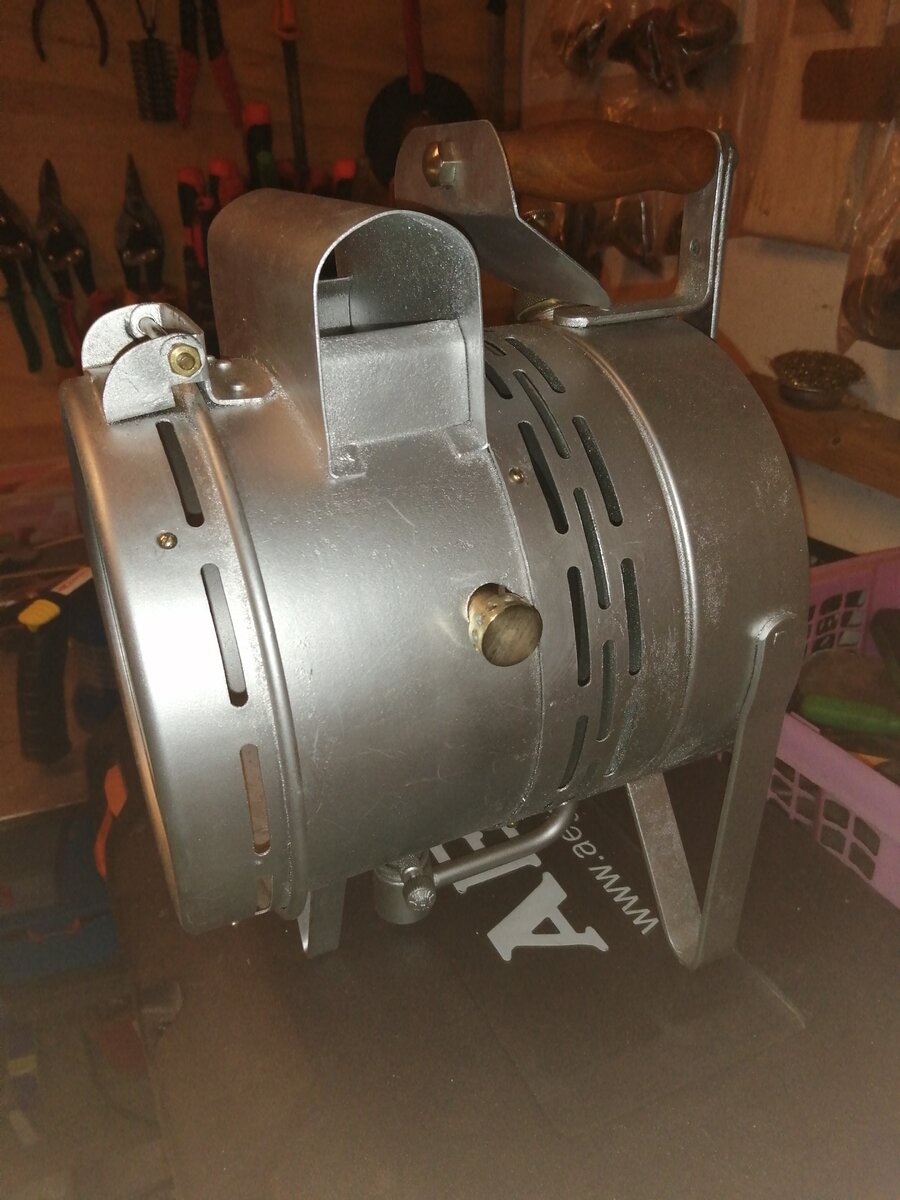

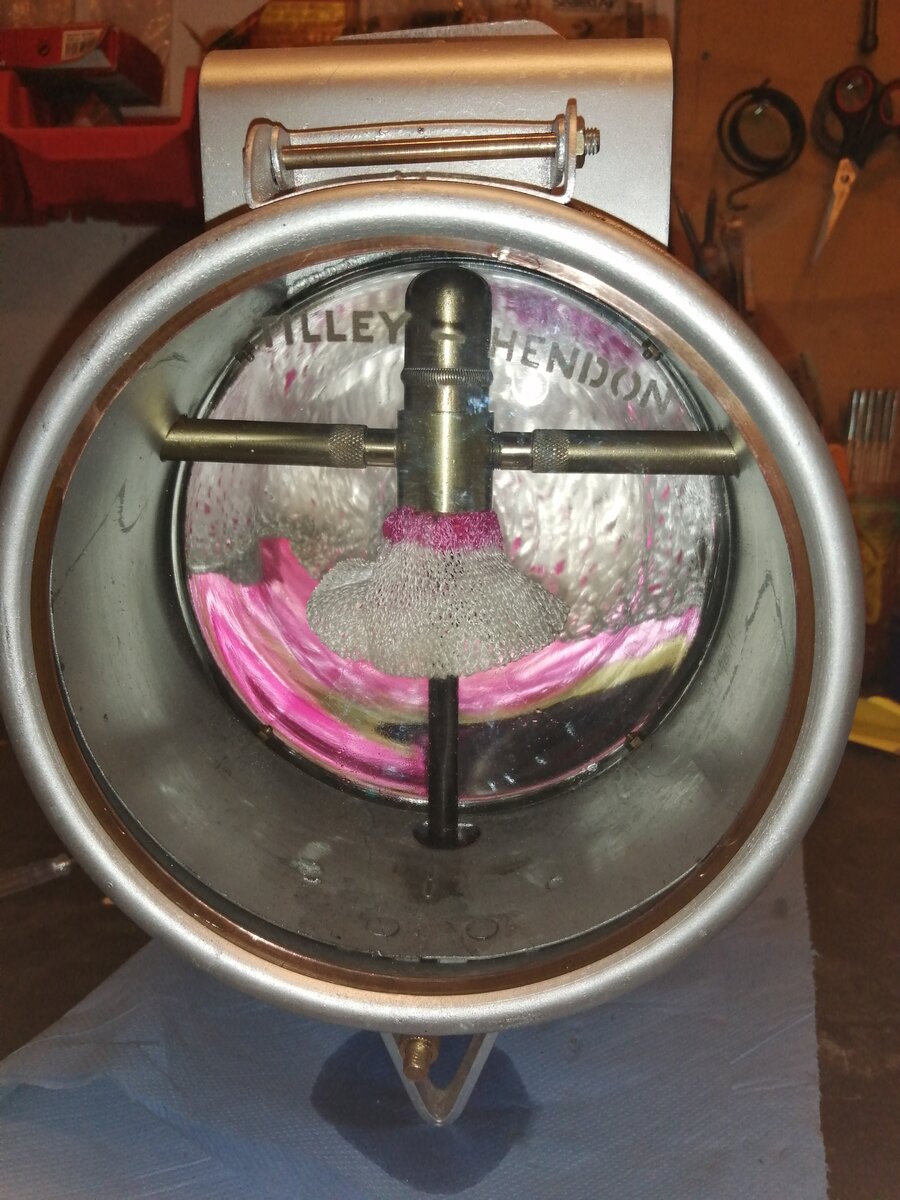

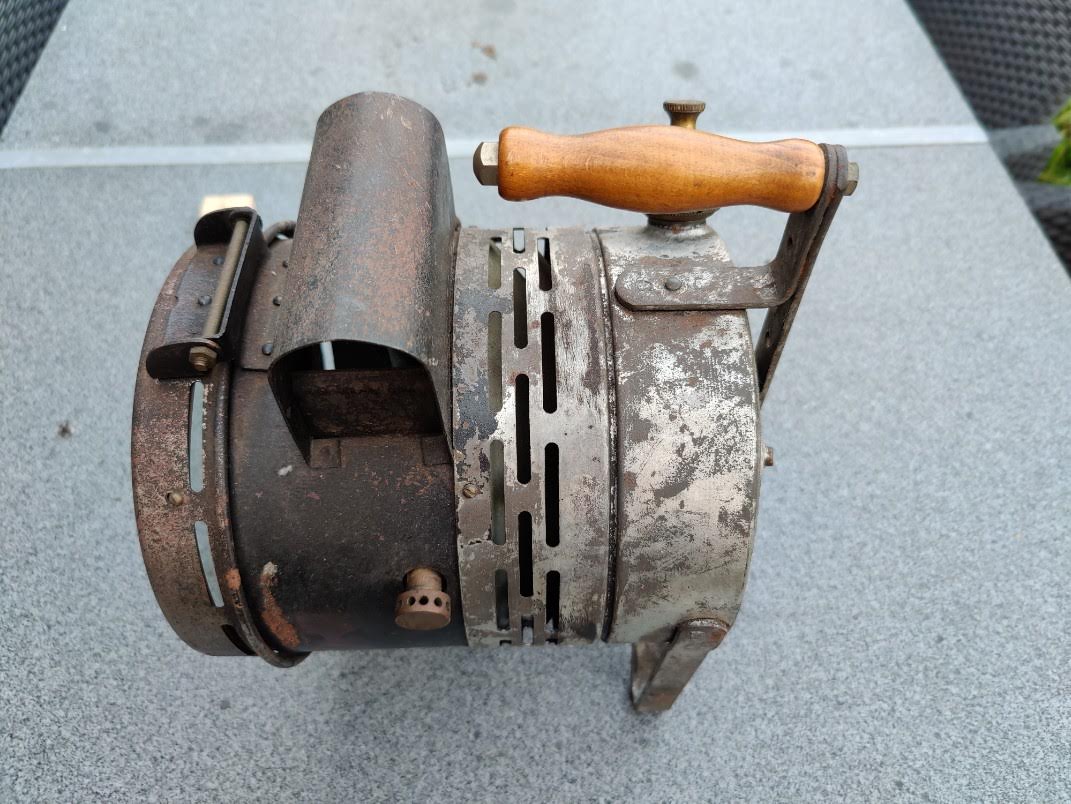

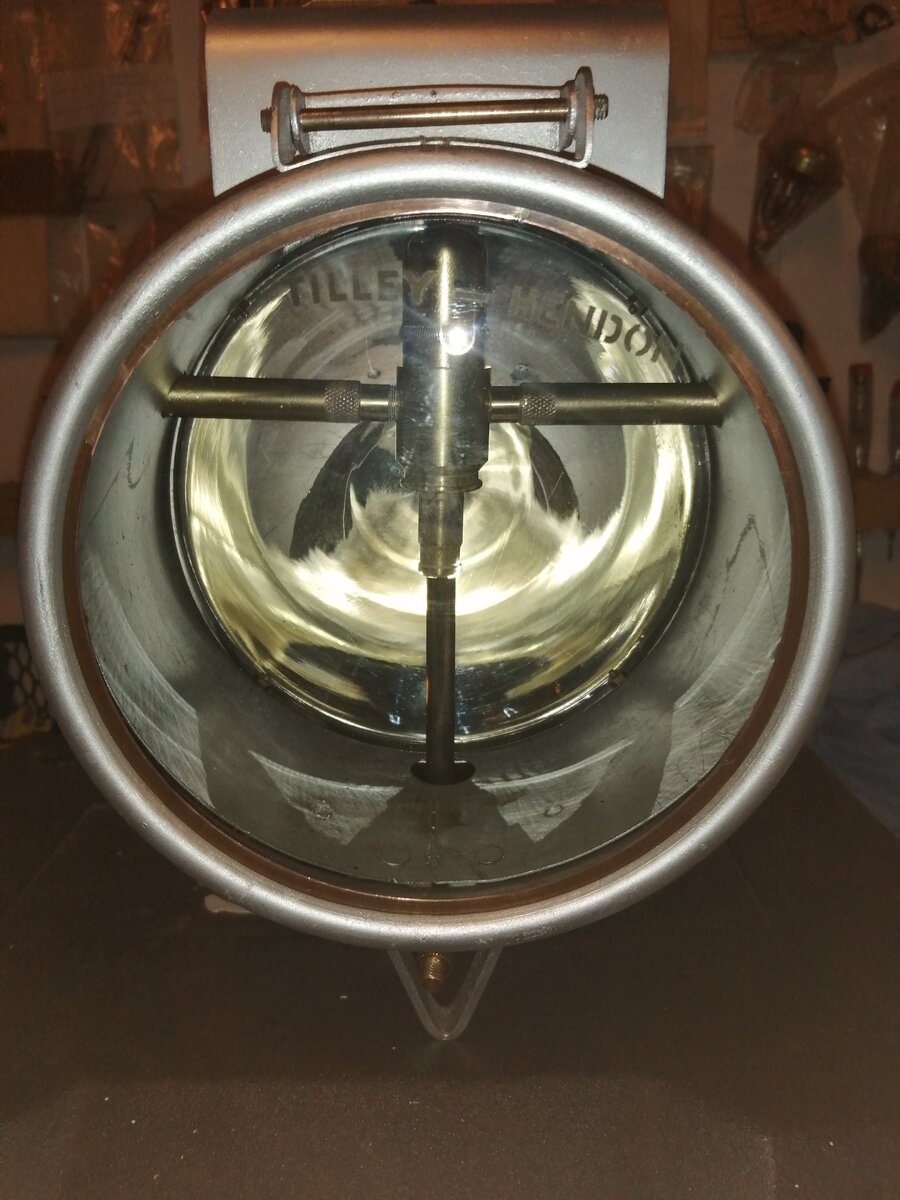

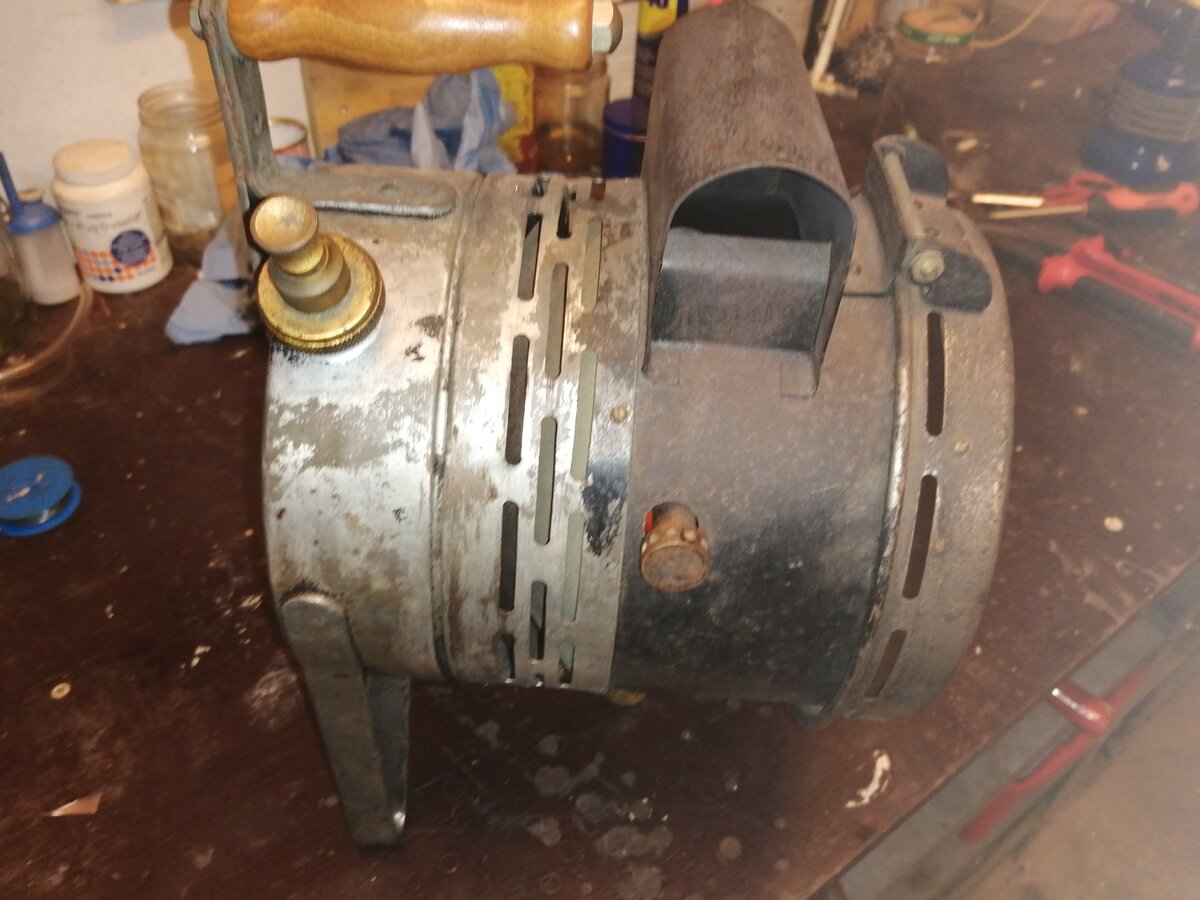

    Just fettled this AL 21
    Can see there are 3 different models.
    What model is this AL 21?
    Tom
    IMG_20211109_095429.jpg Tilley AL21.jpg IMG_20211125_205059.jpg IMG_20211125_205042.jpg IMG_20211125_205021.jpg IMG_20211126_074406.jpg

    Last edited by a moderator: Nov 27, 2021
  2. John

    John United States Subscriber

    Offline
    Joined:
    Jan 8, 2011
    Messages:
    770
    Location:
    Dallas, Texas; United States
    That’s a nice restoration. Single front foot so probably second model, the first model had shorter legs if I remember correctly.

  3. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    8,488
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Tom Pedersen

    Does the control cock have a bush into which it screws (like the Tilley X246)?

    If so, it would be the second variation of the AL21 model.

    Cheers

    Tony

  4. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    8,215
    Location:
    North-East England
    Aren't there 4 AL21 models..? :-k

  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    8,488
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Hate to be pedantic, but there’s one Model Al 21 and a number of variations or types…

    @Mackburner lists 4 types plus the AL21 “Rocket” in the Pressure Lamp Catalogue.

    Cheers

    Tony

  6. Tom Pedersen

    Tom Pedersen Denmark Subscriber

    Offline
    Joined:
    Nov 13, 2019
    Messages:
    185
    Location:
    Denmark
  7. Buggerlugs

    Buggerlugs Australia Subscriber

    Offline
    Joined:
    Apr 4, 2020
    Messages:
    1,770
    Location:
    Australia Melbourne
    Very nice well done.

  8. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,619
    Location:
    Hertfordshire
    Yes I have listed 4 major variations to AL21 which are listed in the PLC. :-

    AL21 (1st) As AL11; 9” x 9” x 11.5”. Three legs. Brass fittings. Fixed jet cleaner control. No valve. Separate pressure release screw. Machined brass air buttons with 12 holes drilled around circumference. Black paint. Replaced AL11 about 1940-1941.

    AL21 (2nd) As 1st AL21 but with control cock and bush as fitted to X246 lanterns. No pressure release. Probably 1946 - mid 1950s

    AL21 (3rd) As 2nd AL21 above, but with four legs. All black Painted up to about 1959. Later examples silver paint. Mid 1950s - 1961.

    AL21 (4th) As 3rd AL21, but alloy fittings as fitted to X246A. Air buttons plated brass with knurled rim and metal gauze filters. Silver/grey paint. This model was used by the German army (Bundeswehr). 1961-1967.

    ::Neil::

  9. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    2,190
    Location:
    Scottish Highlands
    Looking good, well fettled!

  10. Walkop Australia

    Offline
    Joined:
    Aug 28, 2020
    Messages:
    629
    Location:
    Bathurst, Australia
    A lovely restoration, looks like new.

  11. Alenstein Poland

    Offline
    Joined:
    Oct 3, 2019
    Messages:
    179
    Location:
    Ełk
    Nice restoration.
