Tilley BR 49

Discussion in 'BR49-BR49A-BR49B' started by Stuart Taylor, Feb 9, 2016.

  1. Stuart Taylor

    Offline
    Joined:
    Apr 19, 2015
    Messages:
    207
    Location:
    Fife, Scotland
    BR 49


    Last edited by a moderator: Mar 31, 2017
  2. Stuart Taylor

    Offline
    Joined:
    Apr 19, 2015
    Messages:
    207
    Location:
    Fife, Scotland

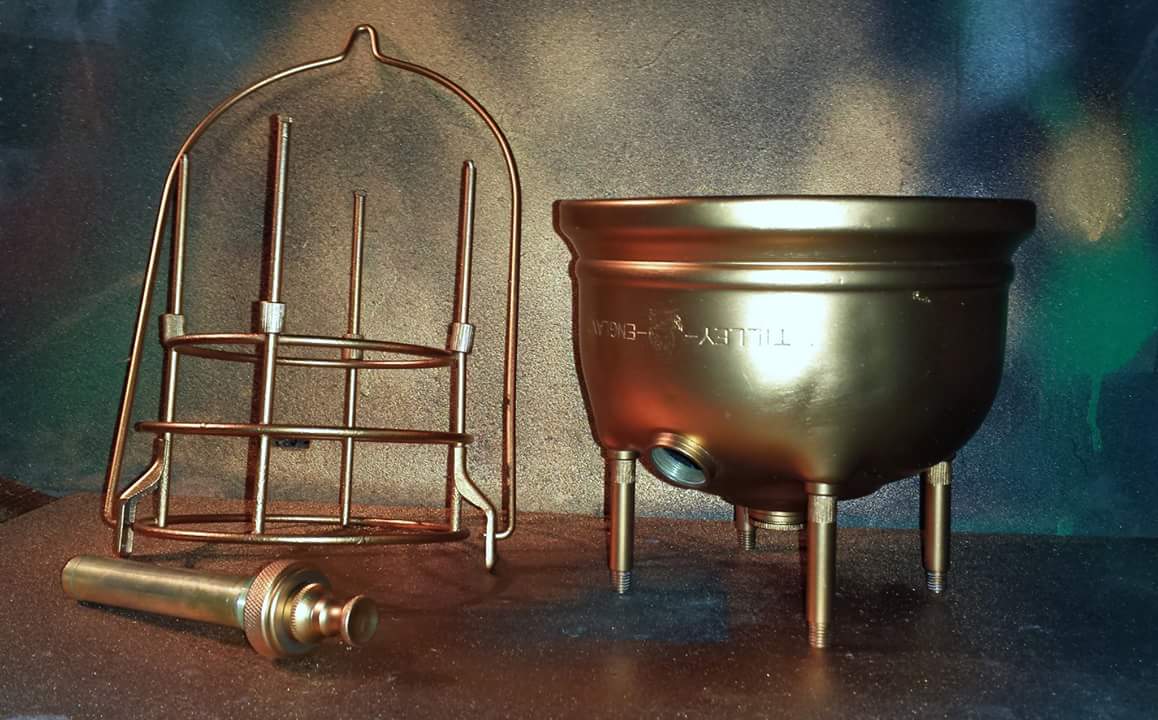

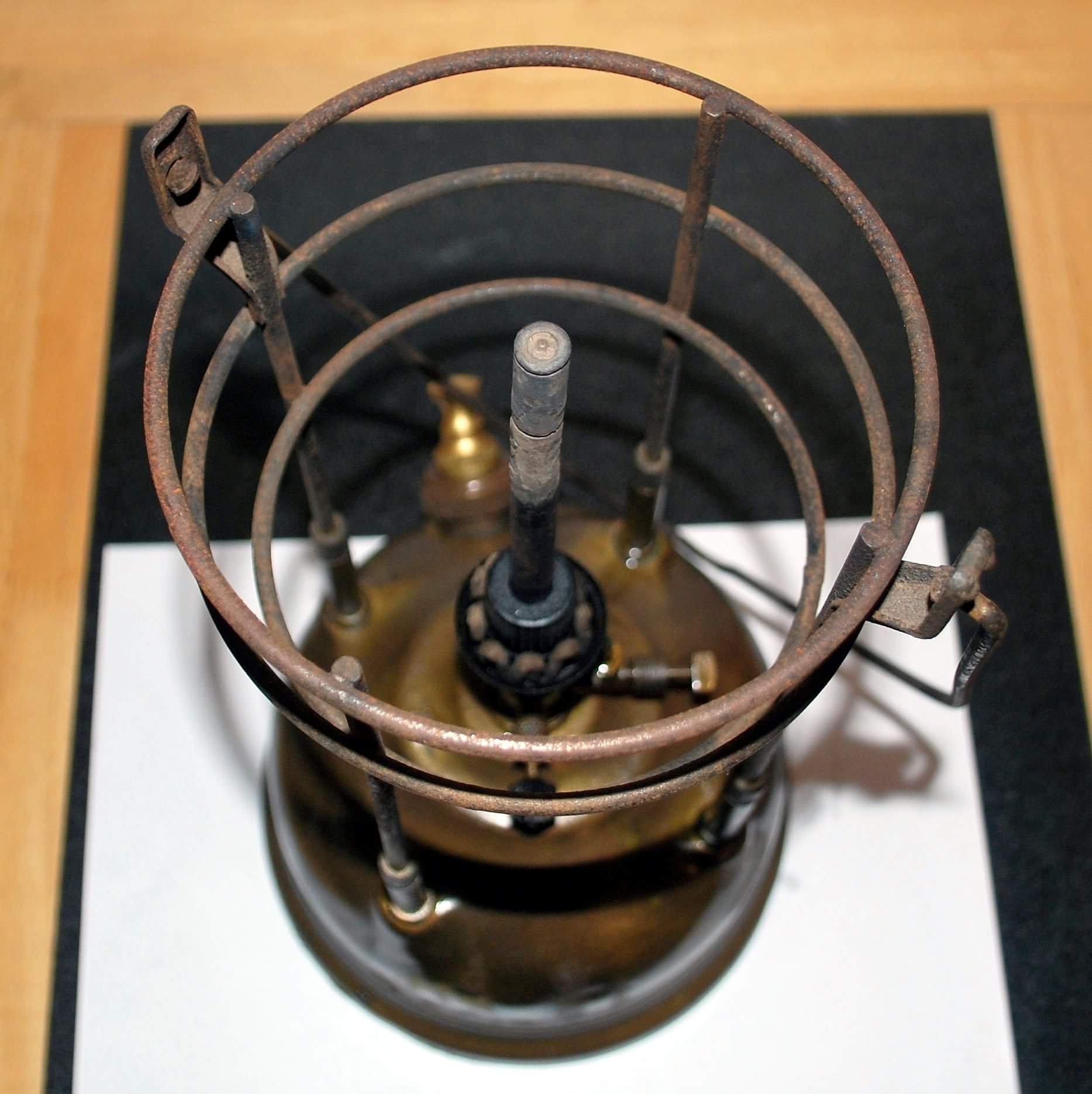

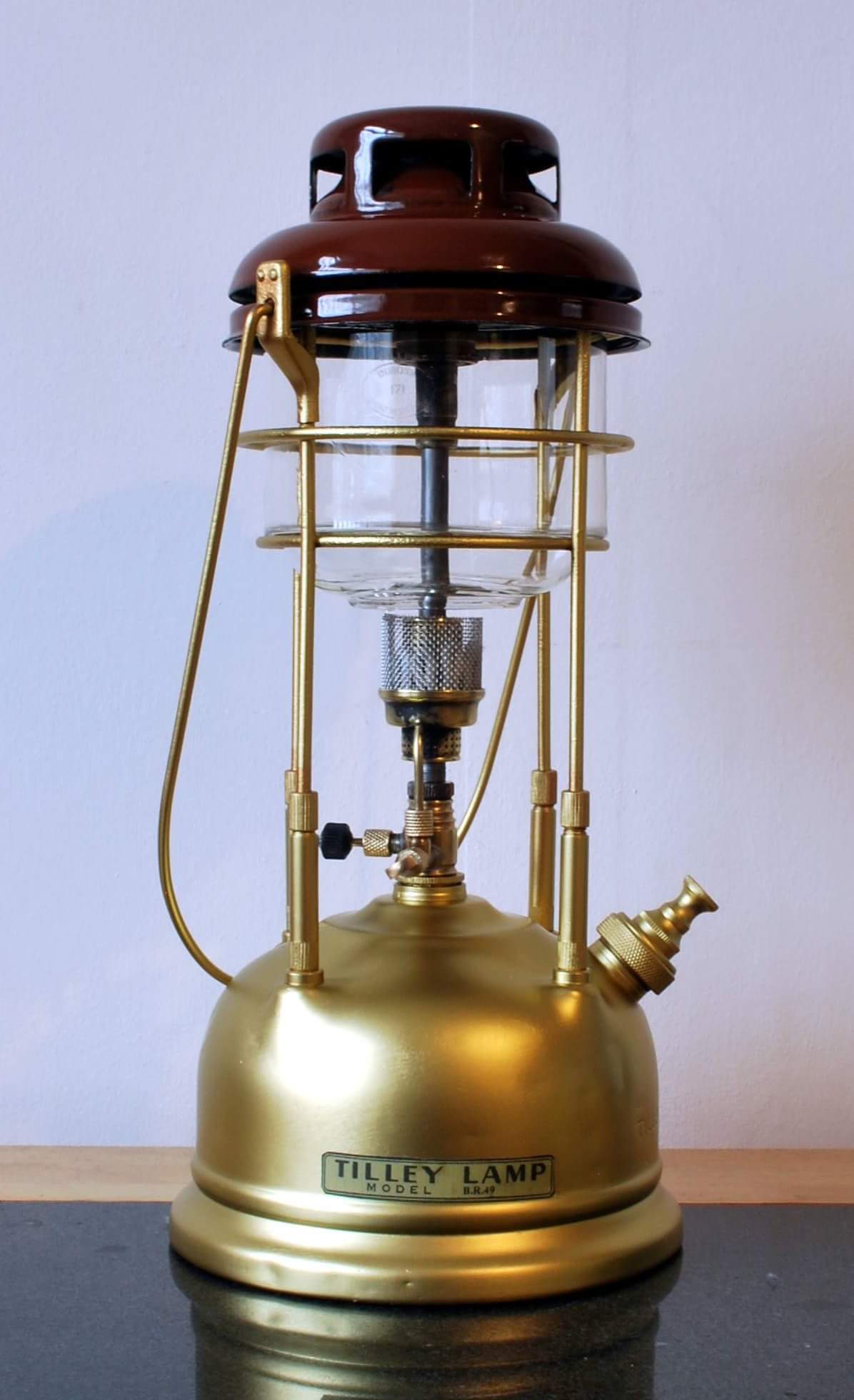

    Managed to get a BR 49 from eBay. Just needed a clean up and respray. Missing the wick cover as is so often the case. Made a stop gap from brass mesh as the lamp is only for display and will not be used. Hood was in good condition for a change. Fitted a new vaporiser purchased from Tilley just in case I change my mind about using it. Though I would still pre heat with me the.

    1455037740-FB_IMG_1455036079972.jpg 1455037754-FB_IMG_1455036622910.jpg 1455037794-FB_IMG_1455036650320.jpg 1455037875-FB_IMG_1455036674180.jpg 1455037920-FB_IMG_1455035956025.jpg 1455037940-FB_IMG_1455035940100.jpg 1455038059-FB_IMG_1455035970282.jpg 1455038073-FB_IMG_1455035983460.jpg 1455038091-FB_IMG_1455035914276.jpg 1455038111-FB_IMG_1455036726921.jpg 1455038129-FB_IMG_1454857274555.jpg


    Attached Files:

  3. longilily

    longilily United Kingdom Subscriber

    Offline
    Joined:
    Jan 25, 2011
    Messages:
    1,450
    Location:
    Dungeness
    looks like Stainless mesh rather than Brass mesh :-k guess it's the camera trickery ](*,)

    Nice job though Stuart :thumbup:

  4. Carlsson

    Carlsson Sweden Admin/Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    3,555
    I merged the two topics since the second post you made in the fettling section actually was much better suited for the reference gallery with all the detail pics.
    I won't reduce the size on all these pictures, but please do reduce to a more practical size before posting in the future thanks!
    2015 pixels wide is way too large to be practical in a forum.
    Earlier we said 640, but people's screen sizes are generally larger now so I'd say 800 often is OK too.

  5. longilily

    longilily United Kingdom Subscriber

    Offline
    Joined:
    Jan 25, 2011
    Messages:
    1,450
    Location:
    Dungeness
    Is that why the text is so mega small on my iPad, that I have to enlarge the text to read it Christer ?

  6. Carlsson

    Carlsson Sweden Admin/Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    3,555
    Ray, if the picture fit to the screen when looking at your iPad, it might be the case that the text is down scaled instead.
    I get that phenomenon when looking on my tablet.

    When watching on a real computer, the large images stay in their original size and force you to scroll sideways both to be able to read all text, but also if you want to see everything in the pics.

  7. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,040
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Christer/Stuart

    There appears to be some text missing from the top of post #63676

    Cheers

    Tony

  8. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    1,937
    Very interesting lamp and very well restored! Is the burner assembly different to the X246 ?

  9. Stuart Taylor

    Offline
    Joined:
    Apr 19, 2015
    Messages:
    207
    Location:
    Fife, Scotland

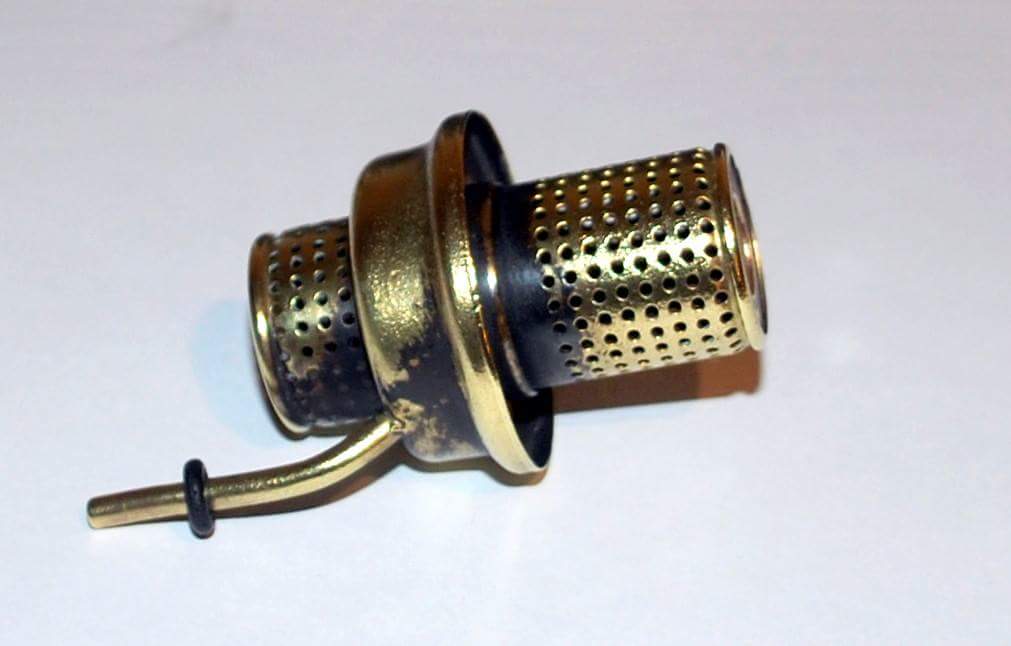

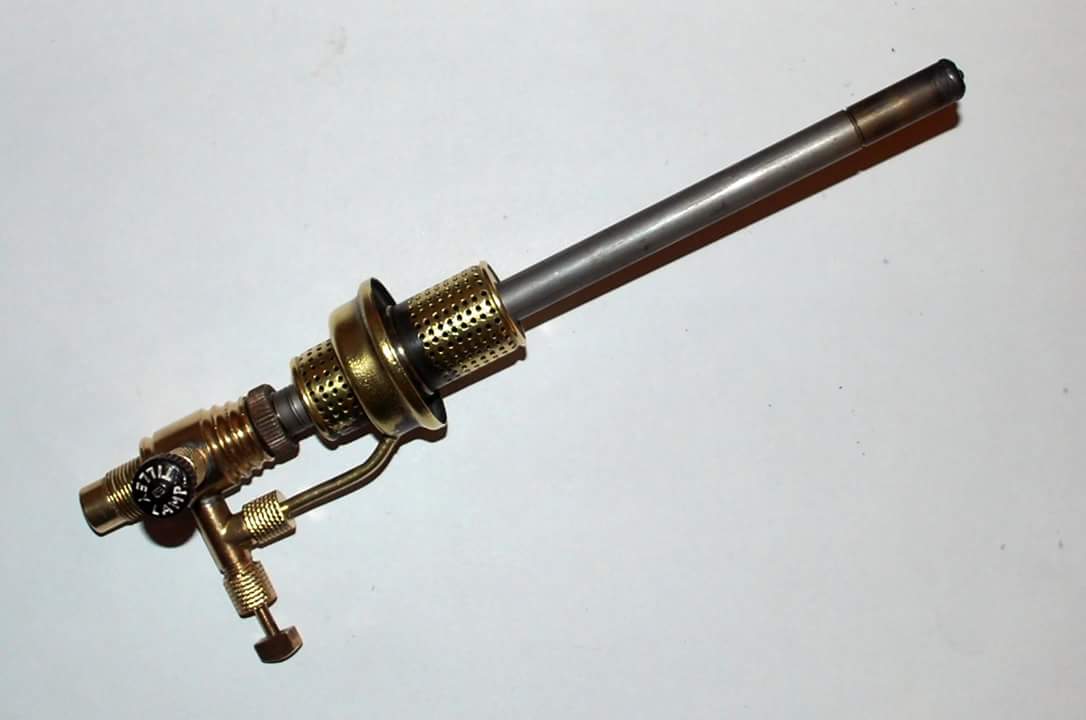

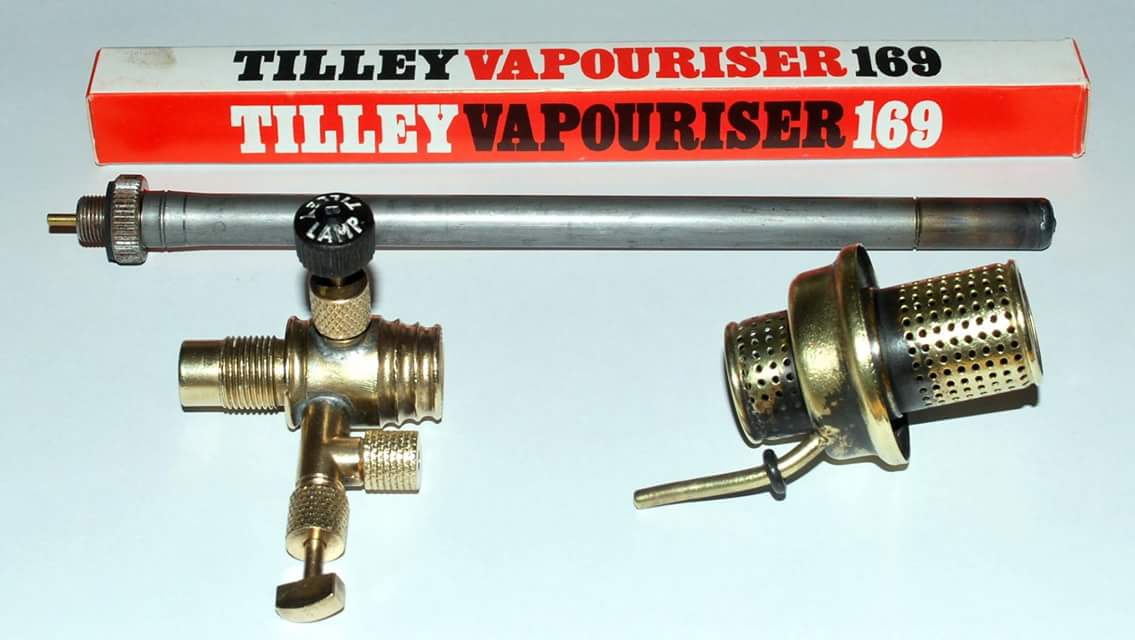

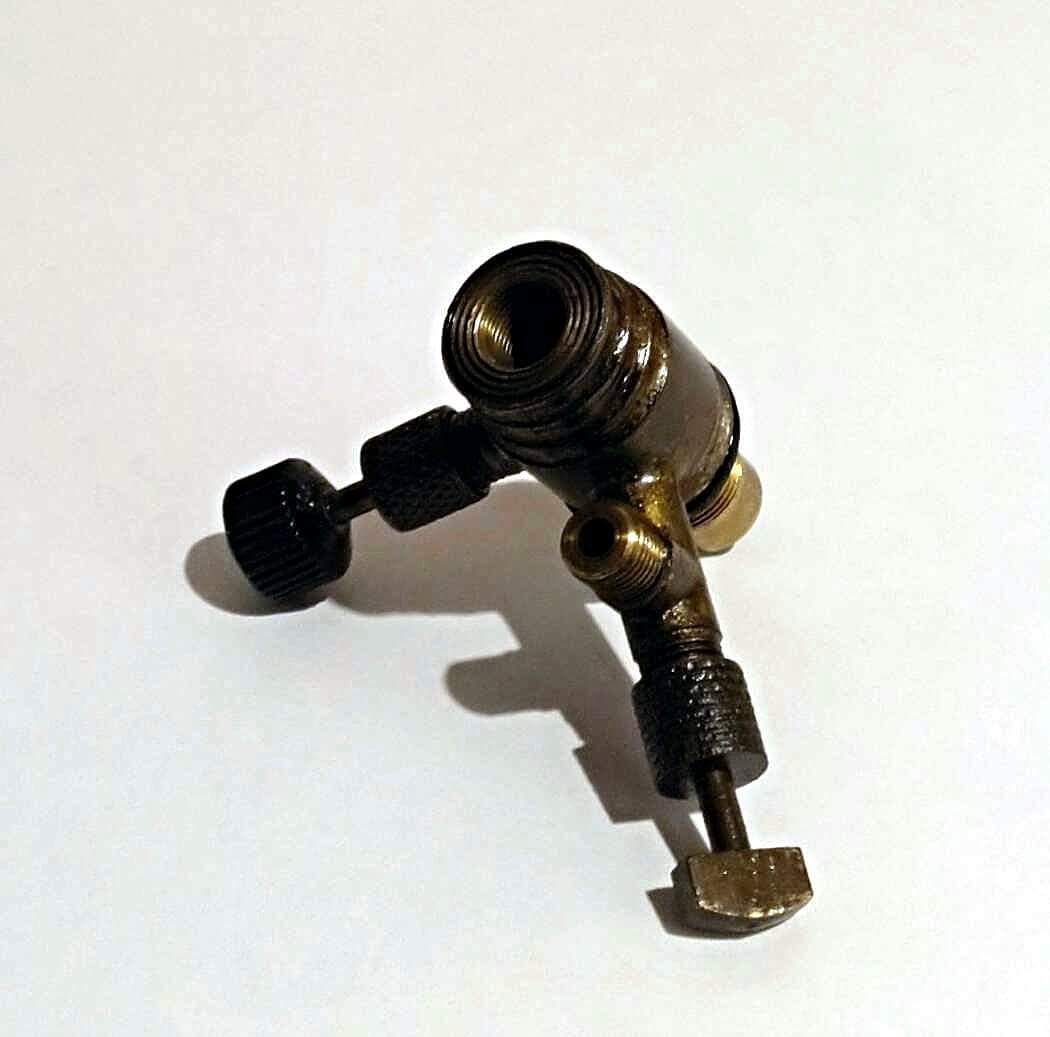

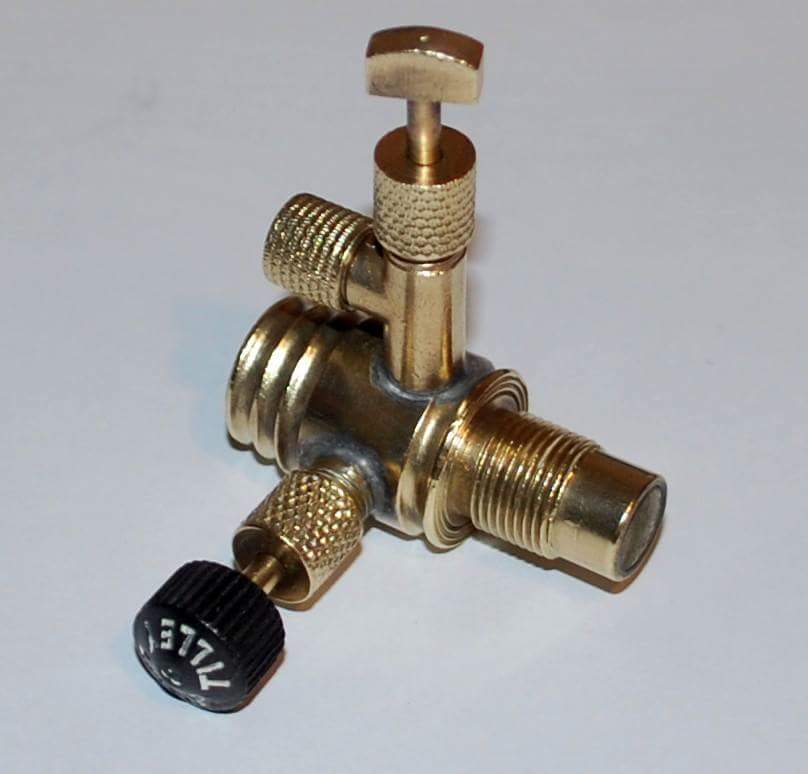

    The burner is the same as the usual X246. The control cock has an extra valve to allow Paraffin to the small tray at the base of the vaporiser. The tray contains a wick which provides pre heating without the need for me the.The lamp uses the longer 169 vaporiser.

  10. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    7,159
    Location:
    North-East England
    :-k I take it "me the" is some sort of metaphor for 'meths' - is that correct?

  11. Stuart Taylor

    Offline
    Joined:
    Apr 19, 2015
    Messages:
    207
    Location:
    Fife, Scotland
    No David, its some sort of crap spelling.

  12. Buggerlugs

    Buggerlugs Australia Subscriber

    Offline
    Joined:
    Apr 4, 2020
    Messages:
    462
    Location:
    Australia Melbourne
    Hello that looks fantastic can you tell me what type of paint you used on the hood and base thanks

  13. paparazi

    Offline
    Joined:
    Oct 23, 2016
    Messages:
    365
    Location:
    Nottingham UK
    There really isn't much you can do with the hood unless you have it re-enameled, which I guess is possible but I'm guessing expensive, I'm not the original poster but I did do a similar restoration recently and I used Ford Arizona Gold by Hycote (fairly common brand)

    Martin

  14. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,574
    Location:
    Toowoomba Australia
    Very nice @Stuart Taylor well done on the restoration.
    Now the search for a wick cover. One will turn up, it just a matter of time. Good luck on the search.
    Cheers
    Pete

  15. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,040
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Buggerlugs

    It’s hard to get an exact colour to the Tilley gold, but in Australia “VHT” brand Universal Gold is pretty close.

    Tony

  16. Buggerlugs

    Buggerlugs Australia Subscriber

    Offline
    Joined:
    Apr 4, 2020
    Messages:
    462
    Location:
    Australia Melbourne
    Thank you great to know gives me options

  17. Buggerlugs

    Buggerlugs Australia Subscriber

    Offline
    Joined:
    Apr 4, 2020
    Messages:
    462
    Location:
    Australia Melbourne
    And did you paint the hood? if so what colour is it? please

  18. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,376
    Location:
    Malaysia
    Nice work. The pictures are very detailed.

  19. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,040
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Buggerlugs

    There is no paint that will last on a Tilley hood if you use the lantern. I've tried many...

    The hoods were enamelled. These days I use stove black on the rusty bits.


    Cheers

    Tony
