Tilley dipped in...?

Discussion in 'Fettling Forum' started by Tony Press, Mar 12, 2020.

  1. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,300
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    I’m working on an old rusty Tilley AL21. Between the rust and the failing paintwork, I decided to strip all the original paint off.

    I’d mentioned to a colleague here that the paint looked it had been applied with a brickie’s trowel, but on removing the paint I discovered that the steel fuel tank (outside only) appears to have been dipped in molten solder or lead for rust protection.

    Are any members here familiar with Tilley doing this? And is it lead or solder?




    Cheers

    Tony

  2. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,033
    Location:
    Toowoomba Australia
    Maybe it’s been dipped into zinc. Just a thought.
    Cheers
    Pete

  3. Graham P

    Graham P Australia Subscriber

    Offline
    Joined:
    Mar 3, 2012
    Messages:
    818
    Location:
    Albury area NSW AUstralia
    Try a scraping a sample in acid (lots of reaction would indicate zinc)

  4. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    852
    Location:
    Melbourne, Australia
    These steel EX100s were dipped but they don't look like that with paint stripped.


  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,300
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    The reason I thought it might be either lead or solder is that it’s reasonably soft, in parts lumpy, an goes dark easily when doing work on the tank.

    @AussiePete

    How would nickel react to a drop of HCl?

    Tony

  6. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,220
    Location:
    Malaysia
    If its soft, its probably tin, lead or solder.
    I've known of older metalware being dipped in tin but seldom in lead or solder.

  7. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,620
    Location:
    Somersby, New South Wales, Australia
    From what you have said, my guess would be solder.
    We use to dip copper bars at work. They came out lumpy until you wiped them smooth with a rag.

  8. James K

    James K Subscriber

    Offline
    Joined:
    Nov 10, 2017
    Messages:
    205
    I have a steel tank pl53 that was really rough on the outside. Under the paint was some sort of solder coating.
    I filled off the high spots and gave it a going over with sandpaper, but it still looks like a really bad paint job but at least it wont rust.

  9. Graham P

    Graham P Australia Subscriber

    Offline
    Joined:
    Mar 3, 2012
    Messages:
    818
    Location:
    Albury area NSW AUstralia
    I would think it has been Hot Dip Galvanized the process can now produce a much better finish than those I have seen from years ago.

  10. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,300
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

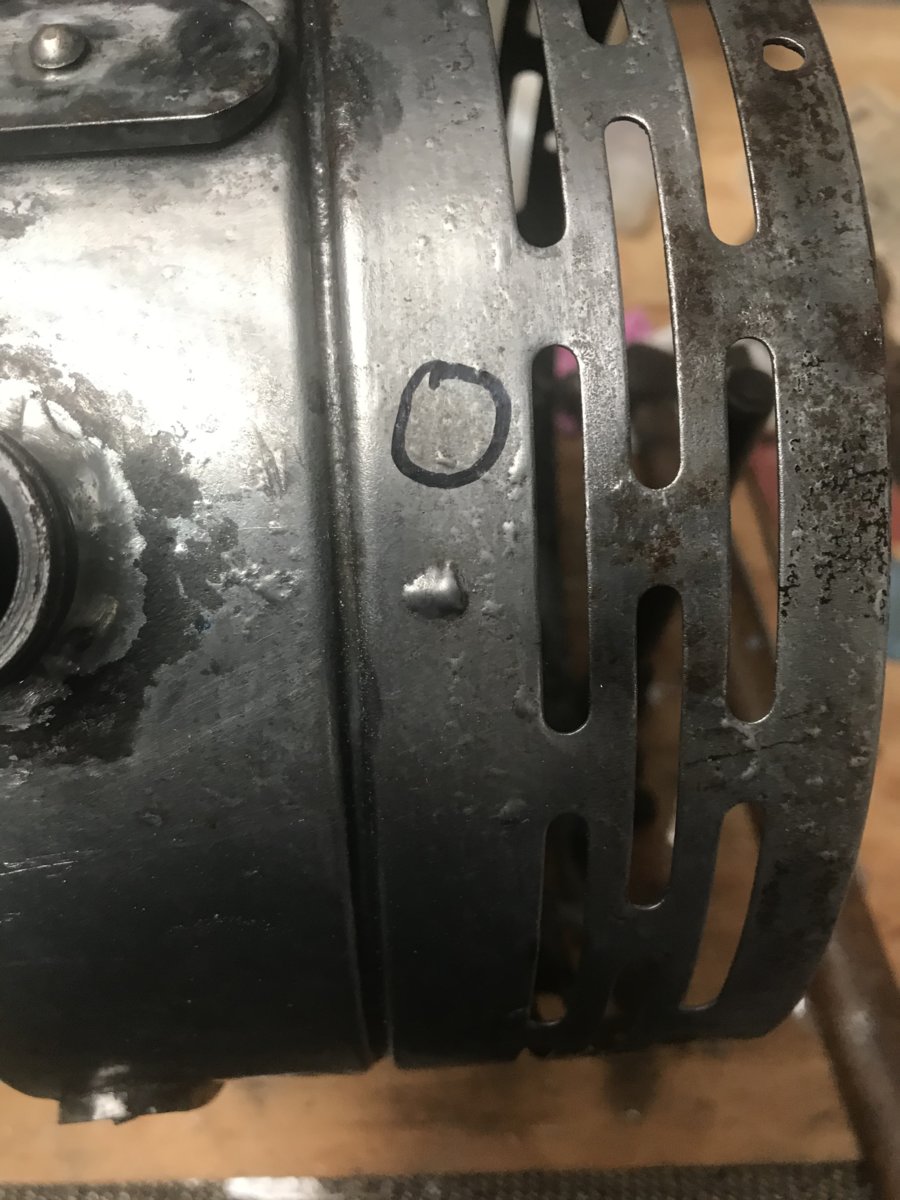

    It doesn’t react to undiluted HCl...

    HCl added to circle.

    Cheers

    Tony

  11. MYN

    Offline
    Joined:
    Feb 28, 2018
    Messages:
    1,220
    Location:
    Malaysia
    It might if the HCl is diluted, not too concentrated. Lead and some its alloys have such characteristics.

  12. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    1,736
    If you want it to look better do what @ROBBO55 writes, heat it up and wipe it with a non synthetic rag.

  13. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,300
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    I’ll leave it with the drips. It’s the way it came.

    Tony

  14. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    1,533
    Location:
    USA
    Coleman made a model "GS" I think in the 1900's to I guess the very early 1920's (?). The lantern had an ARMCO steel tank/font. It was done to reduce corrosion. It gave the appearance of a rough solder job when you look at it.
    Will your tank draw a magnet?

  15. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,300
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    My tank draws a magnet. The coating is soft like lead or solder. It does not react to HCl (unlike galvanised steel)...

    Tony

  16. Zigfire

    Zigfire Australia Subscriber

    Offline
    Joined:
    Mar 20, 2020
    Messages:
    14
    Location:
    Sydney, Australia
    Judging by the look I woukd say it has been tinned.
