Tilley EX93 lamp

Discussion in 'EX4-EX100-EX93' started by Mendoza603, Jan 10, 2022.

  1. Mendoza603

    Mendoza603 United States Subscriber

    Offline
    Joined:
    Jun 6, 2015
    Messages:
    73
    Location:
    USA
    Hi friends

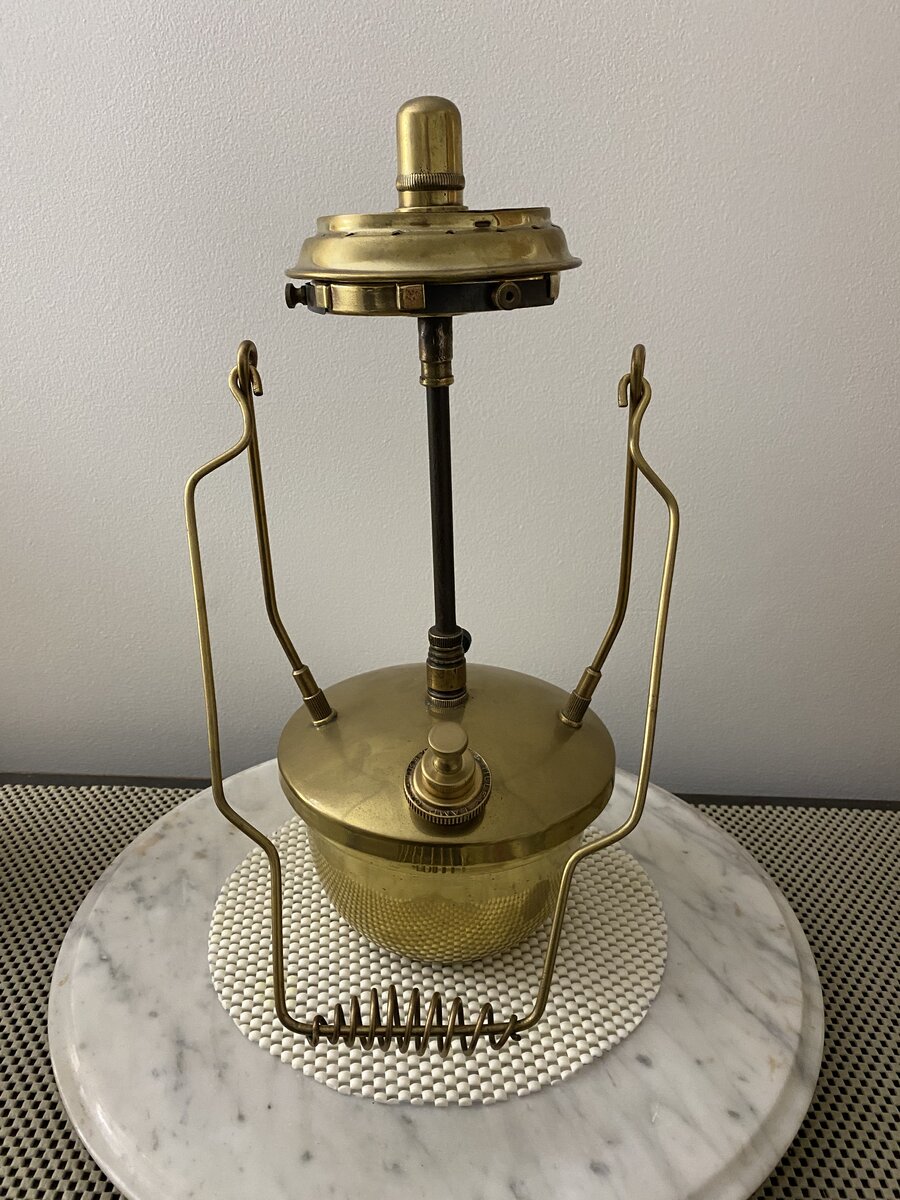

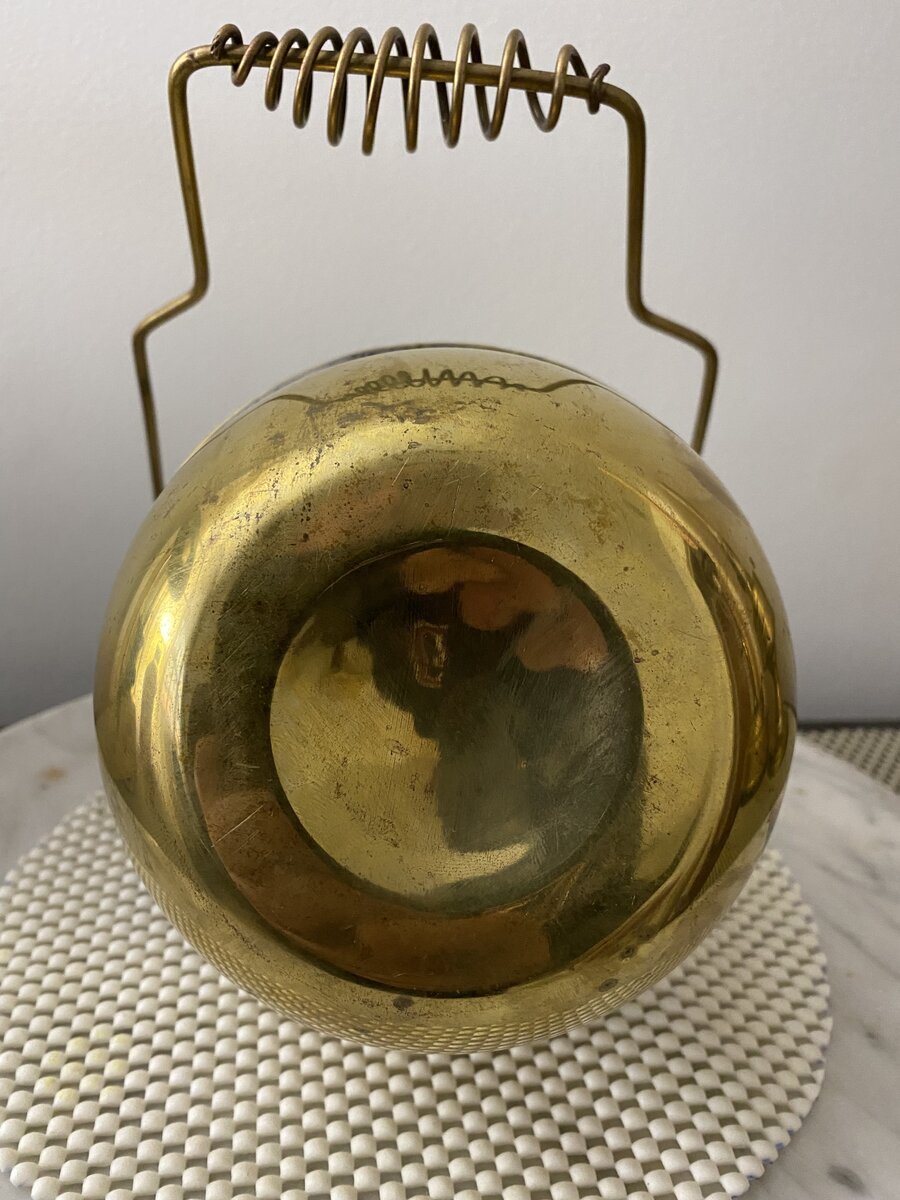

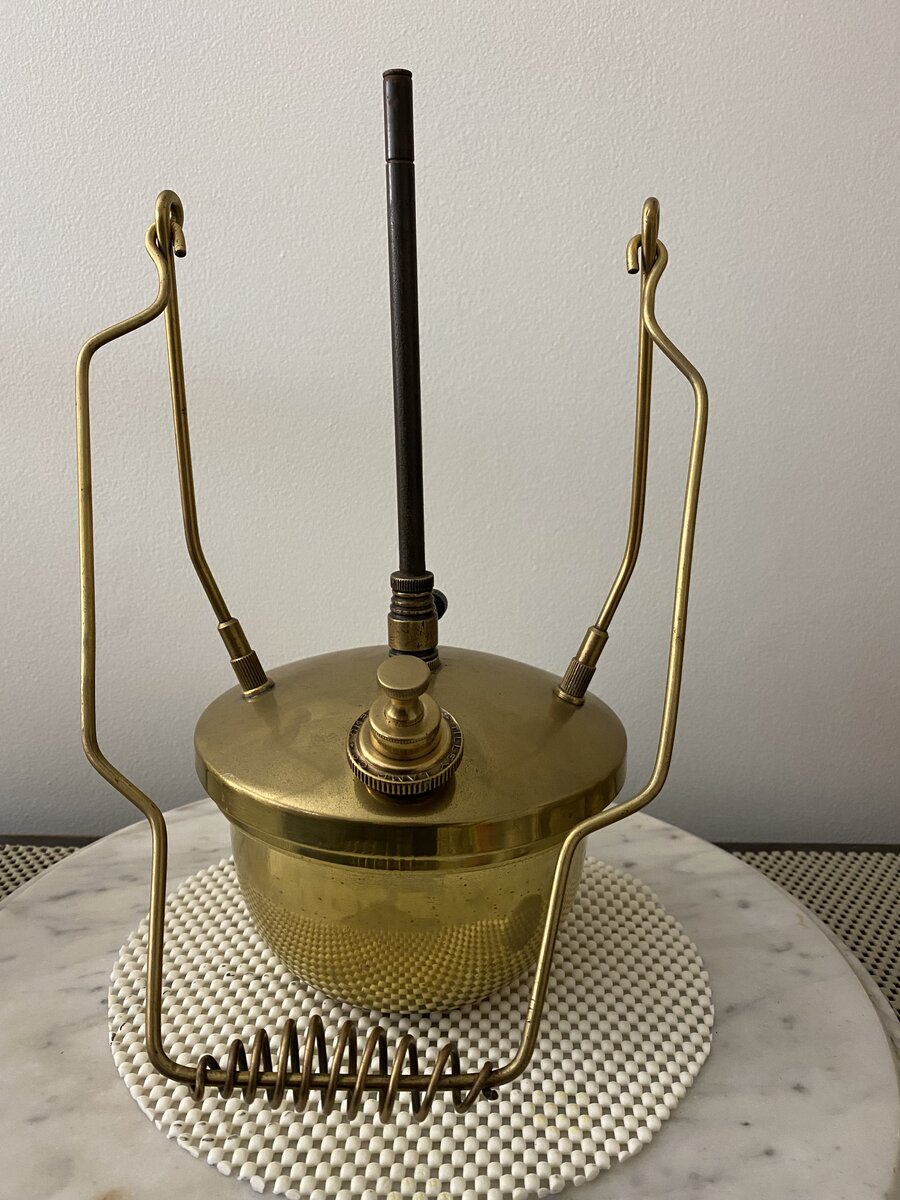

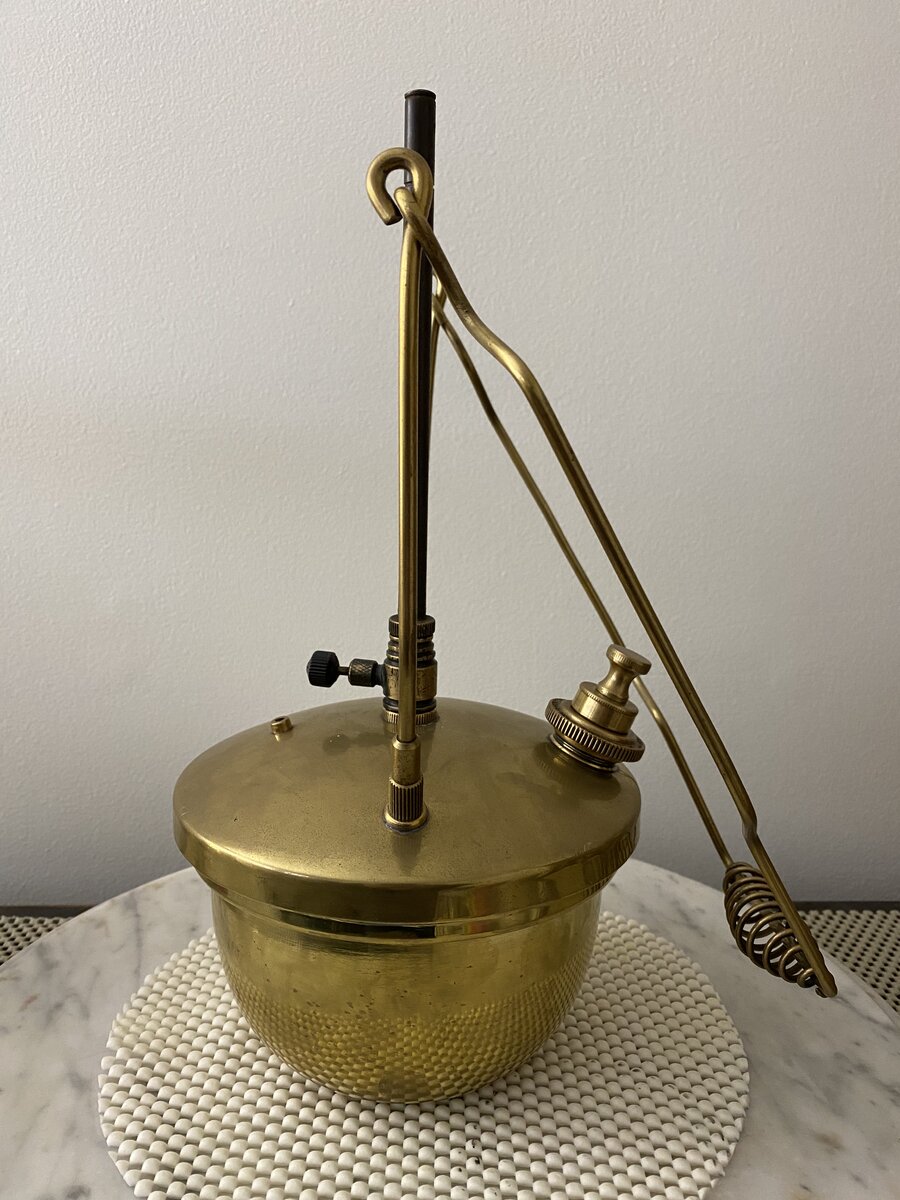

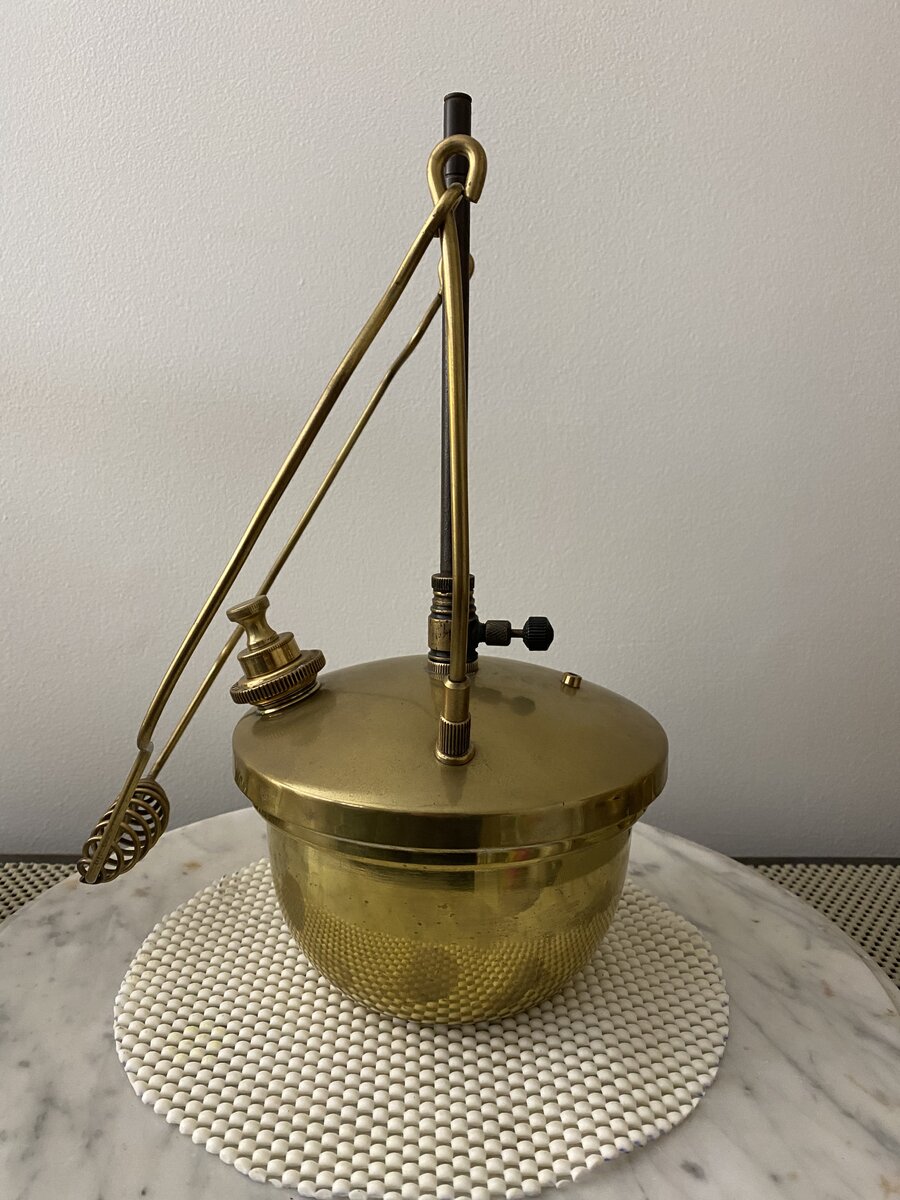

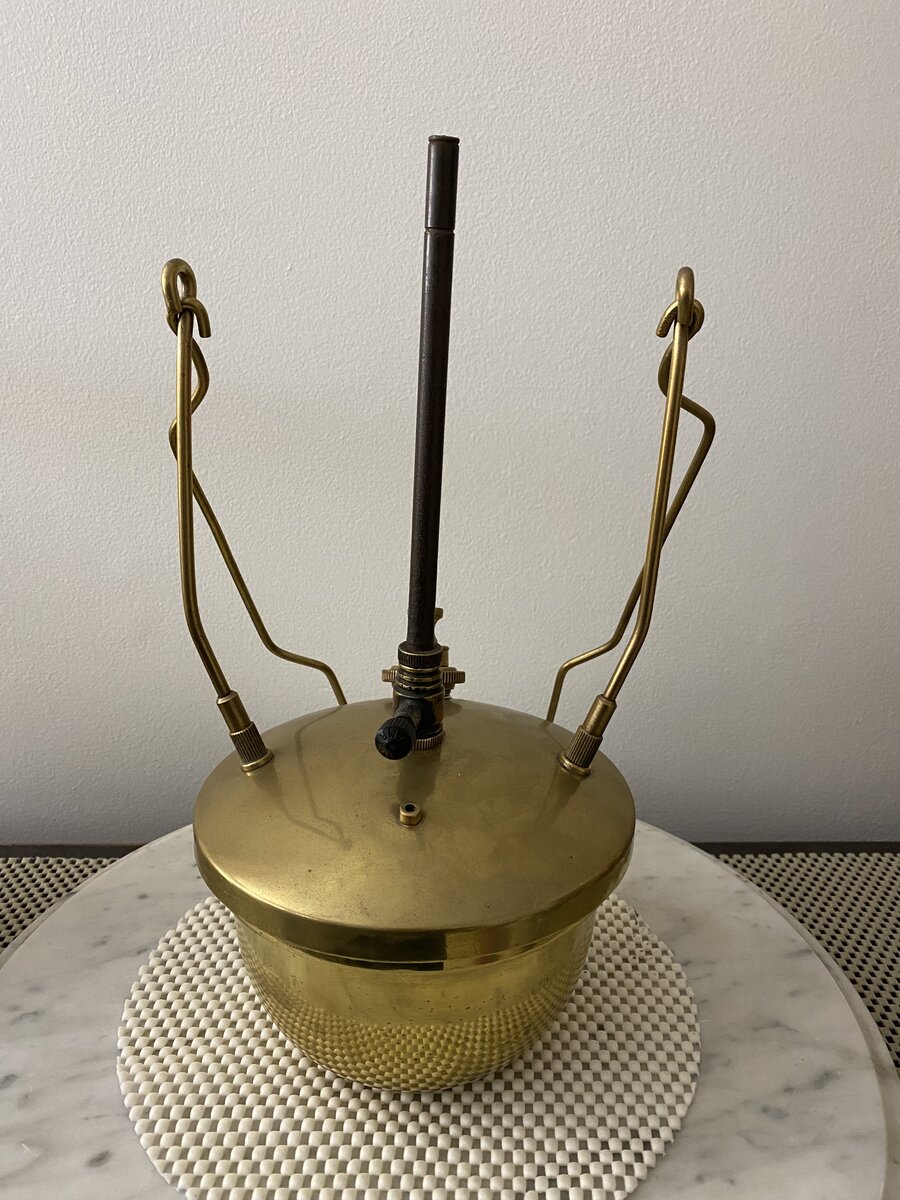

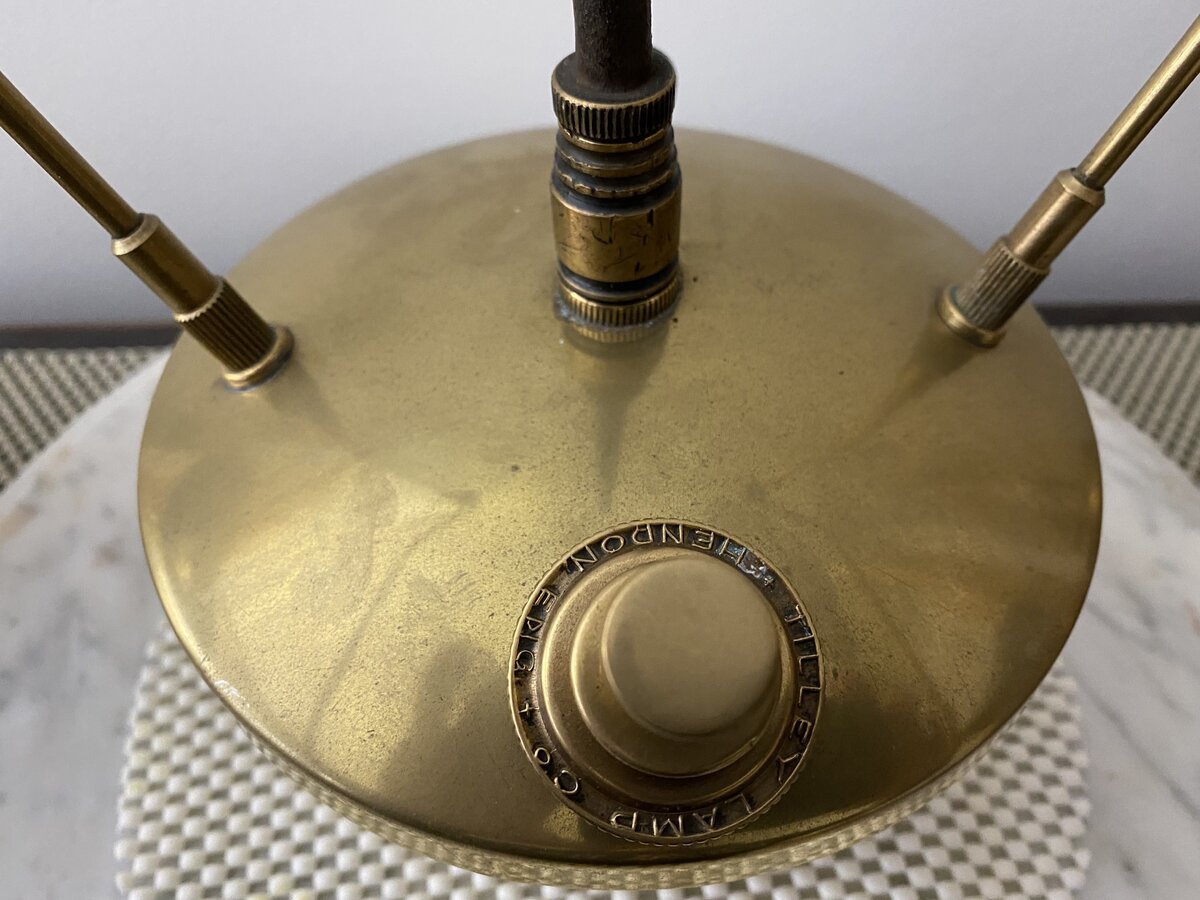

    I will need your help to identify this lamp.
    I been looking for information of this lamp with this tank.
    My first guess was a PL53 or 52 with a
    ML96 tank but I never see a PL53 or PL52 with ML96 tank.

    I know the gallery is wrong.
    What will be the correct gallery or top ventilator for this lamp?

    Please any help identify this lamp will be appreciated.

    thank you

    ///Fernando

    95D73615-7A4D-4E7E-A180-10479B3C2646.jpeg DEDC01A2-6151-48A1-9EDA-3358D8915FB2.jpeg 6169237A-EA8C-4688-81B0-0294B8FCAD3D.jpeg 2DF0BCD9-33E7-4252-BB1E-F0DCFBFEFD15.jpeg 3DCD98FD-50F1-478C-B96D-8A3EC4E28BDB.jpeg 8B2F791E-309D-41F6-A104-F40CE4815BF5.jpeg 516A012C-1D02-4933-9604-8F62D87E3324.jpeg

    Last edited by a moderator: Jan 11, 2022
  2. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,778
    Location:
    North Yorkshire
  3. Mendoza603

    Mendoza603 United States Subscriber

    Offline
    Joined:
    Jun 6, 2015
    Messages:
    73
    Location:
    USA
    Hi Henry
    The tank is the same but it doesn’t have the extension for the control valve and the hanger is different.

    ///Fernando

  4. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,798
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Mendoza603

    The handle you have is appropriate. I think tank may have been the style of handle used when these lamps were placed on railway station lamp posts.

    Where did you find that lamp?

    Tony

  5. Mendoza603

    Mendoza603 United States Subscriber

    Offline
    Joined:
    Jun 6, 2015
    Messages:
    73
    Location:
    USA
    Hi Tony

    This lamp came from UK.

    Thank you

    ///Fernando

  6. Rangie

    Rangie United Kingdom Subscriber

    Offline
    Joined:
    Dec 8, 2012
    Messages:
    501
    Location:
    Caithness, Far North of Scotland
    Very interesting lamp, has styling cues of the EX93, combined with PL53 bails.
    It would probably had a 449 hood :-k
    Have you any of its history?

    Alec.

  7. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,798
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Rangie

    In the link that Henry posted above is a photo of a EX93 from an Australian book on railway lighting. The photo depicts a EX93 in a railway station standard lamp case. I think it would have to have been fitted with a folding bail like the PL53 to fit in that space.

    Cheers

    Tony

  8. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    3,324
    Location:
    .. next to the Chester & Birkenhead Rlwy
    @Mendoza603 .. Interesting find..

    it has an early pump so have a look at the depth of the control tap thread to see whether it would take an early XN tap.. (they had a longer body)

    cheers :thumbup:

  9. Mendoza603

    Mendoza603 United States Subscriber

    Offline
    Joined:
    Jun 6, 2015
    Messages:
    73
    Location:
    USA
    Hi Alec

    No I never see one of this lamp before.
    I see the EX is have a similar design but with a different hanger and extension on the control valve.

    litter different.

    thank you

    ///Fernando

  10. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,778
    Location:
    North Yorkshire
    How strange. There were no images with the original post when I posted the link to the EX93 in the gallery.

  11. Mendoza603

    Mendoza603 United States Subscriber

    Offline
    Joined:
    Jun 6, 2015
    Messages:
    73
    Location:
    USA
    Hi Tony

    I hope somebody here have the same lamp and they can show it.

    That way I will find out what this lamp is missing or what model is.

    ///Fernando

  12. Mendoza603

    Mendoza603 United States Subscriber

    Offline
    Joined:
    Jun 6, 2015
    Messages:
    73
    Location:
    USA
    Hi my friend

    You are correct
    Have and early pump but the controls valve is the correct one.
    This lamp is not design to use the early control valve. Is not deep enough to use the early control valve.

    ///Fernando

  13. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    3,324
    Location:
    .. next to the Chester & Birkenhead Rlwy
    Thanks Fernando :thumbup:

    The handle design is older too
    Will you be getting it to work at all?

  14. Mendoza603

    Mendoza603 United States Subscriber

    Offline
    Joined:
    Jun 6, 2015
    Messages:
    73
    Location:
    USA
    The lamp is in perfect condition
    The tank is also excellent no dent.

    I will love to find the correct model and the correct top for it.

    I can get this lamp working in minutes. All I have to do is replace the
    Gasket seals.

    ///Fernando

  15. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,798
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Fernando

    Your lamp is an EX93.

    As far as I can tell from the few examples and photos I’ve seen, they are variable in so far as:

    1. The tank may be XN or EX;

    2. The control cock may be XN or GF on the XN tank;

    3. The tank may have a riser to the control cock or it may not; and

    4. The PL bail (handle) or EX bail (fixed handle) can be fitted.

    The correct gallery is Tilley No. 499 with 182 teardrop globe, but they were still being used in Victoria (Australia) in the railways after WWII so would have used the 182 “onion” globe.

    When I get a chance I’ll dig out some historic photos.

    Best regards

    Tony

  16. Mendoza603

    Mendoza603 United States Subscriber

    Offline
    Joined:
    Jun 6, 2015
    Messages:
    73
    Location:
    USA
    Hi Tony

    I will appreciate if you can please post some pictures when you have a chance.
    For future information.

    thank you

    ///Fernando

  17. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    15,218
    Location:
    Shetland Islands UK..
    A very lucky find indeed.:thumbup:

  18. Mendoza603

    Mendoza603 United States Subscriber

    Offline
    Joined:
    Jun 6, 2015
    Messages:
    73
    Location:
    USA
    Hi Tony

    Can you please show me pictures of the No.499 gallery.

    I will appreciate

    thank you

    ///Fernando

  19. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,798
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Fernando

    I’m heading out bushwalking today. I’ll get to this tomorrow.

    Cheers

    Tony

  20. Mendoza603

    Mendoza603 United States Subscriber

    Offline
    Joined:
    Jun 6, 2015
    Messages:
    73
    Location:
    USA
    Thank you
    My friend


    ///Fernando

  21. Walkop Australia

    Offline
    Joined:
    Aug 28, 2020
    Messages:
    870
    Location:
    Bathurst, Australia
    Interesting discussion on a lovely old lamp.
