Tilley EX93

Discussion in 'EX4-EX100-EX93' started by Tony Press, Mar 24, 2020.

  1. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,300
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia


    This lamp is, I think, one of the early EX93 lamps used by Victorian Railways in Australia in the late 1930s and into the 1940s. It has a number of differences to the other two EX93s in the Reference Gallery, and the tank (fount, font) is different from the ML lamps in the Reference Gallery.

    I bought this lamp from Jim Dick’s collection, but at the time of me acquiring it I did not take much notice of what it actually was. I’ve only recently released it from storage (thank you, @Anthony) and unpacked it from its box. I was rather surprised when I started to re-assemble it and work out what it might be. This lamp is shown on page 83 of Jim Dick's book, "Tilley: The Versatile Vapour Lamp. A History of Tilley Lamps". A reproduction of the illustration is below.

    Neil MacRae (@Mackburner) says about his EX93 lamp here: “This is an ML93 fount with bolts set in for handle. They were supplied with or without paraffin preheater. Handle, hood, and reflector, are as EX100. Prototyped for Victorian Railways Victoria Australia in 1938 to fit into their “platform lamp cases”. At that time some 40 plus were ordered from the local Tilley factors and we think they probably made them up from Tilley parts to hand. Correspondence from Victoria Rail in 1938 includes a recommendation that more should be bought as required for platform lighting. The info from Victoria Rail gives the model number as EX93 which sort of makes sense as they are essentially a marriage between an ML93 and an EX100. As this one has the later GF cock I assume this is from a subsequent order and because a few have turned up in the UK I assume they were made by Tilley at least into 1940. If they were in fact made by Tilley the model number used for these by Victorias Rail is therefore correct but un-catalogued “Official” Tilley”.

    NOTES:
    1. The lamp came to me with a Kayen bail, which would not have been manufactured until the mid-1940s or later. I have fitted a Tilley PL53 bail (slightly re-bent to take the angle of the threaded studs). The studs fitted to the tank are angled, not vertical as in the EX4 studs and on the two EX93s in the Reference Gallery.

    2. The lamp has the early pressure release screw that was fitted to the EX4. This screw is not present on other EX93s in the Reference Gallery, but Neil MacRae, in his Pressure Lamp Catalogue, says that the "early versions [of the ML94] had a pressure release screw".

    3. The lamp has a riser from the tank to the control cock. This riser is not present on other the EX 93s in the Reference Gallery. The riser has a smooth (rather than grooved) surface at the riser-to-control cock join.

    4. The lamp is fitted with a GF control cock. An XN control cock will not fit into the riser unless the sock and bottom brass fitting is removed from the cock (see photos of the riser below).

    5. The bottom of the tank has number “15” separately scratched twice. It does not appear to be collector’s mark.

    6. The hood on this lamp is a TW Sands reproduction; the burner is a standard Tilley burner; the glass in the top photos is a TS Nettlefold & Sons teardrop globe; the shade in the lower photographs has been refurbished.




    "TILLEY LAMP Co. HENDON ENG"

    Pressure release screw.





    "PAT. 374977 - 524719."

    The depth of the riser before reaching the pump tube is too shallow for a full XN control cock.

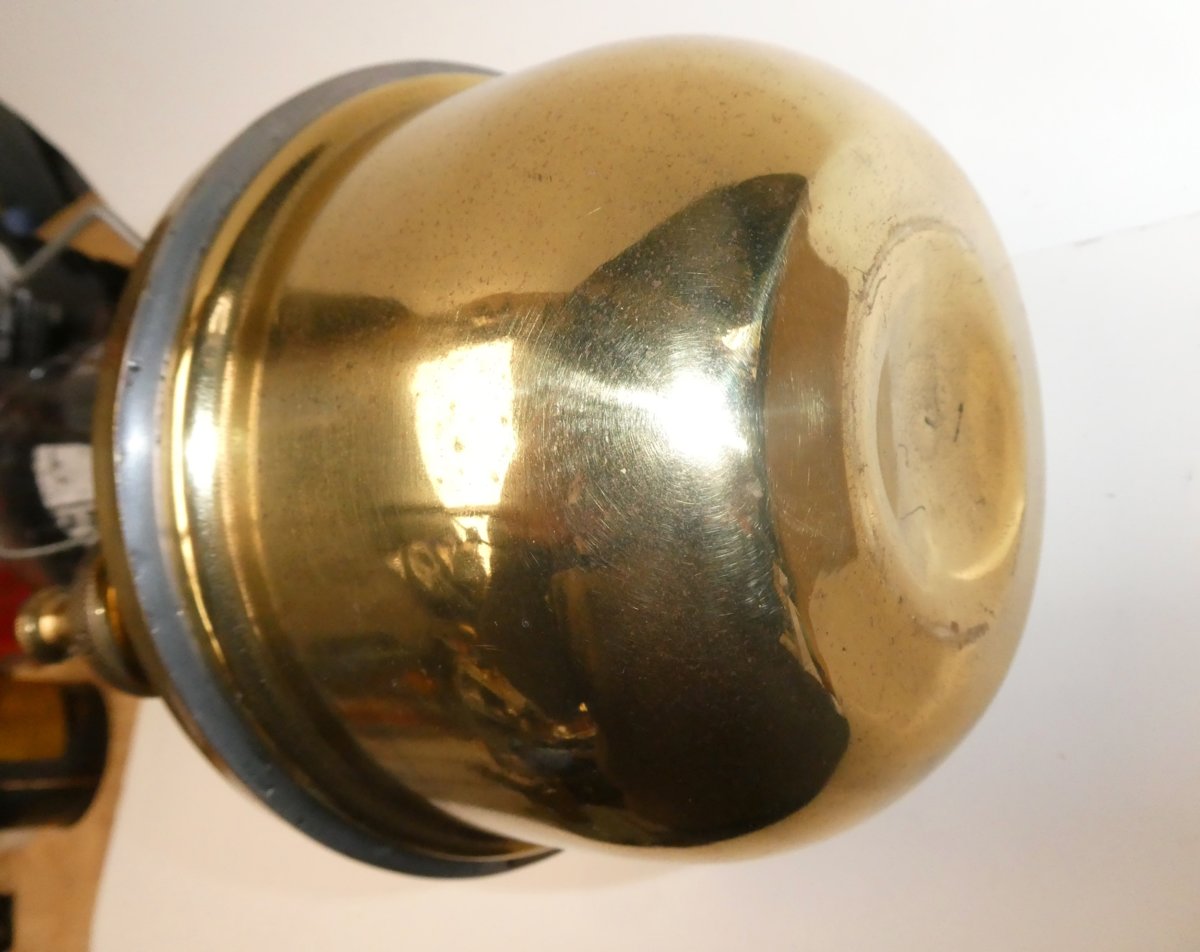

    The number "15".

    Testing.


    Up and running:









    Arthur Brook states, in his book “Victorian Railways History Series No. 1 Lamps and Lighting Volume 1”, that in June 1938, Victorian Railways purchased eight EX4 lanterns to trial (and to compare with Coleman lanterns). The trials concluded that the Tilley lanterns were easier and less costly to maintain (than Coleman 247 lanterns). He then goes on to say:


    “Arrangements were made with the local Tilley agent, Mr Nettlefold [TS Nettelfold & Sons], to supply four lamps specially modified to fit in the railway department’s pillar lamp standards. Designated Model EX93, they incorporated (1) a special re-designed font to fit a standard platform lamp case; (2) a pricker device similar to Coleman Lamps, (3) an attachment to permit the lamp being hung from the ceiling for office use when necessary. Based on this description and the name, it appears the EX93 lamp was a combination of parts from an EX4 and ML93 lamp.


    “The EX93 lamps were installed at Corio in October 1938. Following a successful trial at Corio, 24 of the special EX93 lamps were ordered and installed… in March 1939. The order included one hanging type for the office at each station. Nettlefold & Sons had supplied about 40 modified lamps to fit standard lamp cases…”.​



    The photograph below from Brook’s book shows an EX93 in a standard lamp case.


    The cost comparisons run by Victoria Railways (from the book by A Brook).


    From Jim Dick's "Tilley: The Versatile Vapour Lamp. A History of Tilley Lamps" (p83).



    I feel very privileged to have this lamp.

    Cheers

    Tony
