Tilley FL5

Discussion in 'FL5 Floodlight Projector' started by R100, Oct 16, 2020 at 1:47 PM.

  1. R100

    R100 United Kingdom Subscriber

    Offline
    Joined:
    Jul 26, 2019
    Messages:
    151
    Location:
    High in the Linconshire mountains

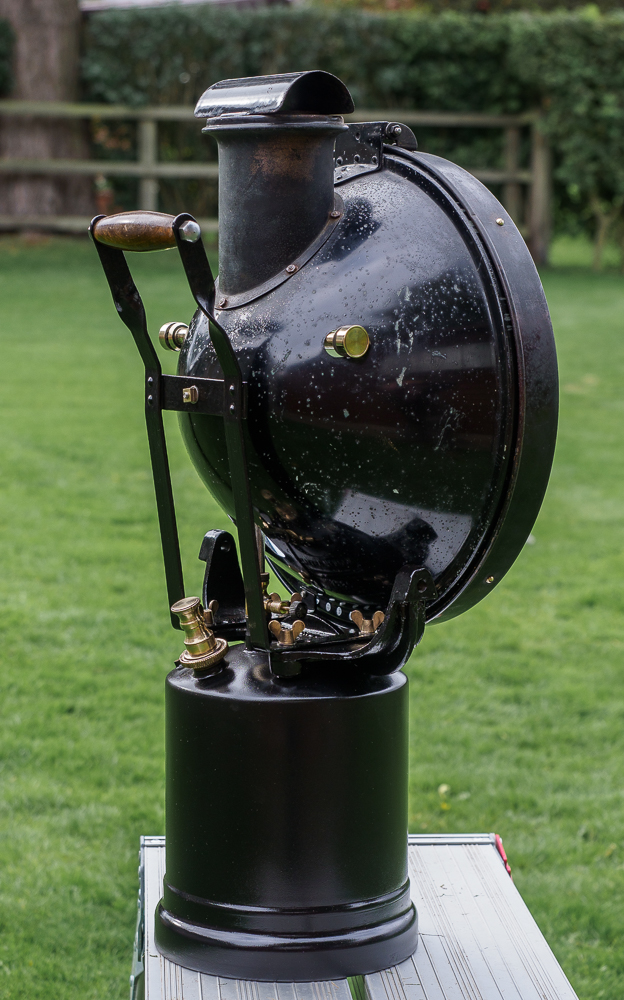

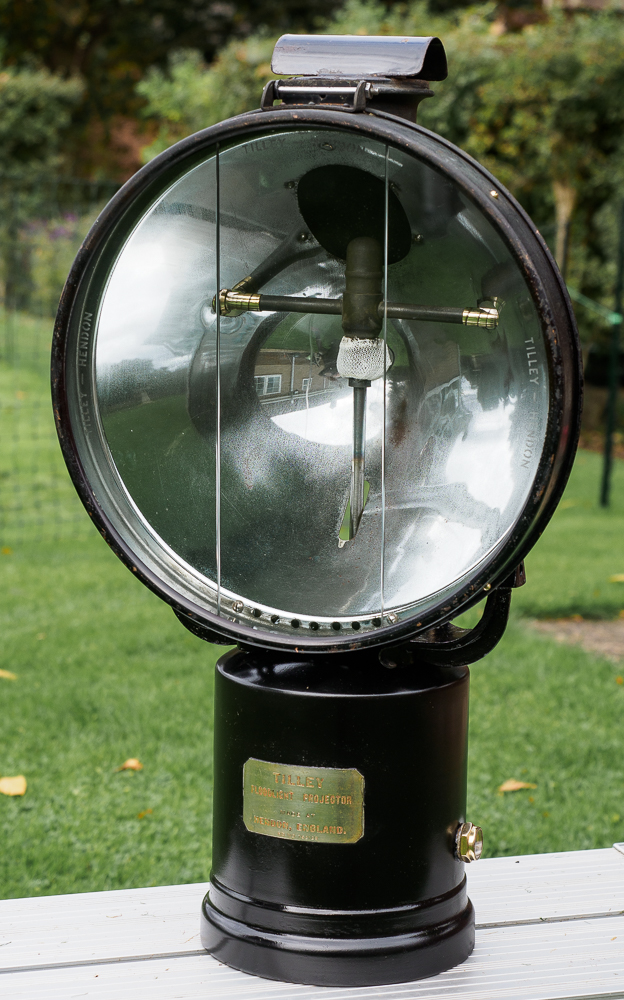

    I recently acquired a lovely old FL5 from a regular contributor to this forum. Apart from the short stand and the wire glass protector it is now finished. I did not want this lamp to look new so took the decision to leave the rear of the reflector as is (apart from cleaning). However the tank was in dire need of refinishing so I tried to create a "used" effect which I am pleased with. I believe it dates from circa 1937 but perhaps one of you experts will guide me further.

    Oh yes, and I got the fuel gauge working too.

    I fired it for the first time today and it runs superbly. I will try and post some after dark shots later.

    Anyway, what do you reckon?



    Last edited by a moderator: Oct 17, 2020 at 9:09 AM
  2. Gary Waller

    Gary Waller Subscriber

    Online
    Joined:
    Apr 3, 2018
    Messages:
    329
    Looks great, look forward to the money shot....:D/

  3. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    10,316
    Location:
    Shetland Islands UK..
    A fine old timer!:thumbup:

  4. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    2,011
    Very nice !
    Well done.

  5. Brenneman

    Brenneman Netherlands Subscriber

    Offline
    Joined:
    Nov 11, 2018
    Messages:
    36
    Location:
    The Netherlands
    Wow, it looks really good!

  6. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    1,104
    Location:
    Melbourne, Australia
    The FL5 was late 1934 to late 1936.
    The first ones had the single air tube burners, then there were transitional one with two air tubes and the hole in the reflector for the single patched up and then they went to double air tube like yours.
    The stands for these are the same as the FL6. Short and tall.
    Very nice lamp and very original.

    Last edited: Oct 16, 2020 at 5:45 PM
  7. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    1,459
    Location:
    Scottish Highlands
    Looks great, well fettled! What a great old lamp.

  8. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    187
    Location:
    Bradford uk
    Looks great, well done

  9. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    2,448
    Location:
    USA
    Fine job! I don't have room for anything that big. As you say, "fine piece of kit!"
    :D/:thumbup::thumbup:

  10. R100

    R100 United Kingdom Subscriber

    Offline
    Joined:
    Jul 26, 2019
    Messages:
    151
    Location:
    High in the Linconshire mountains
    Thanks for the comments and particularly Anthony for the dating information.

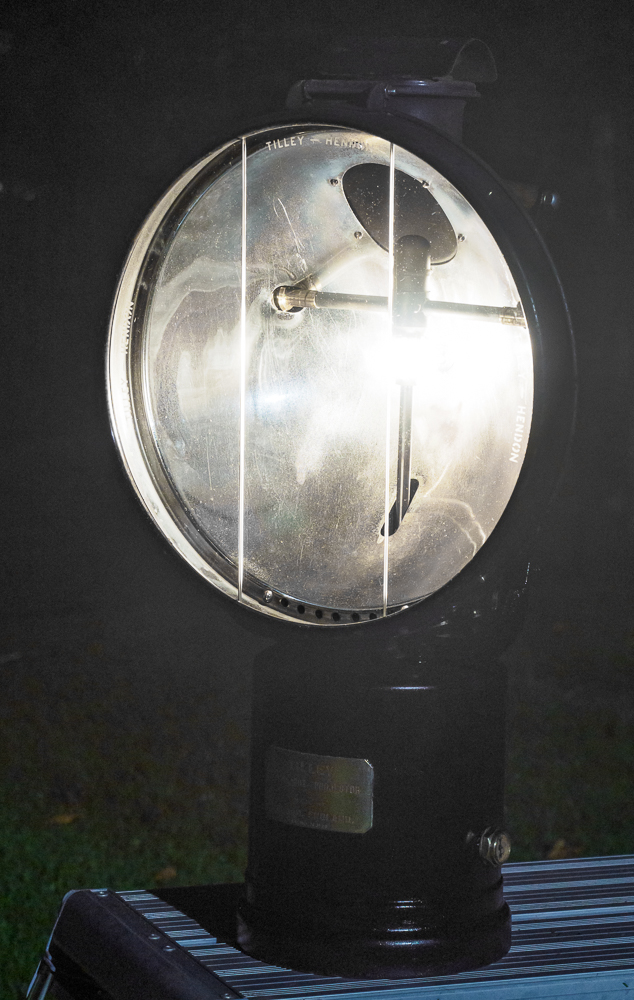

    As promised here are a couple of after dark shots. Whar a lovely light these lamps produce.




  11. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    10,316
    Location:
    Shetland Islands UK..
    It's working well!:thumbup::thumbup:

  12. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    1,104
    Location:
    Melbourne, Australia

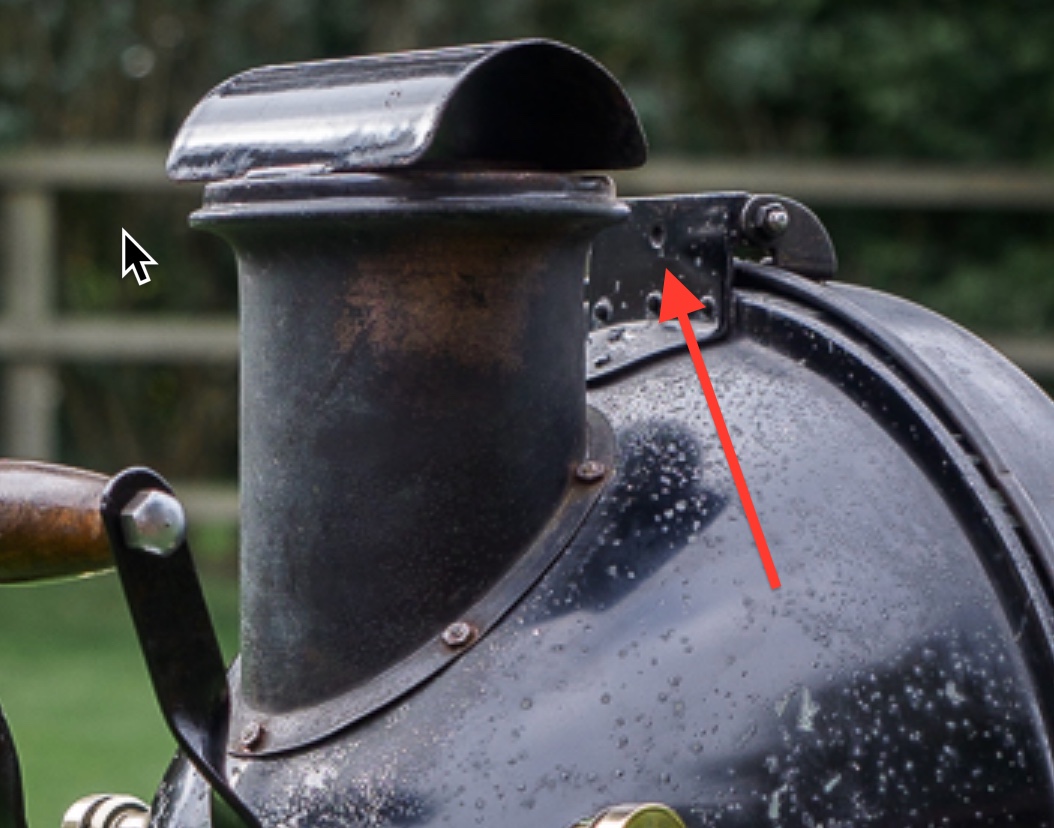

    If you were wondering why the hole in the door hinge, it was so you could take the frame from the FL4 and have a front to back handle.
    (Would be able to hang it far easier too)
    fl4 rear.jpeg

    Last edited: Oct 16, 2020 at 8:17 PM
  13. R100

    R100 United Kingdom Subscriber

    Offline
    Joined:
    Jul 26, 2019
    Messages:
    151
    Location:
    High in the Linconshire mountains
    Thanks Anthony. My lamp doesn't have the hole on top of the hinge.

    It is such a wonderfully over-engineered lamp. The cast bracket atop the tank is immensely strong!

  14. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    1,104
    Location:
    Melbourne, Australia
  15. R100

    R100 United Kingdom Subscriber

    Offline
    Joined:
    Jul 26, 2019
    Messages:
    151
    Location:
    High in the Linconshire mountains
    Wow, you have great eyesight! I was looking for the "swelling" atop the hinge rather than the hole in the middle of the main part. The lamp is now reposing in my garage so I didn't have access.

  16. R100

    R100 United Kingdom Subscriber

    Offline
    Joined:
    Jul 26, 2019
    Messages:
    151
    Location:
    High in the Linconshire mountains
    One thing I did learn about this lamp is to always use a cloth when pressurising. The pump knob is perfectly designed to nip the flesh of bare fingers!

  17. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,482
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    That’s a great lamp and a fine job, @R100. :thumbup:

    They kept a small bore pump on the first rendition of the FL6, and your observation about the pump biting one’s fingers is definitely true (ditto the Kayen CL8).


    Cheers

    Tony

  18. paul m

    paul m Subscriber

    Offline
    Joined:
    Nov 29, 2010
    Messages:
    532
    Location:
    lancashire. UK
    The stand for the FL6 will not fit a FL5, it will sit in it but will ground when you swing it....

  19. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    1,104
    Location:
    Melbourne, Australia
    IMG_4175.JPG IMG_4176.JPG

    Or do you mean the tall stand Paul ??

    To my surprise there are shorter and taller FL6 stands.
    older = 13 1/2 inch from pivot to bottom out. Newer is 11 inch.
    Thanks James.

    Last edited: Oct 16, 2020 at 10:07 PM
  20. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    1,104
    Location:
    Melbourne, Australia
    edit - are shorter and taller .... tall ...FL6 stands.

    (poor picture, they're tucked under the dining table)

    Last edited: Oct 17, 2020 at 12:00 AM
  21. Rangie

    Rangie Subscriber

    Offline
    Joined:
    Dec 8, 2012
    Messages:
    230
    Location:
    Caithness, Far North of Scotland
    Lovely FL5 :thumbup:

    Alec.

  22. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    1,104
    Location:
    Melbourne, Australia
    Opps, where did that come from ?
    Thanks @paul m .

  23. Alex Smith

    Alex Smith United Kingdom Subscriber

    Offline
    Joined:
    Jun 18, 2019
    Messages:
    909
    Location:
    Midlands, UK
  24. R100

    R100 United Kingdom Subscriber

    Offline
    Joined:
    Jul 26, 2019
    Messages:
    151
    Location:
    High in the Linconshire mountains
    Thanks for the kind comments. The Tilley FL series fascinates me. No idea why, but their presence cannot be ignored. They were built for serious use and I feel obligated to get them up and running again.

  25. Buggerlugs

    Buggerlugs Australia Subscriber

    Offline
    Joined:
    Apr 4, 2020
    Messages:
    710
    Location:
    Australia Melbourne
  26. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    1,278
    Location:
    Wirral
    Good work.. Not easy to match old and new? :thumbup:

    I'm not familiar with these but is the cowl enamelled at all?

  27. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    240
    Location:
    Brighton UK
    An excellent example of a fine lamp. Beautifully preserved. Well done!
    Chris

  28. R100

    R100 United Kingdom Subscriber

    Offline
    Joined:
    Jul 26, 2019
    Messages:
    151
    Location:
    High in the Linconshire mountains
    Thanks for the comment. The cowl is painted rather than enamelled but in this case it was not in too bad a condition so I have left as is. I was surprised that the whole cowl, bezel and glass retainer is made from copper. Imagine that happening nowadays.
