Tilley FL6 floodlight fuel gauge bodge

Discussion in 'Fettling Forum' started by presscall, Apr 18, 2020.

  1. presscall

    presscall United Kingdom Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    365
    Location:
    UK

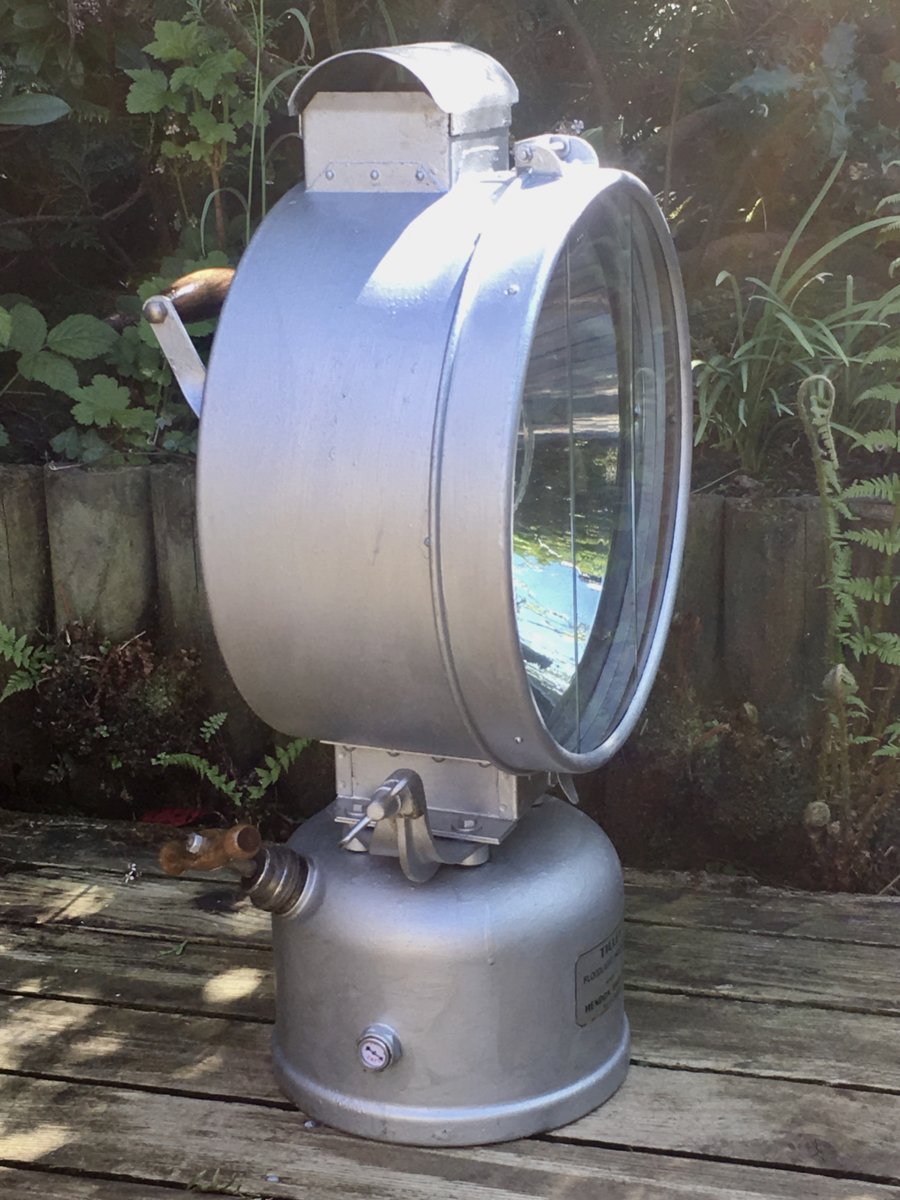

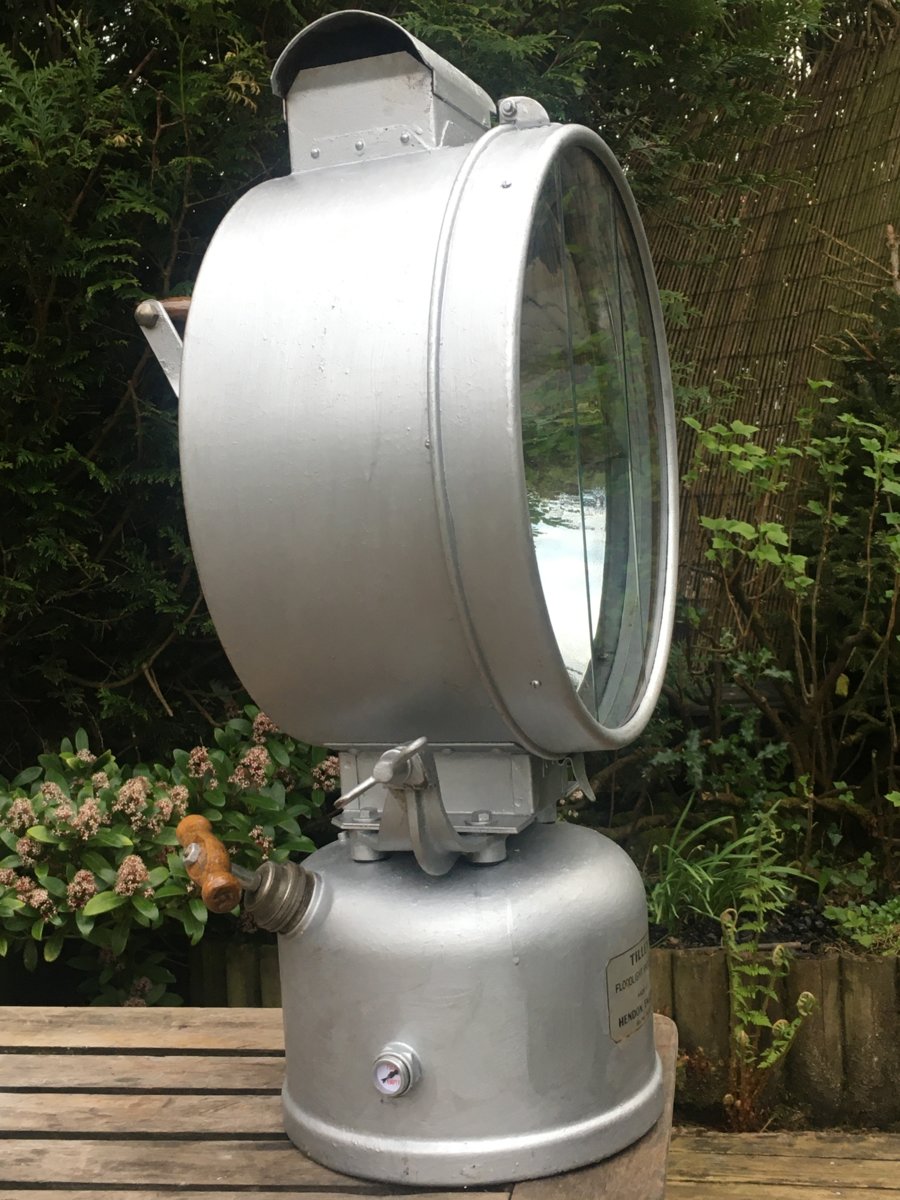

    It’s the culmination of the refurbishment of a couple of Tilley FL6 floodlights that I featured in THIS post in the Lounge over on CCS.

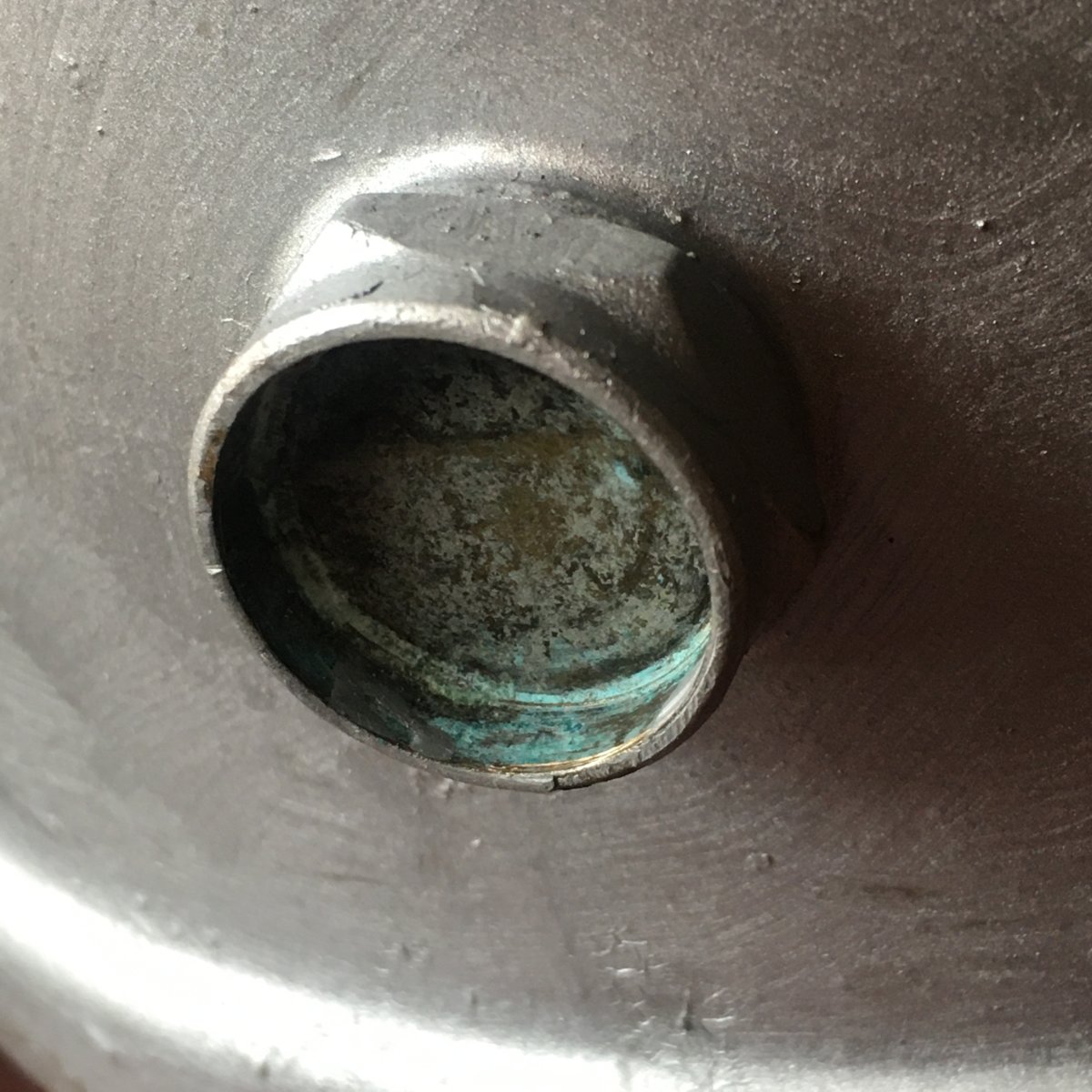

    The fuel gauge dial was missing on the silver-coloured example dated January 1959



    Of the fuel gauge:
    Photo accompanying that post

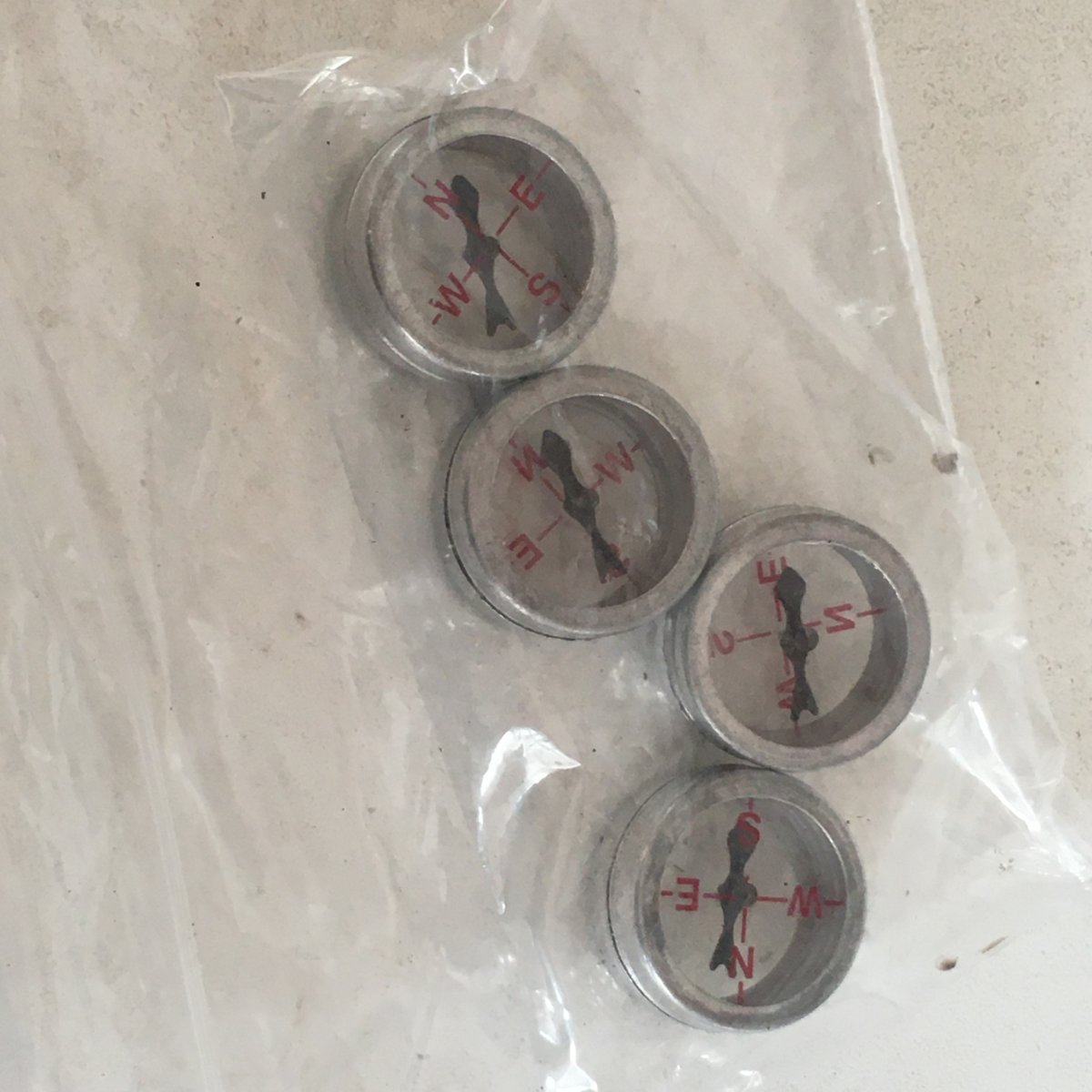

    £2.99 for five from an ebay source

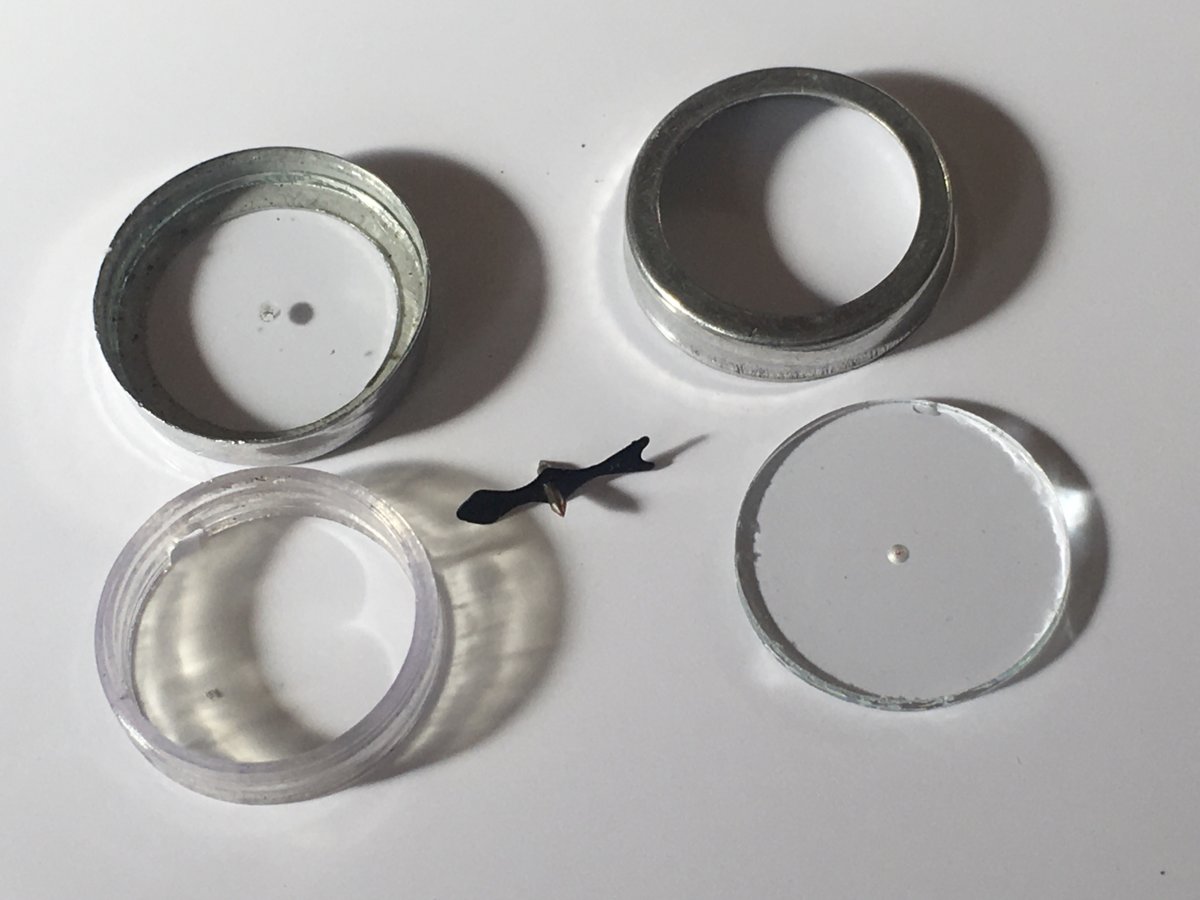

    I dismantled one and rubbed off the points of the compass lettering from the glass face. Two aluminium bezels; clear plasic spacer ring; glass (they actually are glass and not plastic) front and back; compass needle



    I should have looked harder here on CPL for THIS decal source for the Full/Empty gauge dial

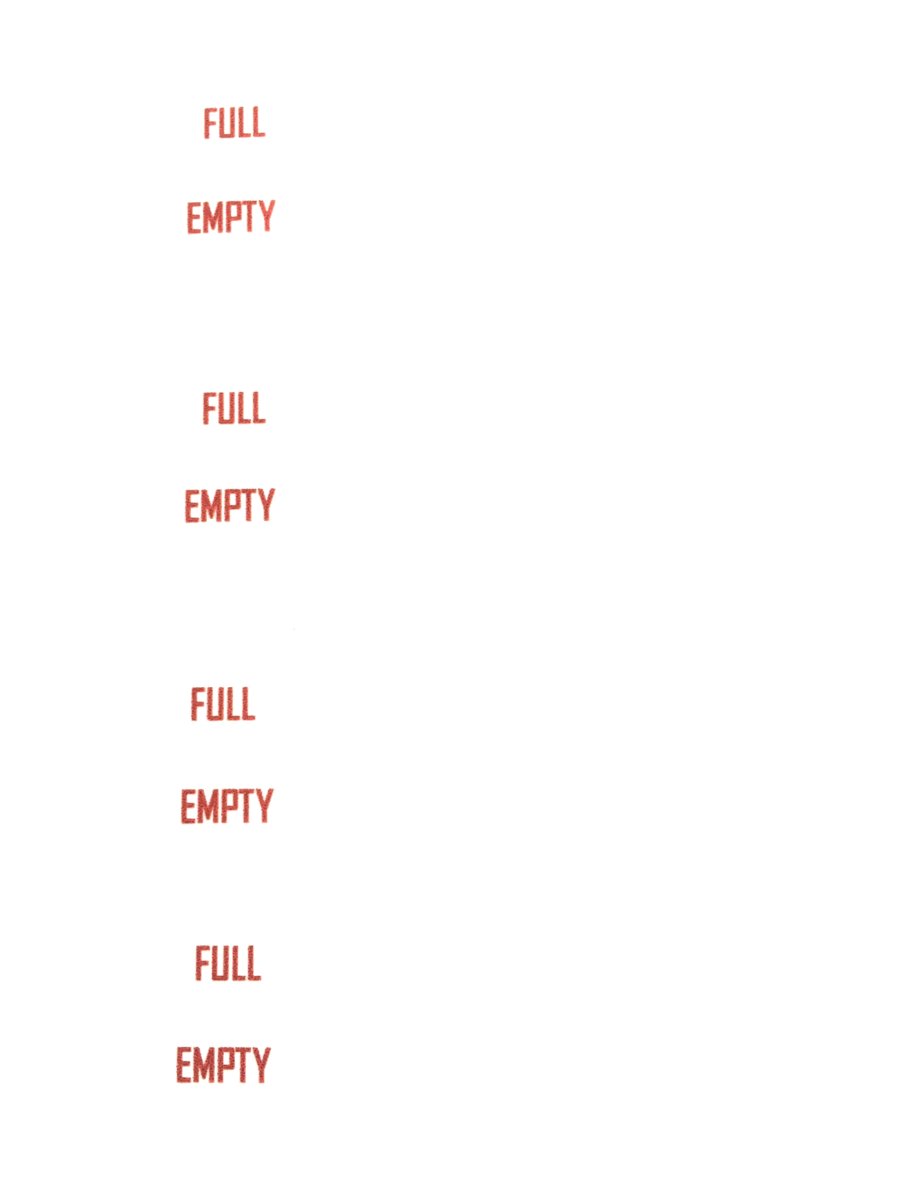

    In the event, I simply printed non-‘curved’ script onto photo paper, several times to allow for any false starts in cutting out and punching the centre hole

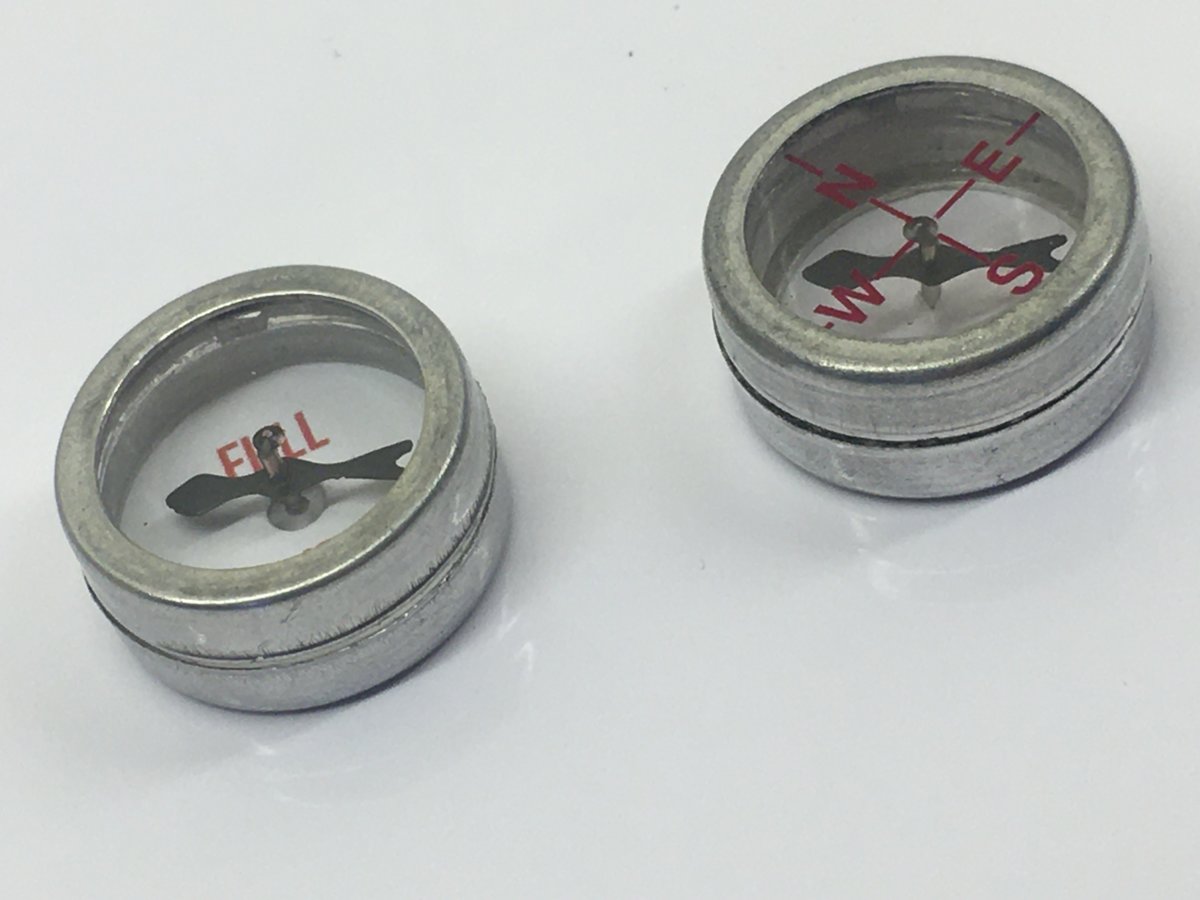

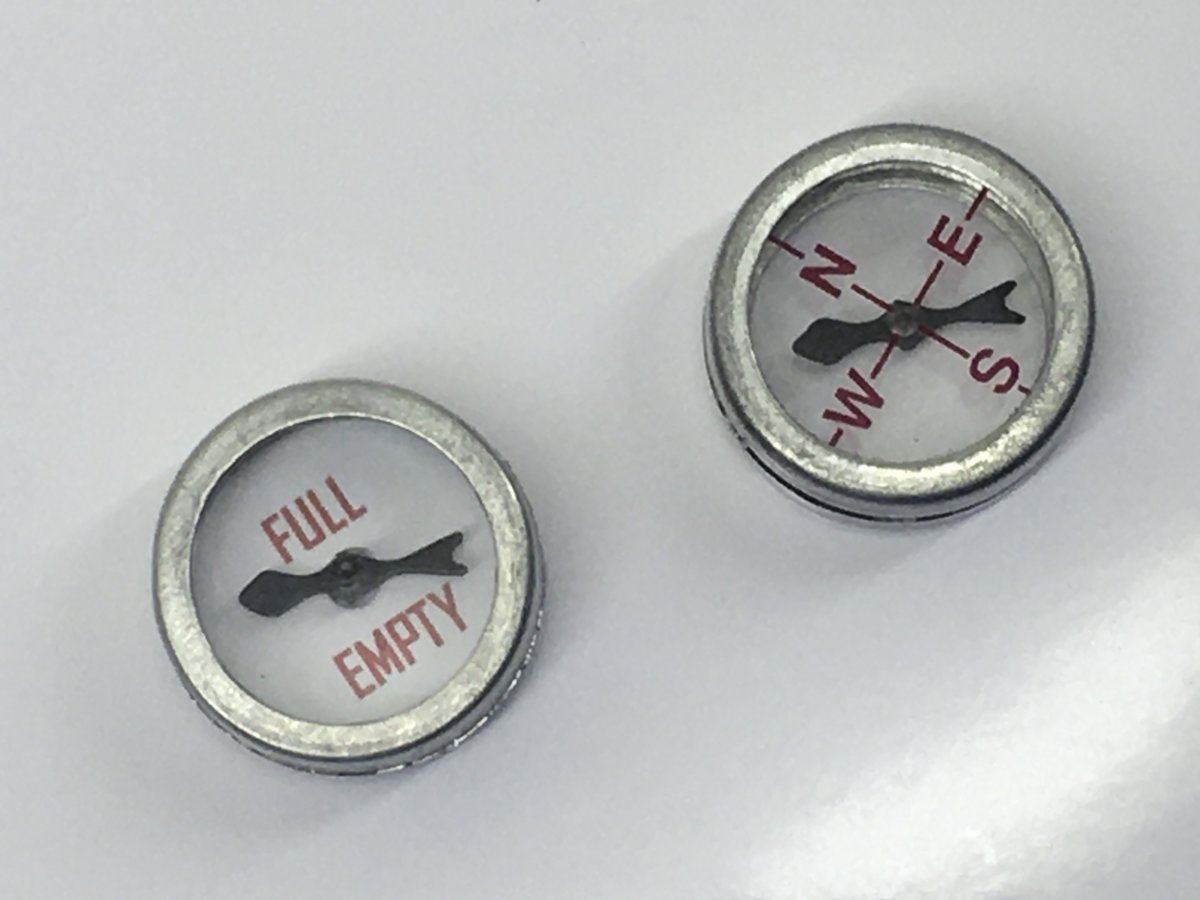

    ‘Compass’ re-assembled with the Full/Empty dial - alongside one of the compasses that remains a compass



    ... showing how the NSEW was printed on the face glass

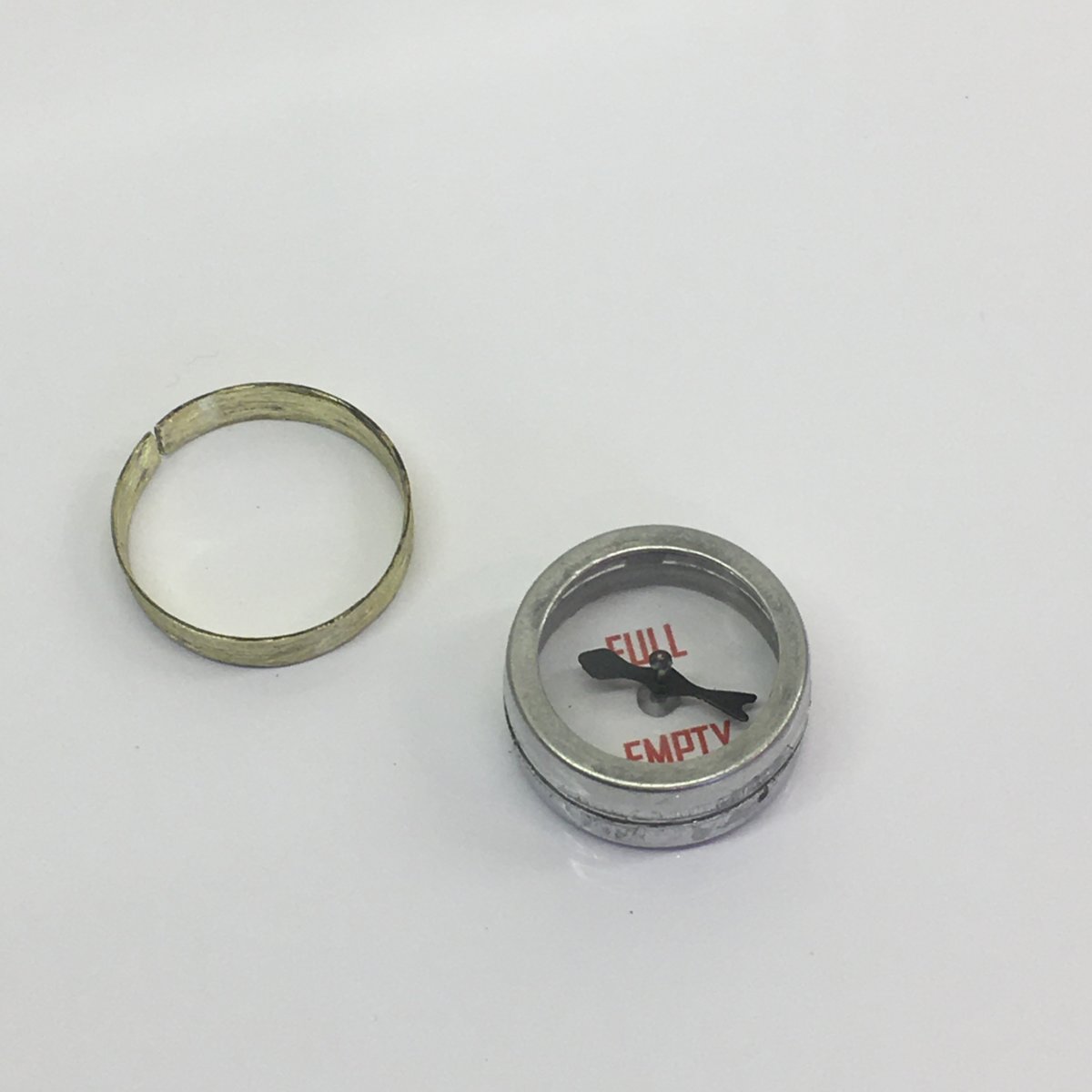

    I made a shim from thin brass strip to take up the looseness of the 20mm diameter gauge in the fuel tank gauge housing

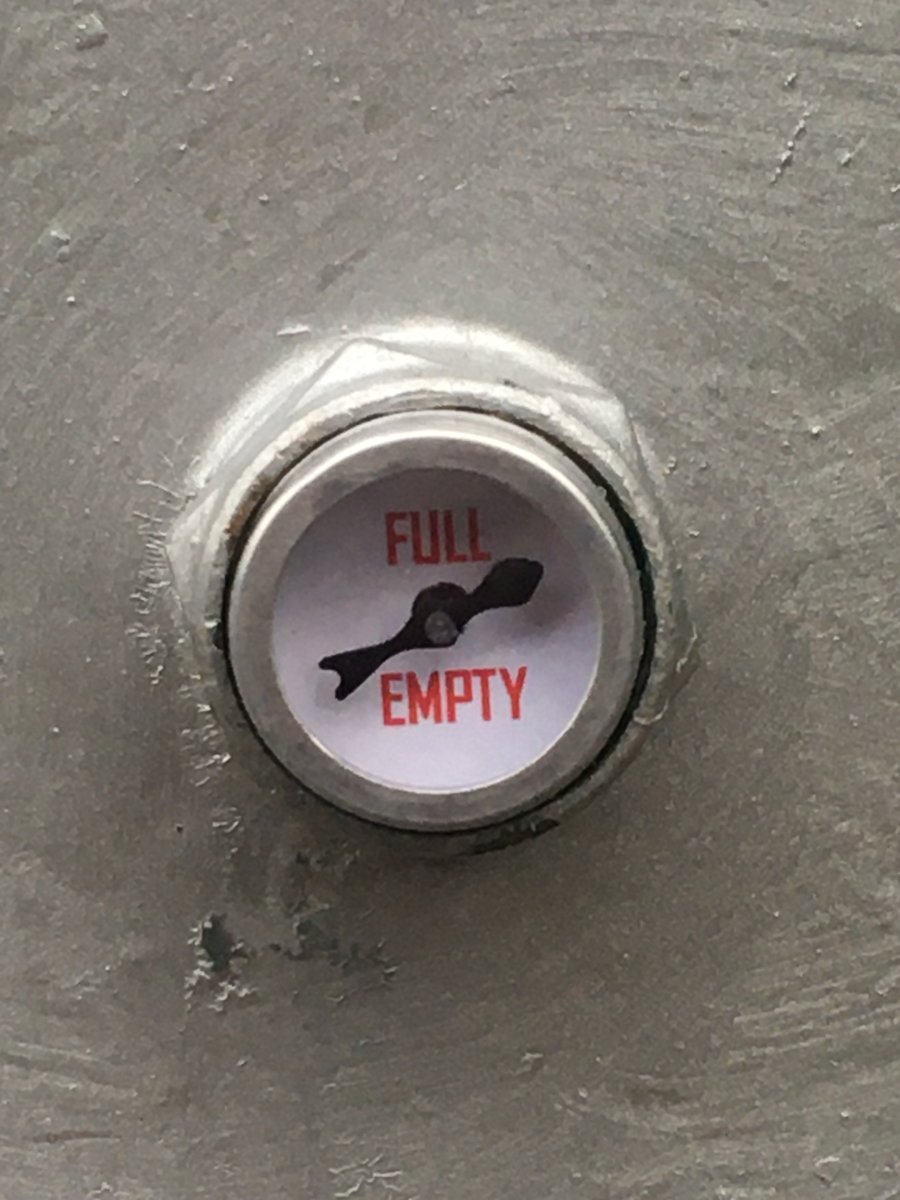

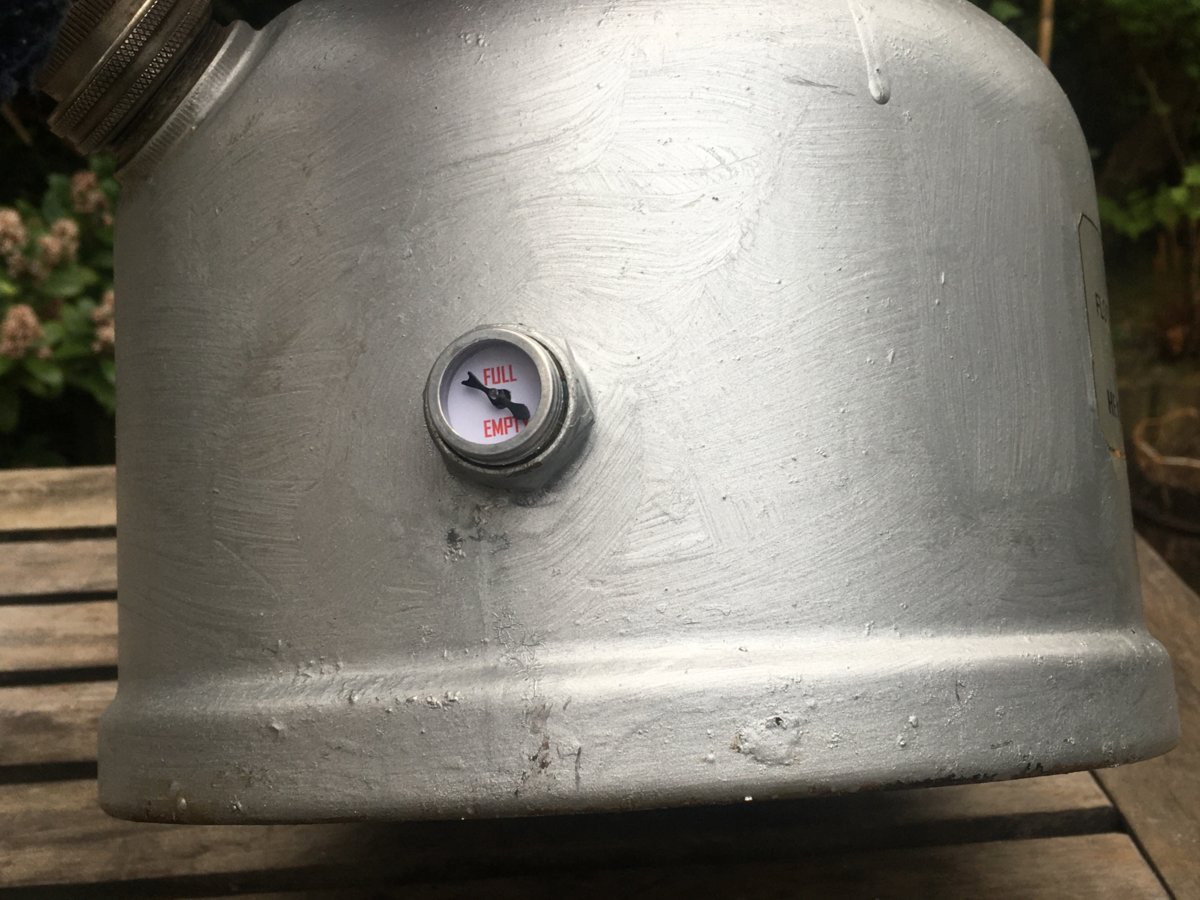

    Installed, a push fit



    The needle position was a true representation of the fuel level in the tank, confirmed when the fuel level and gauge cork dropped when I tilted the tank

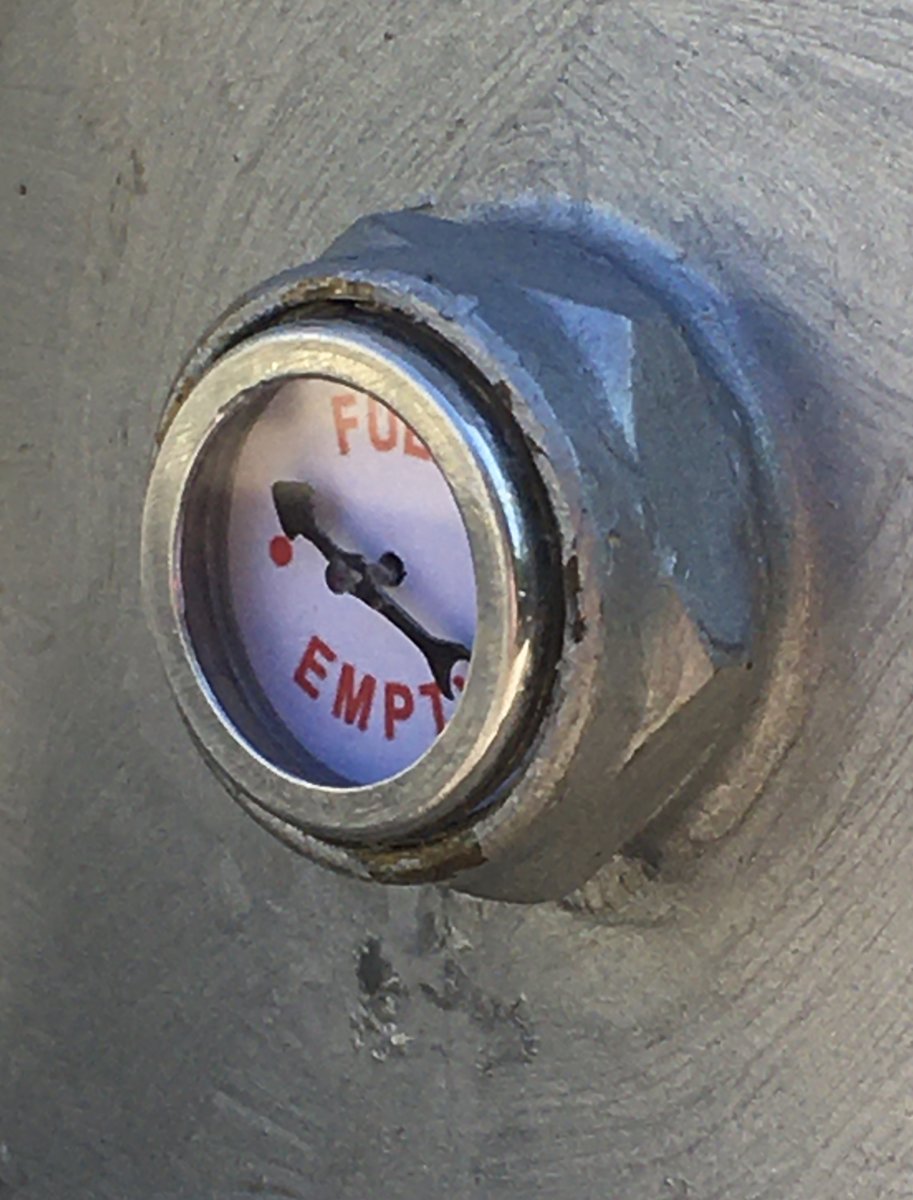

    Why ‘bodge’? Well, I’m kicking myself for discovering Matthias’s decal pattern only after I’d completed the job, and the compass/dial is a shade too deep (determined by the length of the needle pivot pin) so it stands a little too proud from the gauge mounting.

    Still, it’s functional.



    John
