Tilley FL6 Floor Stand

Discussion in 'Tilley' started by Tony Press, Oct 24, 2020.

  1. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,586
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

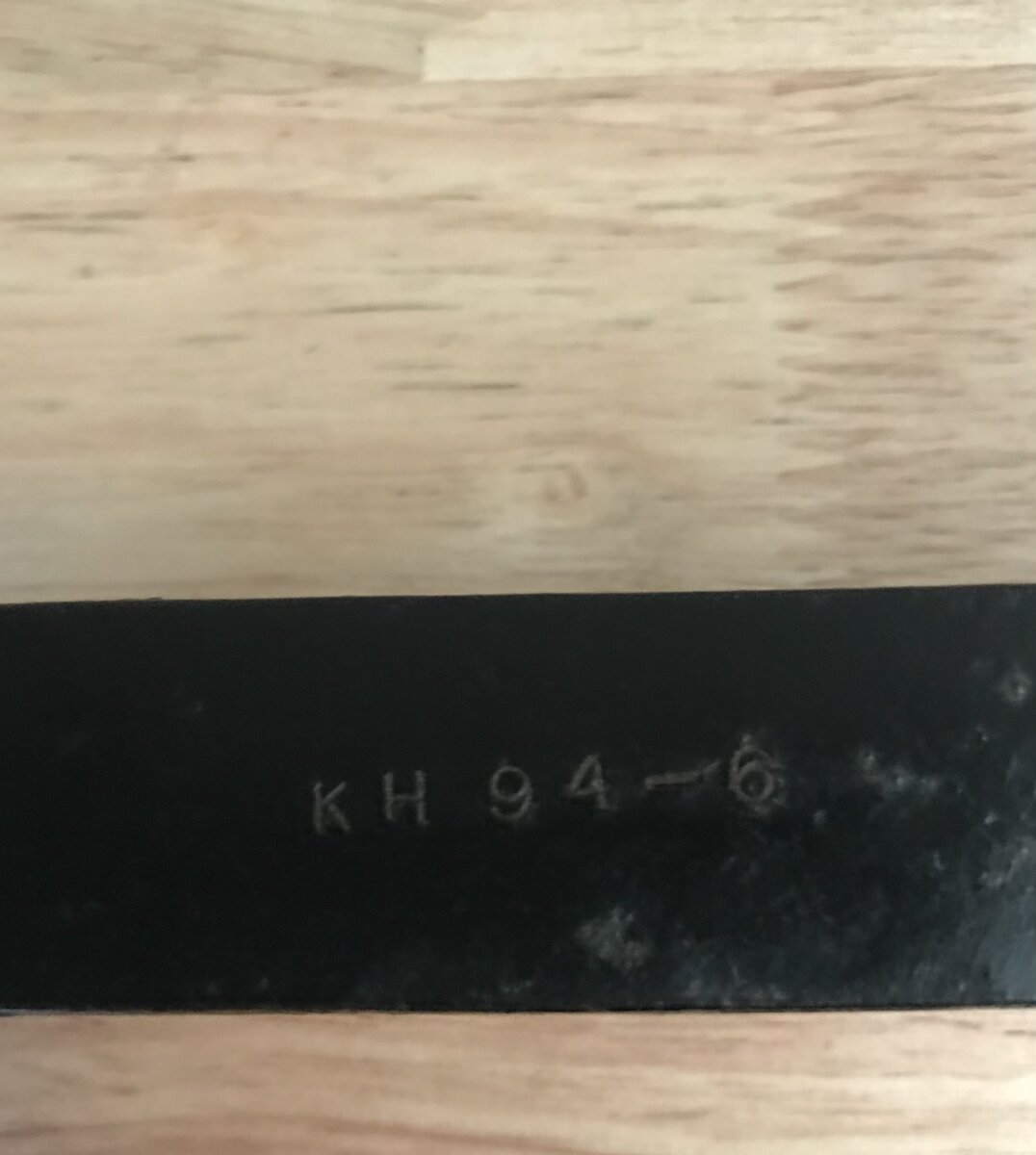

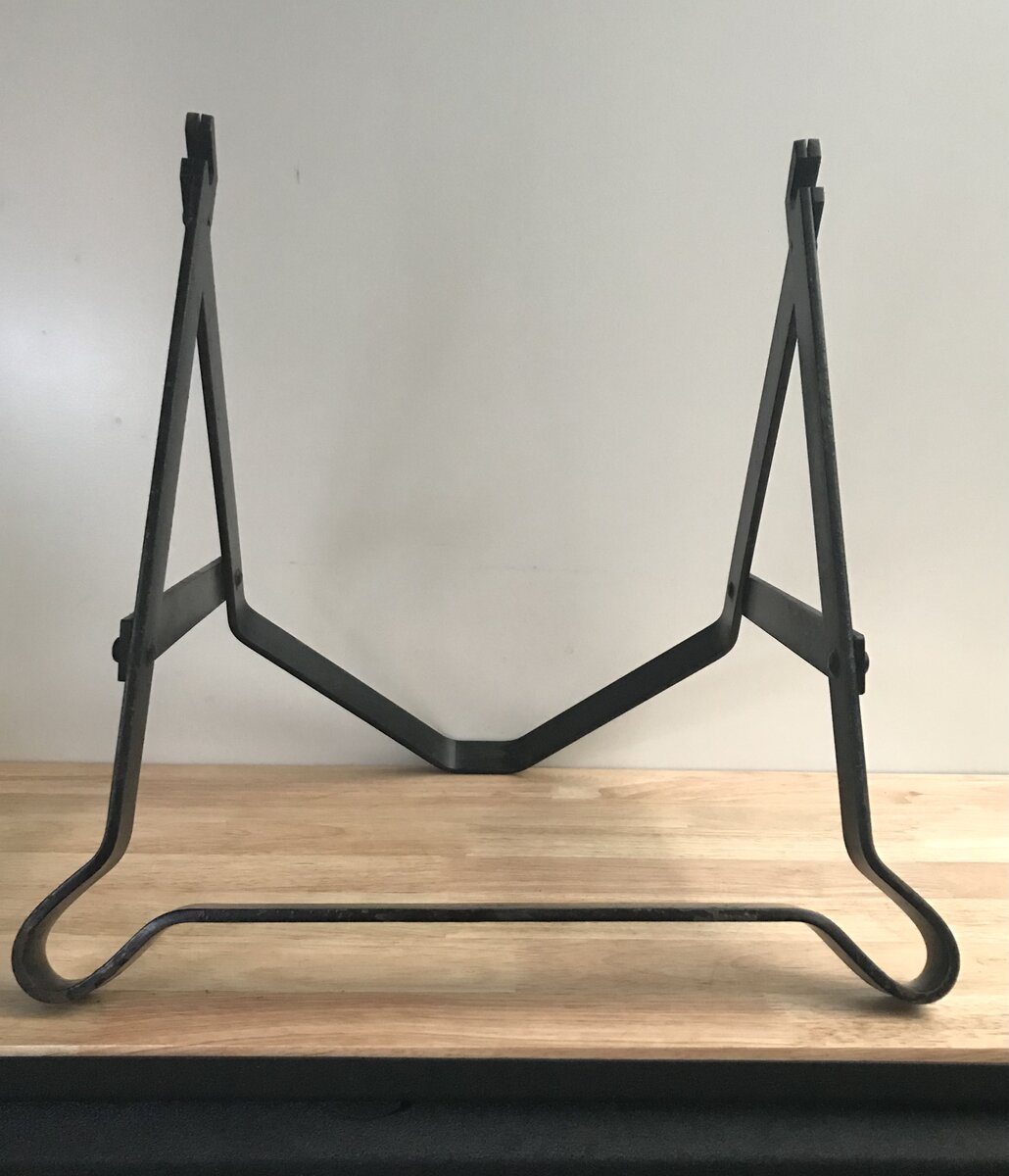

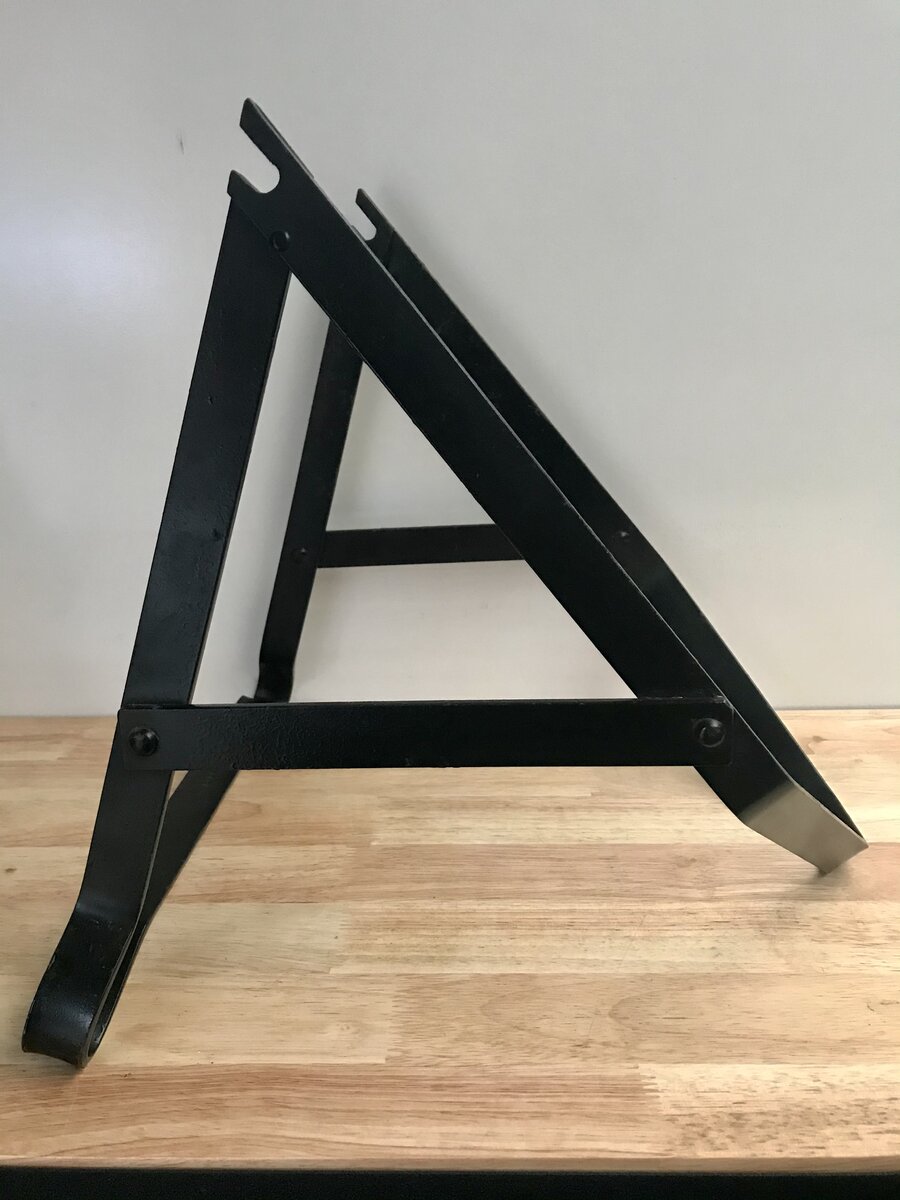

    This is a bog standard floor stand for a Tilley FL6, except for the fact that it is stamped with an ID number of some sort. I received this stand along with my SL1.



    KH94-6

    Cheers

    Tony

  2. R100

    R100 United Kingdom Subscriber

    Offline
    Joined:
    Jul 26, 2019
    Messages:
    217
    Location:
    High in the Linconshire mountains
    This is identical to the stand I have with my FL5. I wonder if the same stand was used for both models although I know the later FL6 versions were tubular. By the way, your SL1 is superb.


    FL5 on stand.jpg

    Last edited: Oct 24, 2020
  3. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    2,061
    I do see a difference in the way the mounting sleeve opening is made.

  4. R100

    R100 United Kingdom Subscriber

    Offline
    Joined:
    Jul 26, 2019
    Messages:
    217
    Location:
    High in the Linconshire mountains

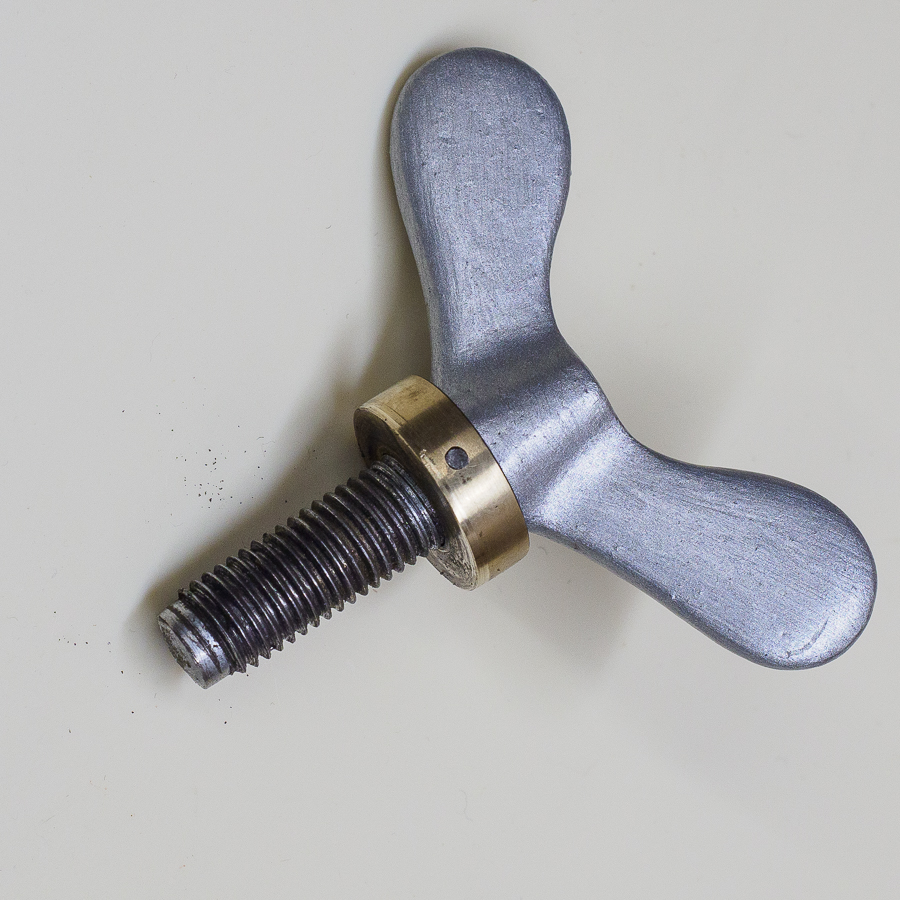

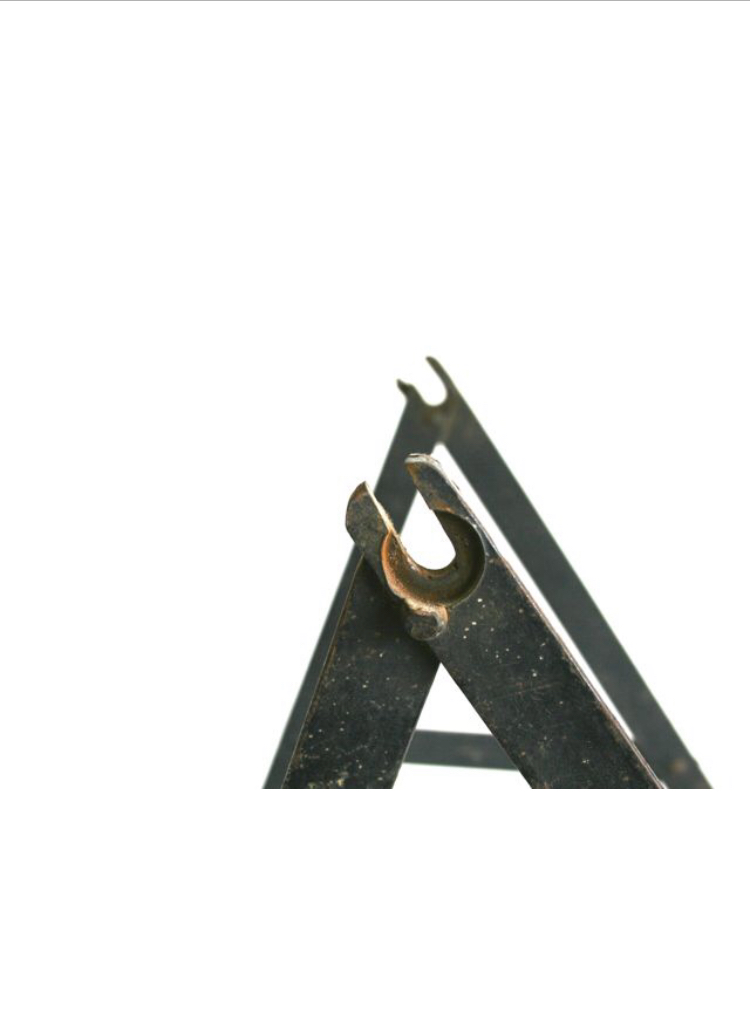

    Now you mention it there is a difference. The FL5 stand is counterbored at the fork to allow the pinned brass collar on the wingbolts to locate.



  5. Sedgman

    Sedgman Subscriber

    Offline
    Joined:
    Nov 19, 2012
    Messages:
    326
    Location:
    Wimmera, Victoria

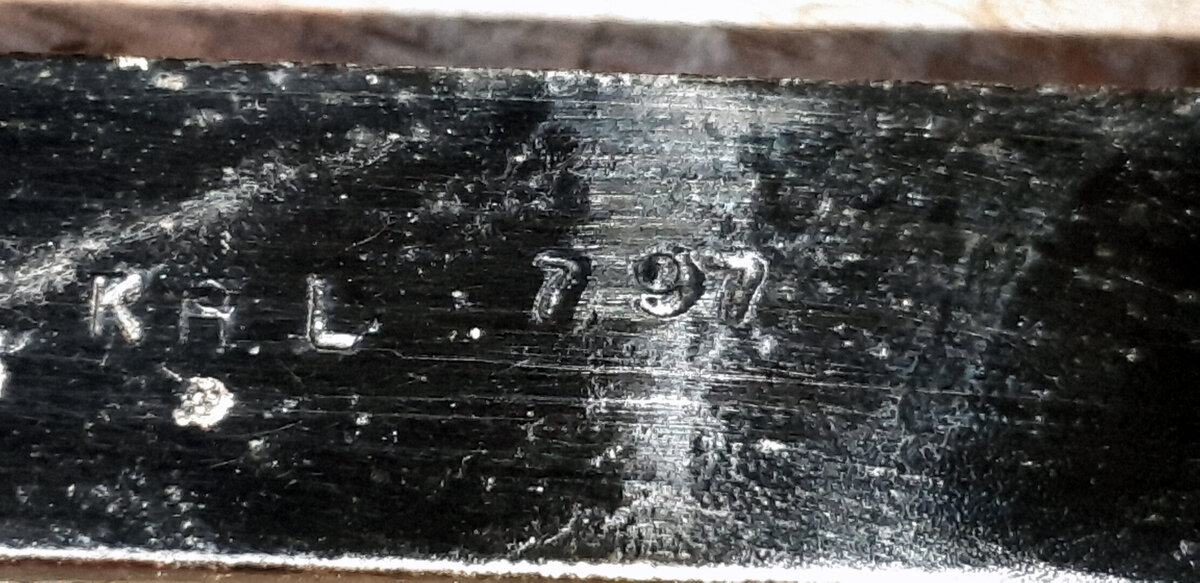

    The stamping on the small FL6 stands are interesting. Mine is similar to the stamping Tony has shown above.
    FL6 Stand Stamping.jpg

  6. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,586
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Sedgman

    That is very interesting. What do you make the stamping out to read? And, does your stand have the recessed hole for the wing nut?

    @R100

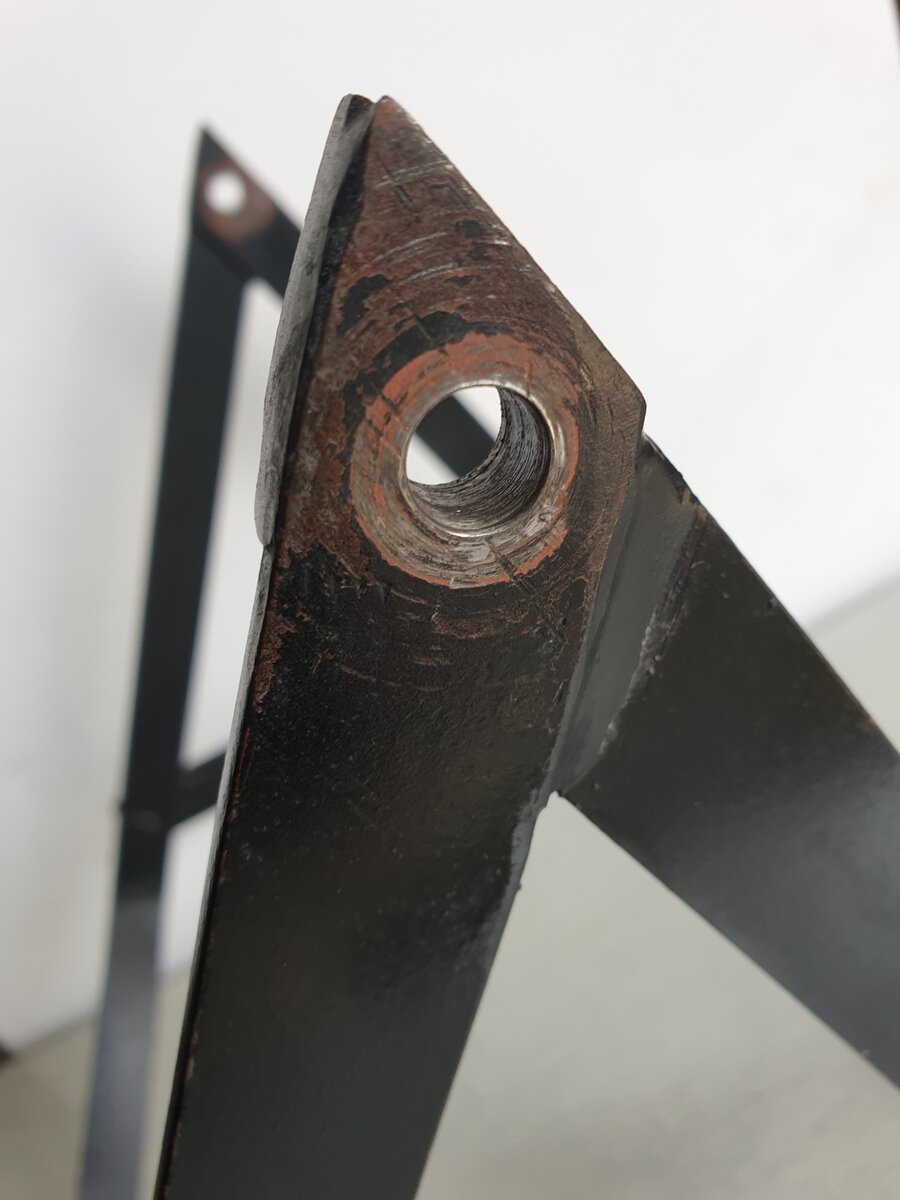

    The stand that came with my 1937 FL6 has the counterbored holes:


    Cheers

    Tony

  7. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    1,394
    Location:
    Wirral
    Hum... They went to a fair bit of trouble to make that detail... Probably brazed as well as riveted then bored out.

    You could be sure that when you lifted it that the stand wasn't going to fall off :thumbup:

  8. Sedgman

    Sedgman Subscriber

    Offline
    Joined:
    Nov 19, 2012
    Messages:
    326
    Location:
    Wimmera, Victoria
    @Tony Press
    My stand has no recessed parts and the ends with the holes are just a steep angle welded or brazed very smoothly together. The lettering is confirmed as K H L 7 97
    Regards

  9. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,586
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Thanks, Iain.

    Cheers

    Tony

  10. Sedgman

    Sedgman Subscriber

    Offline
    Joined:
    Nov 19, 2012
    Messages:
    326
    Location:
    Wimmera, Victoria
    Thought I'd add a photo of my FL6 small stand, seeing mine has holes and not a slot. Thus why, when I was building a tripod, I assumed they had holes.


  11. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,586
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Iain

    Is that the same stand as the one with the number stamped on it? Also, can you remember where, and with what attached, did you get that stamped floor stand.

    Mine came from South Australia.

    Tony

    @Sedgman

  12. Sedgman

    Sedgman Subscriber

    Offline
    Joined:
    Nov 19, 2012
    Messages:
    326
    Location:
    Wimmera, Victoria
    @Tony Press
    Yes, same one. From a shop in Melb. The FL6 is the smaller pump 1936-37.

  13. R100

    R100 United Kingdom Subscriber

    Offline
    Joined:
    Jul 26, 2019
    Messages:
    217
    Location:
    High in the Linconshire mountains
    Given the weight of these lamps I reckon aligning the holes with the mating holes on the lamp must be fun:content:

  14. Sedgman

    Sedgman Subscriber

    Offline
    Joined:
    Nov 19, 2012
    Messages:
    326
    Location:
    Wimmera, Victoria
    @R100
    Sort of. The small stand, is not too bad as you can stand over it and the ones with trunnion (slots) are easier. The one with holes is a tad awkward but OK. The tall tripod stands are OK with slots but the lanterns have a tendency to lean and you can get them slightly off if not careful. I had made a tall tripod and had just holes and that was a nightmare until I cut slots for it.
