Tilley Gas Lamps.

Discussion in 'Open Forum' started by Neil Murphy, Jan 25, 2019.

  1. Neil Murphy United Kingdom

    Offline
    Joined:
    Jan 25, 2019
    Messages:
    1
    Location:
    Rainham Essex
    I have recently obtained a Tilley Site Light and am looking for info about renovation and these type of lamp generally

  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    7,562
    Location:
    Shetland Islands UK..
    Welcome aboard!:thumbup:
    Photographs will help us to assist you.

  3. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    25
    Location:
    Bradford uk

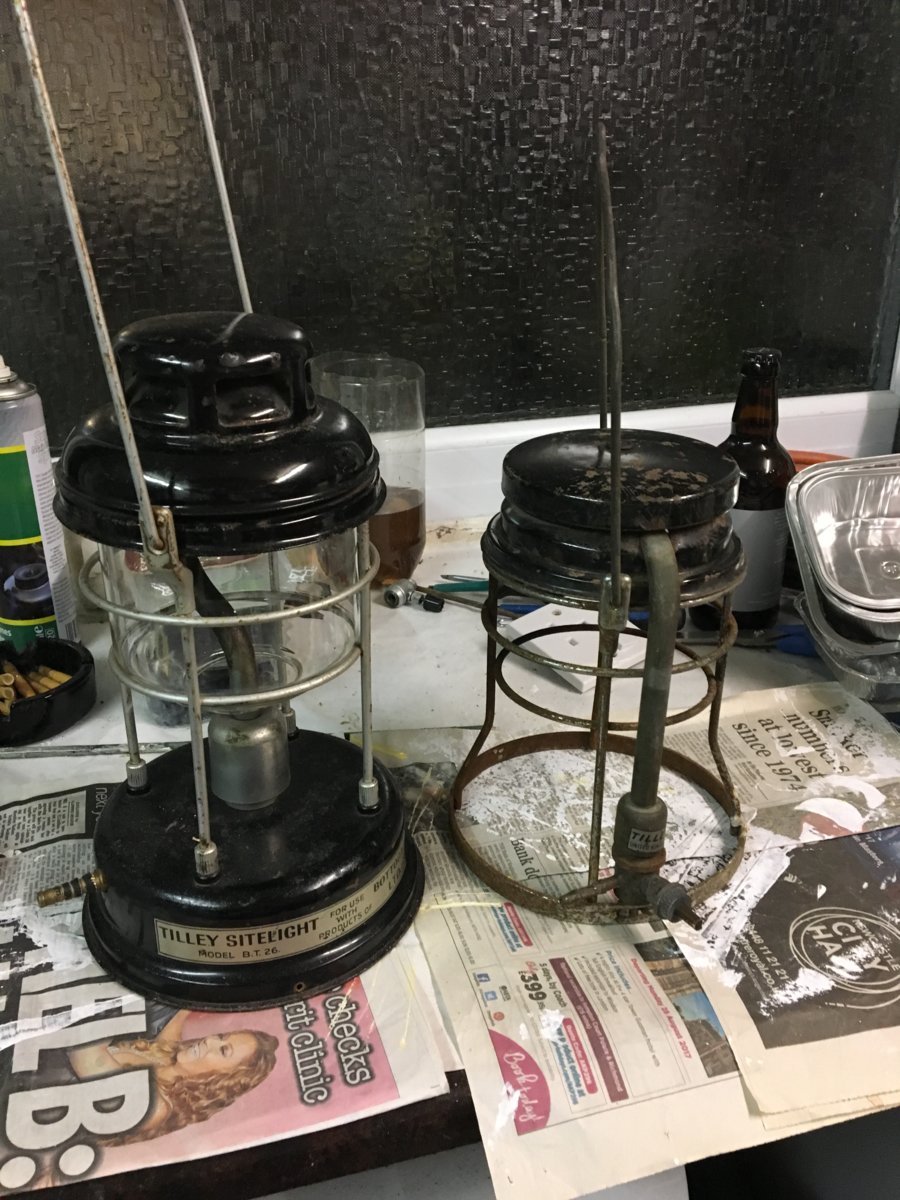

    I’ve just found this question from January, & by chance am wanting info myself. The lamp on the left is my sitelamp BT26 which I got at the new year, bought it because I had never seen one. Only reference I have found through google was a brief mention on a German forum. The one on the right I got in a job lot last week, don’t know anything about this one other than it says Tilley on the valve. Any info would be greatly appreciated
    Cheers Malcolm


    Last edited by a moderator: Mar 15, 2019
  4. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    541
    Location:
    Melbourne, Australia
    Malcolm, are they both the same inverted burners ??

  5. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    347
    Location:
    Toowoomba Australia
    Learning all the time, never seen this model before, or even read about it. Thank you for sharing this.
    Cheers
    Pete

  6. KAB

    KAB Subscriber

    Offline
    Joined:
    Mar 27, 2016
    Messages:
    341
    Location:
    South East England
    The one on the right is a similar design to the Bullfinch 1616 lamp, but having the hose connection low down allows it to be more stable when stood on a table. The Bullfinch glass and Tilley 171 glass are interchangeable.

  7. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,438
    Location:
    North-East England
    Sort of - the Bullfinch glass is quite a bit thicker and sometimes can be a very tight fit in the Tilley globe cage.

    I would guess that Tilley made the lamps for Bullfinch to sell as their own - early 'badge engineering'. The Bullfinch catalogue is online but they'll send you a hard copy (or, at least, they sent me one a few years back). It's quite interesting and useful if you're wondering about LPG applications...

    Home - Bullfinch Gas

    See page 14 - they're still supplying the 1616 Sitelight...

    Last edited: Mar 15, 2019
  8. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    25
    Location:
    Bradford uk
    Thanks for the info so far, and I’ve looked at the bullfinch catalogue David , it is useful and has answered some of the gas questions I was going to ask. Both these lamps take the standard 171 Tilley glass no problem.
    Yes Pete, both burners are the same, terminating in a ceramic “petromax” type screw in nozzle.
    Can anyone shed any lite, if you’ll pardon the pun, on age or anything else useful to me, particularly on the BT26

  9. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,438
    Location:
    North-East England
    Yes, the Tilley glass being thinner goes in the Bullfinch easily...

    Well, I've got a couple of the Tilley BT26 blighters and try as I might, I can't get them to run properly. I've also got some of the 1616s but I can't remember what degree of success I've had with them.

    I've an idea the BT26s take the 1646 double-walled mantle. When I get back in from my walk I'll check that...

  10. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    25
    Location:
    Bradford uk
    Thanks David

  11. KAB

    KAB Subscriber

    Offline
    Joined:
    Mar 27, 2016
    Messages:
    341
    Location:
    South East England
    I find the Bullfinch gives a good light if you have the correct regulator. I will admit that I have a Petromax clone with the ceramic burner stollen from a damaged Bullfinch 1616 ;)

  12. malcolm race

    malcolm race United Kingdom Subscriber

    Offline
    Joined:
    Sep 24, 2018
    Messages:
    25
    Location:
    Bradford uk
    Having read the link to bullfinch David gave in his answer, I now know the regulator I need, so I’ll pop off in the morning to get one, and report back.

    Malcolm

  13. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,438
    Location:
    North-East England
    Yes, as it turns out, both of these lamps, the Tilley BT26 on the left and the Tilley GL820 Sitelite on the right, take the 1646 mantle. I've found some relevant literature which I'll try to get scanned and posted over the weekend...
