Tilley No.264 lamp pump thread

Discussion in 'Fettling Forum' started by Koalas, Nov 12, 2021.

  1. Koalas France

    Offline
    Joined:
    Jan 3, 2021
    Messages:
    5
    Location:
    China

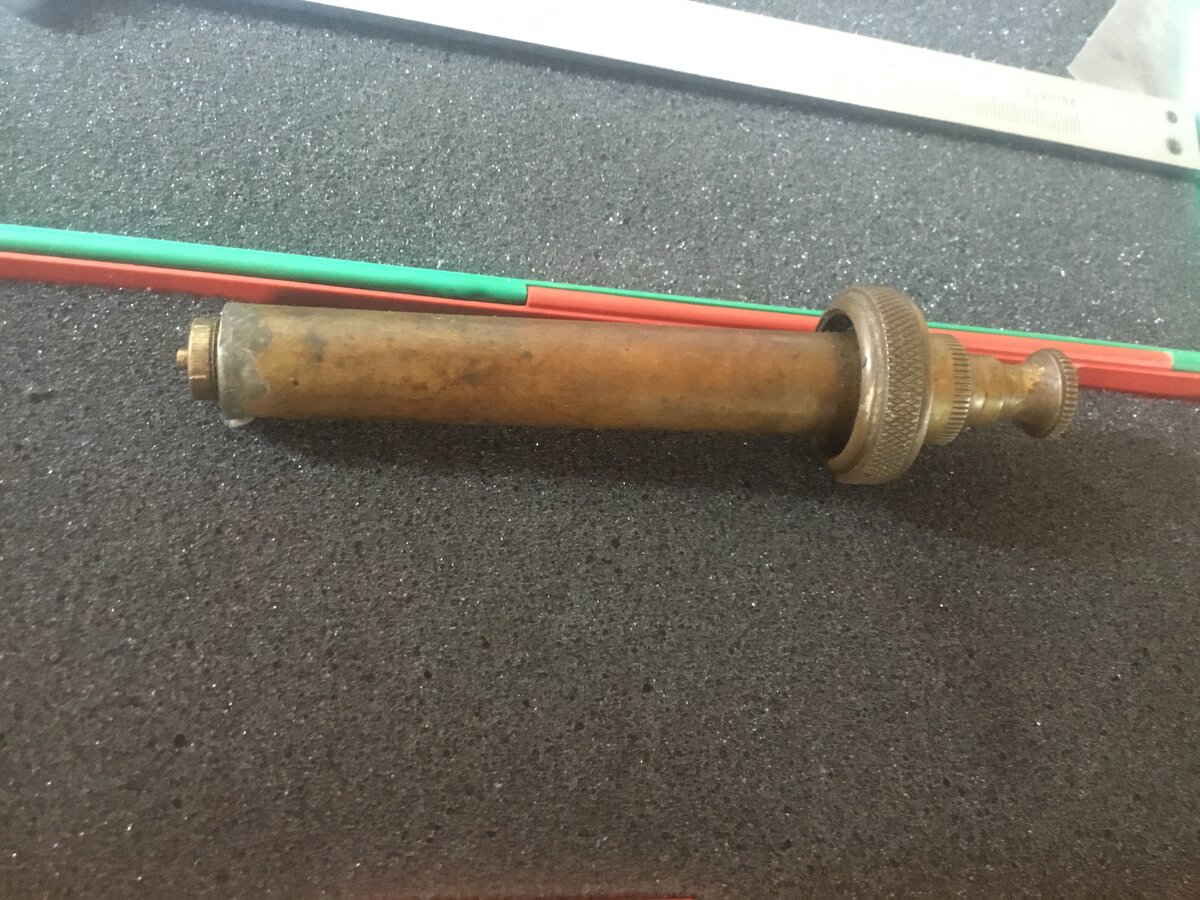

    291B6DE5-3750-47D2-AD0F-354B1386CA9C.jpeg I guess the thread is whiteworth thread ,55 degrees
    1 in- 19 TPI or 24
    Who may help me confirm standard please

  2. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,075
    Location:
    North Yorkshire
    @Koalas 1inch X 19 T.P.I. according to my thread gauge but I'm not sure if it's Whitworth or American National 60 degrees.

  3. Koalas France

    Offline
    Joined:
    Jan 3, 2021
    Messages:
    5
    Location:
    China
    Thank you I believe English lamps must use whiteworth thread 55 degrees

  4. Graham P

    Graham P Australia Subscriber

    Offline
    Joined:
    Mar 3, 2012
    Messages:
    961
    Location:
    Albury area NSW AUstralia
    There are also B.A, (British Association) BSP (Pipe) BSF (Brit-- Standard Fine) Brass , Pipe and I think quite a few others. (I thought there were at least 49 thread standards )
    Try this " International Thread Standards " (I count 53)

  5. steerpike451

    steerpike451 United Kingdom Subscriber

    Offline
    Joined:
    Jun 29, 2016
    Messages:
    108
    Location:
    Norfolk, UK.
    Most British threads are 55° Whitworth form; the exceptions being BA (49.5°) and British Cycle which is 60° and usually 26TPI (it's often confused with British Standard Brass which is 26TPI x 55°)
    British made lamps and lanterns tend to use BA and BSB plus Whitworth Special- Tilley also used some proprietary threads.

    Last edited: Nov 20, 2021
