Tilley R1 heater mantle mod

Discussion in 'Fettling Forum' started by goldwinger11, Dec 29, 2019.

  1. goldwinger11

    goldwinger11 Subscriber

    Offline
    Joined:
    Oct 9, 2017
    Messages:
    179
    Location:
    Merlin, Oregon, USA
    My Tilley’s metal screen mantle burned up prematurely. It barely lasted a year. I went back to my asbestos one but wanted another metal mantle. I have a propane reflector heater that utilizes a perforated metal mantle. Why not manufacture one from perforated metal? This is the result.

    The holes are 2.8mm or 0.113”
    The metal was a piece of mild steel 0.2mm or 0.087”.

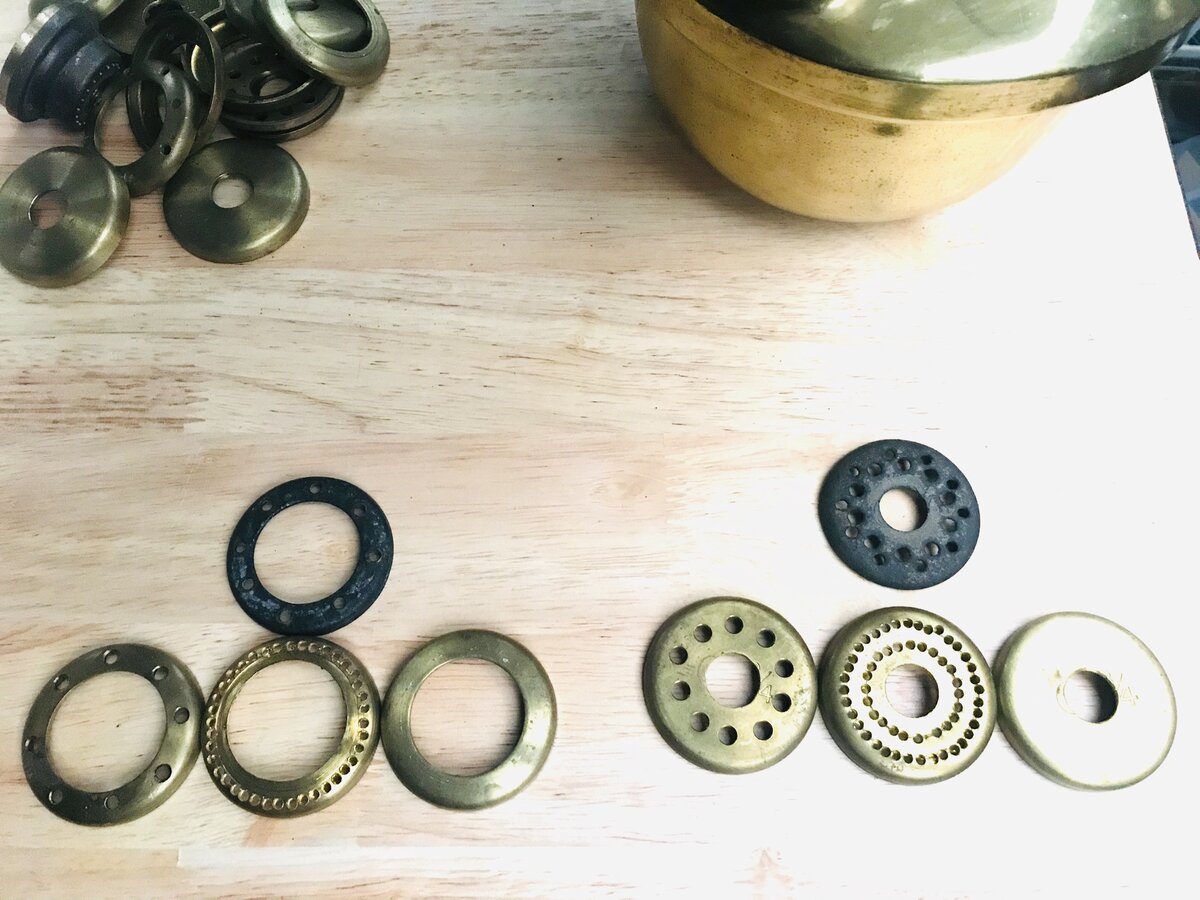

    I drilled the holes, notched the plate ends and tig welded the seam to form a cylinder. The ends were then formed as shown. This was the result. I’m happy with the heat output. DDFD22D7-396E-41E0-90DE-4DB272FA4648.jpeg E082116D-2D4D-4B3D-9783-B7DF92F84E2A.jpeg 2966B11B-84FC-47B7-B9DD-CC943C9C246F.jpeg I’m not sure why the pics posted sideways.

  2. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,981
    Location:
    Toowoomba Australia
    @goldwinger11
    Well done.
    She’s working very well. It’ll be interesting to see how long it lasts.
    Cheers
    Pete

  3. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    11,183
    Location:
    Shetland Islands UK..
    That does the job!:thumbup:

  4. goldwinger11

    goldwinger11 Subscriber

    Offline
    Joined:
    Oct 9, 2017
    Messages:
    179
    Location:
    Merlin, Oregon, USA
    @AussiePete I'm curious as well about the longevity. I couldn't see spending $25 US for a replacement metal one that lasted less than a year.

  5. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,278
    Location:
    Somersby, New South Wales, Australia
    It definitely looks the part. :thumbup::thumbup:
    Time will tell :)

  6. goldwinger11

    goldwinger11 Subscriber

    Offline
    Joined:
    Oct 9, 2017
    Messages:
    179
    Location:
    Merlin, Oregon, USA
    I came across this post while searching for something else. Thought I would post some feedback. The metal mod is still working well without any signs of fatigue.

  7. Buggerlugs

    Buggerlugs Australia Subscriber

    Online
    Joined:
    Apr 4, 2020
    Messages:
    1,011
    Location:
    Australia Melbourne
    Looks like that will work, keep us posted on how long it lasts.

  8. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    7,735
    Location:
    North-East England
    OK, it seems to work well but why don't you just make it cylindrical and fashion a suitable baseplate to hold it in place - something in the style of the Bialaddin equivalent. Cosmetically at least, that would be better IMHO and also save a bit of work possibly... :)

  9. paul m

    paul m Subscriber

    Offline
    Joined:
    Nov 29, 2010
    Messages:
    578
    Location:
    lancashire. UK
    I've a lot of these, 2 1/4" diameter stainless steel out of steam traps, thought these could make some IMG_0879.JPG

  10. goldwinger11

    goldwinger11 Subscriber

    Offline
    Joined:
    Oct 9, 2017
    Messages:
    179
    Location:
    Merlin, Oregon, USA

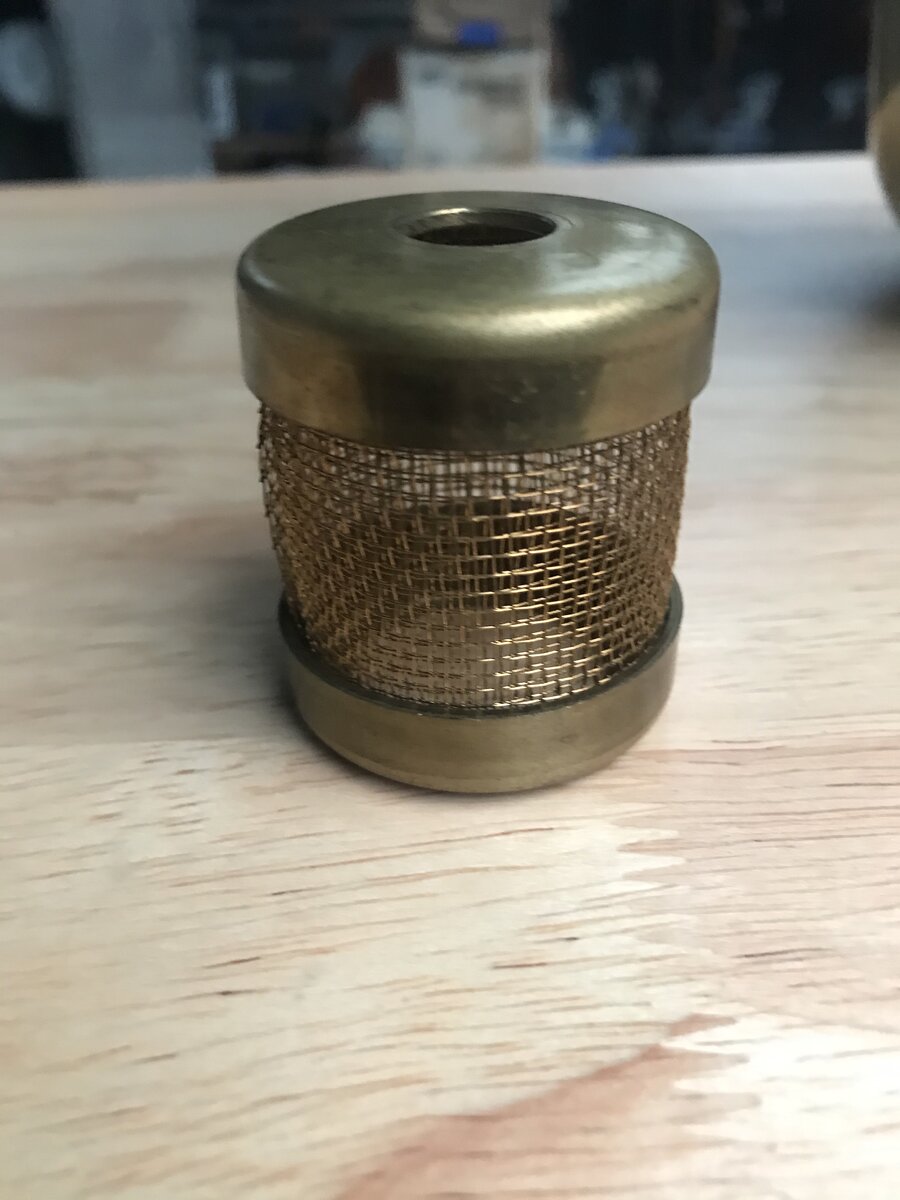

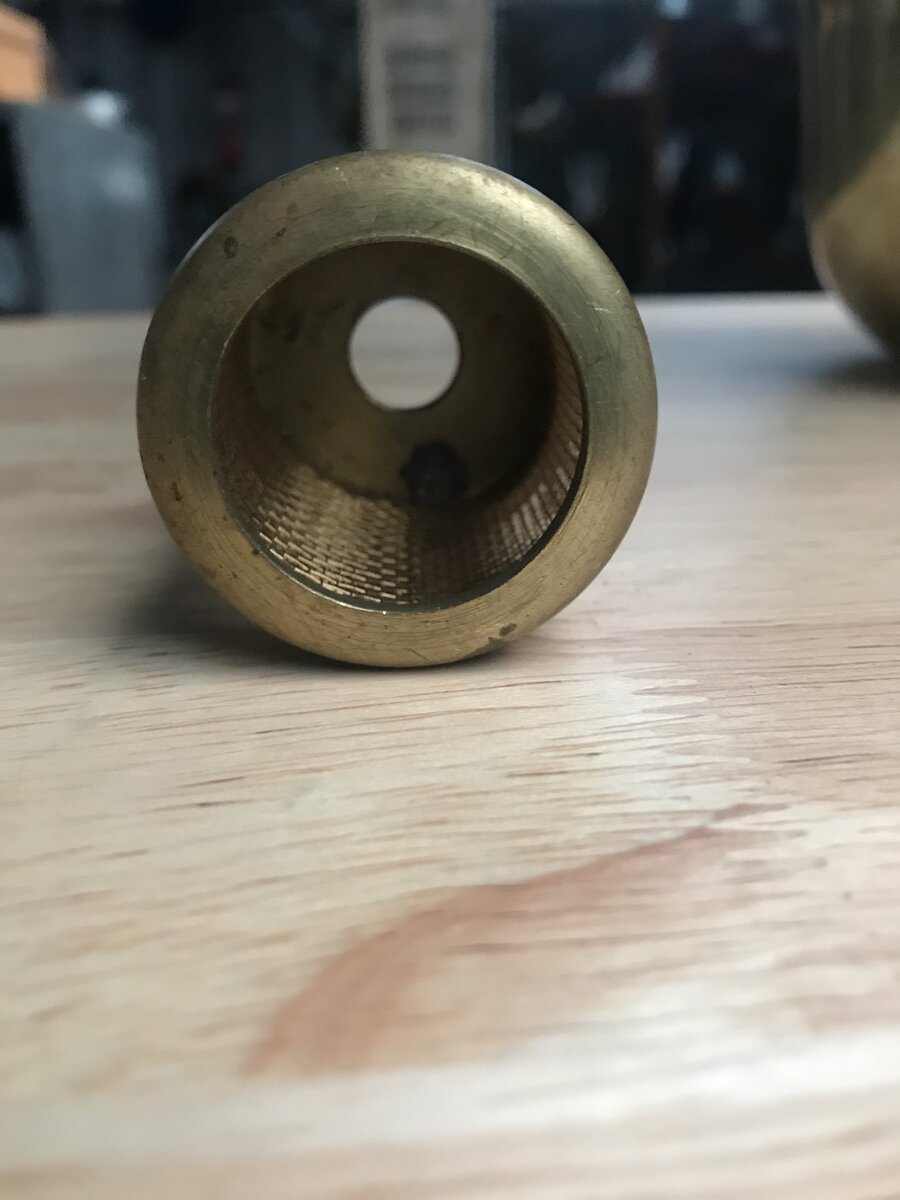

    @David Shouksmith I used this shape to imitate the shape of the steel mesh mantles. I never dawned on me to make a cylindrical mantle. Yesterday I saw someone else had manufactured a cylindrical mantle using wire mesh. Looked neat.
    @paul m The steam traps wouldn't fit in the existing preheat chimney and might be too large to heat to cherry red.

  11. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    7,025
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia

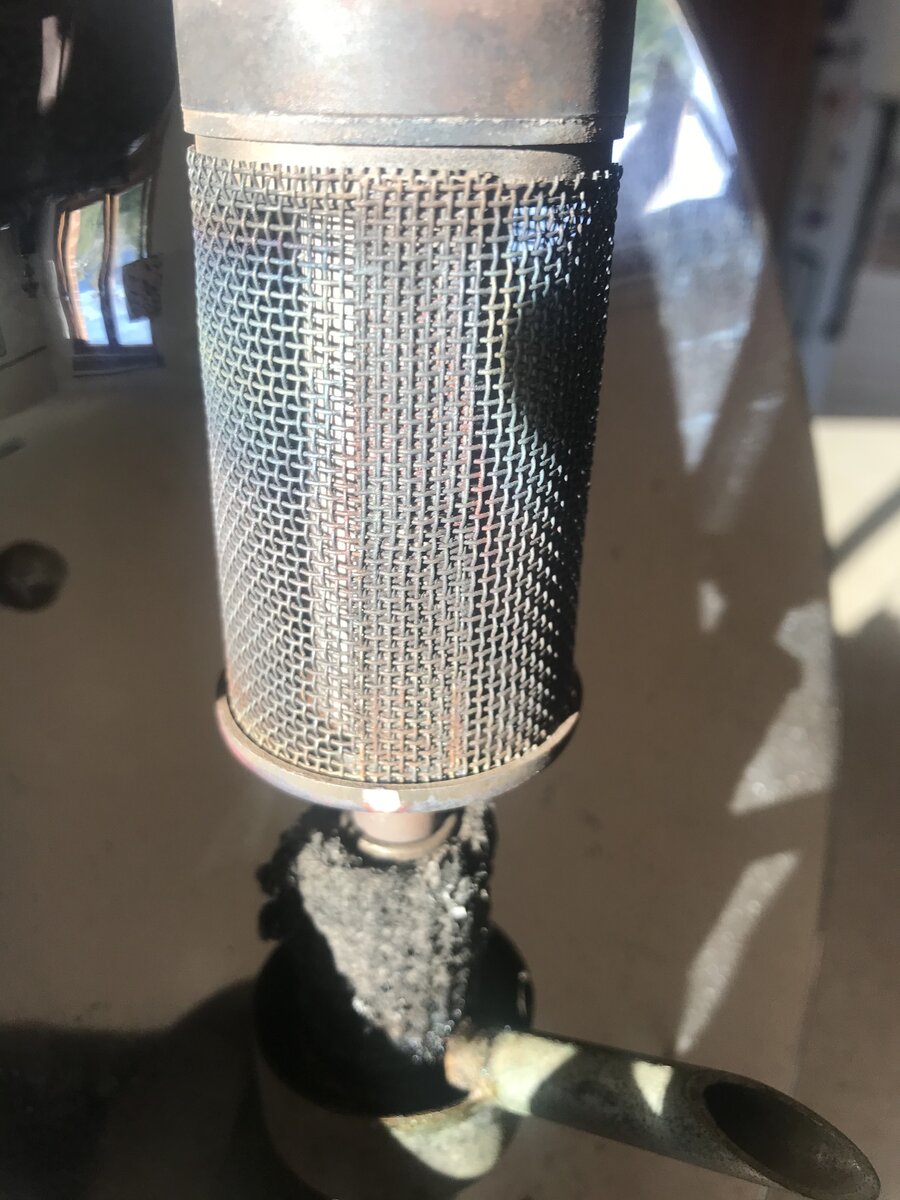

    From this thread:

    https://classicpressurelamps.com/threads/fabricated-tilley-r1-mantle.16151/#post-125710



    Don’t get me wrong, @goldwinger11. I really like your mantle.


    Cheers

    Tony

  12. goldwinger11

    goldwinger11 Subscriber

    Offline
    Joined:
    Oct 9, 2017
    Messages:
    179
    Location:
    Merlin, Oregon, USA
    @Tony Press thanks for the compliment. I like the idea of experimenting with different mantles.
    The references help a lot

  13. goldwinger11

    goldwinger11 Subscriber

    Offline
    Joined:
    Oct 9, 2017
    Messages:
    179
    Location:
    Merlin, Oregon, USA
    Update: My homegrown metal mantle disintegrated today. It took 14 months to give up the ghost. The metal became brittle where the flames were almost touching the metal. Next I’ll try making a cylindrical one.
