  1. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    1,779
    Location:
    Brighton UK
    So after getting new lower parts of a R1 burner, we went for a second fire up post vapouriser clean. This vapoursier works perfectly in my FL6. The heater worked well but still has an bit of flaring. The last photo does show a small leak on the top pillar, which explains the fuel smell. This I can solder. It was running at full pressure (according to the indicator/pip)

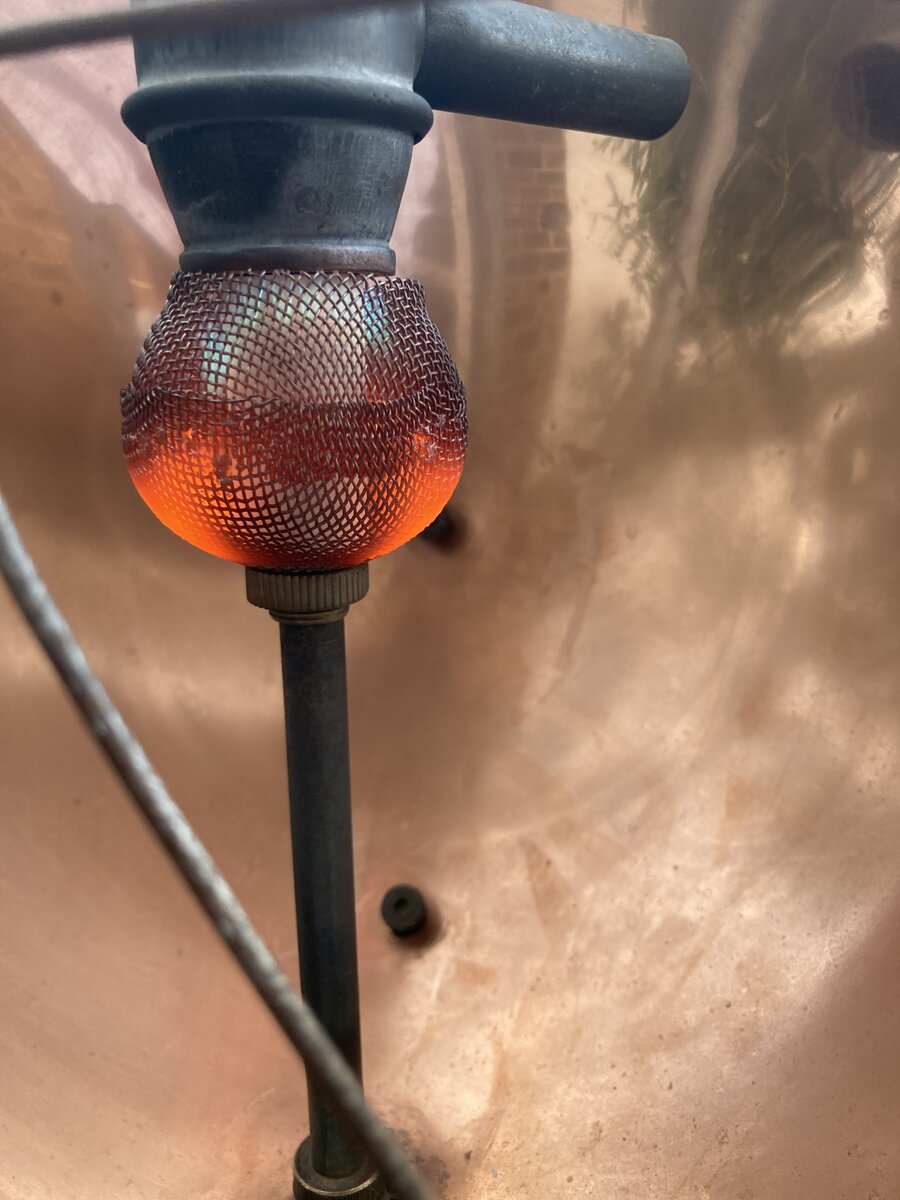

    I can also see that the ring of "flamelets" is a bit uneven (pic 3). I have seen that it is possible to have the air flowing directly into the centre of the burner, or the centre can rotate to make the air go round 90 degrees. Which is correct or is it immaterial ?
    Chris
    R1a.jpg R1b.jpg R1c.jpg R1d.jpg

  2. podbros

    podbros United Kingdom Subscriber

    Offline
    Joined:
    Dec 27, 2015
    Messages:
    2,154
    Location:
    ..here
    Hi Chris
    Sometimes less pressure can help with the extended flamelets

    A silly question but are any parts of the burner loose at all?

    You may want to test run it when dark or in a dark place/garage type space to check the burner isn’t getting too hot/starting to glow?

    another thought.. does the mantle have any holes in the mesh? Some do or used to have them?

  3. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    1,779
    Location:
    Brighton UK
    Hi Pb
    The bottom "skirt" spins, and the centre will rotate. I am not sure if it is supposed to do that to allow the mantle suport to be screwed in with burner grid attached to the support.
    I had to put a rod down the air intake to lock it in place in order to do up the mantle support. The first test was in the dark and yes the lower pressure helped the flamelets and no the burner did not glow. The mesh is brand new and has two little holes. I did clean the inside of the burner as best I could but it seems to be non-dismountable.
    This is my first Tilley heater and I have nothing to compare it to.

    r1 1st light.jpeg

  4. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,149
    Location:
    North Yorkshire
    If you really want to dismantle the burner, work your way around the join with a small screwdriver and open-up the crimp a little at a time until the parts can be separated. Areas where the folded-over join is loose can be tightened-up by tapping gently with a small cross pien hammer.

  5. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    1,779
    Location:
    Brighton UK
    Thanks Henry - I might save that joy for a time when I have more time :) My suspicions are going to turn back to the vapouriser after some soldering I think as everything else seems OK

  6. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    1,779
    Location:
    Brighton UK
    So winter is upon us in the UK and so attention returned to this little beast...
    After a bit of a soldering disaster (small torch too small, large torch far too big) I found a replacement fount. Still has some slight flaring and does not like full pressure so now after a better vapouriser. Cat bemused by it all..




  7. bp4willi

    bp4willi Germany Subscriber

    Offline
    Joined:
    Jan 21, 2014
    Messages:
    967
    Location:
    Niers, Germany
    Ahh, cosy

  8. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    2,133
    Location:
    Scottish Highlands
    @Fireexit1

    Looks toasty! Cats? They’re all heat thieves!

  9. Alenstein Poland

    Offline
    Joined:
    Oct 3, 2019
    Messages:
    151
    Location:
    Ełk
    So eventually is working, I like this warm wave from R1...

  10. bigyin

    bigyin Subscriber

    Offline
    Joined:
    Feb 24, 2011
    Messages:
    30
    Location:
    Whitecross, Scotland
    Very nice! I had an early R1 and they're a good little heater. The nice glow cheers a room up in winter too.

  11. Fireexit1

    Fireexit1 United Kingdom Subscriber

    Offline
    Joined:
    Jun 13, 2020
    Messages:
    1,779
    Location:
    Brighton UK
    Well after all that it was the vapouriser. New one fitted and now it works well, here it is at full pressure (according to the pip)



  12. rayw

    rayw United Kingdom Subscriber

    Offline
    Joined:
    Sep 13, 2020
    Messages:
    384
    Location:
    North Yorkshire
    That is one of the best I've seen, it is hot all over the gauze

  13. Buggerlugs

    Buggerlugs Australia Subscriber

    Offline
    Joined:
    Apr 4, 2020
    Messages:
    1,446
    Location:
    Australia Melbourne
    Very nice a great result in the end, looks awesome indeed.
