Tilley SDR, Dutch Rijkswaterstaat (RWS).

Discussion in 'SDR' started by Darryl Durdin, Jan 14, 2021.

  1. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    896
    Location:
    Whyalla. South Australia. Australia
    How cool is this 20210114_115915.jpg
    Duck egg colour, has reflector on the globe

  2. Brenneman

    Brenneman Netherlands Subscriber

    Offline
    Joined:
    Nov 11, 2018
    Messages:
    62
    Location:
    The Netherlands
    Nice!

    Is this the one that was recently sold on eBay?

  3. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    1,711
    Location:
    North Yorkshire
    VERY ! :thumbup: :D/ :clap:

  4. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    896
    Location:
    Whyalla. South Australia. Australia
    Yes it is, ive been after one ever since i saw one.

  5. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,988
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Nice lantern, Darryl.

    Are you going to give us some more detailed photos of this beauty?

    Cheers

    Tony

  6. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    896
    Location:
    Whyalla. South Australia. Australia
    Yes i will

  7. george United States

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    2,868
    Location:
    USA
    Nice going Darryl! Good for you! These are a really good looking Tilley!:D/:thumbup::thumbup:

  8. BigStevie

    BigStevie United Kingdom Subscriber

    Offline
    Joined:
    Dec 5, 2018
    Messages:
    1,754
    Location:
    Scottish Highlands
    How cool? Very cool! Well done Darryl.

  9. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    11,120
    Location:
    Shetland Islands UK..
    A fine addition to your collection.:thumbup:

  10. Walkop Australia

    Offline
    Joined:
    Aug 28, 2020
    Messages:
    198
    Location:
    Bathurst, Australia
    Never knew what colour duck's eggs are, now I know.

    Cool looking lantern and looks to be a good runner.

  11. LatMag49

    LatMag49 Germany Subscriber

    Offline
    Joined:
    Aug 31, 2017
    Messages:
    181
    Location:
    Germany
    @Darryl Durdin Congrats on this purchase.
    I was watching the auction, many were interested,
    but you won.
    A question: what does SDR mean?

    Matthias

  12. James

    James Subscriber

    Offline
    Joined:
    Jan 5, 2011
    Messages:
    1,100
    Not sure anyone knows for certain. It has been speculated that it stands for Short Double Reflector.

  13. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    2,211
    Side Deflecting Reflector, I always thought.

  14. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,396
    Location:
    Hertfordshire
    Tilley also listed an LDR lantern although as far as I know no one has ever found one. We assumed the L and S were Long and Short but maybe as simple as Large and Small? We know they prototyped a 6 pint tank type which I have seen and that is certainly Large. The SDR does have two reflectors so D for Double is possible but could perhaps be Directional. The R, Reflector seems likely but Tilley also used an R for BR49 type lanterns. Could it be originally have been a Railroad contract design? Truth is we really don't know. ::Neil::

  15. WimVe

    WimVe Subscriber

    Offline
    Joined:
    Aug 3, 2011
    Messages:
    2,211
    Small Double Reflector ?

  16. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    896
    Location:
    Whyalla. South Australia. Australia
    This is my Rijkswaterstaat Tilley.
    As original as i could, gave it a warm soapy bath to get the grime etc off, have not polished anything, the reflector coating is delicate as is the duck egg paint job.

    It is similar to the x246, font only the frame support legs screw into the font like the early pork pie, the air intake is improved on than the original SDR. It was an easy fettle, as all it needed was a new 606 vaporisor and new seals all around, pump cup.

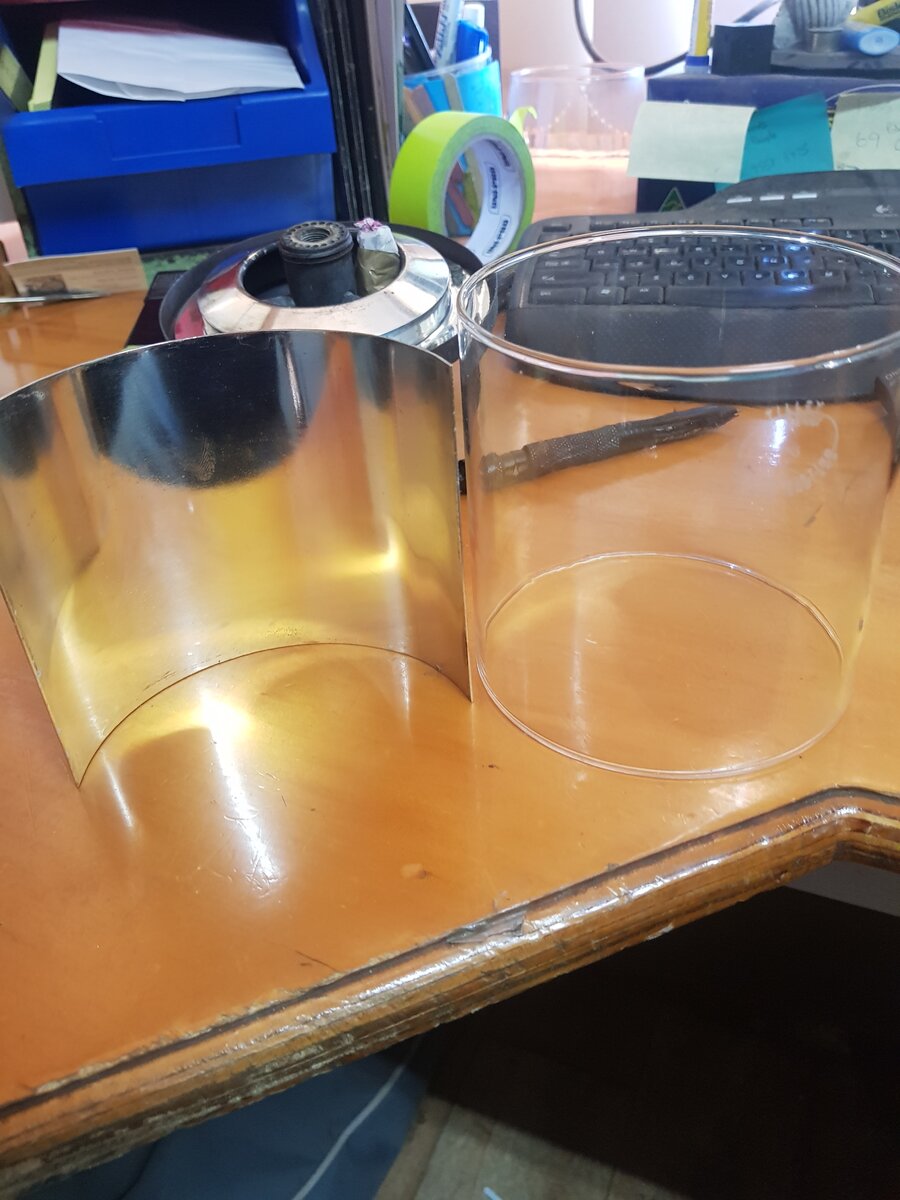

    It has a reflector that is the same arc as the globe and is about 1/3 of the circumfrence. It is removable.
    The air intake is more improved as from what i had read about the SDR was lacking and fellas had improved the air intake by putting in spacer washes. The Rijkswaterstaat has purpose made spacers , a hex shape around 12mm by 1.5mm thick that fitted snug inside the burner lid.

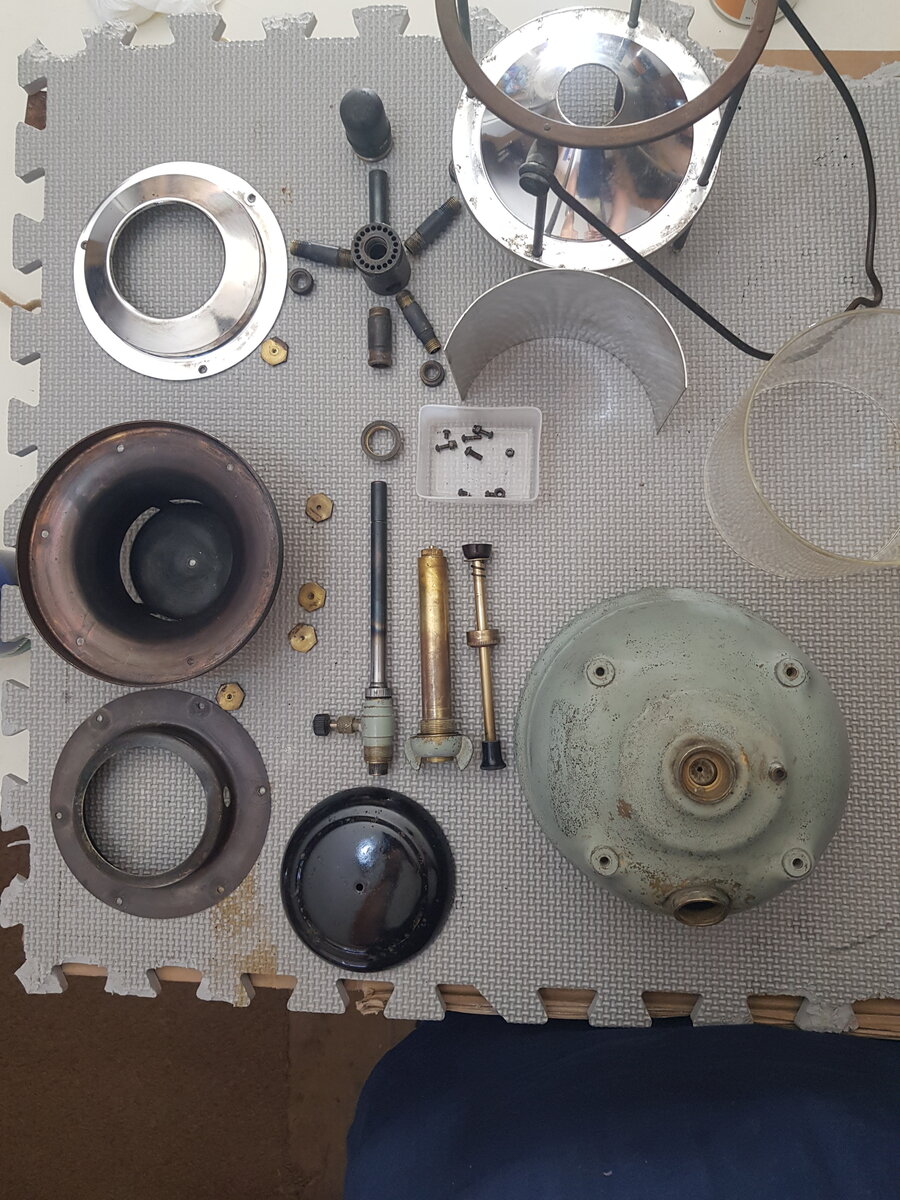

    I broke it all down cleaned it and layed it all out to show. 20210121_083655.jpg

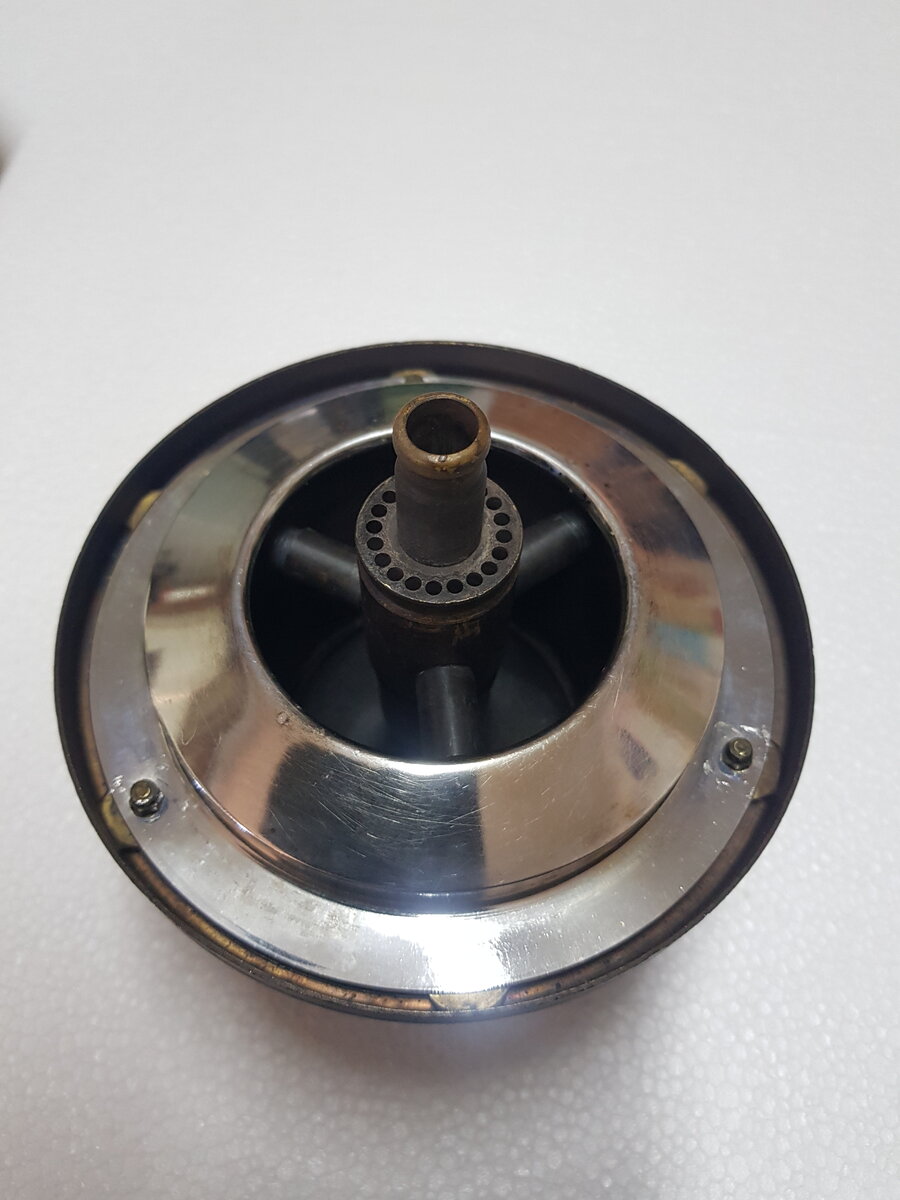

    The burner head assembly.
    Showing the small screws that held the hood to the burner with 3 of the spacers
    20210121_093301.jpg 20210121_092633.jpg
    The reflector is held on screw throgh the lid, burner, spacer then reflectot, 3 places
    All done.
    The frame screwed to the font easily, the cock valve also paited duck egg.

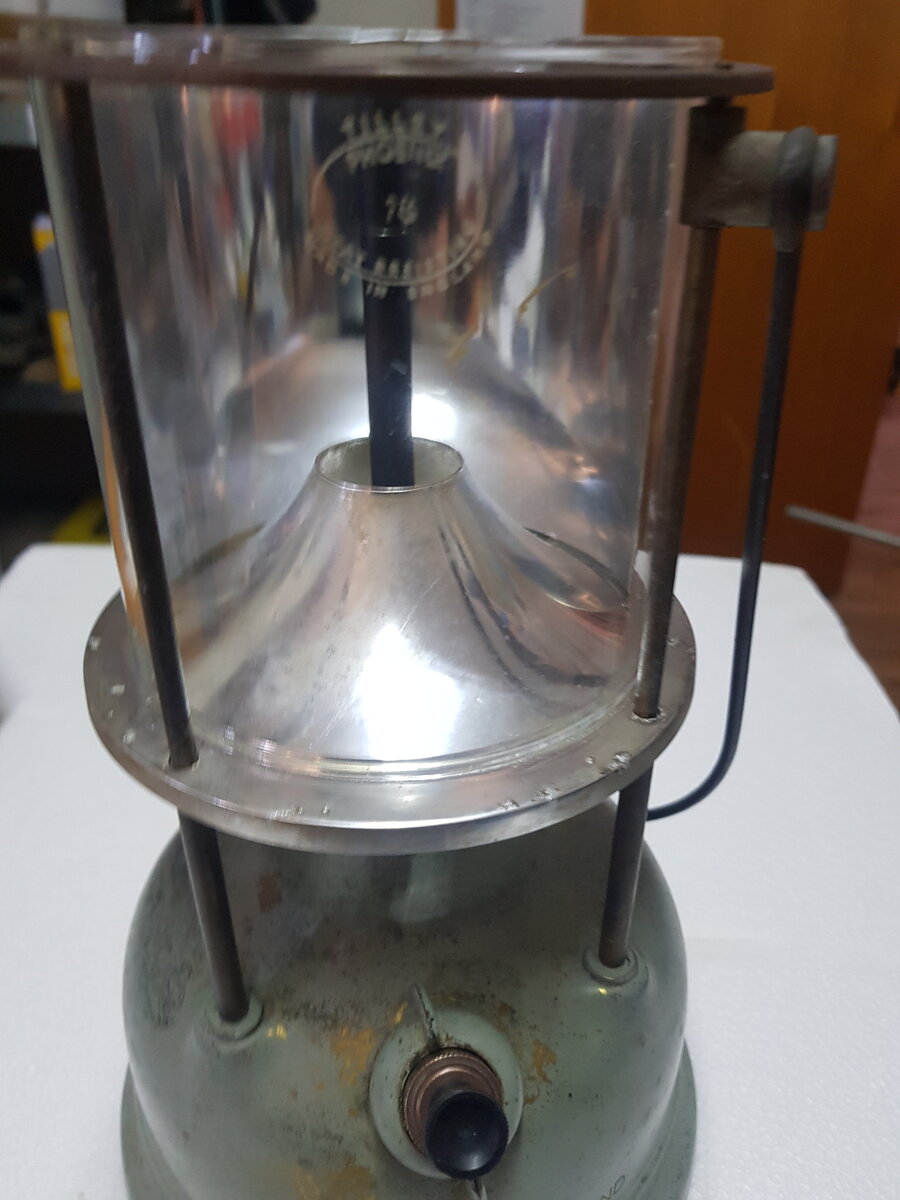

    The globe with the reflector
    The re assembled lantern
    And now the money shot.
    It fired up easily
    View from behind the reflector.
    Very cool very pleased.
    I hope you all enjoy such unique lantern as much as i do.
    PS. I know nothing about its history.
    Its the first time its been alight in donkeys years.


    Attached Files:

  17. paparazi

    Offline
    Joined:
    Oct 23, 2016
    Messages:
    404
    Location:
    Nottingham UK
    Seems like a lot of us were following this Darryl, nice that it went to one of our members.
    Martin

  18. Buggerlugs

    Buggerlugs Australia Subscriber

    Offline
    Joined:
    Apr 4, 2020
    Messages:
    992
    Location:
    Australia Melbourne
    Wow very interesting stuff well fettled mate congratulations.

  19. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,988
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
  20. Graham P

    Graham P Australia Subscriber

    Offline
    Joined:
    Mar 3, 2012
    Messages:
    902
    Location:
    Albury area NSW AUstralia

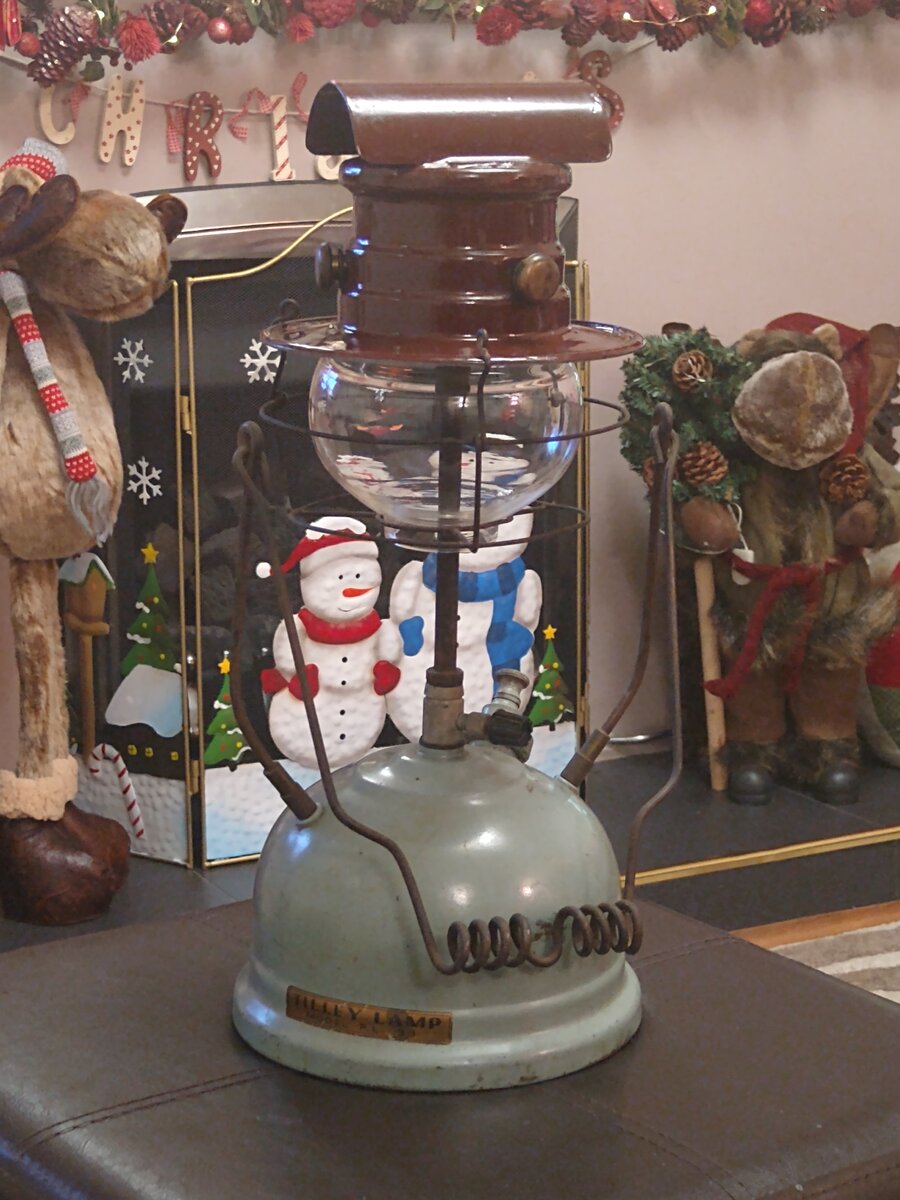

    The shade of Blue on tank I think could be be of Air force origin.

  21. paparazi

    Offline
    Joined:
    Oct 23, 2016
    Messages:
    404
    Location:
    Nottingham UK
    The same colour me thinks..I've not seen it on anything else?

  22. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    1,711
    Location:
    North Yorkshire
    Wow. That's one very smart lantern. Well done.
