Tilley TL10 and project Tilley 53?

Discussion in 'Lamp Action Gallery' started by Lampost1, Mar 21, 2018.

  1. Lampost1 United Kingdom

    Offline
    Joined:
    Dec 8, 2016
    Messages:
    30
    Location:
    Isle of Lewis, Scotland

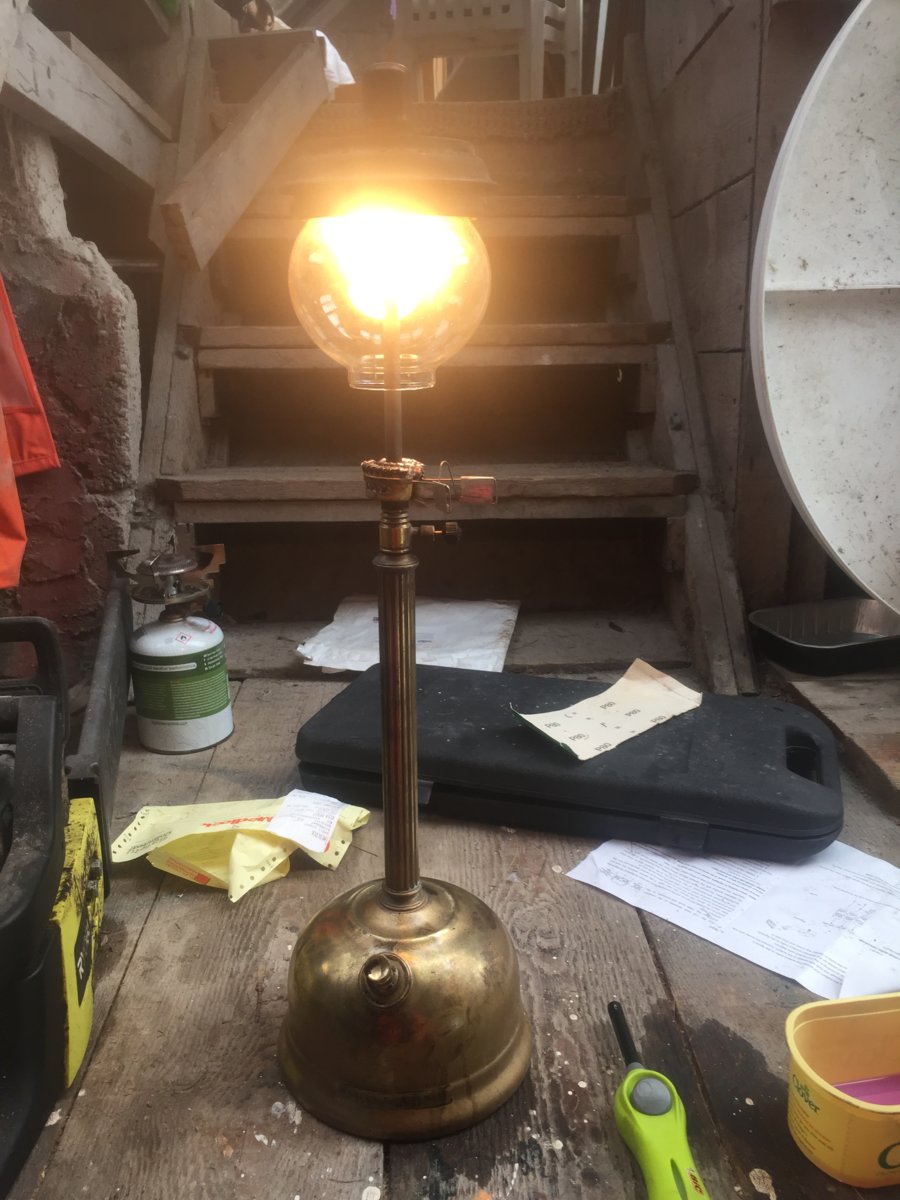

    Got the old girl working after 40 odd years sitting idle in my grandfathers and then my dad’s garage. That was the first lamp I’ve repaired. I’m hooked.

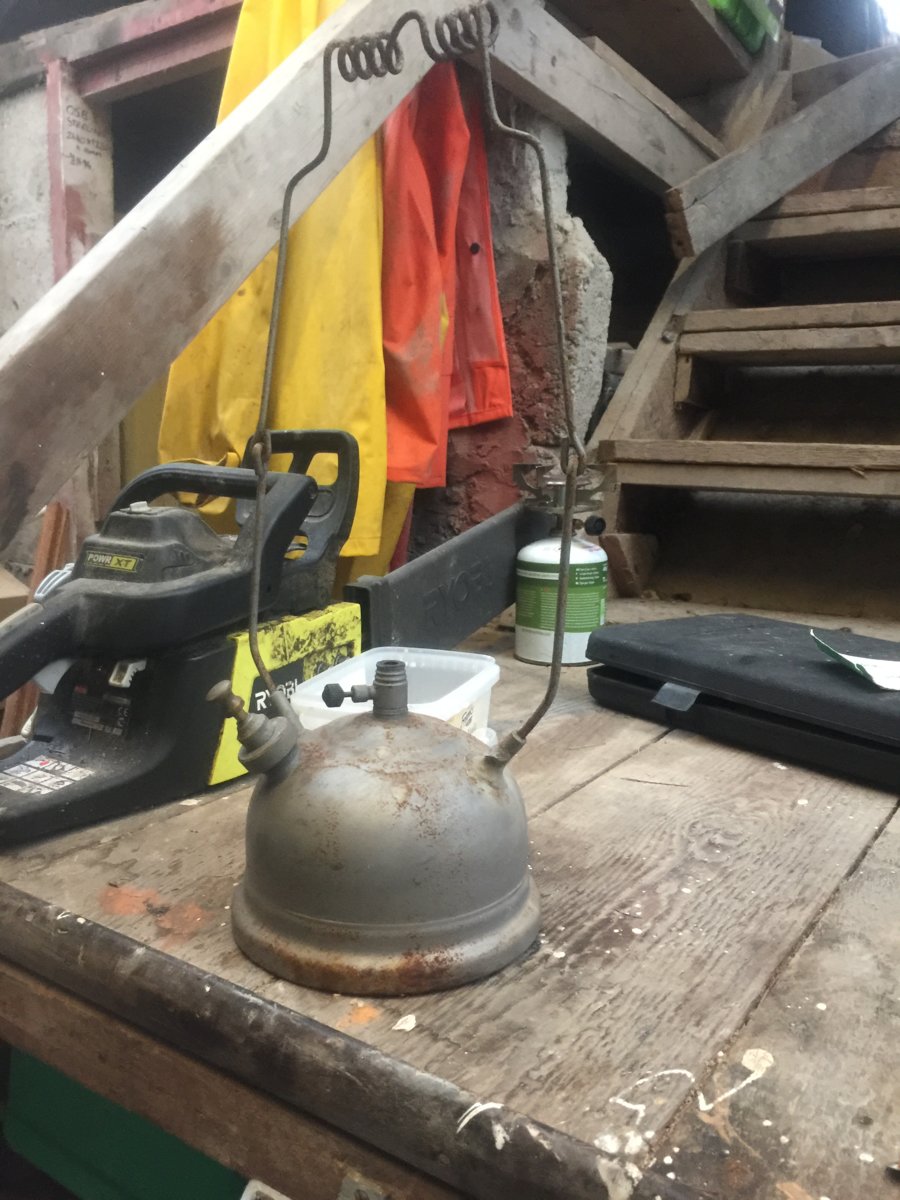

    Onto what I think is a Tilley PL53 (correct me if I’m wrong) with a Steel tank and no pressure pip. Lots of parts missing and beyond economic repair but I like it and it’s been in the family since new.


  2. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    303
    Location:
    Mt. Airy, USA
    If it's a steel tank then it's probaby 1943 (my birth year)!:whistle:
    Any PL53 is a great lantern as far as I'm concerned!
    Good luck, love to see it when you finish with it.:D/
    I think I have four of these now, and one PL55!:mrgreen:

  3. KAB

    KAB United Kingdom Subscriber

    Offline
    Joined:
    Mar 27, 2016
    Messages:
    231
    Location:
    South East England
    TL10 .... well fettled and burning bright.
    PL53 .... The base for a fine lamp, slightly rarer being steel. You’ll need a 169 vaporiser, hood, burner, globe and cage. All appear on the auction sites from time to time, used or new.

  4. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    6,603
    Location:
    Shetland Islands UK..
    Happy fettling!:thumbup::thumbup:

  5. Lampost1 United Kingdom

    Offline
    Joined:
    Dec 8, 2016
    Messages:
    30
    Location:
    Isle of Lewis, Scotland
    80476901-A013-4900-ACDC-ED8C5CEFDEDD.jpeg Hi George.

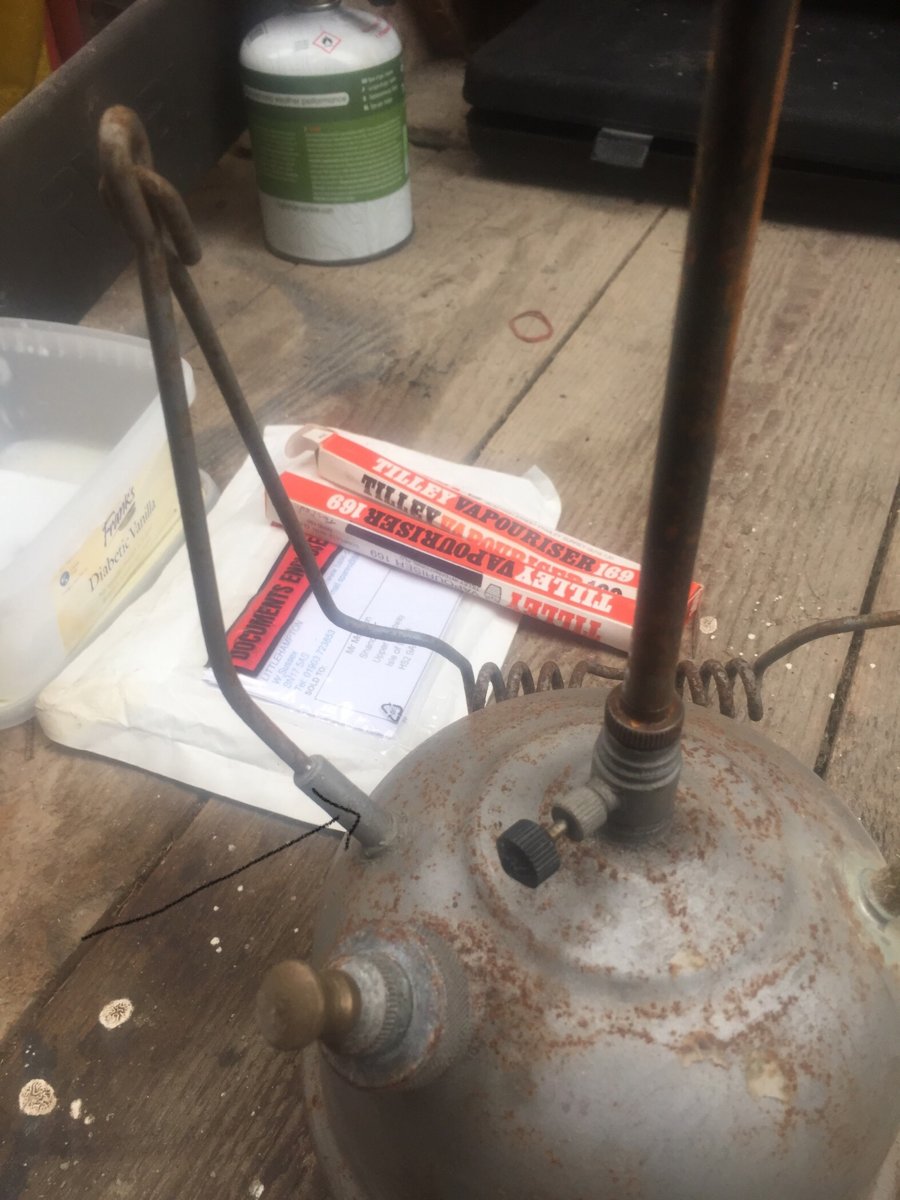

    Looking for a for a bit of help. Is the bottom of the handle threaded into the tank? One of mine is turning so do I need to solder it?

    I can’t see how to get the handle off without heating it and bending “hinge” at the top of the arm

  6. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    5,912
    Location:
    Great Lumley - cultural capital of N.E. England
    Yes, you turn the collars which are screwed onto threaded studs on the tank. The three parts of the handle then come off as one assembly.

    No, you could shorten the screwed collar by grinding off a millimetre or so from the bottom or, effectively, lengthen the tank stud by adding a small shim. You'll see what I mean when you get them unscrewed.

  7. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    303
    Location:
    Mt. Airy, USA
    Hi lampost1
    David's right. Follow his suggestions, you won't go wrong.:content:
    I don't have a steel one. Got to keep looking. This is the only lantern type my wife says she can't smell! I think she loves the style, too!:D

  8. Lampost1 United Kingdom

    Offline
    Joined:
    Dec 8, 2016
    Messages:
    30
    Location:
    Isle of Lewis, Scotland

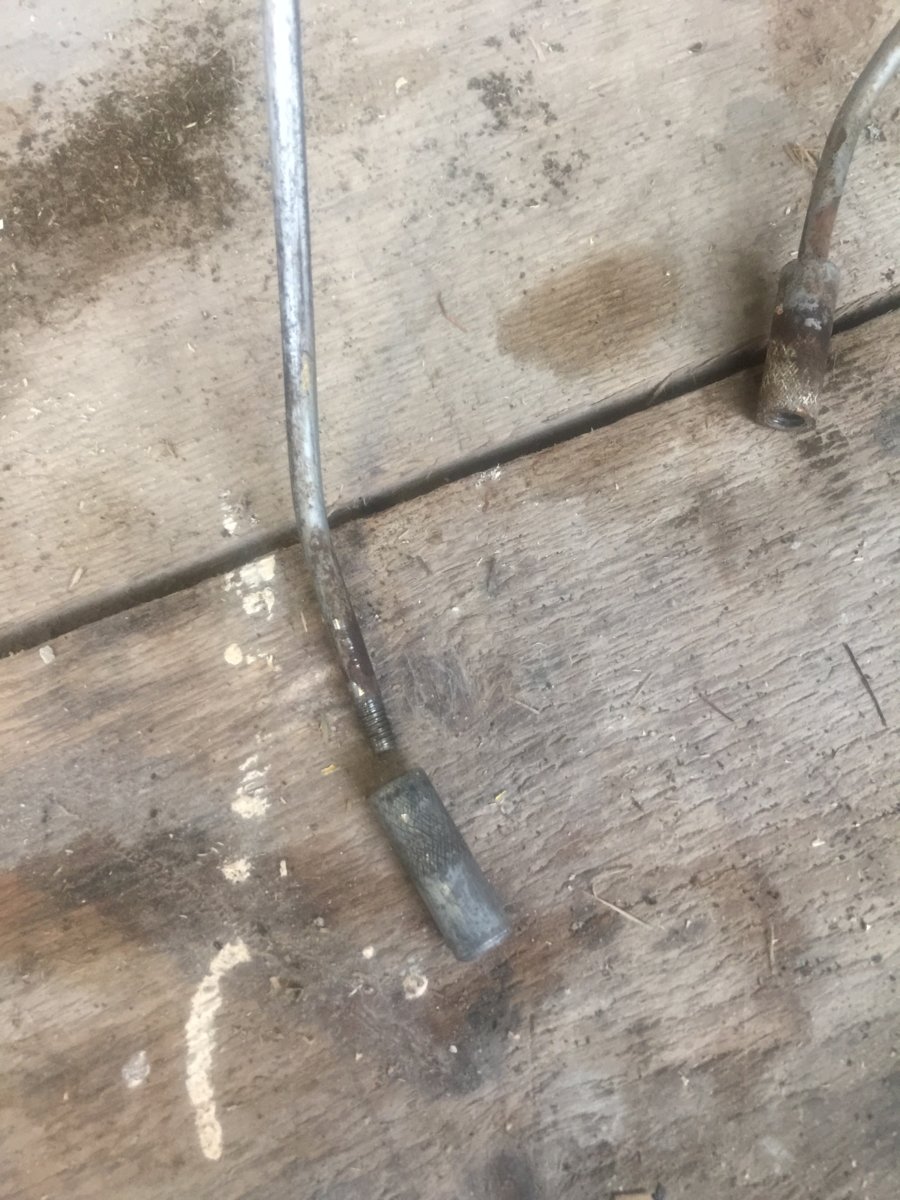

    Thanks for that. It’s been painted several times in the past and covered with putty of some kind so I thought I’d play it safe and ask first before destroying. Both the handle shaft and the collar are threaded making it awkward to get off but success at last.

  9. ROBBO55

    ROBBO55 Australia Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    714
    Location:
    Somersby, New South Wales, Australia
    Congratulations lampost the TL10 looks good and with a bit of searching the parts are available to get the PL running again. :thumbup:

  10. phaedrus42

    phaedrus42 South Africa Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    1,391
    Location:
    Somerset West, near Cape Town, South Africa
    If @paul m or other members here do not have the PL53 parts for you, Juliands has all the parts to complete it.

  11. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    232
    Location:
    Toowoomba Queensland Australia
    Well done on the table lamp, always good on the first light.
    Good luck with the PL53, she’s a grand olde lady.
    Cheers
    Peter

  12. Lampost1 United Kingdom

    Offline
    Joined:
    Dec 8, 2016
    Messages:
    30
    Location:
    Isle of Lewis, Scotland

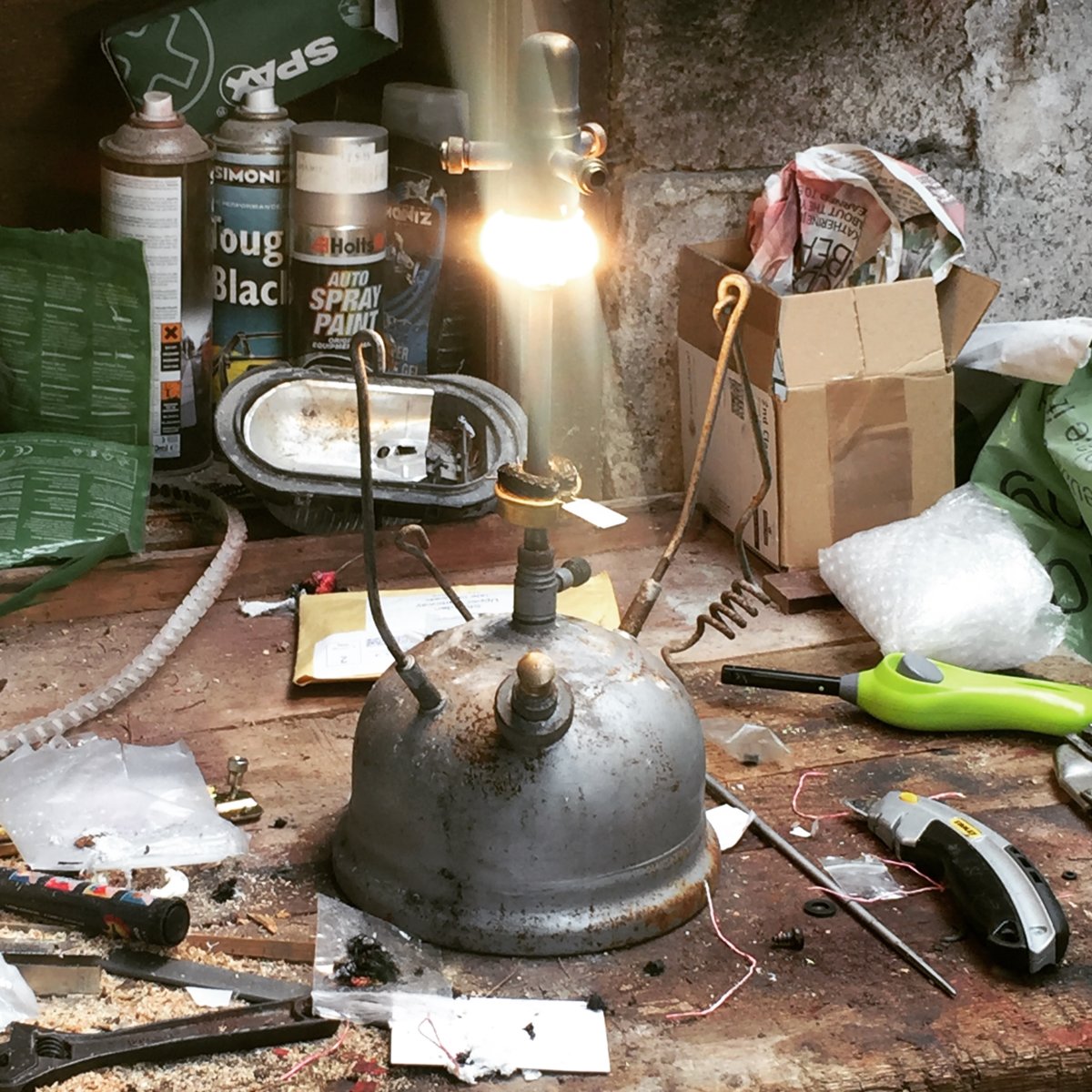

    Got her burning nice and bright today on the first try. Only problem was the steel filter in the cock was choked. Now just to get a cage, hood, glass, some air buttons and a lick of paint.

  13. ROBBO55

    ROBBO55 Australia Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    714
    Location:
    Somersby, New South Wales, Australia
  14. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    6,603
    Location:
    Shetland Islands UK..
    It's progressing!:thumbup:
