Tilley TL10 and R1 radiator

Discussion in 'Fettling Forum' started by Lampost1, Nov 29, 2019.

  1. Lampost1

    Offline
    Joined:
    Dec 8, 2016
    Messages:
    33
    Location:
    Isle of Lewis, Scotland
    24115357-CCEE-4626-A6B7-41209D12061C.jpeg 1142DD46-034D-41A6-A96D-76A012029E9E.jpeg 921C9B7D-DEDE-42BB-B26C-4283C76EE4B6.jpeg

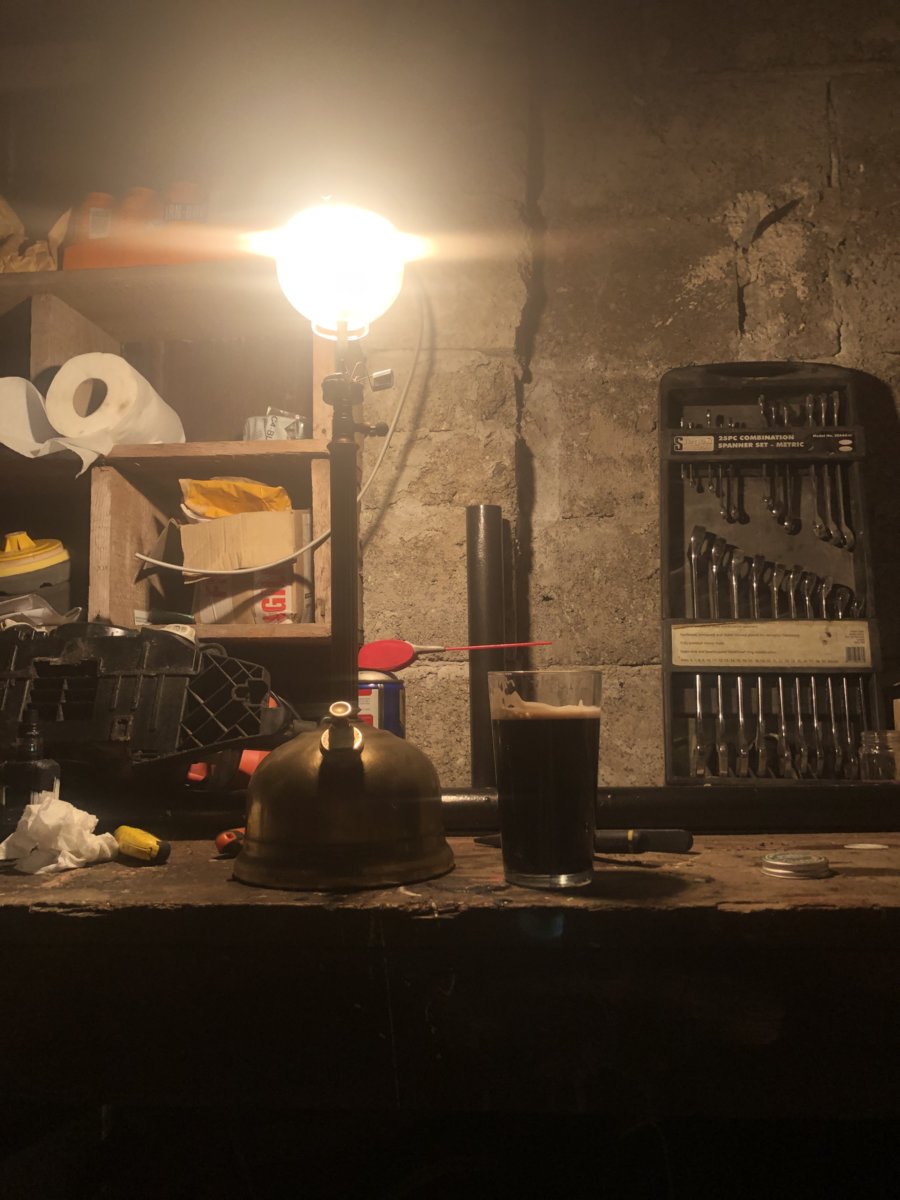

    It’s been a wee while since I’ve been here but my dad came over tonight with his TL10 as it needed a little fettle. So I got that going and then he presented me with the R1 radiator he found in the barn.

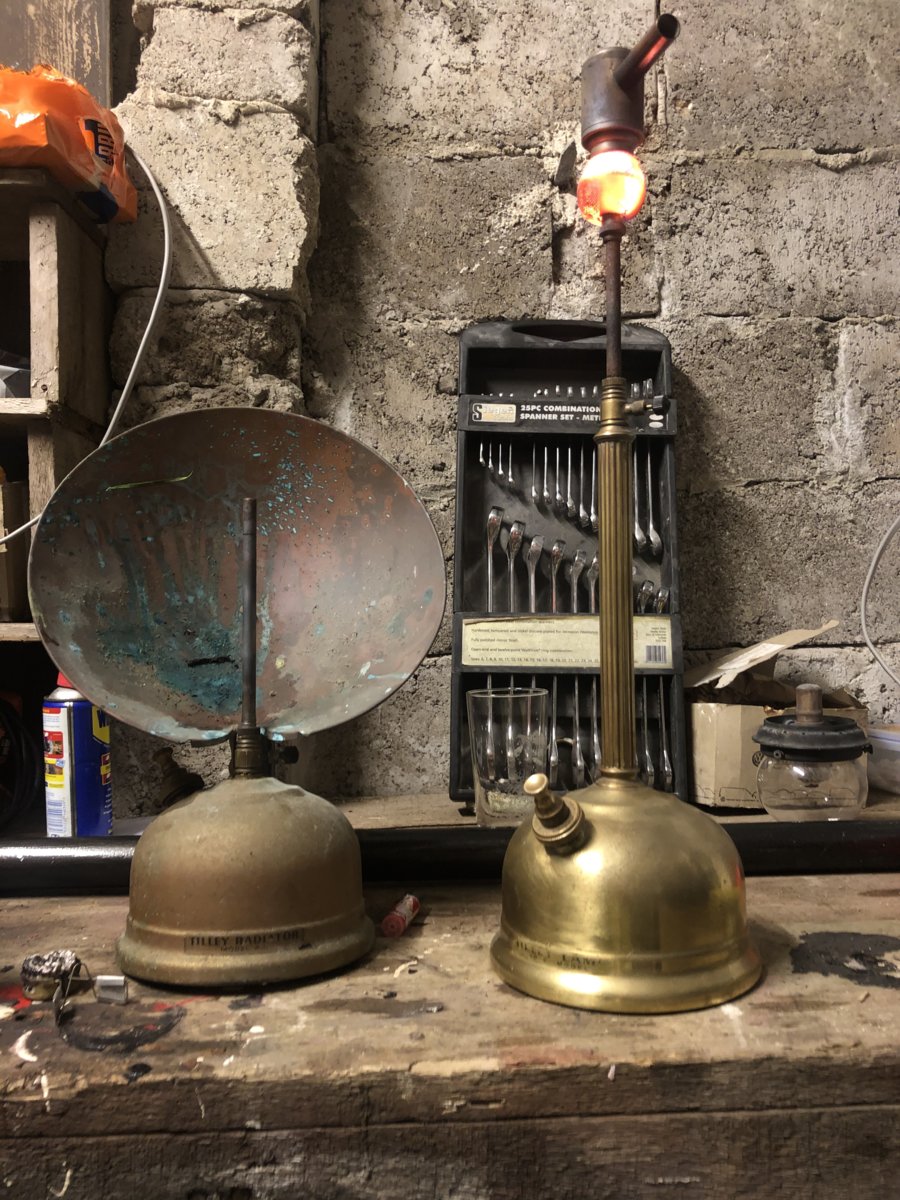

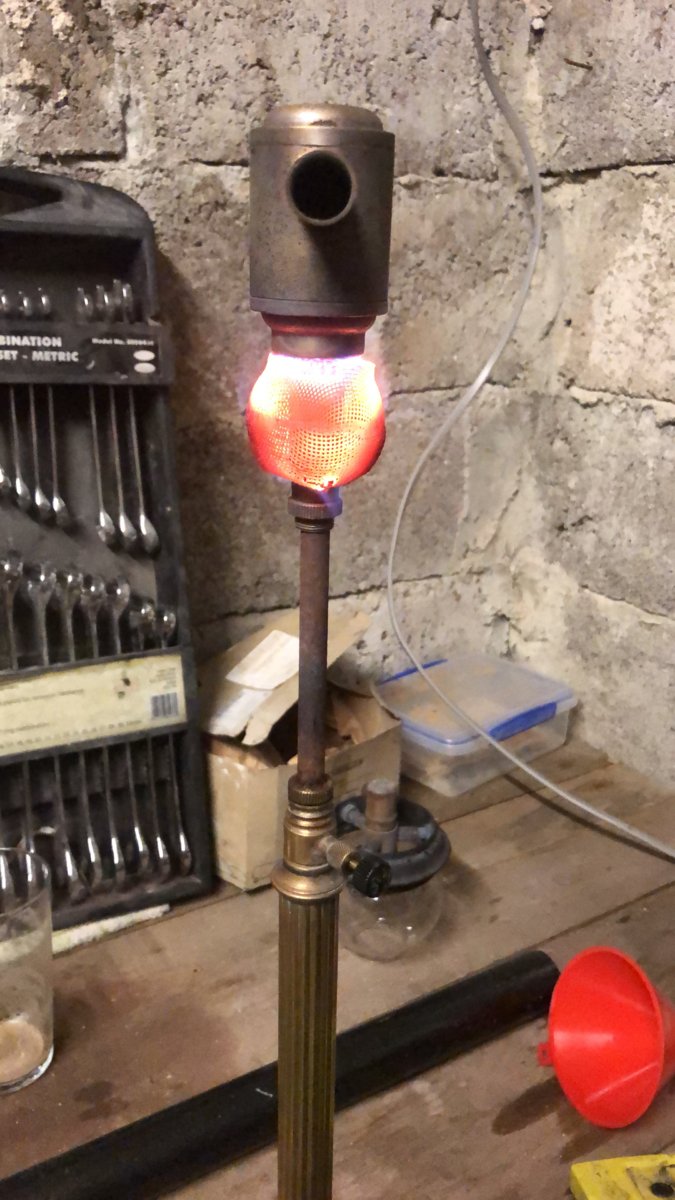

    Rather than test a potentially dirty tank with foul smelling paraffin, I transferred the pump, burner assembly and vaporiser over to the lamp. Looks like it’s all good.

    There are a couple of black spots on the stainless mantle so maybe it could do with a new one. I’m not very clued up on heater burners. Other than that delighted. Just need to get a guard for it and a wee bit of spit and polish.

    Last edited by a moderator: Nov 30, 2019
  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    8,748
    Location:
    Shetland Islands UK..
    The lamp is working well and the black spots on the radiator mantle will probably burn off with use.

  3. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,652
    Location:
    North-East England
    Yes, Jeff - the black spots will eventually burn away. I'm always surprised how long it takes given it's only a bit of carbon that needs to be burned off and the temperatures around there. So I imagine it's more to do with a lack of oxygen - it must be pretty anoxic on the surface of the mantle...

  4. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    1,388
    Location:
    N E Scotland
    These guards are almost always missing from Tilley radiators but probably not that hard to make.

  5. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    1,486
    Location:
    Toowoomba Australia
    Not so long ago, “Juliands “ from the bay of evil was selling stainless steel reproduction guards. I was able to get one and they’re pretty good.
    Cheers
    Pete

  6. Lampost1

    Offline
    Joined:
    Dec 8, 2016
    Messages:
    33
    Location:
    Isle of Lewis, Scotland

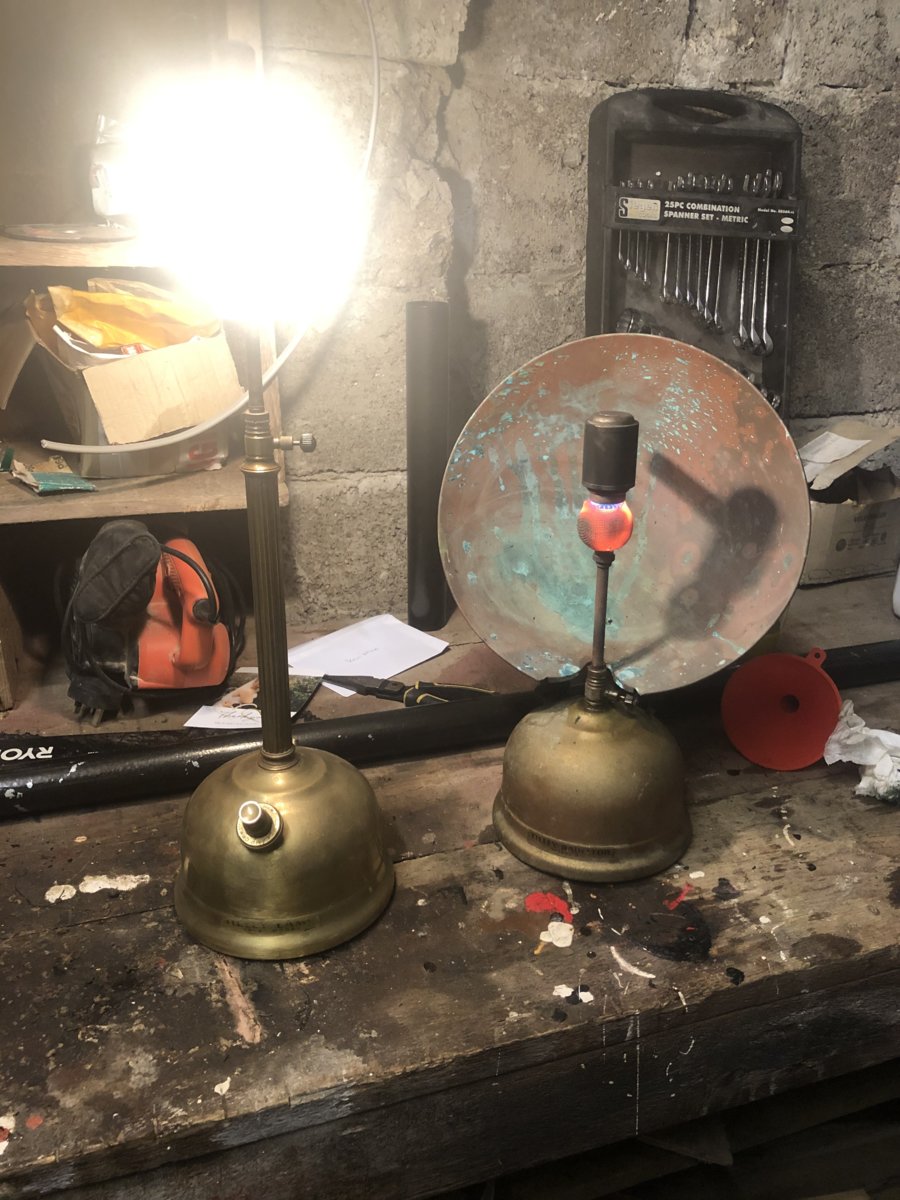

    So I got the heater going with no problems. The tank seemed surprisingly clean.

    I’m missing one of the nuts that fix the reflector to the handle. It’s the same nut as you find on a lamp gallery ”spring pin” but I’m sure one will turn up eventually.

    I’ve just ordered some new seals as the gland seal is leaking on the heaters valve and the valve rubber on the lamp has disintegrated after only a year...

    6417ABA9-752B-4E66-B3F0-E5A707399F70.jpeg 99D8DC46-AD7C-4DDE-9E26-0F456A1C0104.jpeg 84271486-480B-4A19-B14D-B895CE50A201.jpeg

  7. Tony Press

    Tony Press Australia Subscriber

    Online
    Joined:
    Aug 28, 2012
    Messages:
    4,859
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Those nuts are available on the Bay of Evil.

    Cheers

    Tony

  8. Jean J

    Jean J Subscriber

    Offline
    Joined:
    Jun 25, 2011
    Messages:
    1,388
    Location:
    N E Scotland
    Or I can send you one from bonnie Aberdeenshire.
