Tilley TL10 burner replacement

Discussion in 'Fettling Forum' started by phaedrus42, May 15, 2017.

  1. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    2,050

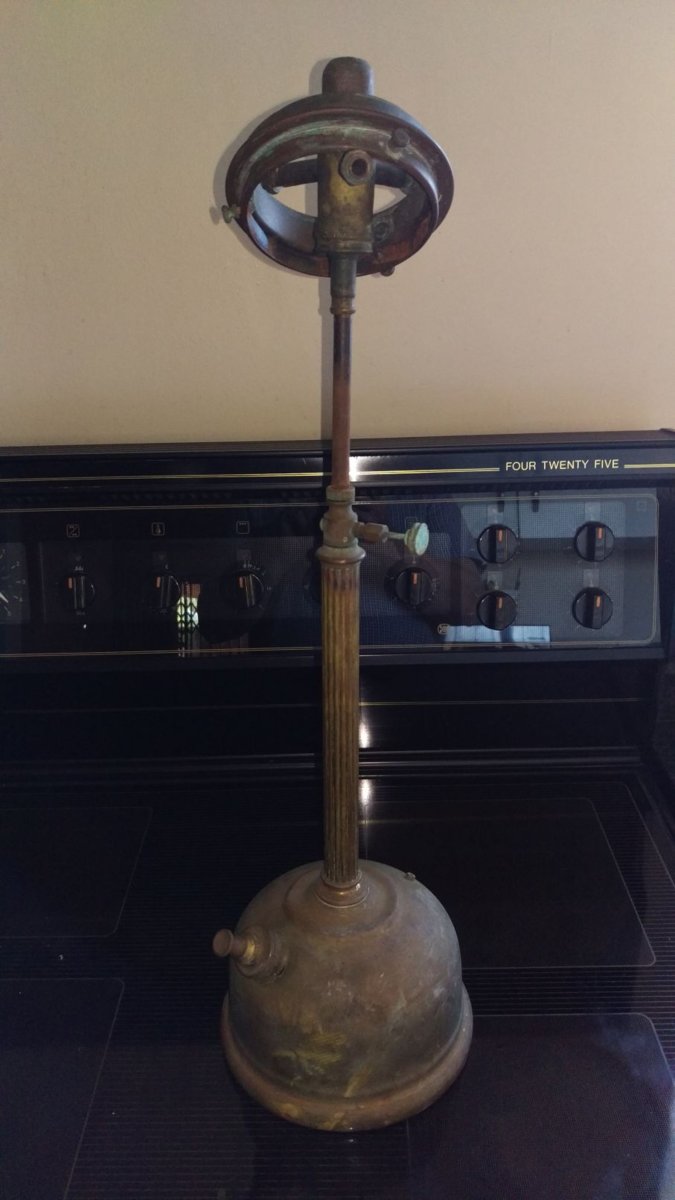

    I'm in the process of fettling a rather old TL10? table lamp. The control cock has a brass wheel and the gallery has internal springs. The burner has hexagonal bushes on the slightly angled air tubes. It is also slightly longer than the later burners. But it is completely worn out.

    Apart from period-correctness, what are the pros and cons of replacing the burner with the later type as found on the X246 Guardsman?

    tl10-1.jpg tl10-2.jpg

    Last edited: May 15, 2017
  2. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,594
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @phaedrus42

    I see no practical problems with that.

    I hope the gallery hold up....

    Have fun with this. I'm looking forward to the finished product.

    Cheers

    Tony

  3. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    2,050
    Thanks, Tony. I suppose what I really want to know is whether there is any difference in performance between the old style and later style burner.
    After cleaning, the gallery seems to be in fine shape although I will have to replace at least one of the spring steel strips. It took me three days to loosen the grub screw on the control cock wheel. Repeated heating&quenching and soaking in penetrating oil eventually freed it. :D/The packing on the control cock shaft was graphite and not the usual o-rings. In retrospect, I could probably have left the knob on:lol:

  4. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,594
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @phaedrus42

    I've had one of those larger Tilley burners (unusable: completely worn out) and a few of the older ones that have the taller dome.

    My experience is that it's difficult to notice any change in output between the different burners, except that caused by wear and tear.

    Cheers

    Tony

  5. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    15,013
    Location:
    Shetland Islands UK..
    That's a fine old Tilley which should restore well enough!:thumbup::thumbup:

  6. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    2,050
    Thanks, Tony and Jeff! Notice the little cloth filter sock on the control cock?:content:
    Am I correct in thinking this lamp was built during the 1920's?
    Also, what is the time line on this fount style vs the pork pie fount?
    Was this fount originally painted, lacquered or naked brass? It looks like the column was lacquered.

  7. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,594
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @phaedrus42

    The control cock will help date your lantern, as it was replaced with the more modern arrangement at some point (I think 1930s. The tank will help, also.

    Let me check a few references and I'll get back to you.

    Someone else here might know the answer off the top of their head.

    The pork pie tank is mid 1940s; the column was polished and lacquered.

    Cheers

    Tony

    Last edited: May 15, 2017
  8. Andrew T

    Offline
    Joined:
    Mar 1, 2016
    Messages:
    537
    Location:
    Port Elizabeth South Africa
    I have seen an electricuted one and the owner said it was originally painted. They won't let me have it.

  9. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,594
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @phaedrus42

    The TL10 was made from 1922 to about 1946 (when the pork pie tank came in).

    Niel McCrae identifies the fluted column on the second version of the TL10 in a 1938 catalogue. He also says there were three tank treatments: polished/lacquered; painted gold; and chromed.

    There's a post here somewhere about the change over of the control cock. I have a 1942 Tilley catalogue in the Reference Library that has your control cock crossed out and the new "improved" one illustrated.

    Cheers

    Tony

  10. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,594
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
  11. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    2,050
    That is great information, Tony! Thanks for looking it up. Hard to understand why Tilley "regressed" from this very elegant fount shape to the pork pie fount. The pork pies undoubtedly have a charm of their own but to my sensibilities not as aesthetically pleasing as the rounded shape.

    I'm leaning towards the polished/lacquered finish atm.

  12. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,594
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @phaedrus42

    Aahh... but the pork pie is almost indestructible...

    Cheers

    Tony

  13. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    3,698
    Location:
    Somersby, New South Wales, Australia
    @phaedrus42

    That style of XN control cock was pre 1934. The second XN went from 1935 - 40. But I can't find the post by Mackburner and i don't have the information in the correct format.

    Nice find

  14. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,594
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
  15. pete sav

    pete sav Founder Member

    Offline
    Joined:
    Sep 7, 2010
    Messages:
    1,016
    yes rob 1934 latest but last ones had Tilley lamp B stamped on the control wheel
    I think its 30s notice it has a screw opposite the control wheel so later type
    20s type has no back screw and a single button control wheel see one I posted in gallery from around 27-28
    nice lamp whatever age it is pork pies are tough but not as elegent
    cheers petr

  16. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    6,802
    Location:
    Hertfordshire
    That looks like one of the older fixed nozle burners. Not in great shape but also not common either. Might never work well again but perhaps worth keeping. ::Neil::


  17. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    2,050
    You are correct, Neil. Unfortunately this burner has a hole burned through on the side and the gas ports are very badly worn. But I'll pack it away safely as you suggest.
    The parts are cleaned now, so the only the polishing and reassembly remains to be done. I'll post the progress here.
    Thanks all for the input regarding age.

  18. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    3,698
    Location:
    Somersby, New South Wales, Australia
    Found it.


  19. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    2,050
    Well, I finally managed to get it all together tonight. The final hiccup was that I had to use the bushes from the modern burner because its air tubes are a little shorter than those of the old burner and the hexagonal bushes of the old burner are a few millimeters shorter than the knurled bushes of the new burner.



  20. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    3,698
    Location:
    Somersby, New South Wales, Australia
    Nice work. :clap::clap:

  21. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    9,594
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @phaedrus42

    Great to see it up and running!

    Will you put a complete set of photos in the Reference Gallery (including the old bits that aren't serviceable)?

    Nice job!

    Cheers

    Tony

  22. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    2,050
    Thanks, guys. With the Veritas globe I should probably use a 169 vaporiser. I'll take some more detail pics and put it in the Reference Gallery as you suggest, with a 182 globe fitted.

  23. jacov

    Offline
    Joined:
    Apr 21, 2017
    Messages:
    93
    Nice looking lamp Phil!

  24. AussiePete

    AussiePete United States Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    3,643
    Location:
    Toowoomba Australia
    Well done, very interesting project. Thanks for sharing it with us.
    Cheers
    Peter

  25. MG

    MG United Kingdom Subscriber

    Offline
    Joined:
    Feb 13, 2017
    Messages:
    965
    Location:
    hampshire UK
    Very nice job, machine polished?

  26. phaedrus42

    phaedrus42 Subscriber

    Offline
    Joined:
    Jun 14, 2014
    Messages:
    2,050
    First washed with caustic soda to get the gunk off, followed by sponging off with citric acid. Then polished by hand with Autosol and buffed with a soft cloth wheel. I'm a bit wary of polishing founts with a hard stitched cloth wheel as I think the vibration may stress the brass.

  27. MG

    MG United Kingdom Subscriber

    Offline
    Joined:
    Feb 13, 2017
    Messages:
    965
    Location:
    hampshire UK
    Well it did a good job, i might have to look into some caustic soda, i bought some citric acid which doesn't do a bad job all things considered, so far all the polishing i've done is by hand with Autosol and it works quite well, pretty sure i shouldn't be trusted using something powered by electrickery to buff with!
