Tilley Torch Repair

Discussion in 'Fettling Forum' started by Sedgman, Apr 25, 2022.

  1. Sedgman

    Sedgman Subscriber

    Offline
    Joined:
    Nov 19, 2012
    Messages:
    700
    Location:
    Wimmera, Victoria
    Sick of going for the Tilley torch only to find it won't grip the vapouriser and slides down? Go to another meths jar and the torch is broken at the wires. Next one is dodgy and you have to bend the wires to get it to grip a bit?

    I'm darn sick of torches in poor condition coming with lantern purchases and being close to failing so I had an idea! :idea:

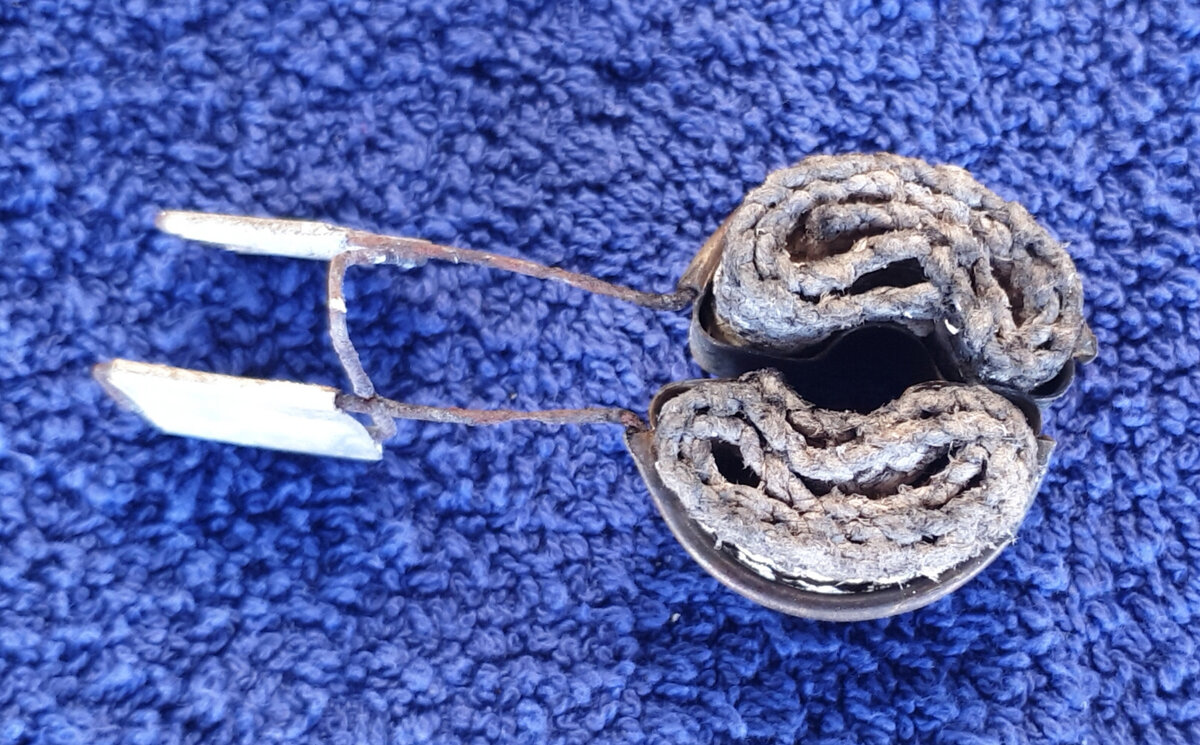

    Too loose and slides on vapouriser. Wires nearly ready to break.

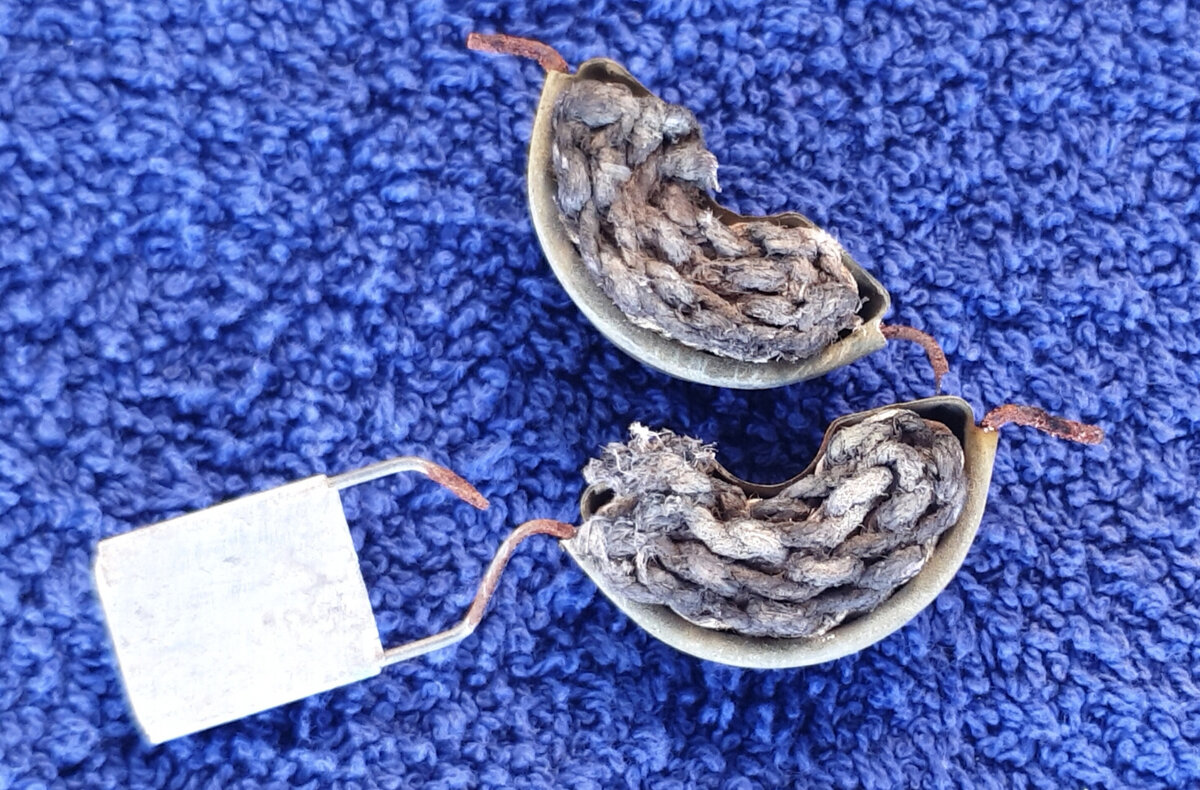

    Different type but the pressure of pushing it on has done it in.

    OK so you cut off the wire as close as possible to the spirit cups and then get out the silver solder and a blow torch.


    What's that, a real bulldog clip with a good amount of spring tension.

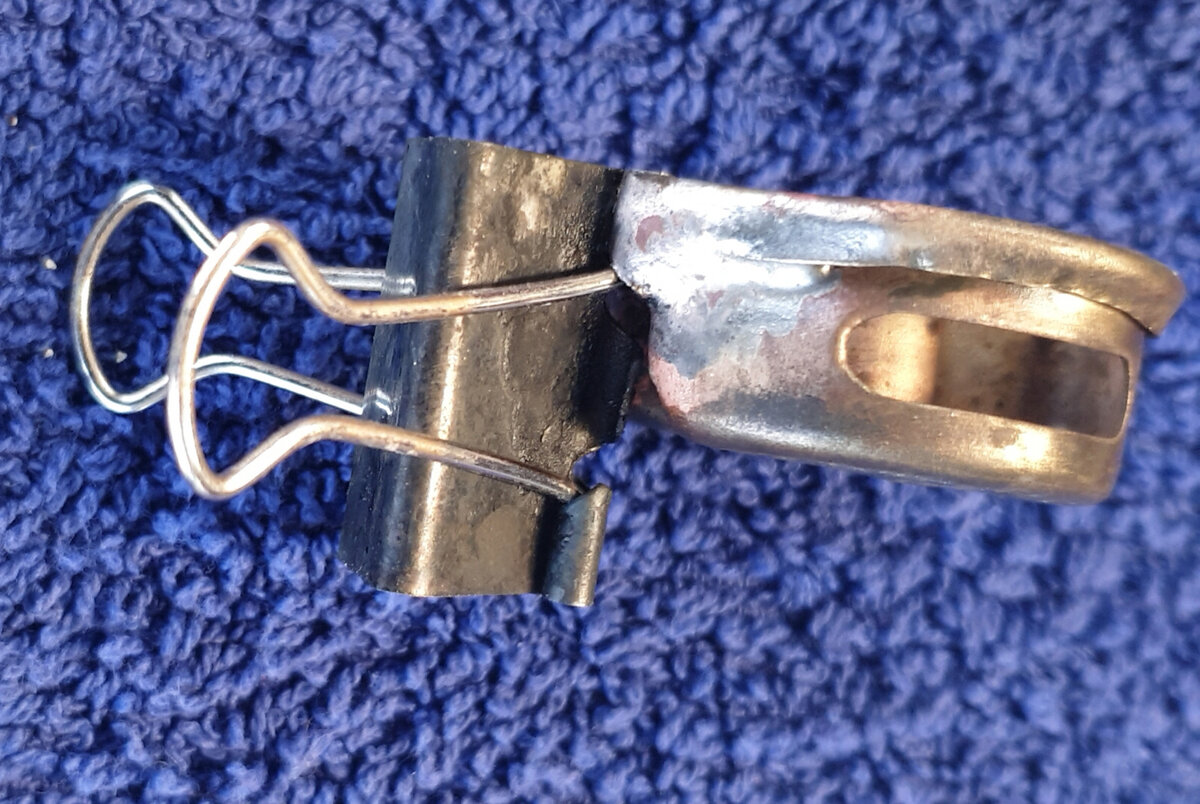

    Here's what its like with both sides soldered just to the top most tab part. I pulled the two wire handle bits off whilst brazing to avoid them getting permanently attached.

    Here is what it now looks like.

    The soldering has been finished.

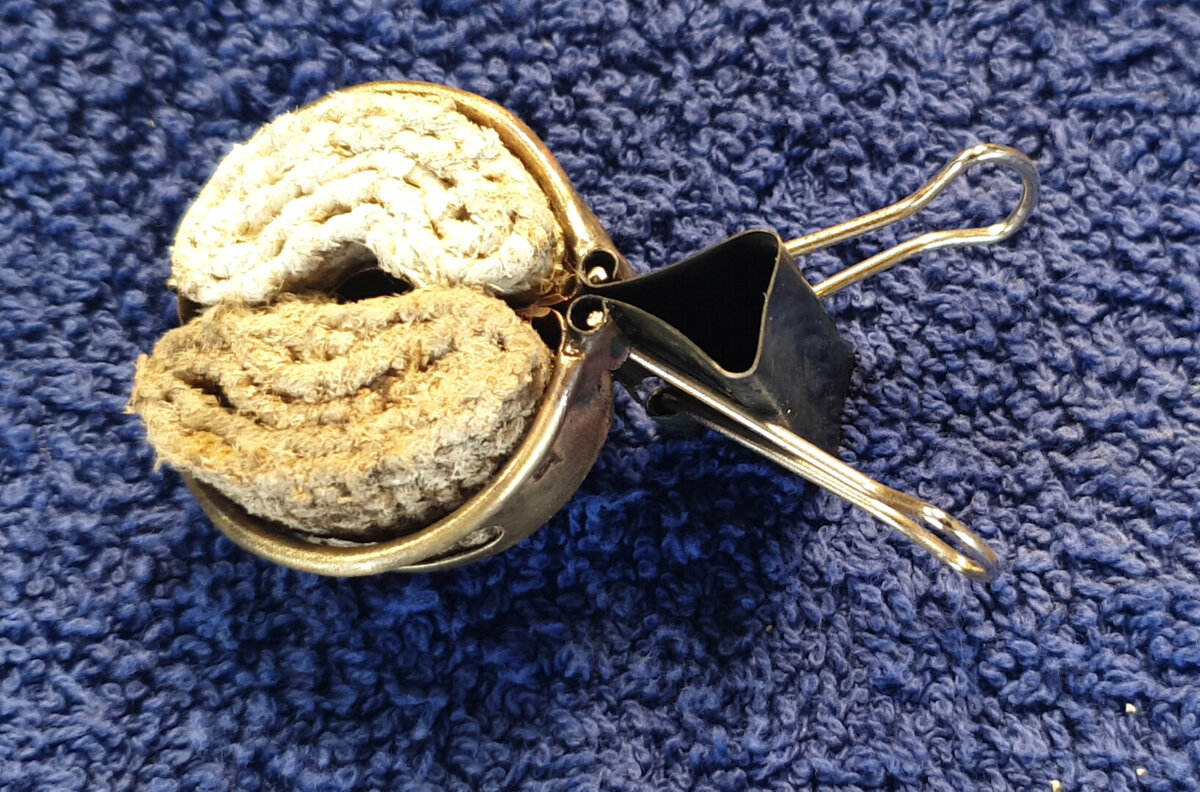

    The finished repair and now with a good grip.

    When aligning the bulldog clip it must be square on to the spirit cup or else the second cup will be too far forward or backwards to align correctly.

    Iain

    PS Apologies if this has been done before but I searched and could not find something like this.

  2. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,980
    Location:
    Somersby, New South Wales, Australia
    Iain, I think you are on to something.
    Looks like a good solid fix. The heat from silver soldering didn't anneal the spring?

  3. Sedgman

    Sedgman Subscriber

    Offline
    Joined:
    Nov 19, 2012
    Messages:
    700
    Location:
    Wimmera, Victoria
    Gooday Martin,

    Seems not to have as I applied the heat to just the corner tab. Spring is still springing!

  4. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    2,980
    Location:
    Somersby, New South Wales, Australia
    Well done :thumbup:

  5. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    13,024
    Location:
    Shetland Islands UK..
    Well fettled!:thumbup::thumbup:

  6. Sellig33

    Sellig33 France Subscriber

    Offline
    Joined:
    May 15, 2017
    Messages:
    646
    Location:
    Gujan-Mestras - Gironde - France
    This gives me a very good idea to make one !

  7. gideon

    Offline
    Joined:
    Jul 19, 2018
    Messages:
    18
    Location:
    strainger
    this is a success!

  8. Darryl Durdin

    Darryl Durdin Australia Subscriber

    Offline
    Joined:
    Dec 11, 2018
    Messages:
    1,304
    Location:
    Whyalla. South Australia. Australia
    Great idea, very resourceful

  9. george United States

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    3,175
    Location:
    USA
    Necessity is the mother of invention! Nice going!!:D/:thumbup::thumbup:
