Tilley X246 Pork Pie: full fettle and break down

Discussion in 'Fettling Forum' started by Tony Press, Apr 4, 2015.

  1. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,140
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Here is a full breakdown and reassembly of a Tilley X246 (Pork Pie with long handle).

    As found:

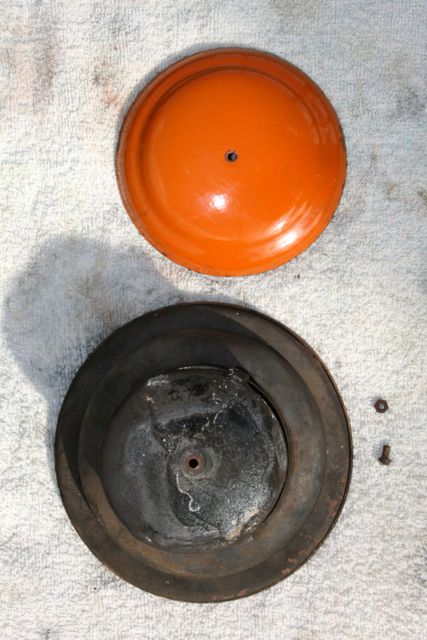

    It had some old fuel set hard like varnish in various places:

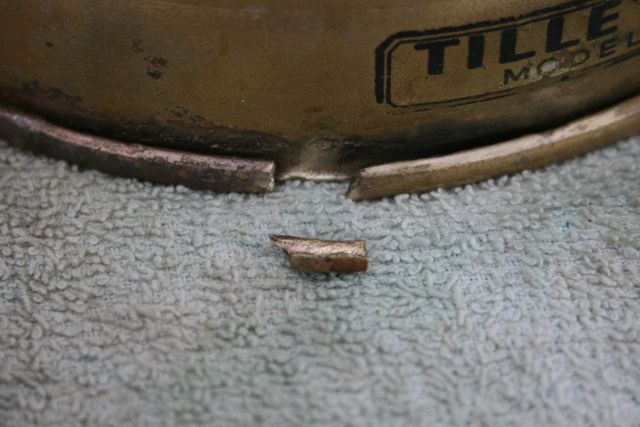

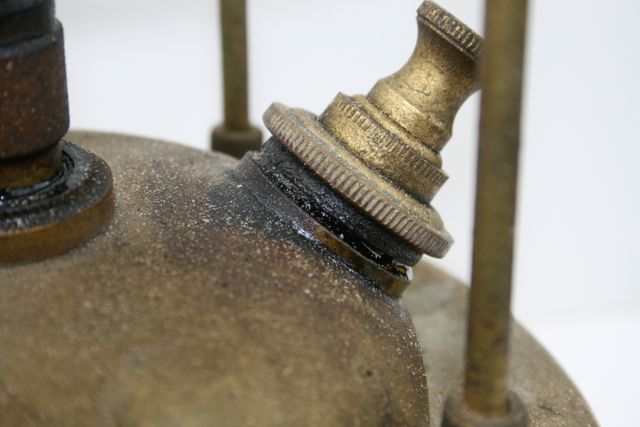

    At some stage the lamp had been dropped (I think) and the rim had split and broken. It had been repaired with some resinous material. There was also a fair amount of blue powder (looking like some copper-ish powder) which had accumulated in the rim of the tank:



    The brass hood had been bent at some stage:

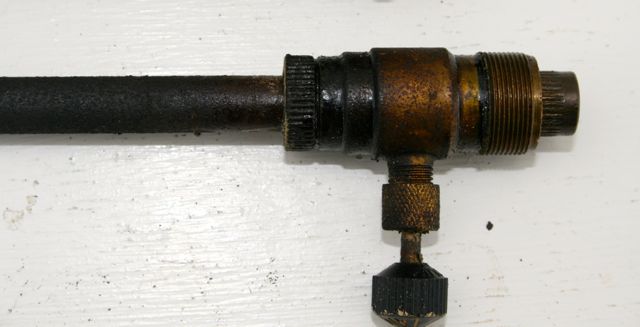

    The breakdown:

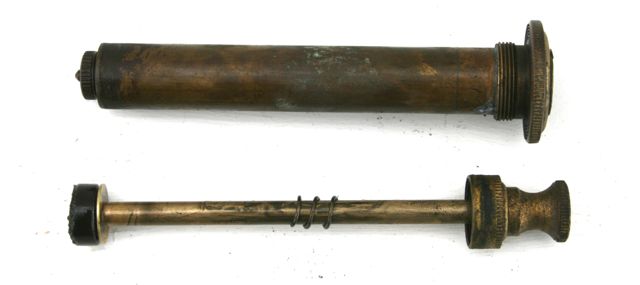

    Note the carbon on the pricker needle:






    The fettle:

    1. All components were disassembled and all metal parts (except the globe cage) were put into 1:3 vinegar:water solution for 1 hour.

    2. The parts were then put in 10% "Marine Clean" for three hours (except the tank, which was filled with the Marine Clean after the other parts were taken out).

    3. Any residue left on the components was removes with a cloth, or, if necessary, a Dremel rotary wire brush.


    Repairs:

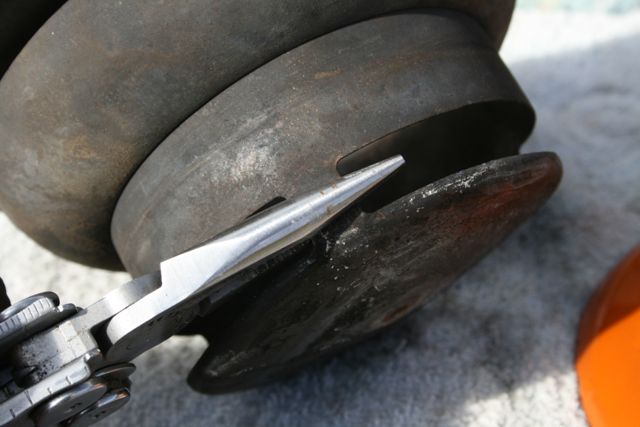

    1. The hood was easily straightened with pliers. The repair is not visible on full reassembly.




    The tank rim:

    The tank rim was a bit more difficult to fix.

    First the brass was cleaned:

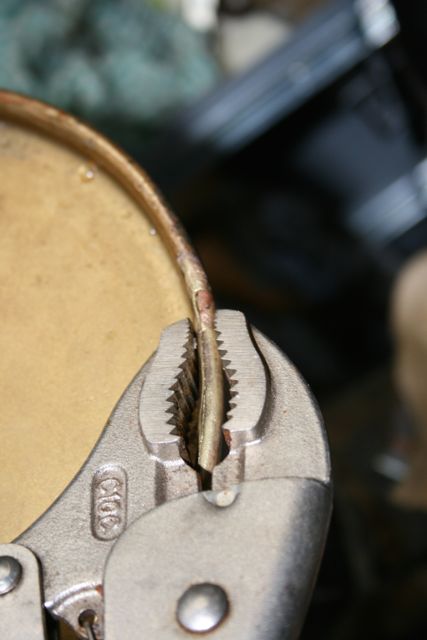

    Then the broken bit clamped in place:


    and the tank filled with water, turned upside-down, and the bottom also filled with water. The loose piece of brass was then soldered into place as best I could manage:


    The area was then filled in with epoxy and smoothed with the Dremel and fine sandpaper:




    More to come...


    Attached Files:

  2. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    5,140
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Part 2:

    The vapouriser was cleaned by "heating and quenching", then 3 hours in 60C bath of "Marine Clean" in the ultrasonic cleaner, followed by a good reaming out with a pipe cleaner. The Pricker was cleaned with fine sandpaper.



    All the other cleaned components were then reassembled.

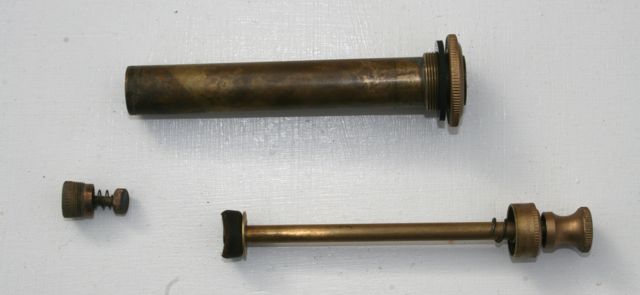

    The original leather was used in the pump. New seals and pips came from The Fettle Box:

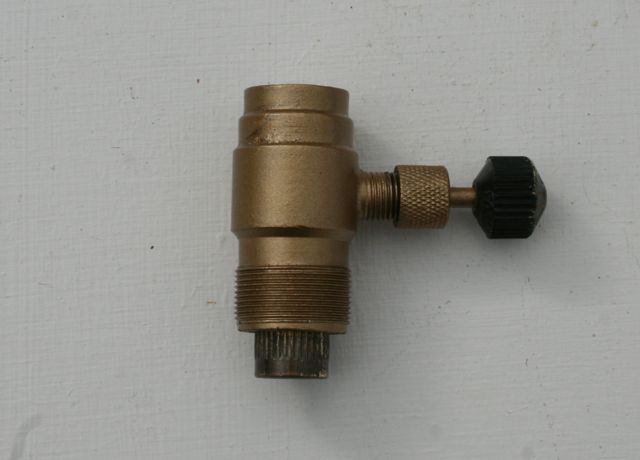

    This is the original burner assembly from the period. The components were put tightly back together with a smearing of copper grease:

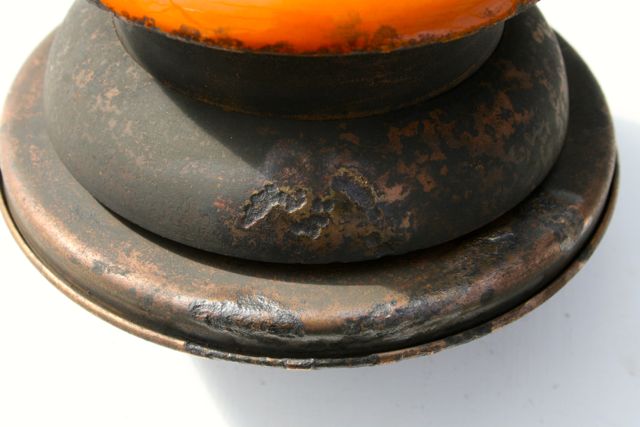

    Note the corrosion on the brass in the hood. There is also some of this on the tank (see above) near the broken rim:



    Repainting:

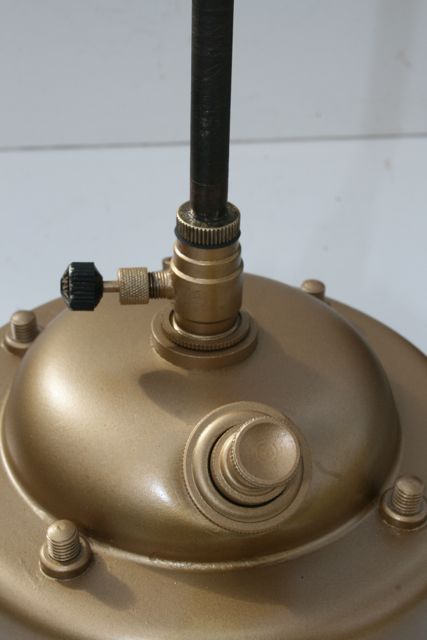

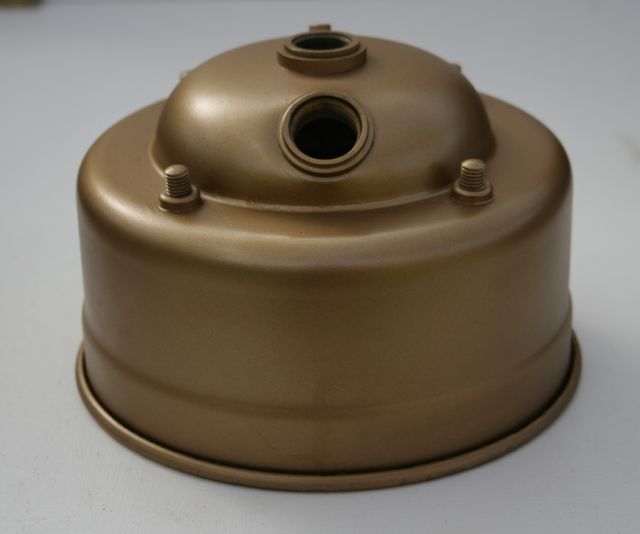

    The tank, cage and external parts of the pump and control cock were painted with "VHT" brand High Temperature "Universal Gold" and baked for 1 hour at 94C (200F). It's not an exact match to the original, but it's ok for a 'user'. I always leave the bottom of the tank 'as it came' as a point of reference:



    I used one of Matthias' Tilley transfers to replace the one it came with:



    I used a "Fukushima" mantle to test the vapouriser. I had to resort to using some of the Kevlar thread Kerry (Kerry640) had sent me:



    Much to my satisfaction, the lamp lit beautifully. The vaporiser was fine. Here it is in the middle of the day (today):



    Note the darkening of the colour of the hood cap when the lamp is going. This hood is in very good condition so I will use an old one and keep this hood for display purposes:



    The lantern came with an old style wick:

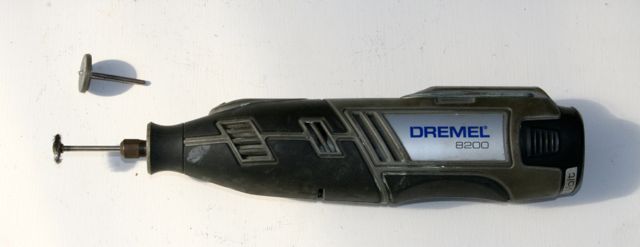

    These are becoming my most used fettling tools:
