Tilly Control Cock Metal Washer(?)

Discussion in 'Fettling Forum' started by Ernest Kimm, Jan 29, 2019.

  1. Ernest Kimm Korea, Republic of

    Offline
    Joined:
    Nov 21, 2018
    Messages:
    5
    Location:
    South Korea
    Hi, there.
    Could someone direct me how to assemble the control cock with metal washer(?) ?
    I've tried various orders and directions but failed.

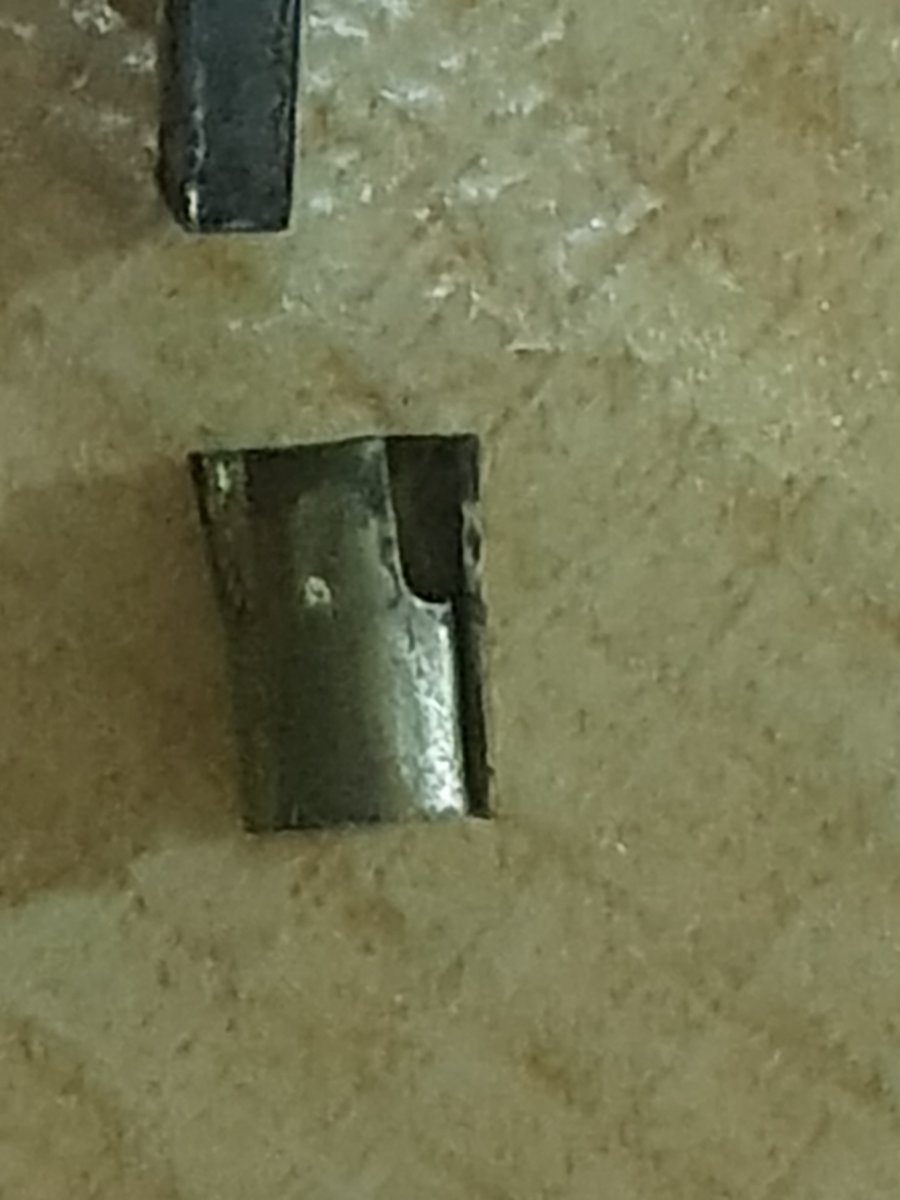

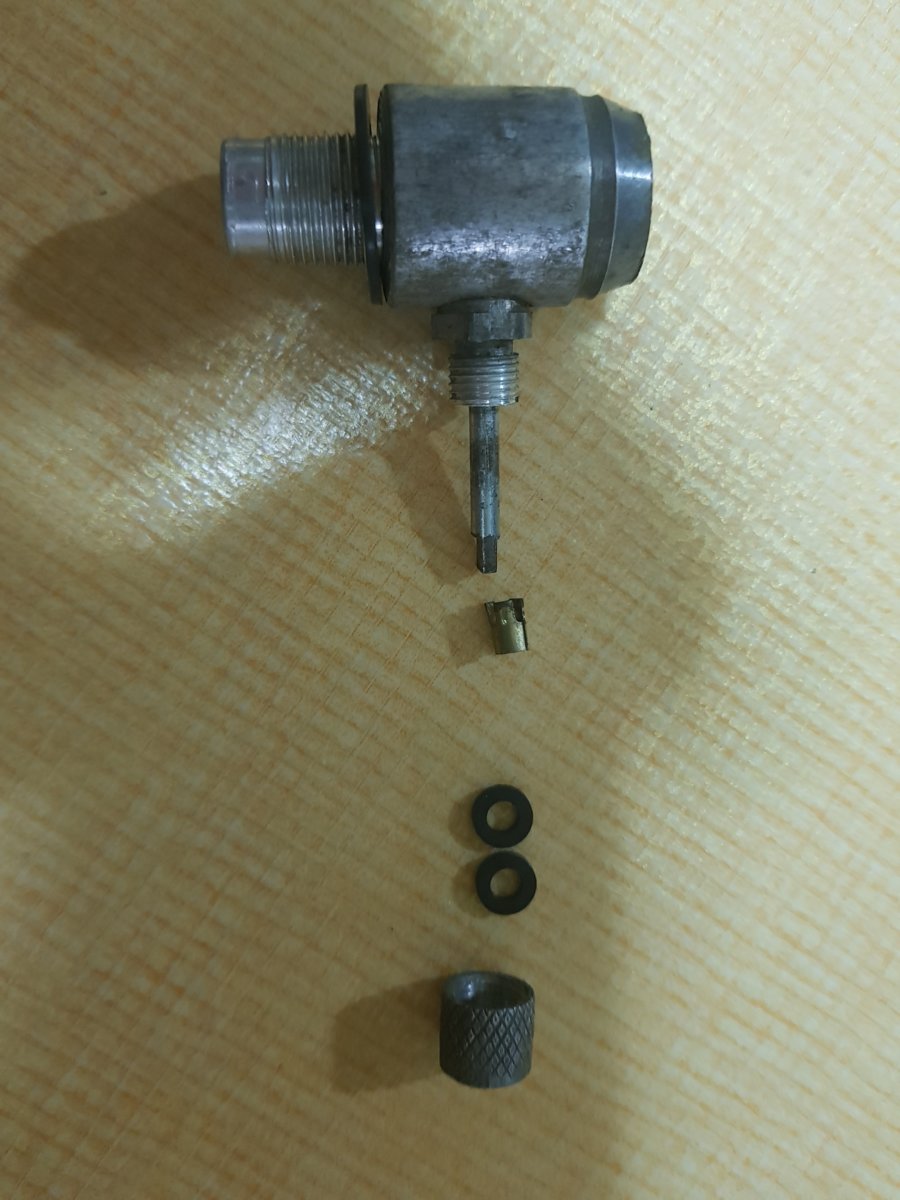

    20190130_051125.jpg 20190130_051104.jpg

  2. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    3,959
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    @Ernest Kimm

    That "washer" is from a push-on control wheel that fits over the end of the control spindle when everything else is assembled. What you need is the control wheel; the washer is no use.

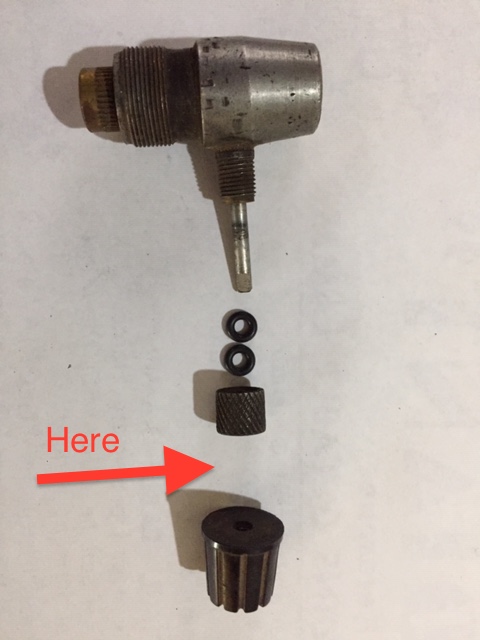

    See here:

    Service pack 1


    Tony

  3. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    576
    Location:
    Melbourne, Australia
  4. Ernest Kimm Korea, Republic of

    Offline
    Joined:
    Nov 21, 2018
    Messages:
    5
    Location:
    South Korea
    Thanks, Tony.
    I've got this cock from UK. Why this brass washer was installed at the wheel?
    By the way your photo would be self-explanatory for me.

  5. X246A

    X246A Bahrain Subscriber

    Offline
    Joined:
    Jan 11, 2011
    Messages:
    586
    Location:
    Norfolk, England
    @Ernest Kimm

    Welcom to the forum!

    Normally the "washer" is on the inside of the control knob and is not seen. Occasionally, when removing the knob it will part company and stay on the end of the rotating cam shaft.

    Regards, Jeremy

  6. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,469
    Location:
    North-East England
    The "washer" is simply a spring clip that holds the knob onto the control cock shaft. Push the clip into the hole in the back of the knob - from memory it goes in one way only. Then push the knob onto the shaft. That's all there is to it - don't over-think it...

  7. Ernest Kimm Korea, Republic of

    Offline
    Joined:
    Nov 21, 2018
    Messages:
    5
    Location:
    South Korea
    Yes, Jeremy.
    This is my first chance to see the "washer" for tilley 246 model.
    It would be always surprised for me to see the details from the old stuffs.

  8. Ernest Kimm Korea, Republic of

    Offline
    Joined:
    Nov 21, 2018
    Messages:
    5
    Location:
    South Korea
    Thanks David.
    Without that spring-clip, my knob works well.
    For the next maintenance, I'll try after your comments.

  9. Ernest Kimm Korea, Republic of

    Offline
    Joined:
    Nov 21, 2018
    Messages:
    5
    Location:
    South Korea
    Thanks Anthony. Your photo is quite clear for me.

  10. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    7,609
    Location:
    Shetland Islands UK..
    Welcome aboard!:thumbup:
