Tilly Lamp pressure issues.

Discussion in 'Fettling Forum' started by keith henman, Feb 2, 2019.

  1. keith henman United Kingdom

    Offline
    Joined:
    Feb 2, 2019
    Messages:
    7
    Location:
    Devon
    New to this forum first post.
    I have stripped down my Tilly lamp X246B. Replaced all the rubbers as per. But I cannot keep the pressure up unless I continually pump. All the filters are clean and the needle is working. Checked the pump under water works well. Cleaned the tank out and it's now all fresh fuel. The only seal I was not able to change was the one at the top of the tank as I'm struggling to get the nut of. For the life of me I cannot see where the pressure is leaking out. Any advice would be most welcome as I'm pulling what hair I have let out.

  2. Tony Press

    Tony Press Antarctica Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    3,759
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Welcome, Keith.

    Pump the tank and place the lantern in water to just over the control cock and see where the bubble appear.

    Cheers

    Tony

  3. Anthony

    Anthony Australia Subscriber

    Offline
    Joined:
    May 7, 2013
    Messages:
    520
    Location:
    Melbourne, Australia
    Keith, I suspect the only replies you are going to get are going to be things you have already tried.
    Let me be the first.

    If you have to keep pumping that much it has to be a substantial leak so fill it with fuel, shut off at the control valve, pressure it up and give it a swirl.

    Edit
    Huh, not the first :)

  4. ROBBO55

    ROBBO55 Subscriber

    Offline
    Joined:
    Oct 21, 2014
    Messages:
    1,023
    Location:
    Somersby, New South Wales, Australia
    G'day Keith and welcome to CPL
    As above
    Alsois the pump working, can you hear air going into the font when pumping? and have you given it 80 initial pumps during startup?

  5. keith henman United Kingdom

    Offline
    Joined:
    Feb 2, 2019
    Messages:
    7
    Location:
    Devon
    Right on this. I'll get back to you.

  6. keith henman United Kingdom

    Offline
    Joined:
    Feb 2, 2019
    Messages:
    7
    Location:
    Devon
    I've pumped the thing to death.....LOL.

  7. keith henman United Kingdom

    Offline
    Joined:
    Feb 2, 2019
    Messages:
    7
    Location:
    Devon
    And the pump is working well. Tested it in water.

  8. keith henman United Kingdom

    Offline
    Joined:
    Feb 2, 2019
    Messages:
    7
    Location:
    Devon
    Problem solved. The 'New' washer from the pump to the tank was not making a seal. "second 'New' washer has made a good seal. problem solved. Thank you all. I'm going to get some more lamps and restore them as well. Good fun.

  9. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,406
    Location:
    North-East England
    Which nut is this? If it's the large circular alloy one that holds the globe cage onto the top of the tank, that's it's only function - it's not associated with any seal.

    The only places air (as opposed to fuel or fuel vapour) can leak from is the seal under the control cock and the pump-tank seal. Best advice is as above i.e. do a dunk test of the whole lantern. Drain out the fuel, open the control cock, put your thumb over the jet, pump up the tank and then dunk the lantern in a bucket of water. If you dunk it to half-way up the vapouriser and keep your thumb over the jet it will be obvious where the leak is.

    If there's no apparent leak, then your pump isn't generating pressure - remove it from the tank and pump it vigourously. It should make a nice farting 'bbbrrraaaaapppp' sound as the NRV (non-return valve) operates at the far end...

  10. David Shouksmith

    David Shouksmith United Kingdom Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    6,406
    Location:
    North-East England
    Sorry, that's wrong for Tilley - I must have been thinking about Bialaddin/Vapalux. It should have read:-

    "The only place air (as opposed to fuel or fuel vapour) can leak from is the pump-tank seal."

  11. keith henman United Kingdom

    Offline
    Joined:
    Feb 2, 2019
    Messages:
    7
    Location:
    Devon
    Thanks it was the pump tank seal. Replaced the seal again and low and behold I have pressure. Thanks for your help.

  12. keith henman United Kingdom

    Offline
    Joined:
    Feb 2, 2019
    Messages:
    7
    Location:
    Devon
    Sorted thank you.

  13. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    7,434
    Location:
    Shetland Islands UK..
    Welcome aboard!:thumbup:

  14. Mollbhan

    Mollbhan United Kingdom Subscriber

    Offline
    Joined:
    Feb 5, 2019
    Messages:
    11
    Location:
    Highland
    Hope it doesn't offend the purist but I find plumbers PTFE tape wrapped round the threads pretty well guarantees a seal, works well for sealing a leaking control cock if the rubber 0 rings are not available and the heat does not seem to affect it.

  15. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    1,154
    Now we need a photo of your Tilley!

  16. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,439
    Location:
    Hertfordshire
    Plumbers PTFE will work OK but better to use the Gas tape which is thicker and designed for use with fuel. Normally more expensive and in a yellow case but readily available. I use it a lot for sealing glands. PTFE does stand considerable heat and is a simple quick and permanent fix. ::Neil::

  17. X246A

    X246A United Kingdom Subscriber

    Offline
    Joined:
    Jan 11, 2011
    Messages:
    516
    Location:
    Norfolk, England
    Hi folks

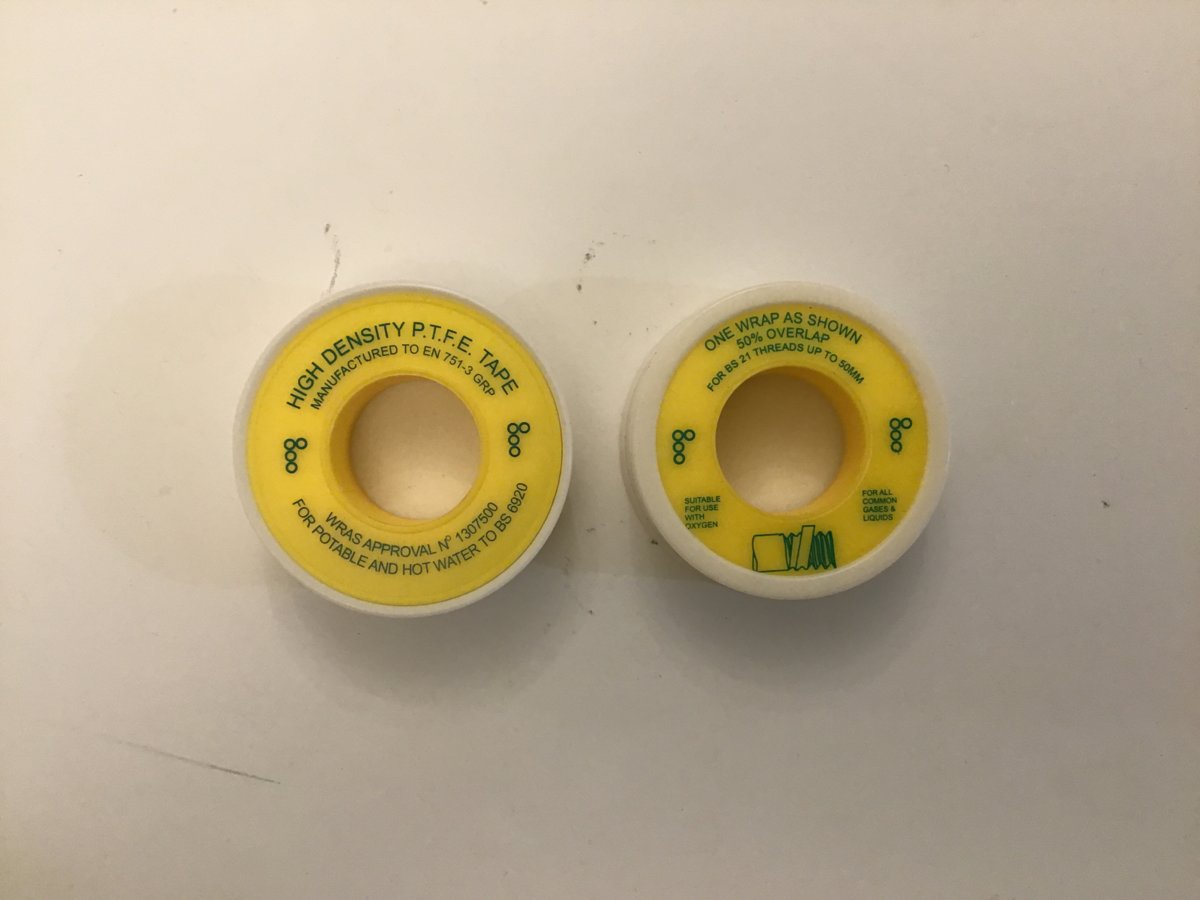

    This is the stuff that @Mackburner is recommending:


    When I had a problem with a seal on my Veritas 350 and was unable to remove the control wheel from the spindle without damaging it Neil suggested twisting gas often tape into a “string” and wrapping it round the spindle a couple of times. Three years later and still no leaks.

    Regards Jeremy

    Edit: corrected spelling error!

  18. Mackburner

    Mackburner United Kingdom Founder Member Subscriber

    Offline
    Joined:
    Sep 10, 2010
    Messages:
    5,439
    Location:
    Hertfordshire
    Yeah that's the stuff. It also has the advantage of a low friction coefficient so you can tighten the gland pretty hard and the spindle will still turn easily. Cheap, withstands heat well, safe with fuel, last for years, easy to fit and available at any plumbers merchant and all good DIY stores. What's not to like? I've been using this tape for many years now and it is a standard in my tool kit.
