UNIC Hollow wire

Discussion in 'UNIC-LUMIÈRE' started by karli, Jan 18, 2011.

  1. karli

    karli Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    679

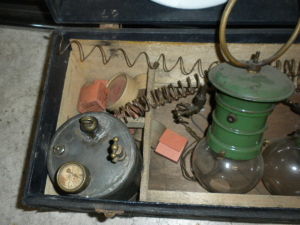

    Two hollow wire lanterns in a set, boxed.

    1295342810-a14.jpg 1295342831-a15.jpg

    Last edited by a moderator: Mar 31, 2017
  2. Conny C

    Conny C Sweden Subscriber

    Offline
    Joined:
    Nov 29, 2010
    Messages:
    692
    Karli, At last a new French lamp entry :thumbup:. It looks like a complete hollow wire system, with lamps using the Unic nr.2 burner. Have you had it running yet? It would be nice having pics of this system running.
    Cheers from La Gomera!

    /Conny

  3. karli

    karli Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    679
    Till today I hadn't the lamps running, cause

    the wires are not long enough.

    But the lanterns are complete

  4. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    835
    Are they made of copper?It seems to be a portable system. Is it?

  5. Colin M

    Offline
    Joined:
    Dec 4, 2010
    Messages:
    235
    Hi,

    Possibly a Salesman's Kit?

    I would sell my :evil: :evil: soul :evil: :evil: for that. On second thought I think my credits have run out.

    Colin

  6. karli

    karli Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    679
    @Juan

    The wires are made of copper

    @Colin

    don't say such things.

    I mean your credit. :shock:

    I think by myself, that it was saled as a kit.

  7. karli

    karli Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    679
    Today I got 30m copper wire.

    Tonight evening I go fettle

    On Saturday you will get some pics

  8. Juan

    Offline
    Joined:
    Dec 2, 2010
    Messages:
    835
    Great. I am in the process of fettling a hollow wire lamp and want to know how will you deal with the copper pipes. I have an idea but I want to see other's experience.

    Last edited by a moderator: Mar 31, 2017
  9. karli

    karli Subscriber

    Offline
    Joined:
    Jan 3, 2011
    Messages:
    679

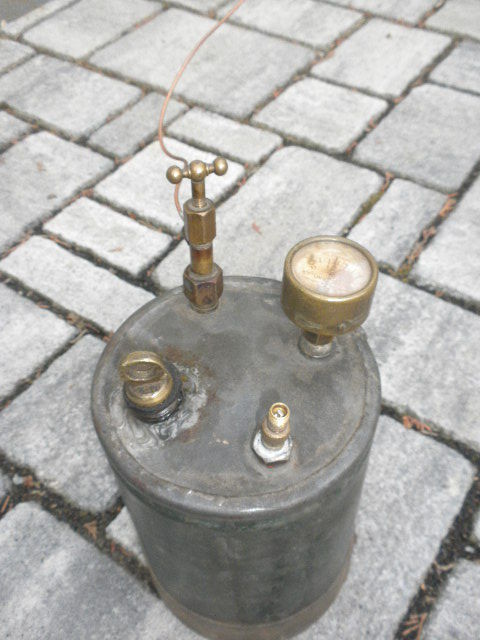

    Here are the picture from the lighting hollow wire UNIC.

    I t was a very easy starting procedure.
    Preheating with a Tilley clomb-
    Lighting, 2x needling, that was all after years of non lighting 1304311964-c1.jpg 1304311997-c2.jpg

    Last edited by a moderator: Mar 31, 2017
  10. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    9,541
    Location:
    Shetland Islands UK..
    Hello Karli, now that's a fine lamp, congratulations on getting it working, :thumbup: Jeff.

  11. Conny C

    Conny C Sweden Subscriber

    Offline
    Joined:
    Nov 29, 2010
    Messages:
    692
    Karli,

    Great stuff! Nice!

    /Conny

  12. Claus C

    Offline
    Joined:
    Dec 18, 2012
    Messages:
    1,788
    Hi Karli
    Can you send a link to where I can buy this sort of copperwire :?: Bitte.


    Claus C

  13. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    1,060
    Location:
    North Yorkshire
    Hi Claus, you could try searching for model makers supplies, especially for model steam engines. Here's one in England but I'm sure you'll find one closer to home. https://maccmodels.co.uk/materials-metal/copper-sections/copper-tubes/metric-copper-tube.html

    Unfortunately for me, I can get metric tube but I can't get metric nipples and gland nuts.

    Henry.

  14. Carlsson

    Carlsson Sweden Admin/Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    3,542
    Refrigeration tubing is ideal for this application, and you should be able to buy it at a refrigeration company or perhaps even a well supplied hardware- or plumbers store.
    I have even bought my copper tubing from USA at some occasion.
    It was more convenient at the time, and still cheap enough.

    1/8" is the size you want. Or 3mm. if that's easier to get.

    I have bought from this guy, but if you need longer tubings than 3m, you can go with e.g. this seller who has 16m coils.

  15. Claus C

    Offline
    Joined:
    Dec 18, 2012
    Messages:
    1,788
    Hehe I regretted not asking for this too when I pressed "add post" but you are right Henry that is something I also is going to need.

    Thanks for the link here too Christer, I wouldnt have thought of refriguators my self.

    Claus C

    Last edited by a moderator: Mar 31, 2017
  16. Carlsson

    Carlsson Sweden Admin/Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    3,542
    Cheers Claus!
    Yes, refrigeration tubing is perfekt for this.
    Right size, more than long enough and really soft.
    If you don't want to make the nuts for the fittings yourself, you can use parts made for car brakes. There are some different sizes, and M10X1 with inner threads is one available fitting for some cars.
    And I'm pretty sure your Globe follow the normal standard for lamp fittings, which happen to be just M10X1.

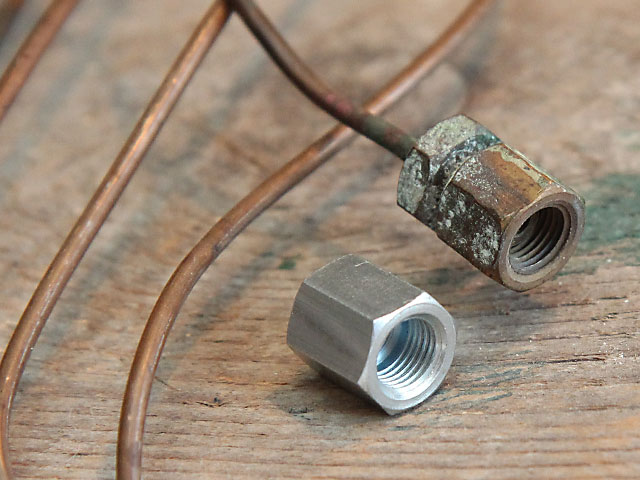

    Below you can see an original hollow wire for a Swedish lamp system with attachment nut as it came when ordering it back then.
    The loose nut is just simply bought at Mekonomen as a standard brake line part, and it is perfect for the job even if it doesn't look perfectly original. But that's easy to fix if desired.

    Last edited by a moderator: Mar 31, 2017
  17. Claus C

    Offline
    Joined:
    Dec 18, 2012
    Messages:
    1,788
    That is very informative and useable - Thanks Christer :thumbup:

    Claus C

  18. Carlsson

    Carlsson Sweden Admin/Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    3,542
    Anything to see that old Globe running! :lol:

  19. Claus C

    Offline
    Joined:
    Dec 18, 2012
    Messages:
    1,788
    I will do my best Sir, as if I was a fullblooded swede :lol:

    Claus C
