US Colemam 327 Collection examples

Discussion in 'L327, LQ327, QL327' started by coleman54, Aug 8, 2020.

  1. coleman54

    coleman54 United States Subscriber

    Offline
    Joined:
    Jul 21, 2020
    Messages:
    68
    Location:
    Oklahoma, USA

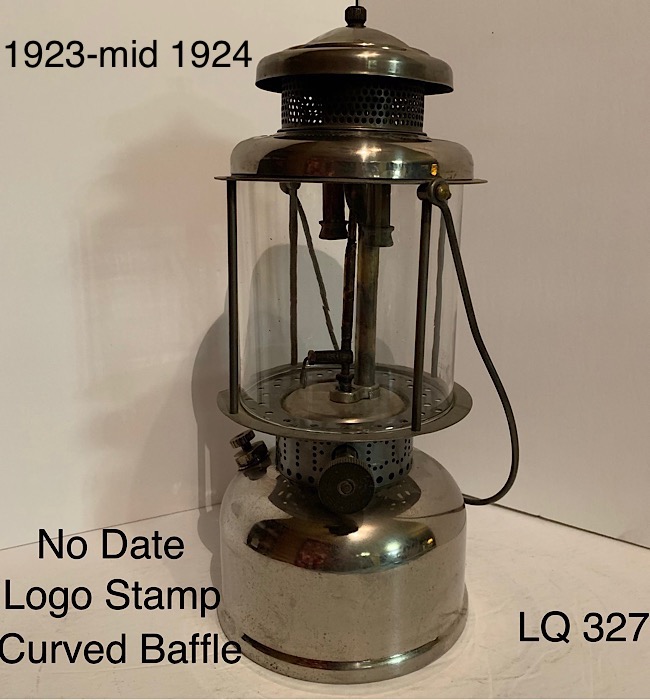

    C6B3D026-D0A2-408C-8FBA-FBAAD27DE224.jpeg 25D4CAC9-7A8D-4E3C-9E79-AB8A5C6DFC84.jpeg

    Last edited: Aug 8, 2020
  2. Tony Press

    Tony Press Australia Subscriber

    Offline
    Joined:
    Aug 28, 2012
    Messages:
    6,386
    Location:
    Stinkpot Bay, Howden, Tasmania, Australia
    Thank you for showing these examples.

    Cheers

    Tony

  3. george

    george United States Subscriber

    Offline
    Joined:
    Nov 8, 2011
    Messages:
    2,348
    Location:
    USA
    Very nice and well presented!
    Thank you!

  4. Wim

    Wim Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    790
    Location:
    Dendermonde, Belgium
    Thanks a lot Larry, now I can compare my (undated) 327 against the ones in your post to determine its age. I do have a question about the generators. On my 327 and my (both undated) wall (bracket?) and table lamp I found both the straight (77?) and piggy tail (99?) generators, not the R55 (with cleaning needle). Can you put any dates/years of usage on those? Thanks!

    All the best,

    Wim

    @coleman54

  5. BigStevie

    BigStevie United Kingdom Subscriber

    Online
    Joined:
    Dec 5, 2018
    Messages:
    1,387
    Location:
    Scottish Highlands
    @coleman54

    A very nice and useful presentation, thanks for sharing.

  6. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,756
    Location:
    Toowoomba Australia
    Well documented information, thank you for sharing.
    Cheers
    Pete

  7. coleman54

    coleman54 United States Subscriber

    Offline
    Joined:
    Jul 21, 2020
    Messages:
    68
    Location:
    Oklahoma, USA
    ////////////::::::::..........
    Hi Wim,
    US lanterns : Q99 coil was standard equipped new on all 327 from the beginning 1916 to their ending, last known date stamped 6/7 July 1936 (image shown above).

    The Q77 straight came about from the performance failure of the T88 straight (with internal pricker), both were standard new equipment on the introduced 220/228 slant in 1928. Q77 was also an advertised economical substitute for Q99 targeted to extended service users requiring frequent generator changes from carbon build up.

    The R55 with internal pricker and a control mechanism showed up about late 1929 as an upgrade on instant lite 220/228
    (some generator boxes state from a 1923 design) ?
    R55 became advertised new standard equipment starting in about 1937 on US L427, while it had already been the standard new on Toronto 427K (kerosene) since 1935, kerosene required frequent tip cleaning while in operation.

    Larry

    @Wim

  8. coleman54

    coleman54 United States Subscriber

    Offline
    Joined:
    Jul 21, 2020
    Messages:
    68
    Location:
    Oklahoma, USA
    Mica Globes :
    QL dimensions began 5”X5” same as torch lite 323, with a wide integrated reflector and swinging match lite door, tabs were altered to the bottom of vent to secure mica when operating the door. After an official Coleman number change September 1918 QL became LQ , “Both” 323 torch lite and now LQ mica dimensions changed to
    5 1/4” H X 5”, eliminating the need for tabs on vent, the LQ reflector was now taller and narrower, the change was gradual.
    In late 1924 LQ mica changed again to a sliding up and down window.

    Larry

  9. Wim

    Wim Subscriber

    Offline
    Joined:
    Jan 1, 2011
    Messages:
    790
    Location:
    Dendermonde, Belgium
  10. Alex Smith

    Alex Smith United Kingdom Subscriber

    Offline
    Joined:
    Jun 18, 2019
    Messages:
    870
    Location:
    Midlands, UK
    Larry, thank you. A most informative post. Regards, Alex

  11. coleman54

    coleman54 United States Subscriber

    Offline
    Joined:
    Jul 21, 2020
    Messages:
    68
    Location:
    Oklahoma, USA
  12. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    10,120
    Location:
    Shetland Islands UK..
    Grand old lanterns!:thumbup::clap::clap::thumbup:

  13. LanternTom

    LanternTom United States Subscriber

    Offline
    Joined:
    Apr 19, 2014
    Messages:
    261
    Location:
    Hebron, Indiana
    very nice timeline, thanks for sharing
