Vapalux M1

Discussion in 'M1' started by Pancholoco1911, Feb 4, 2020.

  1. Pancholoco1911 United States

    Offline
    Joined:
    Nov 26, 2019
    Messages:
    265
    Location:
    USA
    Got this Vapalux mailed to me and I was looking for information about what model this is and find some similar lanterns but no an exact match. Only stampings are “VAPALUX “ WILLIS BATES MADE IN HALIFAX ENGLAND and control knob looks to short to me and hard to reach for turning also there is a VAPALUX stamping with counterclockwise arrow in the knob, no stamping on the bottom of the fount/tank. Glass/globe seems like it doesn’t belong there to me, more like a Frankenstein. What do you guys think about this?
    Regards
    Francisco

    FA605BD2-D6F6-4119-965D-5888E5BC9AE2.jpeg 984C31E5-4894-48FF-A2F5-4A5D67D0F4C7.jpeg 8BC422F7-DD6E-44DA-91C3-A4B783C0B9C9.jpeg A85B0FEC-E507-4432-B6BC-3C3702351DDE.jpeg A7306286-E8FD-42CC-A8AF-D346D9F4027C.jpeg

    Last edited by a moderator: Feb 4, 2020
  2. Matty

    Offline
    Joined:
    Mar 22, 2015
    Messages:
    2,587
    Location:
    Queensland, Australia
  3. Hanzo

    Offline
    Joined:
    Feb 2, 2016
    Messages:
    421
    IMG_0247 - Edited.jpg

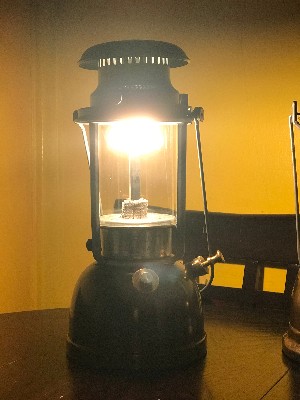

    M1, nice running lantern . Your glass is wrong, easily corrected by one from Base Camp, a knob too . A seal kit and with any luck the vaporiser is okay and it will be running . You can find the correct shade for them from Julian's.

    Last edited: Feb 4, 2020
  4. Carlsson

    Carlsson Sweden Admin/Founder Member

    Offline
    Joined:
    Sep 6, 2010
    Messages:
    3,703
    Moved to Vapalux and amended title.

  5. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    12,241
    Location:
    Shetland Islands UK..
    Your lantern should restore well enough and that glass will come in handy.

  6. steerpike451

    steerpike451 United Kingdom Subscriber

    Offline
    Joined:
    Jun 29, 2016
    Messages:
    104
    Location:
    Norfolk, UK.
    As others have said, Vapalux M1 with (post 1980) hood, glass and pricker control off an m320.
    The interesting thing is that you appear to have a tank with the large 1 1/4" filler cap rather than the usual 1" size- the very first M1's are supposed to have the larger filler but i don't think most people have ever seen one.
    There should be a stamping on the side of the collar that looks like;
    21C
    129-6558
    \|/
    XXXX where "XXXX" is the year of manufacture (these are military ID markings)

  7. Pancholoco1911 United States

    Offline
    Joined:
    Nov 26, 2019
    Messages:
    265
    Location:
    USA
    @steerpike451 no other stampings on the collar than the ones mentioned on my first post. Thanks for the info on control cock and probably I’ll be in the search for the right one.

    @JEFF JOHNSON Thanks, I’m probably going to save it for future lantern project.

    @Carlsson Thank you, had no idea where to start.

    @Hanzo Thank you, I will look to that site an order the right one. I haven’t lit this one yet but previous owner told me that was running.

  8. Jon Lander United Kingdom

    Offline
    Joined:
    Jan 1, 2020
    Messages:
    36
    Location:
    Nottinghamshire
    @Hanzo have you a link for Julian’s please.

    thanks Jon

  9. Henry Plews

    Henry Plews Subscriber

    Offline
    Joined:
    Jun 23, 2014
    Messages:
    2,045
    Location:
    North Yorkshire
  10. Jon Lander United Kingdom

    Offline
    Joined:
    Jan 1, 2020
    Messages:
    36
    Location:
    Nottinghamshire
  11. steerpike451

    steerpike451 United Kingdom Subscriber

    Offline
    Joined:
    Jun 29, 2016
    Messages:
    104
    Location:
    Norfolk, UK.
    Been thinking about why there are no MOD stampings on your lantern, and remembered that W&B also made lanterns under contract for the Israel Defence Forces, like this one: 1970s Vapalux M1 Military Version
    Same collar with just the "Vapalux Halifax" stamp.
    Now we just have the mystery of how a 1967ish IDF lantern made its way to you in California...

  12. Pancholoco1911 United States

    Offline
    Joined:
    Nov 26, 2019
    Messages:
    265
    Location:
    USA
    Have no idea either. Still doing some research but this was shipped to me all the way from North Carolina. I’ll ask seller for more info in this
