Veritas P350

Discussion in 'Fettling Forum' started by bp4willi, Dec 2, 2020.

  1. bp4willi

    bp4willi Germany Subscriber

    Offline
    Joined:
    Jan 21, 2014
    Messages:
    575
    Location:
    Niers, Germany
    Hi,
    I received this lantern from a fellow Belgium collector.
    A Uk made Dutch Army lantern.
    Very similar to Coleman style.
    But with 350cp a bit brighter than the usual single or doublemantle petrol coleman.

    Needs pre.heating with alcohol.
    Needed some minor fettling.
    The burner grid was missing. But the seller had spares.

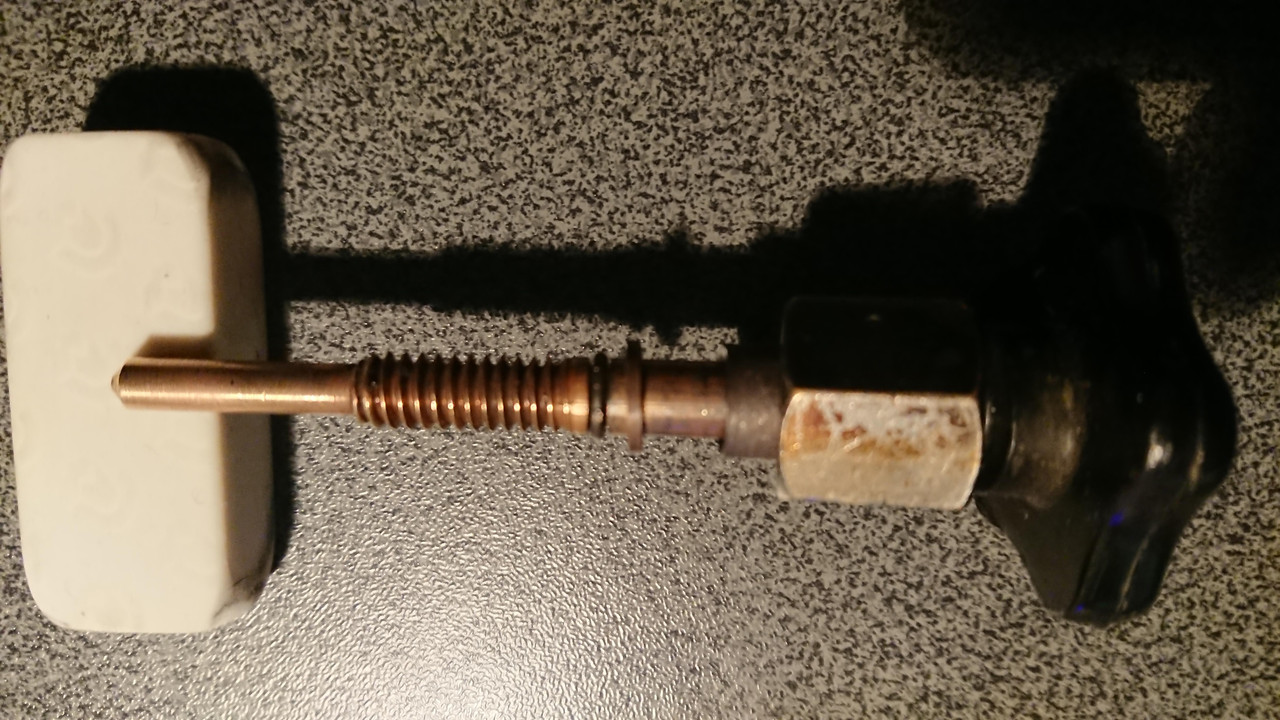

    The needle at the tip of the rod was missing too. I replaced it with a chinese acupuncture needle. Hard solder to the rod.
    Pump valve was leaking. Needed thorough cleaning.
    Aftee multiple disassemblies , it now works fine.
    I decided to keep the rubber seal at the valve. Despite i know this to be a weak point for potential fail if no viton.
    We,ll see.
    Lantern is said to be from the 60ties
    IMG_20201203_000234.jpg IMG_20201123_002725.jpg

  2. JEFF JOHNSON

    JEFF JOHNSON United Kingdom Subscriber

    Offline
    Joined:
    Nov 28, 2010
    Messages:
    10,816
    Location:
    Shetland Islands UK..

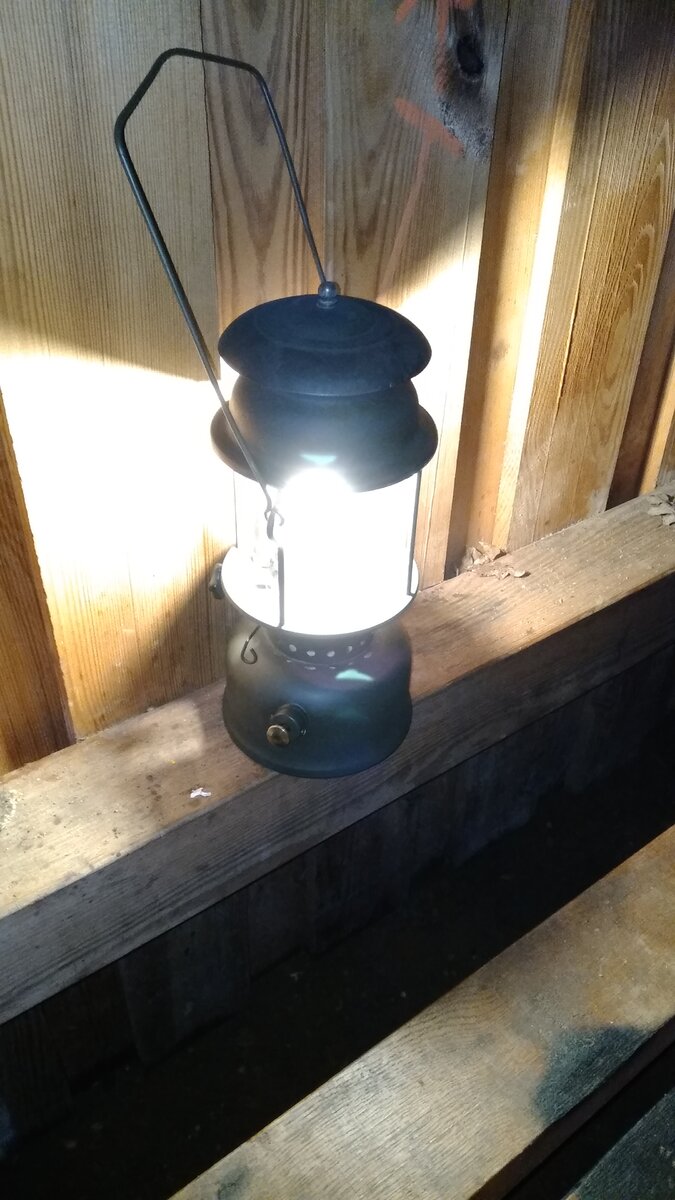

    It's working well!:thumbup:

  3. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,108
    Blimey, it looks bright! Nice fettle.

  4. primaxel

    Offline
    Joined:
    Aug 31, 2017
    Messages:
    74
    Location:
    Germany
    Good job :thumbup:
    Which dimensions viton seals do you need?
    Maybe i can help you...

  5. ColinG

    ColinG United Kingdom Subscriber

    Offline
    Joined:
    Oct 2, 2017
    Messages:
    3,108
    Looking at the control valve and the style of pump it appears to be a Coleman Fuel version.

  6. bp4willi

    bp4willi Germany Subscriber

    Offline
    Joined:
    Jan 21, 2014
    Messages:
    575
    Location:
    Niers, Germany
  7. bp4willi

    bp4willi Germany Subscriber

    Offline
    Joined:
    Jan 21, 2014
    Messages:
    575
    Location:
    Niers, Germany
    @primaxel
    I would rather replace the rubber/viton seal in the valve shaft
    with graphite packing.

  8. primaxel

    Offline
    Joined:
    Aug 31, 2017
    Messages:
    74
    Location:
    Germany
  9. AussiePete

    AussiePete Australia Subscriber

    Offline
    Joined:
    Nov 21, 2015
    Messages:
    2,911
    Location:
    Toowoomba Australia
    @bp4willi
    Well done on Your fettle and she’s looks to be running well.
    I do like the Veritas lanterns, when fettled they’re proving to be reliable runners.
    Cheers
    Pete
